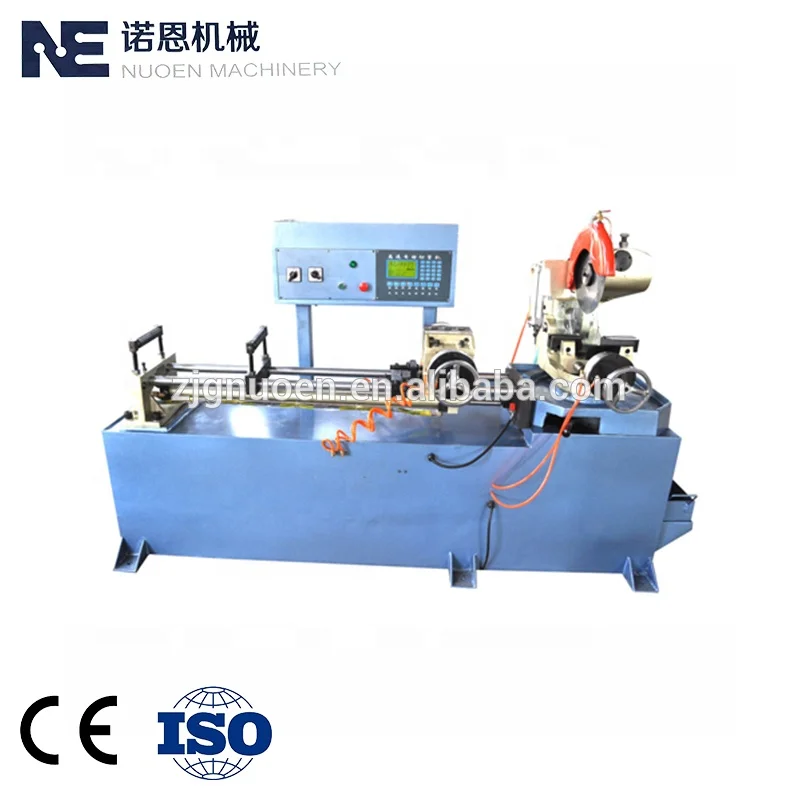

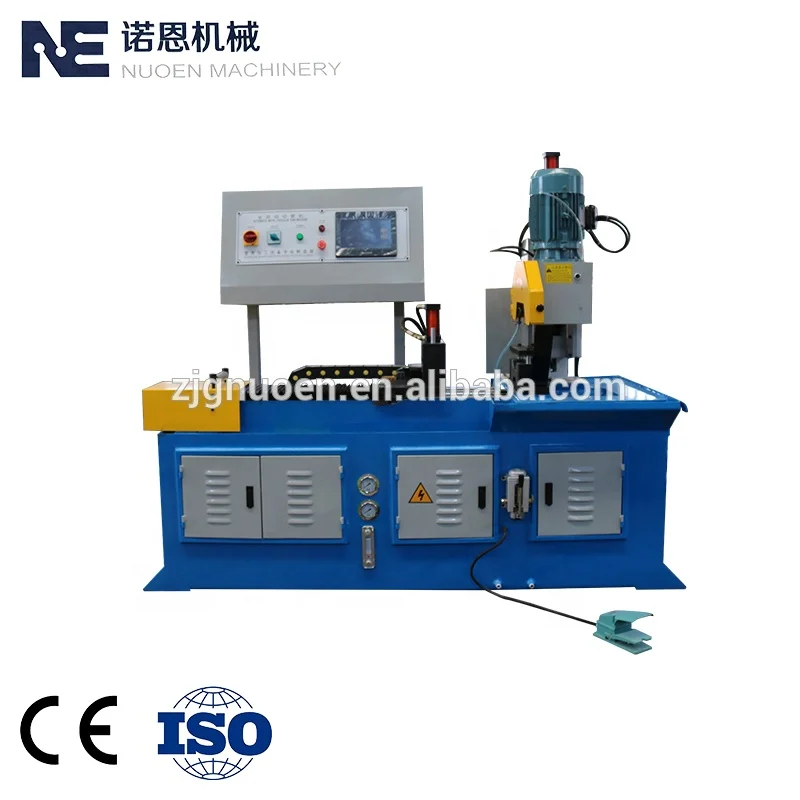

RT 315CNC Servo feeding automatic tube/ pipe Sawing Machine with upper and lower clamping

Product Overview

Description

 Rt-315CNC Automatic Hydraulic Metal Tube/pipe Sawing Machine

 A. Main technical parameters model introduction:

Rt-315CNC servo (pull tail) type metal circular sawing machine is an automatic clamping, automatic feeding, automatic feeding type metal cutting machine tool. The feeding adopts imported servo motor. The feeding speed is fast, and the speed is adjustable, and the precision is high. Different sizes can be cut on one tube. It can cut all kinds of ordinary steel, stainless steel, copper, aluminum and other metal materials with different cross-section shapes. This product avoids the cutting of the tailings separately before the automatic cutting machine is cut, saving labor.

 The machine has the characteristics of simple operation, low noise, no dust pollution, good sawing quality, etc.; and the saw cut surface has no flanging and burr, eliminating the need for two processing steps, greatly improving productivity.

 Machine dimensions: 2950mm × 1550mm × 2100mm (subject to the actual model)

Machine weight: 1100Kg (subject to the actual model)

1: Feeding speed 300mm precision ball screw per second

2: feeding speed 500mm racks per second

3: feeding accuracy 0.02mm precision ball screw per meter

4: feeding accuracy 0.15mm gear rack per meter

B. Main technical parameters:

38*38mm

C. Main component parts configuration:
