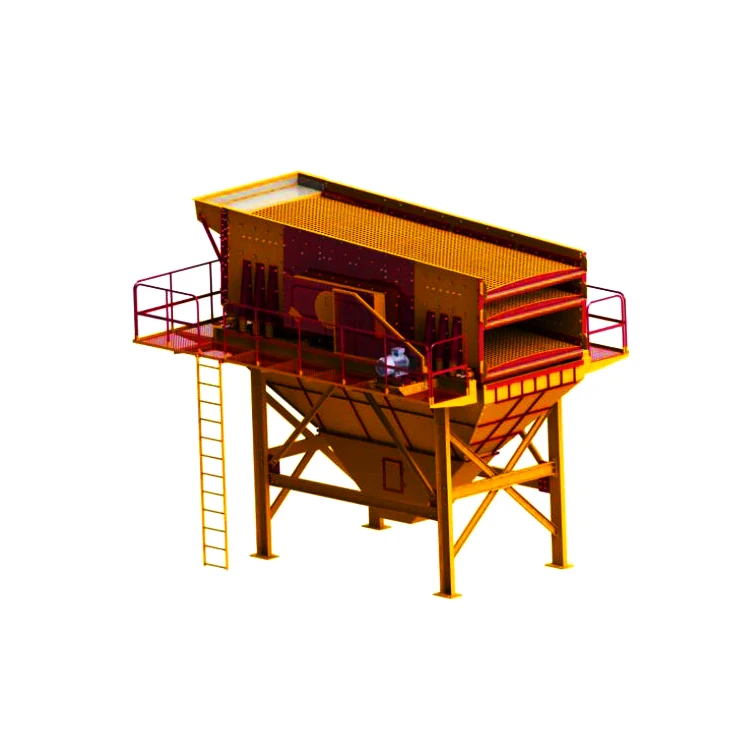

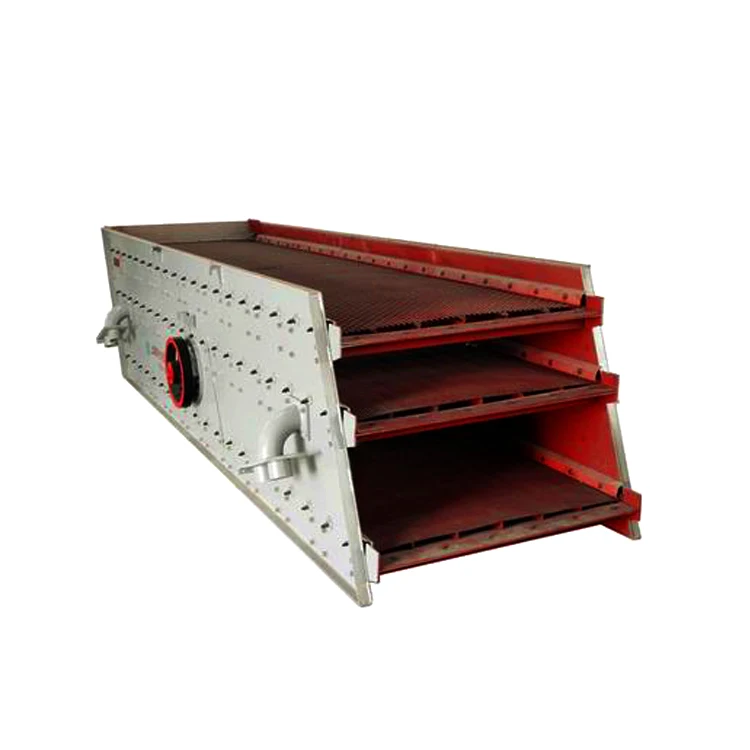

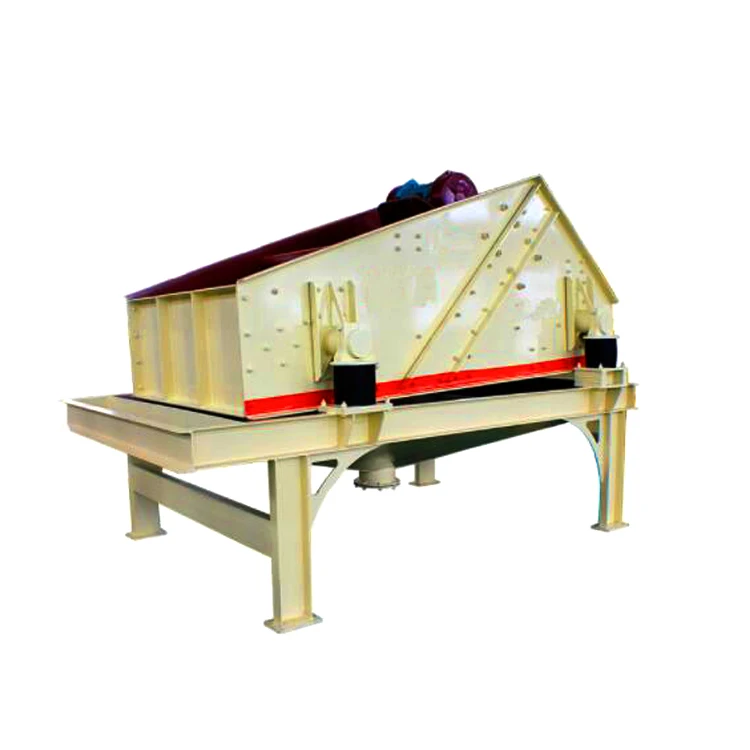

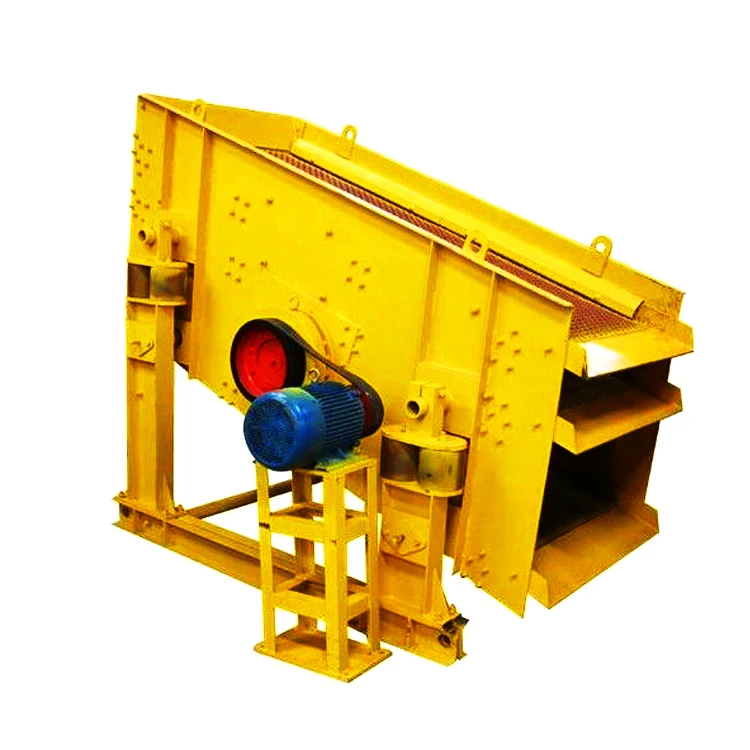

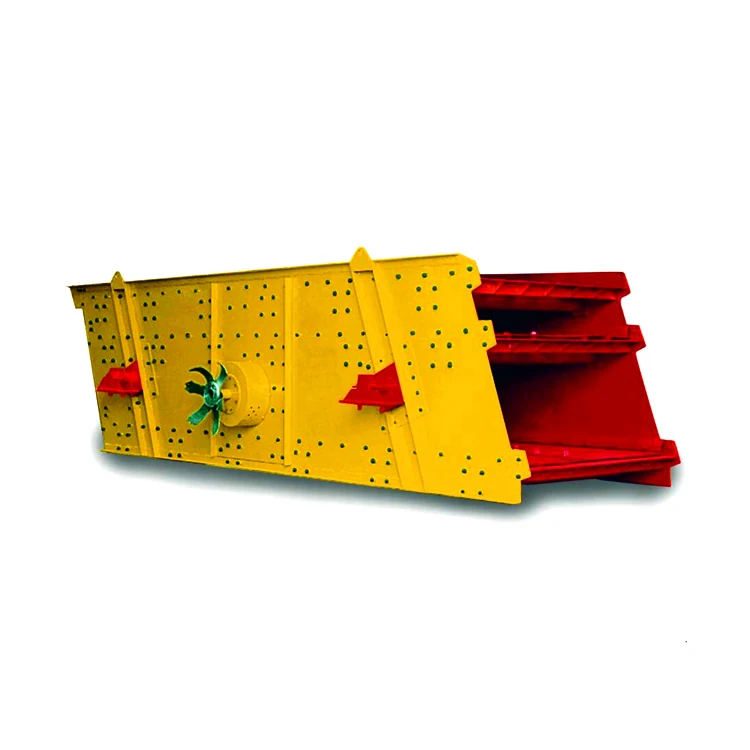

Reciprocating shale slurry shaker vibrating screen machine sieving mesh do circular motion,is a kind of multilayer several efficient new type of vibrating screen,The machine adopts cone postures eccentric shaft vibrator and eccentric block to adjust the amplitude,the material drops down the long line.It has the advantages of reliable structure,strong exciting force,high efficiency,low noise and durable,easy maintenance,use of safety.It is widely used for classification in mining,construction material,transportation,energy etc.
Features
1.The material sieve line length is long, and the screening specifications are many.
2.The block eccentricity is used as the exciting force, and the exciting force is strong.
3.The sieve beam and the screen box are connected by high-strength bolts without welding.
4.The sieve machine has a simple structure and is convenient and quick to repair.
5.Adopting small amplitude, high frequency and large dip angle structure, the machine has high screening efficiency, maximum processing, long life, low power consumption and low noise.
Working Principle
Reciprocating shale slurry shaker vibrating screen machine sieving mesh mainly consists of the eccentric block vibrator, screen box, motor, and supportive device. Through the flexible coupling, the motor drives the eccentric block of the vibrator at high rotary speed, generating the centrifugal force, and then causing the screen box did circular movement by the amplitude. After that, the materials in the slope screen surface will be cast continuously by the force generated from the screen box, then realizes the purpose of classifying.
Technical data
Model
Screen Net Layers
Screen hole dimensions (mm)
Max feed-in size (mm)
Processing capacity (m3/h)
Vibration frequency (r/min)
Double amplitude (mm)
Motor power (kw)
Screen face tilt angle
Screen face spec. (mm)
Weight (kg)
Dimensions (L*W*H) (mm)
2YK1225
2
4-50
400
8-60
800-970
8
5.5
20
1200*2500
3500
3040*1840*800
3YK1225
3
4-50
400
10-70
800-970
8
5.5
20
1200*2500
3850
3040*1840*1200
2YK1230
2
4-50
400
12-78
800-970
8
7.5
20
1200*3000
4200
3390*1900*800
3YK1230
3
4-50
400
13-80
800-970
8
7.5
20
1200*3000
4600
3537*1900*1200
2YK1237
2
4-50
400
15-86
800-970
8
7.5
20
1200*3700
4600
4090*1900*800
3YK1237
3
4-50
400
16-90
800-970
8
7.5
20
1200*3700
5200
4400*1950*1200
2YK1535
2
5-50
400
20-125
800-970
8
11
20
1500*3500
5890
4552*2250*900
3YK1535
3
5-50
400
21-125
800-970
8
11
20
1500*3500
6700
4552*2250*1600
2YK1545
2
5-50
400
22-150
800-970
8
15
20
1500*4500
6330
5400*2250*1600
3YK1545
3
5-50
400
22-150
800-970
8
15
20
1500*4500
6800
5400*2250*1700
2YK1548
2
5-50
400
22.5-162
800-970
8
15
20
1500*4800
6980
5300*2200*860
3YK1548
3
5-50
400
22.5-162
800-970
8
15
20
1500*4800
7600
5752*2200*1600
2YK1848
2
5-80
400
25-206
750
11
15
20
1800*4800
9080
6140*2470*1380
3YK1848
3
5-80
400
32-276
800-970
8
18.5
20
1800*4800
9600
6140*2710*1780
2YK1854
2
5-80
400
32-312
800-970
8
18.5
20
1800*5400
10150
6500*2600*1300
3YK1854
3
5-80
400
32-312
800-970
8
22
20
1800*5400
10840
6960*2600*1630
2YK1860
2
3-100
400
50-475
870
5-9
22
20
1800*6000
10900
7150*2800*1550
3YK1860
3
3-100
400
50-475
870
5-9
22-30
20
1800*6000
11500
7150*2800*1800
2YK2160
2
5-100
400
65-586
970
8
30
20
2100*6000
11780
7300*2950*2000
3YK2160
3
5-100
400
65-586
970
8
30
20
2100*6000
12800
7300*2950*2000
2YK2460
2
5-100
400
70-620
970
8
37
20
2400*6000
13800
7450*3230*1500
3YK2460
3
5-100
400
70-620
970
8
37
20
2400*6000
14800
7450*3230*1910
2YK2860
2
5-100
400
200-700
970
8
37
20
2800*6000
16000
8380*3500*1500
3YK2860
3
5-100
400
200-700
970
8
37
20
2800*6000
16000
8380*3500*1990
2YK3072
2
5-100
400
250-800
750
8
22*2
20
3000*7200
18000
7800*4520*1750
3YK3072
3
5-100
400
250-800
750
8
22*2
20
3000*7200
18000
8000*4520*1750
Packaging & Shipping
1.International export standard packing of Reciprocating shale slurry shaker vibrating screen machine sieving mesh
2.small parts are woodened box package 3.main engine nude,container,or customer'requirement
