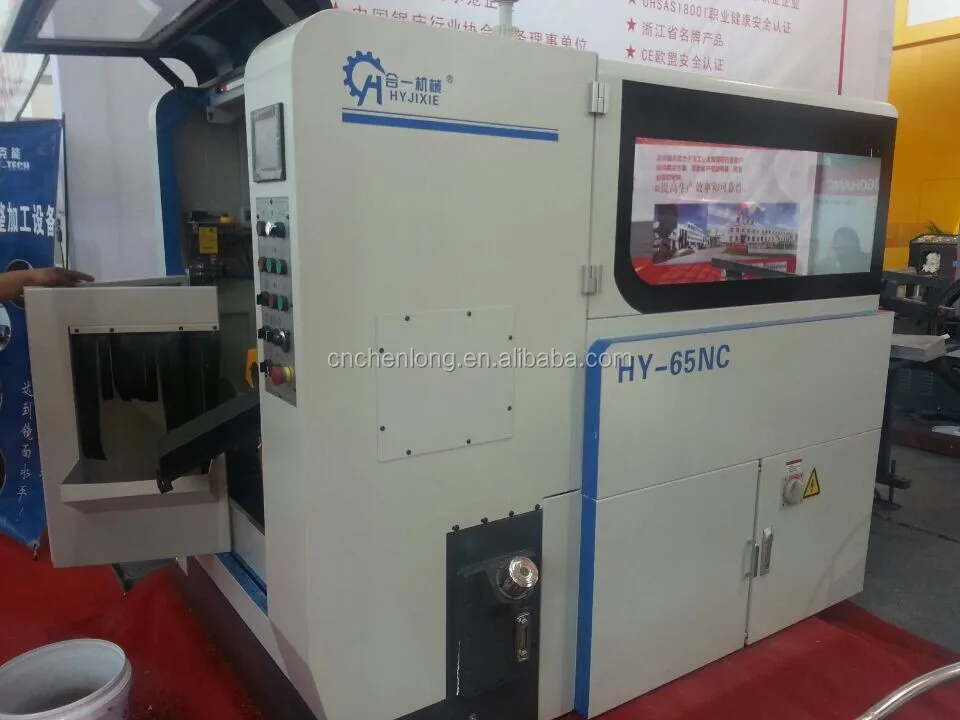

CHENLONG HY 65NC Circular Metal Cutting Band Saw Machine
- Category: >>>
- Supplier: Zhejiang Chenlong Sawing Machine Co. Ltd.
Share on (62336002201):
Product Overview
Description
| Product parameters | |
| Max. cutting capacity: | 65mm |
| Min. cutting capacity: | 8mm |
| TCT saw blade dia.: | 250mm×2t; 280mm ×2t; 285mm ×2t |
| HSS saw blade dia.: | 250~285mm ×2t |
| Cooling method: | Oil mist cooling and lubrication (Italian ILC blade lubrication system) |
| Main motor: | 7.5kw(4p) |
| Spindle speed: | 0~152RPM |
| Blade feeding mode: | Servo control |
| Blade retraction speed: | 100mm/s |
| Blade feeding speed | 0~80mm/s |
| Workpiece feeding: | Servo motor drive |
| Workpiece feeding speed: | 400mm/s(rated speed); 600mm/s(Max. speed) |
| Workpiece clamping: | Front vices clamping include horizontal and top clamping back vice clamping is only horizontal clamping. |
| Cut off length: | >10mm |
| Stub bar setting range: | 8~80mm |
Workpiece length (which could be on the supporting rack): | 3500~6500mm |
| Supporting rack loading capacity: | |
| Machine weight: | 2250kgs(including the workpiece supporting rack) |
