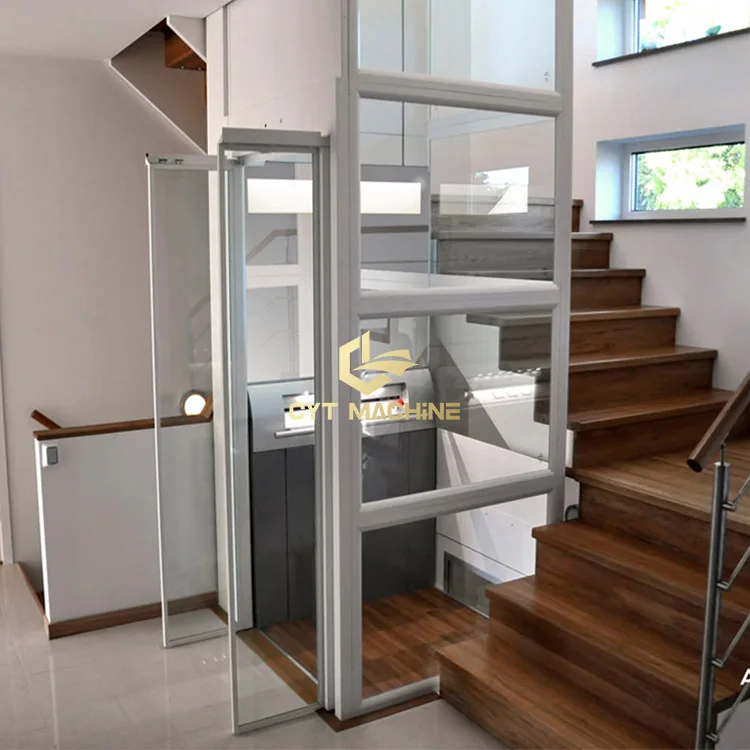

Customized Affordable 300Kg Capacity Small Home Elevator Lift According to Your Request
- Category: Elevators >>>
- Supplier: Shandong Chuangyite Machinery Co. Ltd.
Share on (62336023983):
Product Overview
Description
Products Description

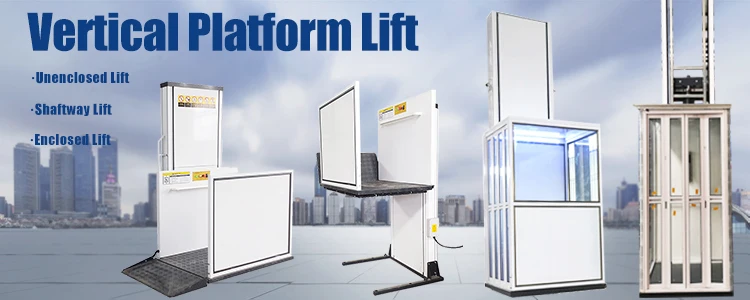

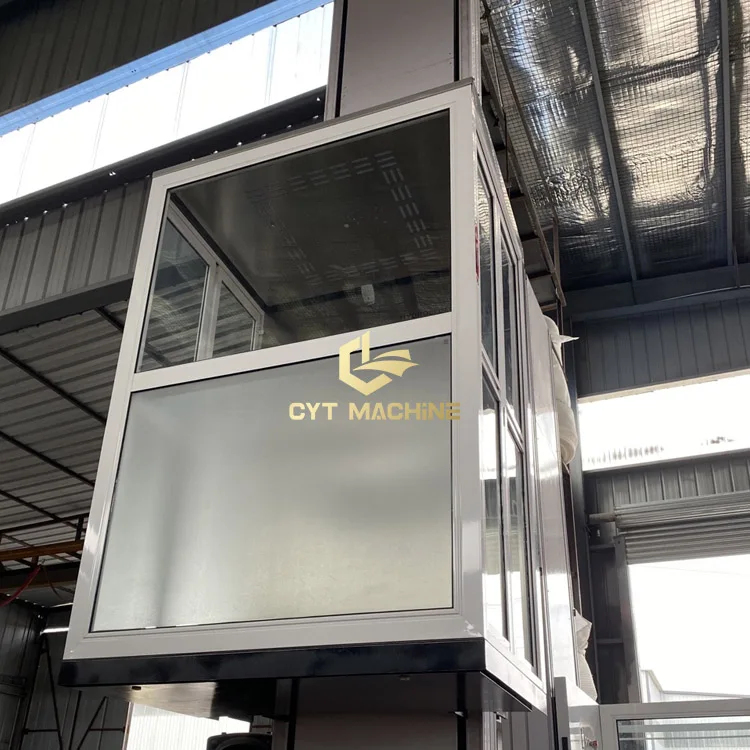

Vertical Platform Lift / Small Home Elevator / Wheelchair Lift
CYT vertical platform lift can be installed directly into the ground, no foundation pit is required, the footprint is small. Made of high-end aluminum, covered with static blasting panels, uneasy to rust when placed outdoors, easy to disassemble and assemble
According to customer needs, the frame and glass protection is added, which is safe and beautiful. It is widely used to lift people between different floors of the home, villa, hospital, bank, etc.
According to customer needs, the frame and glass protection is added, which is safe and beautiful. It is widely used to lift people between different floors of the home, villa, hospital, bank, etc.
Specification
Max. Platform Height | Up to 15m |
Load Capacity | 100~1000kg |
Machine Size(mm) | customized |
Packing Size(mm) | customized |
Platform size | customized |
Min Platform height | 60mm |
Speed | 0.06~0.1m/s |
Control voltage | 24V/DC |
Power Output | 1.1~2.2KW |
Voltage | As per your local Standard(single phase or three phase) |
Drive System | Hydraulic pump station and electric motor |
Control Mode | Automatic travel switch |
Drive Control | Self-resetting system |
Overload | Over current relay protection |
Materials | Aluminium rails and guard with spraying plastics. |
Working Condition | Both indoors and outdoors -20°~70°C |

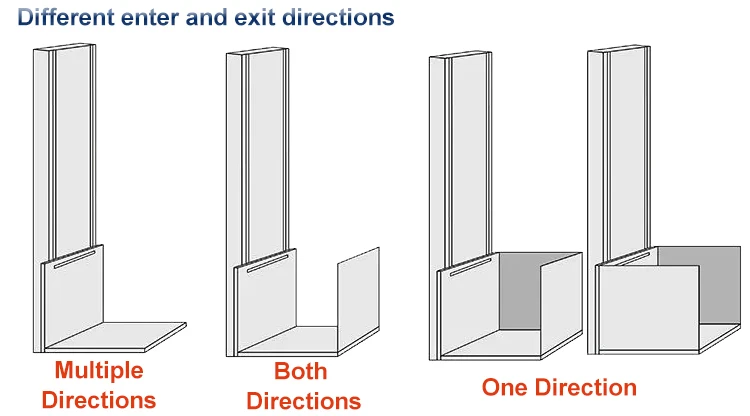

Entrance-Exit Way | It's customized 90°or 180° |
Installation | No pit installing,easy to install and remove |
<3.0m,installed directly on the floor. >3.0m, installed both on the floor and on the wall. | |
Switches | One control panel on the platform |
Install two column switches on ground, which can be fixed at any floor needed. | |
Remote control, user can operate lift within 20m. |

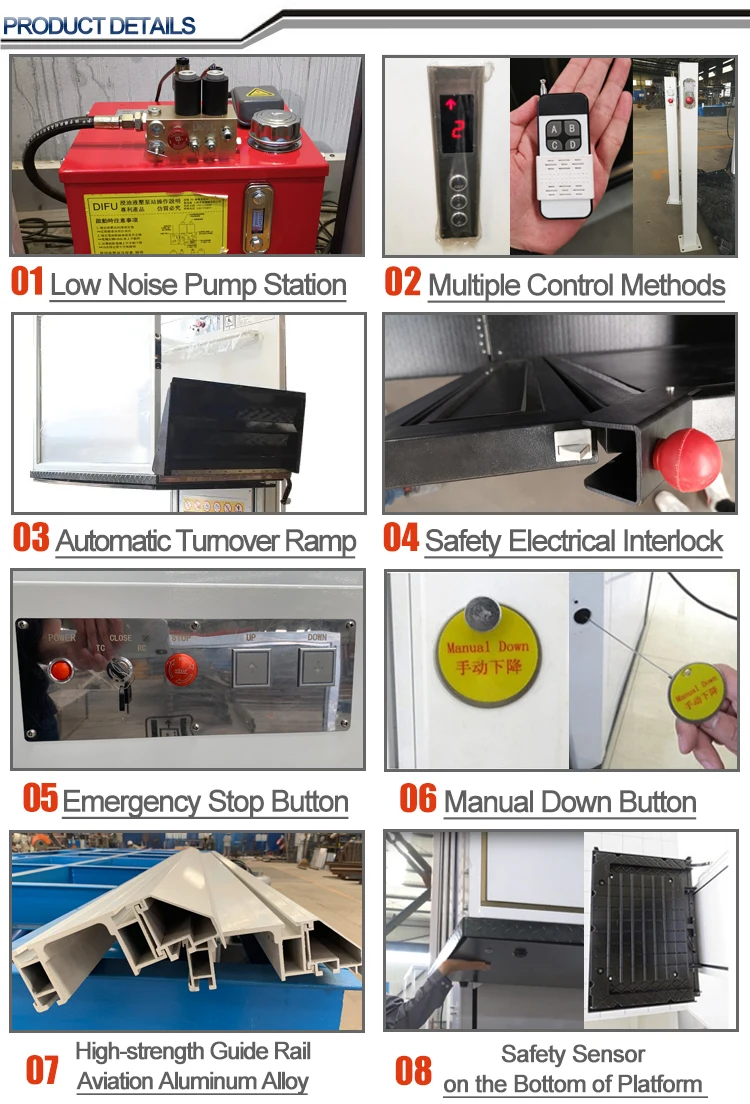

Products Details
Vertical Platform Lift Features
Anti-falling Device: if the chain is broken, the platform can be blocked immediately within 0.02s to prevent further decline
Leaf Chains: Leaf chains could bear 10 times load than the rated loa of wheelchair lift
Limit Switch: Setting the lifting height and working as key part of the interlocking system
Safety Sensor: If there are people or objects at the platform bottom, the Platform cannot lower

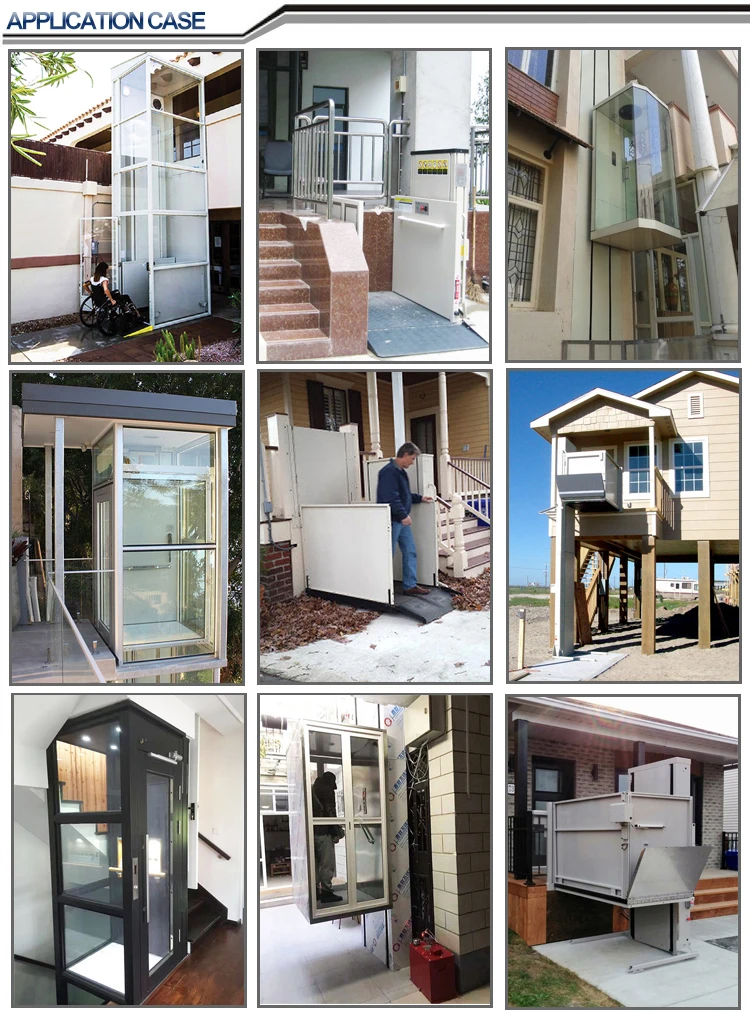

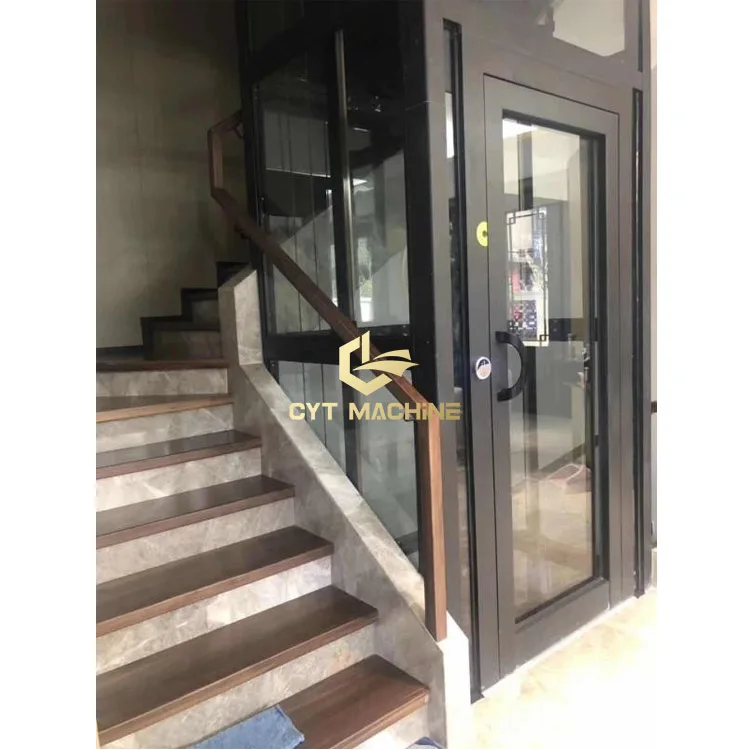

Application Case
Recommend Products

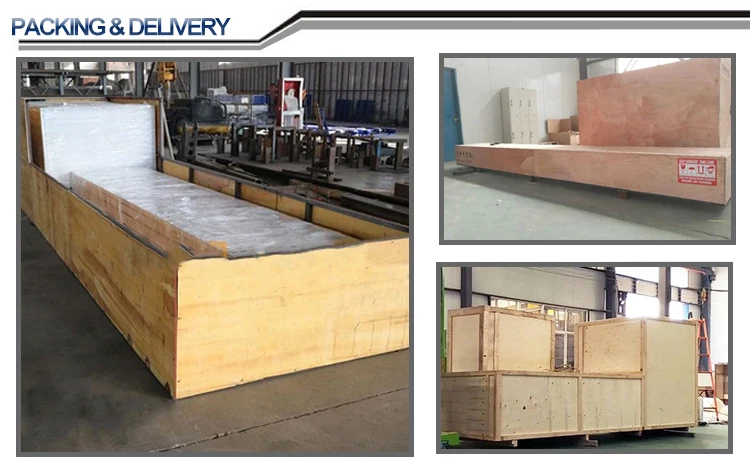

Packing and Shipping
Packaging: Standard export packages plywood boxes or according to customer requirements
Shipping: Within 7 working days after confirm the order
Shipping: Within 7 working days after confirm the order

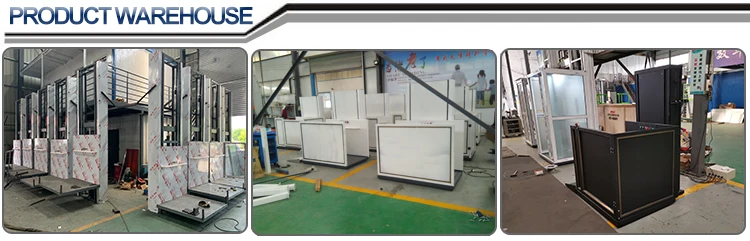

Product Warehouse
