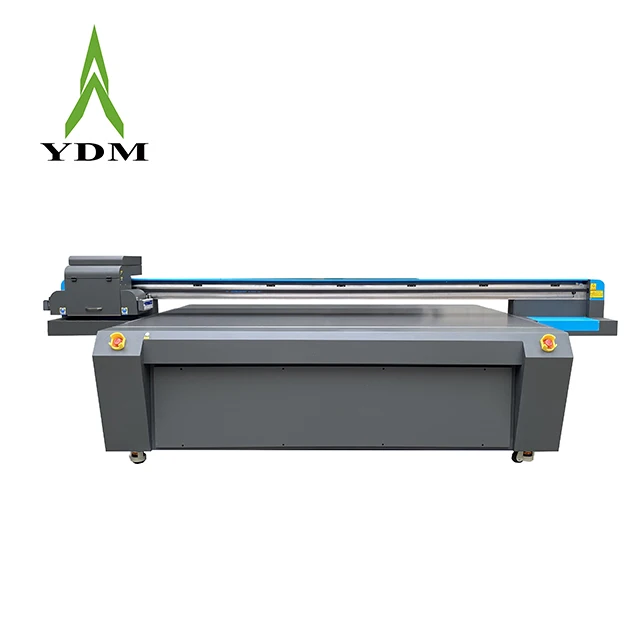

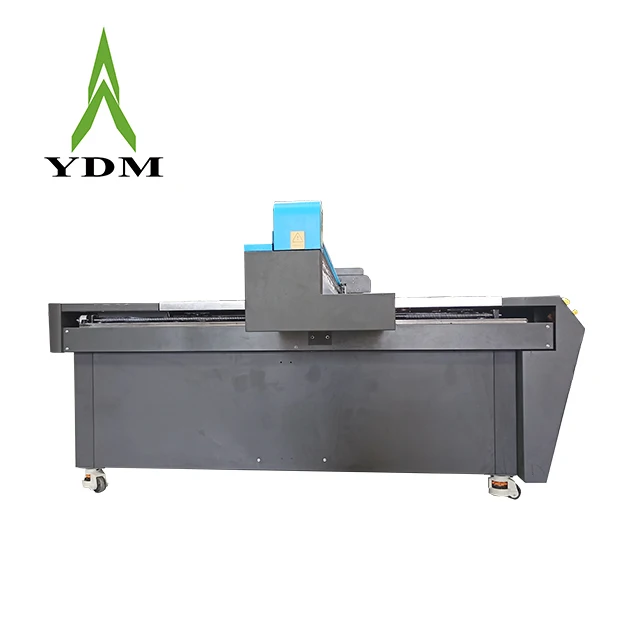

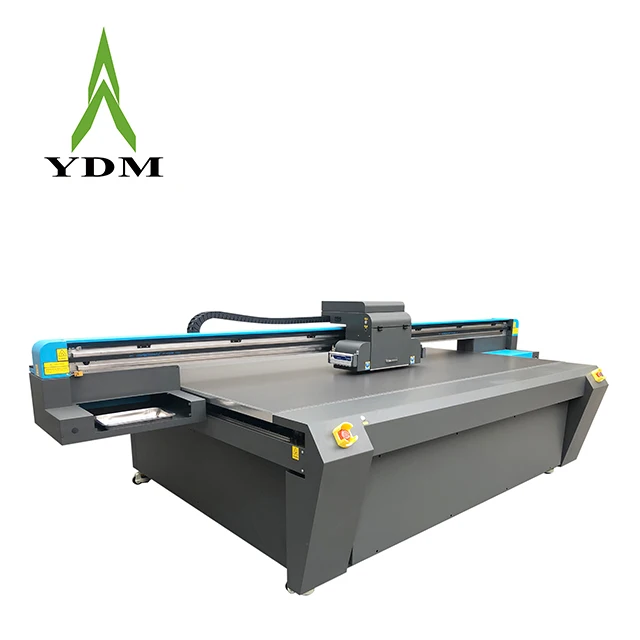

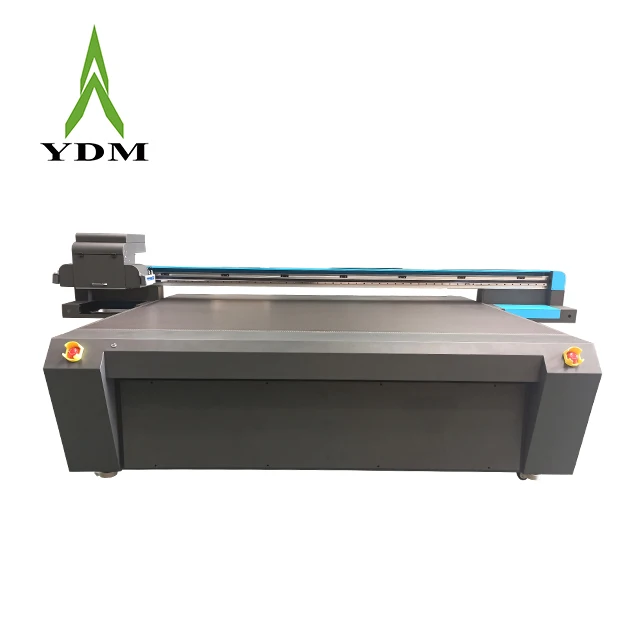

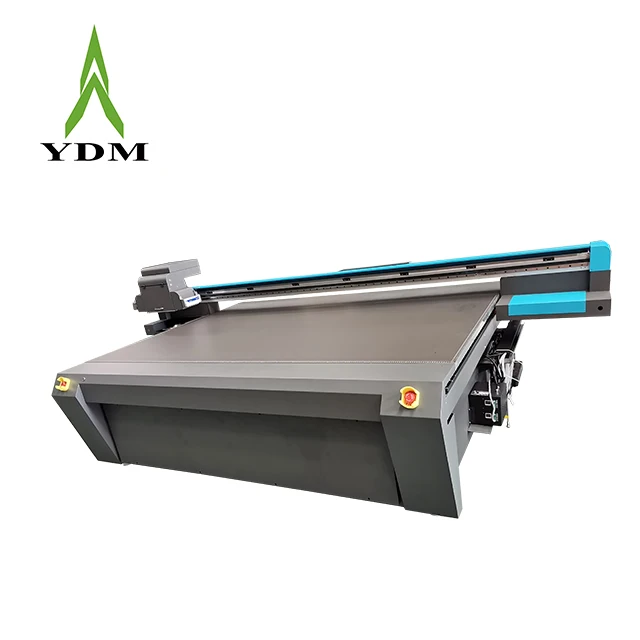

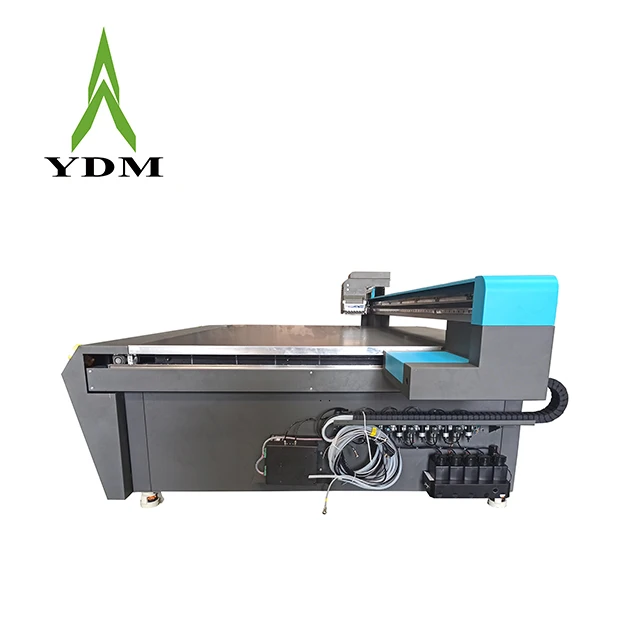

Large format 2513 3d Embossing uv led curable flatbed printer for ceramic tiles
- Category: >>>
- Supplier: Linyi Wanna Deyin Digital Products Co. Ltd.
Share on (62336059465):
Product Overview
Description
Product Description
Large format 2513 3d Embossing uv led curable flatbed printer can install Epson DX5,DX7,XP600，I3200-U1 printhead , and the printing thickness is 10 cm , larger size can be customized. It can print on Acrylic, aluminum, ceramic,card board ,foam board, glass and other flatbed materials .If printer has rotary attachment , it also can print on cylindrical and small spherical objects , such as bottles , cans, golf balls and pingpong balls etc.

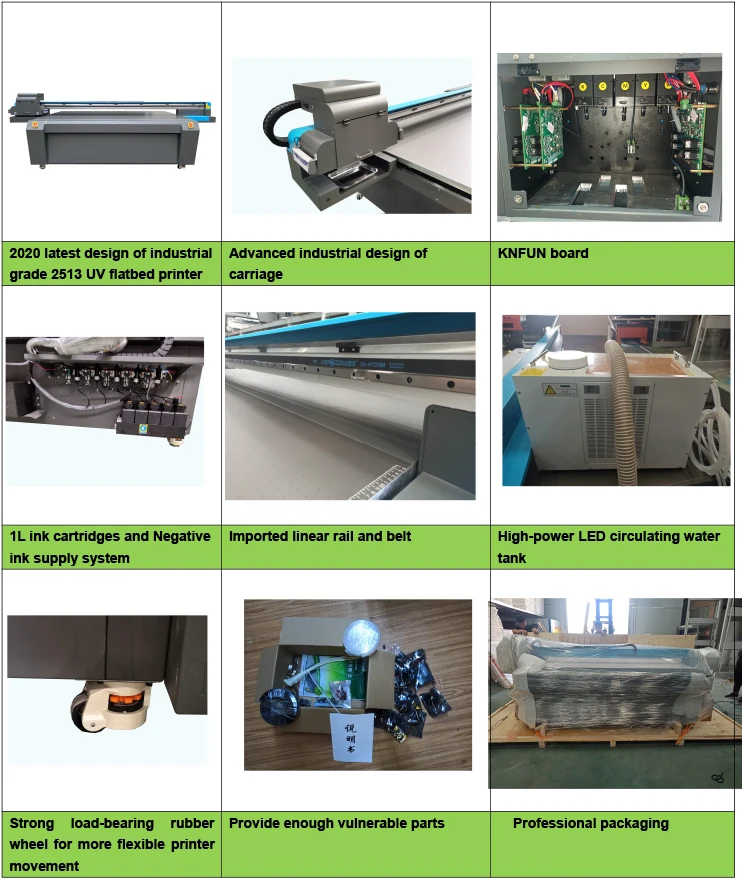

Details Images
Product Paramenters
Technical Data | UV2513 | |
Print Technology | ||
Print Format | 250 x 130 cm / 8 x 4 ft | |
Print Height | 10 cm / 4 in | |
Head Model | Epson DX5/DX7/XP600/I3200-U1 , 1-3 PCS | |
Color Set | CMYK; CMYK+W,CMYKLCLM+W+V | |
Control System | Hoson | |
RIP Software | RIprint | |
Print Direction | Uni / Bi-directional , Front / Rear Alternative | |
Resolution | 4 PASS : 720 x 720 dpi 6 PASS : 720 x 1080 dpi 8 PASS : 720 x 1440 dpi | |
Print Speed | Production mode: 15-18 sqm/h Quality mode: 12-15 sqm/h High resolution mode: 10-12 sqm/h | |
Machine Highlight | ||
Heavy Duty Frame | Strengthened aluminum beam + Thicken steel base | |
Driving Mode | Single HIWIN linear rail + Servo motor + Y axis + Mute Drag chain | |
Protective Device | Anti-collision + Static eliminator | |
Work Table | Whole anodized aluminum table | |
Ink System | Countious Ink supply + White Ink stirring + Ink-lack Warning | |
Ink Cartridge Volume | 1 L | |
Curing System | Imported LED lamp, 30000 Hours Lifespan + Water cooling Chiller | |
Height Detection | Automatic Sensor | |
Others | ||
Print Media | Glass, Ceramic, Acrylic, Metal, Leather, Plastic, Wood, PVC .. etc | |
PC configuration | Win7/ Win10, 64 bit, CPU≥ i5, RAM ≥8GB, Space for Disk C≥100G | |
Signal Transmission | Optical Fiber + USB 3.0 | |
Color Control | Comply with ICC standards, With curve and density Ddjustment function | |
File Format | TIFF/ JPEG/ POSTSCRIPT3/ PDF | |
Power Supply | AC220V,50/60HZ | |
Working Power | 3.5 KW | |
Noise | Standby < 32 dB ; Working < 65 dB | |
Machine Size | 3.71 m x 2.03 m x 1.25 m | |
Packing Size | 3.9 m x 2.3 m x 1.45 m | |
Net Weight | 650 KG | |

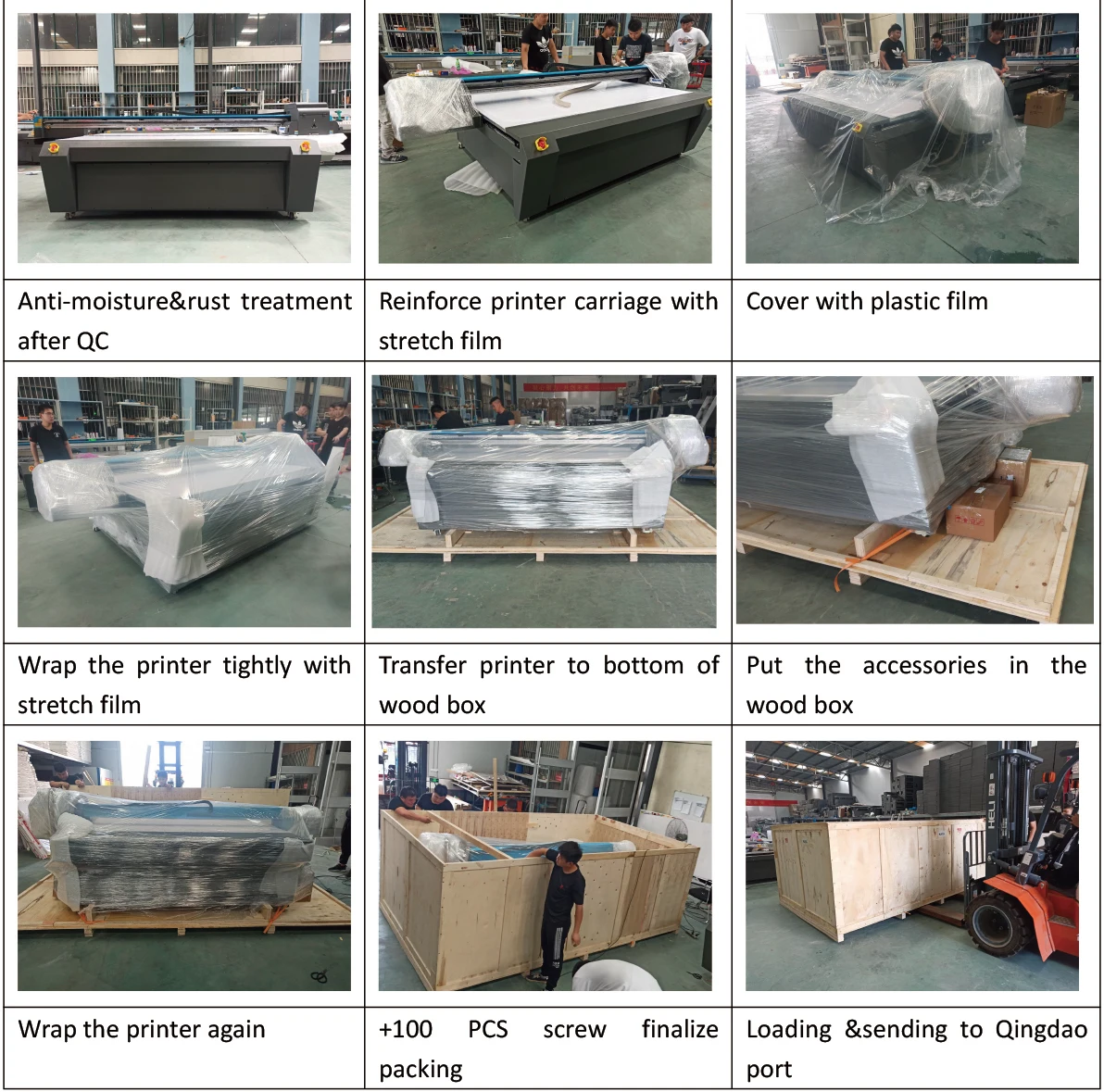

Product packaging
Application
Company Profile
Estabilshed in 2005, YDM(short for Yicai Digital Machinery ) is a subsidiary company of Linyi Wanna Deyin Digital Products Co., Ltd., it is a perfessional manufacturer of digital printing machinery in China, officially verified by CE/SGS/BV. To meet customers' demands, YDM always committed on machine innovation , optimize printing soluations and improve service ability, which enable YDM to be a leading brand in this field.
Our machinery have been exported to USA, INDIA, RUSSIA ,TURKEY, MALAYSIA etc more than 50 countries, and YDM has help more than 1000 customers engaged in high-end digital printing industry."Precision, Eeeiciency, Stability"is the best praise from customer . We hope everyone will have best printing experienceand make good profit. YDM will keep working for the upgrade of global printing industry.
Our machinery have been exported to USA, INDIA, RUSSIA ,TURKEY, MALAYSIA etc more than 50 countries, and YDM has help more than 1000 customers engaged in high-end digital printing industry."Precision, Eeeiciency, Stability"is the best praise from customer . We hope everyone will have best printing experienceand make good profit. YDM will keep working for the upgrade of global printing industry.
Factory&warehouse
Certification
Recommend Products
FAQ
1.Do I Need White Ink?
The limits to what you can print on are seemingly non-existent if you go with a printer that has white ink capabilities. That’s because white ink will help create high-quality graphics on rigid or flexible substrates, like acrylic sheets or backlit films, and can also be used as a “base coat” for printing on non-white materials. Printing white simultaneously with color is ideal when required.
you will be pushing the boundaries of value with great production and quality capabilities that can open your business up to an even broader customer base.
The limits to what you can print on are seemingly non-existent if you go with a printer that has white ink capabilities. That’s because white ink will help create high-quality graphics on rigid or flexible substrates, like acrylic sheets or backlit films, and can also be used as a “base coat” for printing on non-white materials. Printing white simultaneously with color is ideal when required.
you will be pushing the boundaries of value with great production and quality capabilities that can open your business up to an even broader customer base.
2.Do I Need a rotary model ?
Flatbed printers are ideal for a wide range of applications but there are still some jobs that are better suited for a roll-to-roll printer. Ink type is a big factor here since flatbeds are primarily UV, while various rotary models can utilize dye-sublimation, solvent, latex, aqueous or UV inks.
3.What materials can UV flatbed printer print on?
POP board, KT board, Acrylic, organic glass etc. The UV printing reduce much work and trouble like lamination, fading, blistering, and save much working hours. Rigid signs board, hard carton or corrugated paper box, special market(like customize and decoration market): glasses, ceramic tiles, wood, even furniture.
4.What’s RIP installation interface supported language?
POP board, KT board, Acrylic, organic glass etc. The UV printing reduce much work and trouble like lamination, fading, blistering, and save much working hours. Rigid signs board, hard carton or corrugated paper box, special market(like customize and decoration market): glasses, ceramic tiles, wood, even furniture.
4.What’s RIP installation interface supported language?
Korean, German, French, Finnish, Dutch, Portuguese, Japanese, Spanish, Italian, English, Chinese (Simplified), Chinese (traditional)

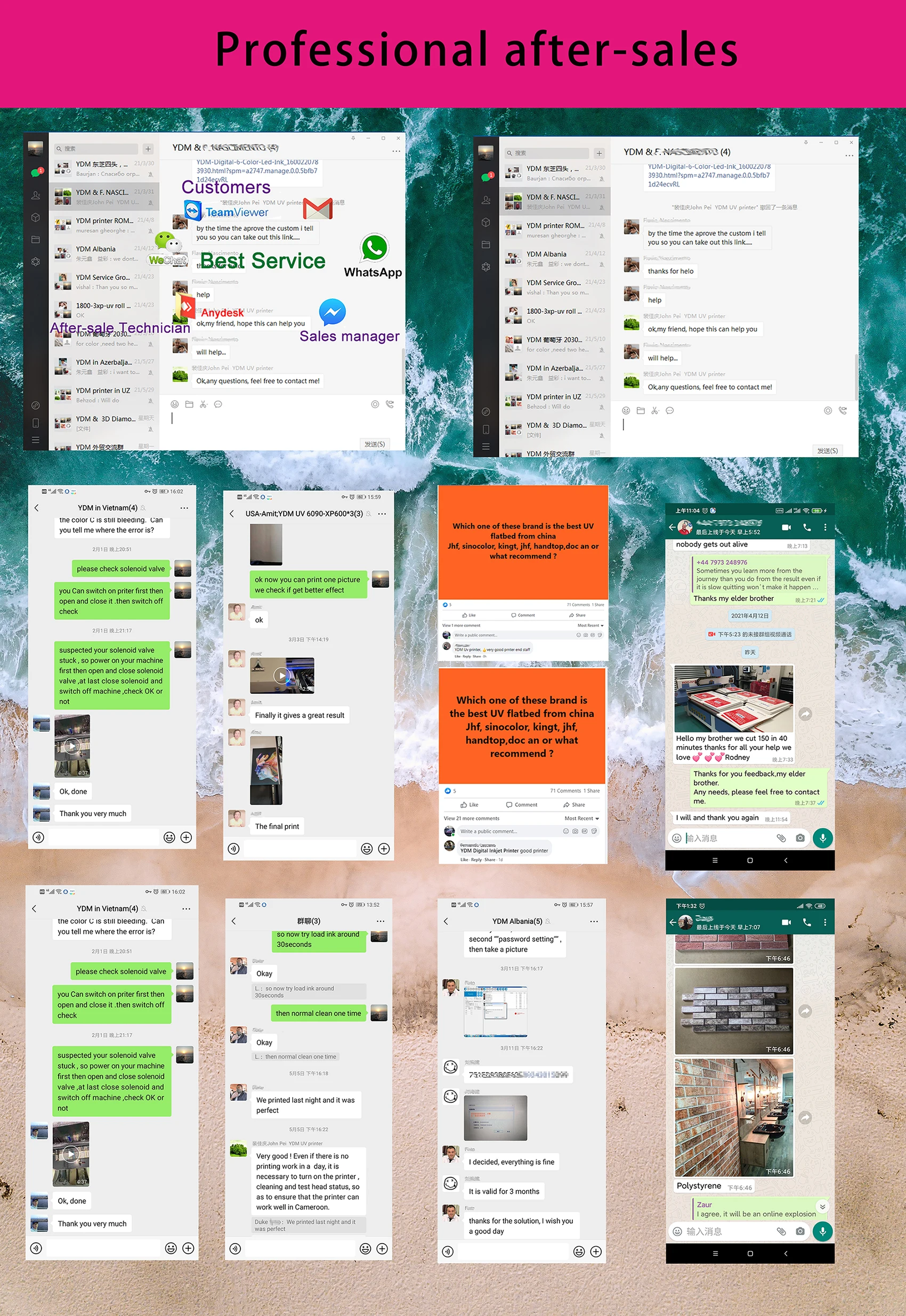

5.What about the after-sales service ?
5.What about the after-sales service ?
We have many experienced technician, Provide the technical support for all of our customers ,We will teach you how to operate the machines until you master it ,sometimes our technician team will go abroad to test and repair the machines.
6.what about maintenance of the printer?
About maintenance,we suggest to power on the printer once a day. If you don’t use the printer more than 3 days, please clean the print head with cleaning liquid and put in the protective cartridges on the printer (protective cartridges are specially used for protect print head) .
