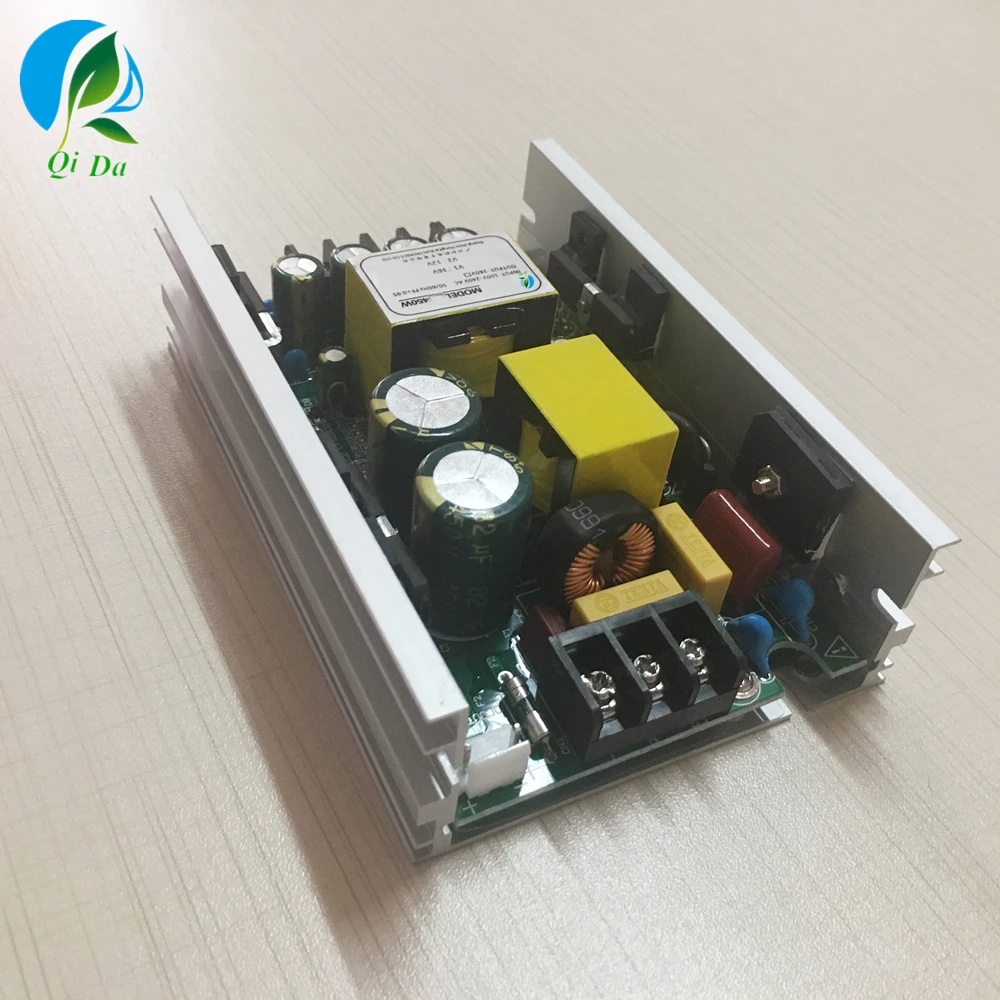

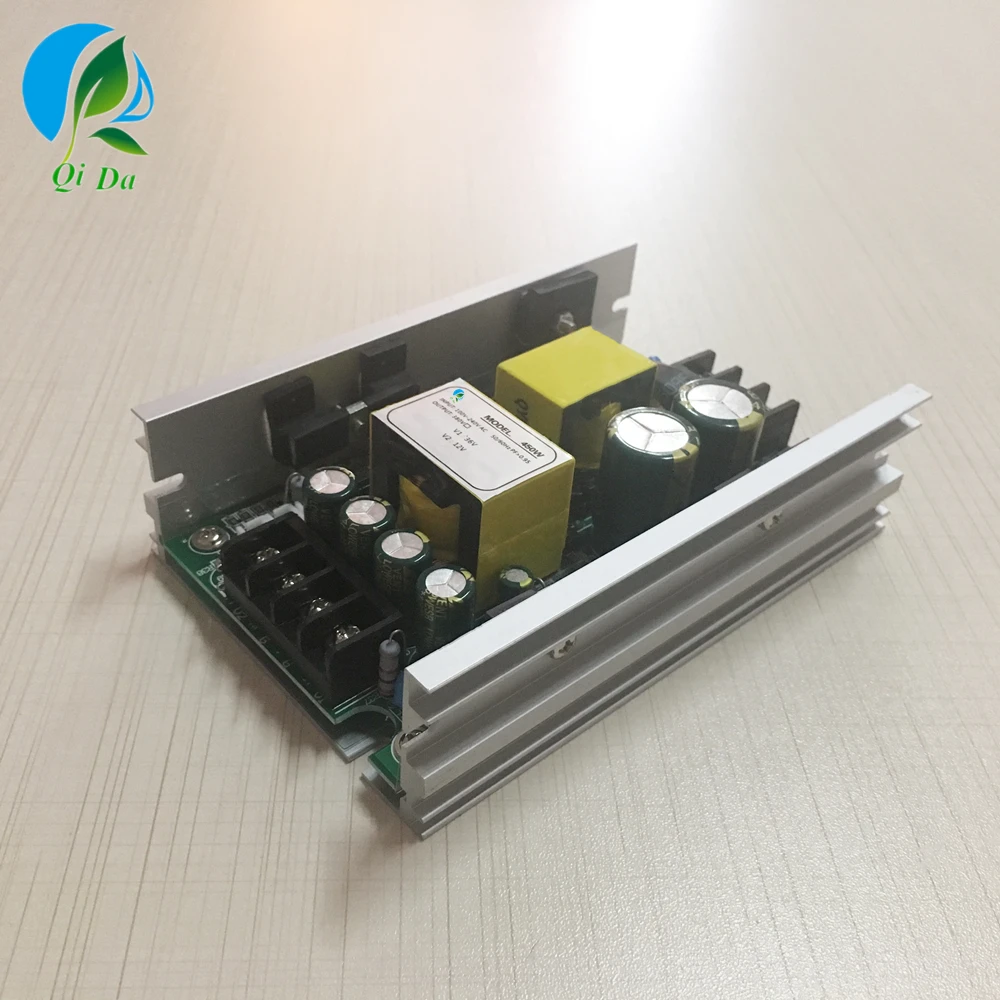

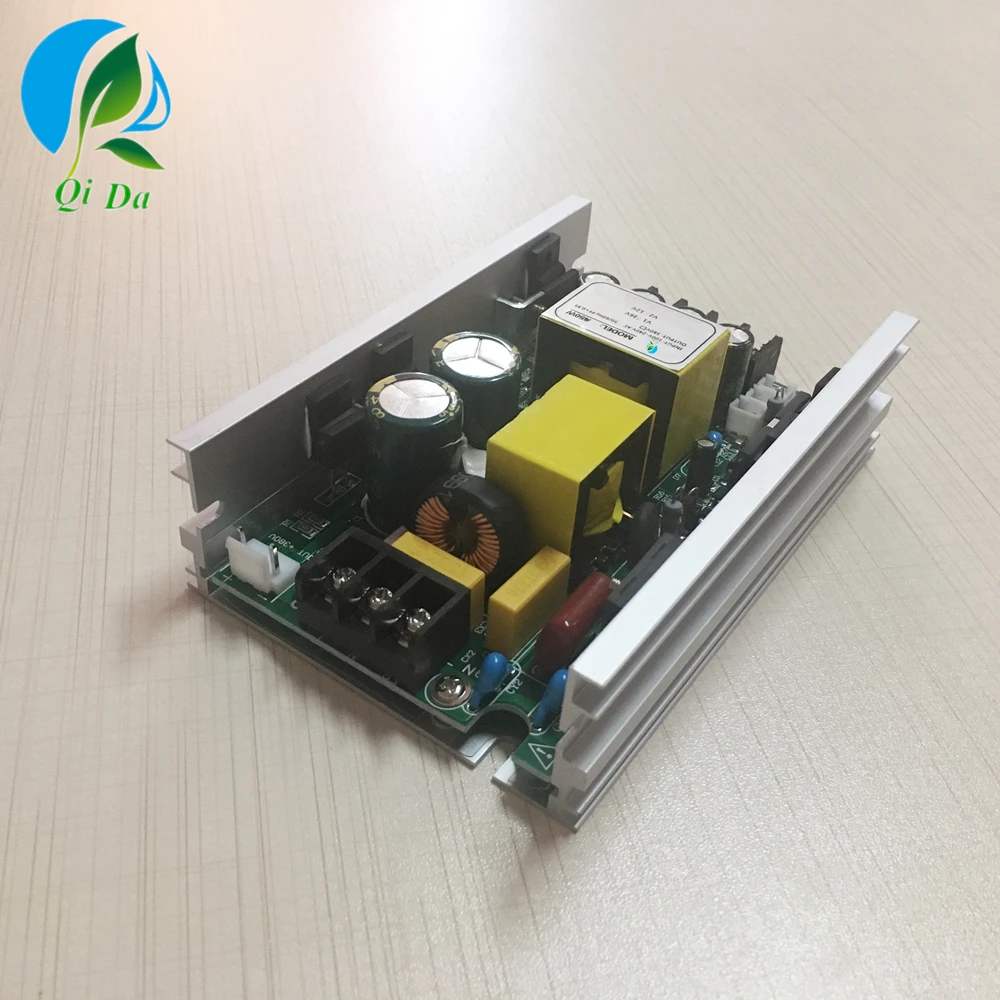

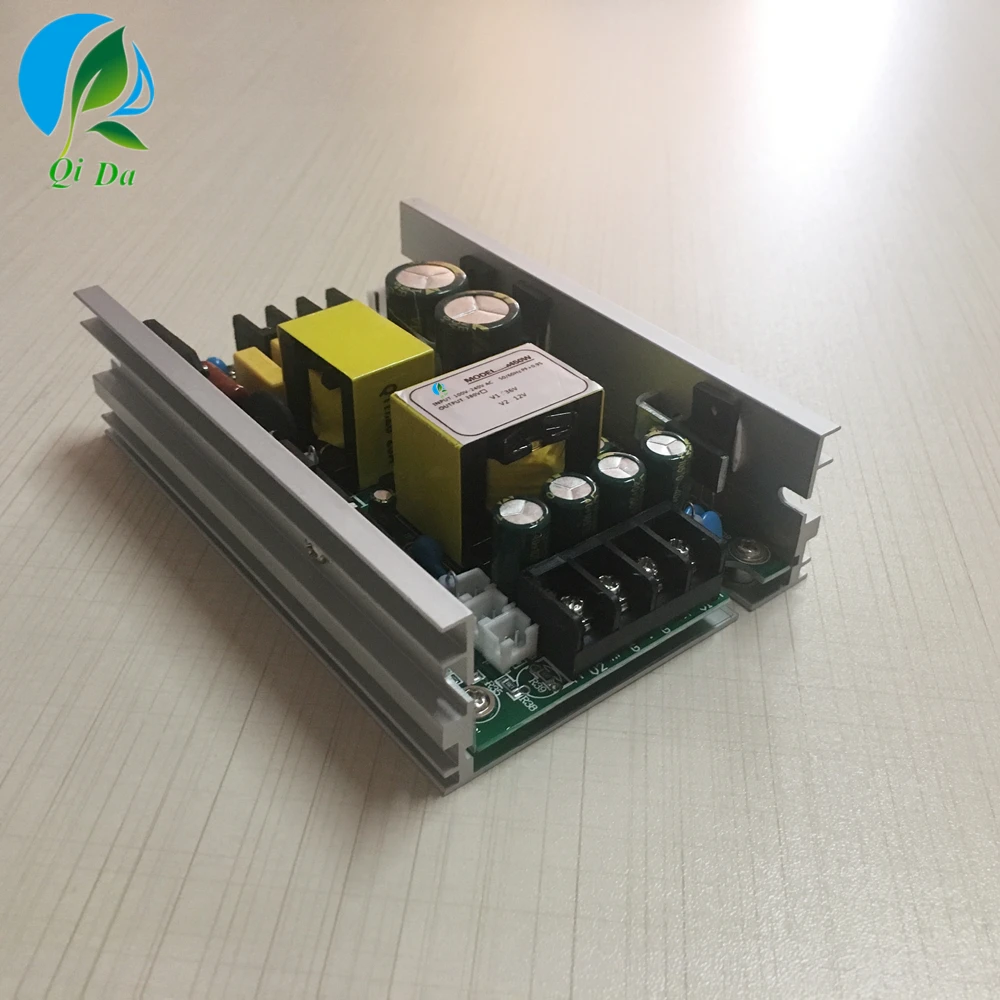

Adjustable Voltage 380V 24V 12V Multiple Combination 230W Switching Power Supply For COB Stage Beam Moving Head Lights
- Category: >>>
- Supplier: Guangzhou Qida Electronic Technology Co. Ltd.
Share on (62336143926):
Product Overview
Description
Adjustable Voltage 380V 24V 12V Multiple Combination 230W Switching Power Supply For COB Stage Beam Moving Head Lights
Specifications
Please check it below
| DATA SHEET | ||
| OUTPUT | DC VOLTAGE | v1 380V V2 24V V3 12V |
| OUTPUT POWER | 230W | |
| RATED CURRENT | V1 0.8A V2 6A V3 2A | |
| RIPPLE & NOISE(max.) | 200mVp-p | |
| VOLTAGE ACCURACY | ±3.0% | |
| LOAD REGULATION | ±3.0% | |
| START,RISE TIME | 800ms, 30ms/230VAC 1000ms, 30ms/115VAC | |
| HOLD UP TIME | 15ms/230VAC 10ms/115VAC | |
| INPUT | VOLTAGE RANGE | 100-240VAC |
| AC CURRENT(Typ.) | 0.7A/ 230Vac 1.4A/115Vac | |
| FREQUENCY RANGE | 47-63Hz | |
| EFFICIENCY(Typ.) | 90% PF0.93 | |
| INRUSH CURRENT(Typ.) | COLD START 25A/115VAC 50A/230VAC | |
| LEAKAGE CURRENT | <0.75mA/240VAC | |
| PROTECTION | OVER LOAD | 110%~130% of rated power; enter into hiccup mode,self-recovered when the false condition is removed |
| OVER VOLTAGE | Voltage of 105%~120% of rated V,hiccup mode kicks in,self-recovery | |
| SHORT CIRCUIT | ||
| ENVIRONMENT | WORKING TEMP. | -10℃ ~ +50℃ (Refer to output load derating curve) |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP.,HUMIDITY | -20℃ ~ +85℃ 10~95% RH | |
| TEMP. COEFFICIENT | ±0.05%/℃ | |
| COOLING METHOD | BY FREE AIR CONVECTION | |
| SAFTY & EMC | ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH |
| WITHSTAND VOLTAGE | 1.5KV,10mA,60S | |
| OTHERS | CTN | 48*32*27CM |
| WEIGHT | 0.4Kg,50PCS/Carton | |
Packaging & Shipping
Company Information
Guangzhou Qida Electronic Technology Co., Ltd. is specialized in manufacturing A C / D C switching power supplies, power adapters and battery chargers. There are products rated from 5 watts to 1000 watts with different covers and functionalities. Most of products are with multiple protections. Like over-voltage, over-current, short-circuit protections. Located in Guangzhou City, China. There are 150 employees and it occupies 5000 square meters workshop with 3 assembly production lines, SMT machines, cable winding equipments. With strong support of our R & D department, our products have extended to the domains of audio, video, industrial control system, electronic devices and so on. We’ve acquired CE, FCC, CB, ETL, RoHS certificates for certain series products. Given the strict raw material sourcing procedures, quality checking and control system, our products can be seen in The Southeast and East Asia, Europe, North and South America, and many other places in the world.
With many experienced workers and fine production craft, we can produce 20,000 Pcs power adapters per day in average. Our strength is being premium O E M, O D M services. We aim to grow with our customers. You come to us with an idea, we give you a solid and workable item. M O Q can be as low as one piece for custom demands. Your satisfaction is our top pursuit. We are looking forward to serving you in the near future.

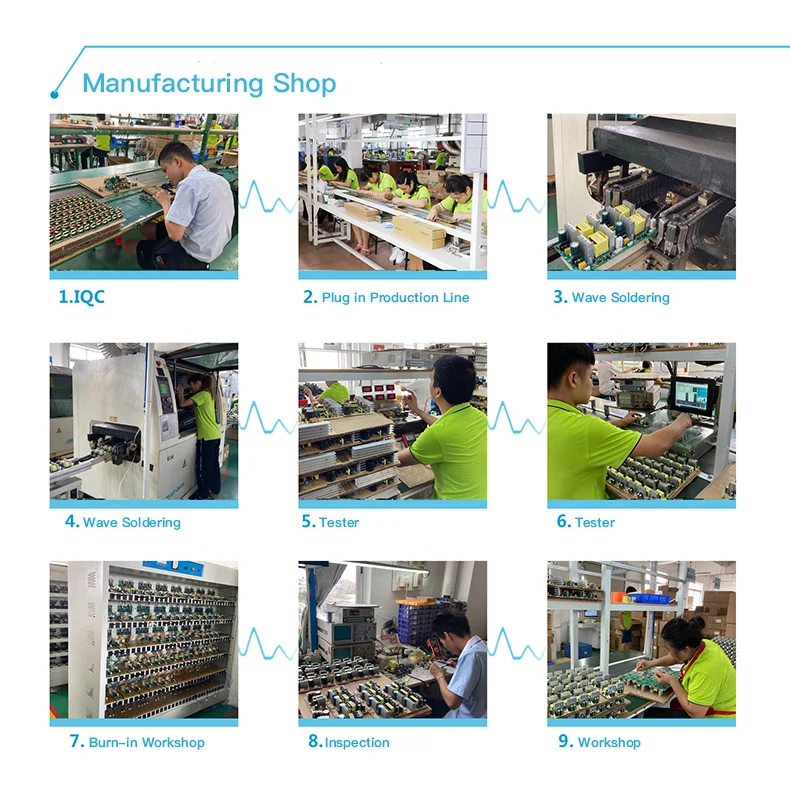

Production Process
Product Application
Our Team & Market

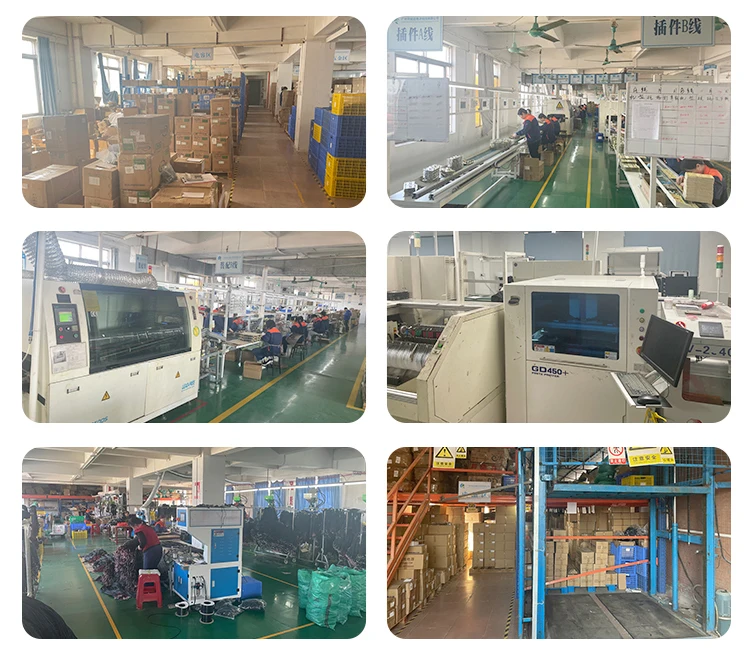

Workshop&Warehouse
FAQ
Q: Lead Time
A: Usually, our production lead time is 15-18 Days for order between 1,000PCs to 10,000PCs; For order is over 10,000PCs, it will be finished within one month
Q: Do you have any after-sales service?
A: Yes, we do. All of our sold products share our after-sales service. If there is a product quality problem, we will work out a solution for you with 24 hours
Q: What payment terms do you accept?
A: Alibaba online payment system, PayPal, T/T, L/C for big amount transaction.
Q: Can you customize item and packaging?
A: Yes, we can. We have 7 years of ODM and OEM experience.
