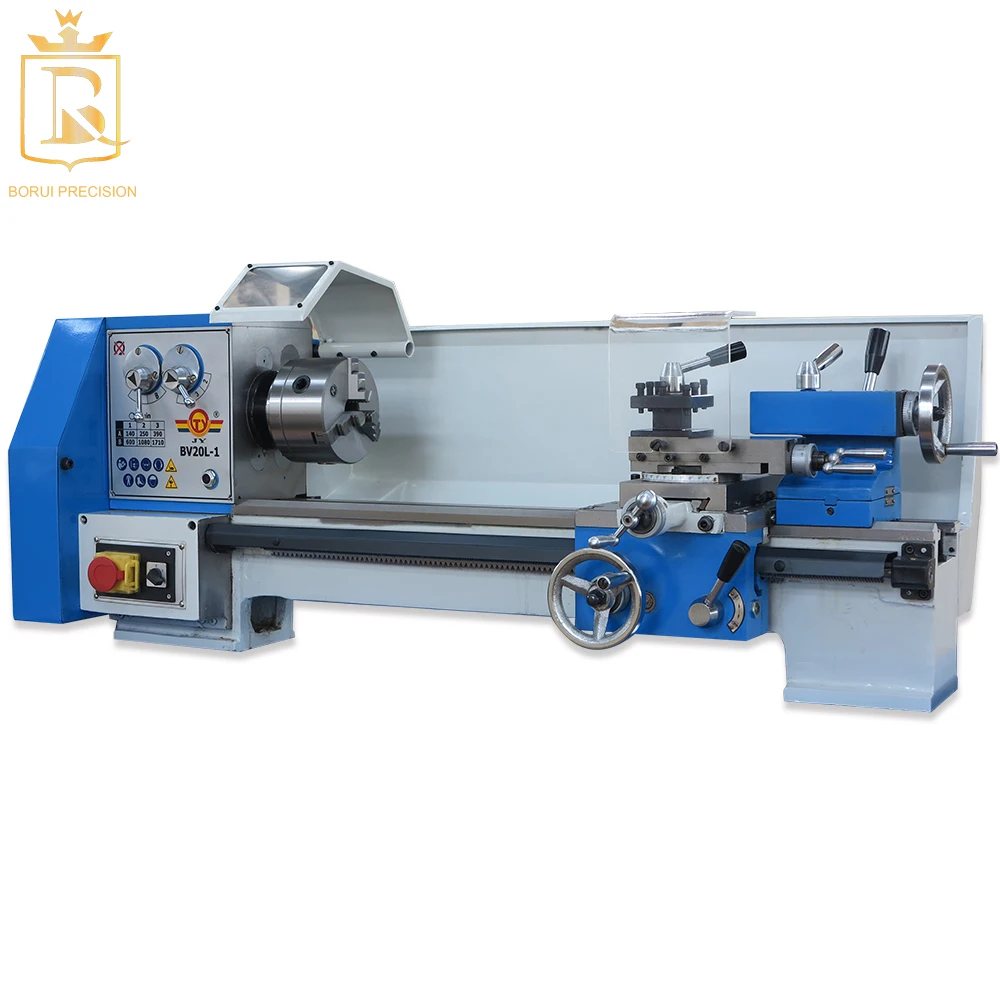

micro medium precision manual lathe machining machine for steel weight 110kg spindle 20mm
- Category: >>>
- Supplier: Dezhou Borui Precision Co. ltd
Share on (62336436185):
Product Overview
Description
Product Description
Max.swing over bed | 220mm |
Distance between centers | 350mm |
Swing over cross slide | 120mm |
Spindle bore | 20mm |
Taper of spindle bore | MT3 |
Cross slide travel | 115mm |
Top Slide travel | 63mm |
Number of metric threads | 11 |
Number of inch thread | 11 |
Range of metric threads | 0.4-3.0mm |
Range of inch threads | 8-28 1/n" |
Range of longitudinal feeds | 0.05-0.2mmr |
Tailstock quill travel | 45mm |
Taper of tailstock quill | MT2 |
Number of spindle speeds | 6 |
Range of spindle speeds | 140-1710r/mim |
Motor power | 750W 220V or 380V |
Machine size | 910*525*460mm |

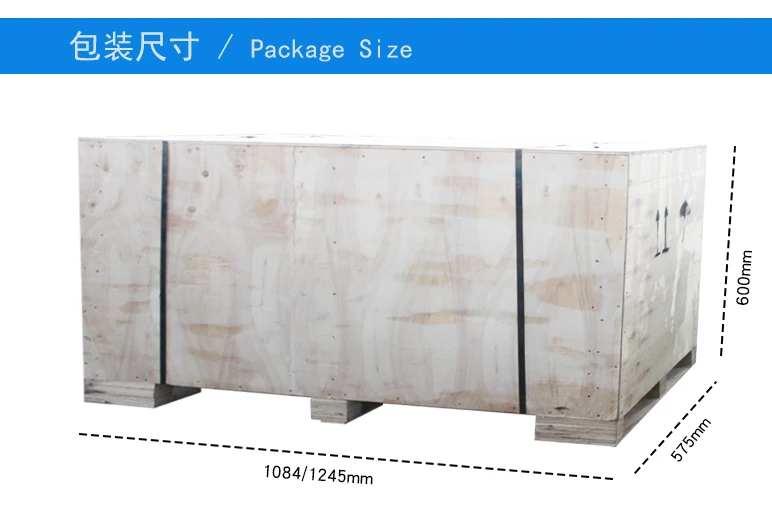

Packing size | 1084*575*600mm |
Net Weight/Rough Weight | 110kg/140kg |

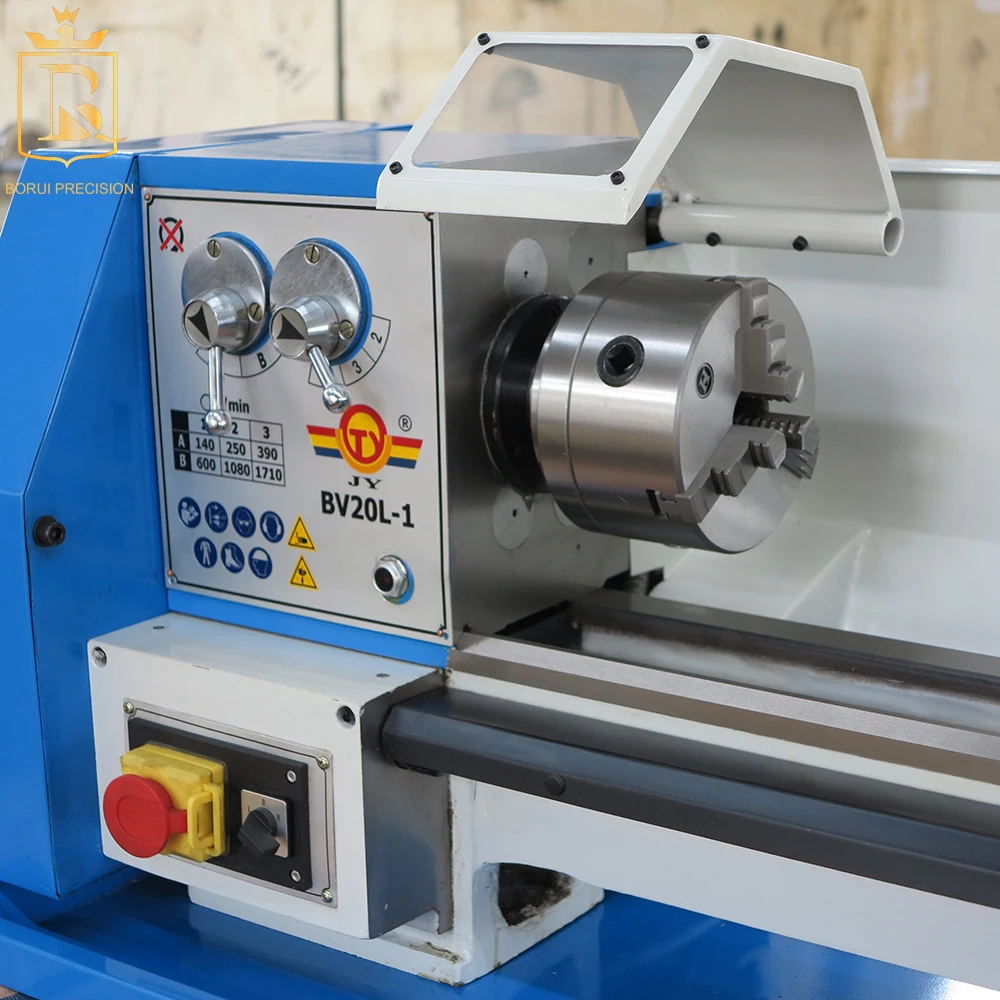

Spindle Gearbox
Accurate grinding steel gear ,high precision,low noise. 6 shift of gear,wide range of
speed in,easy operation.
speed in,easy operation.
The machine must be stopped
when the spindle is changing speed,
then start the machine again after the
changing filished.
when the spindle is changing speed,
then start the machine again after the
changing filished.

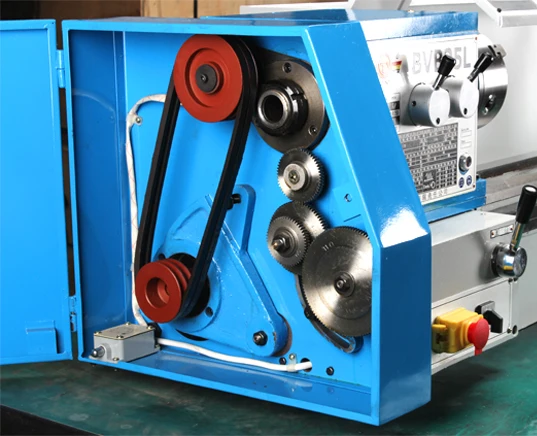

- Gear Feeding Box
Accurate grinding steel gear,high
precision,low noise.With full set of
change gears,It can process 22 kinds
of metric threads or inch threads.
precision,low noise.With full set of
change gears,It can process 22 kinds
of metric threads or inch threads.
There is a Safety limit switch
in the feeding box,The machine is
outage as soon as the protective cover
is opened.Ensuring the user` safety.
in the feeding box,The machine is
outage as soon as the protective cover
is opened.Ensuring the user` safety.

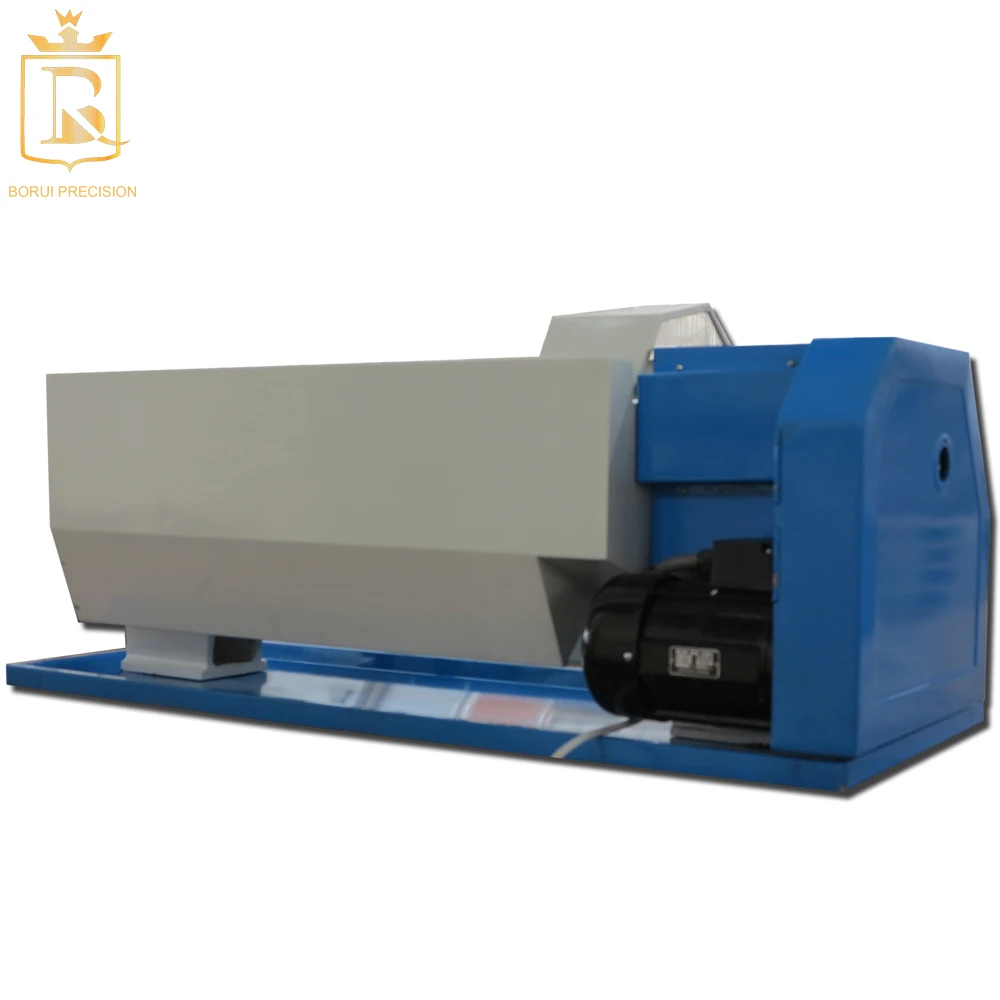

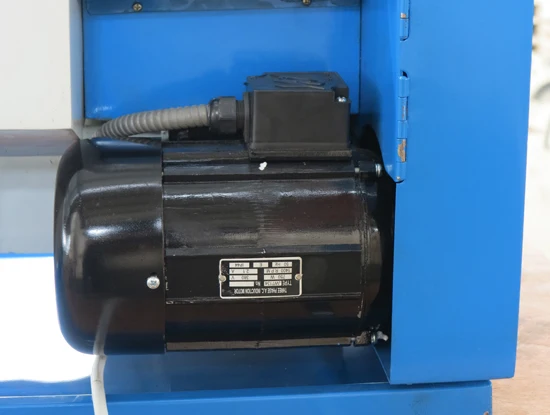

Electrical Machine
Ac motor,high torque,low noise,free maintenance.
The motor uses an aluminum casing,
compared to the ordinary iron cast shell
dissipates heat faster and is more efficient.
compared to the ordinary iron cast shell
dissipates heat faster and is more efficient.
Motor coil is pure copper wire with long
service life Low energy consumption.The
voltage can be 220V or 380V,or customized
special voltage.
service life Low energy consumption.The
voltage can be 220V or 380V,or customized
special voltage.

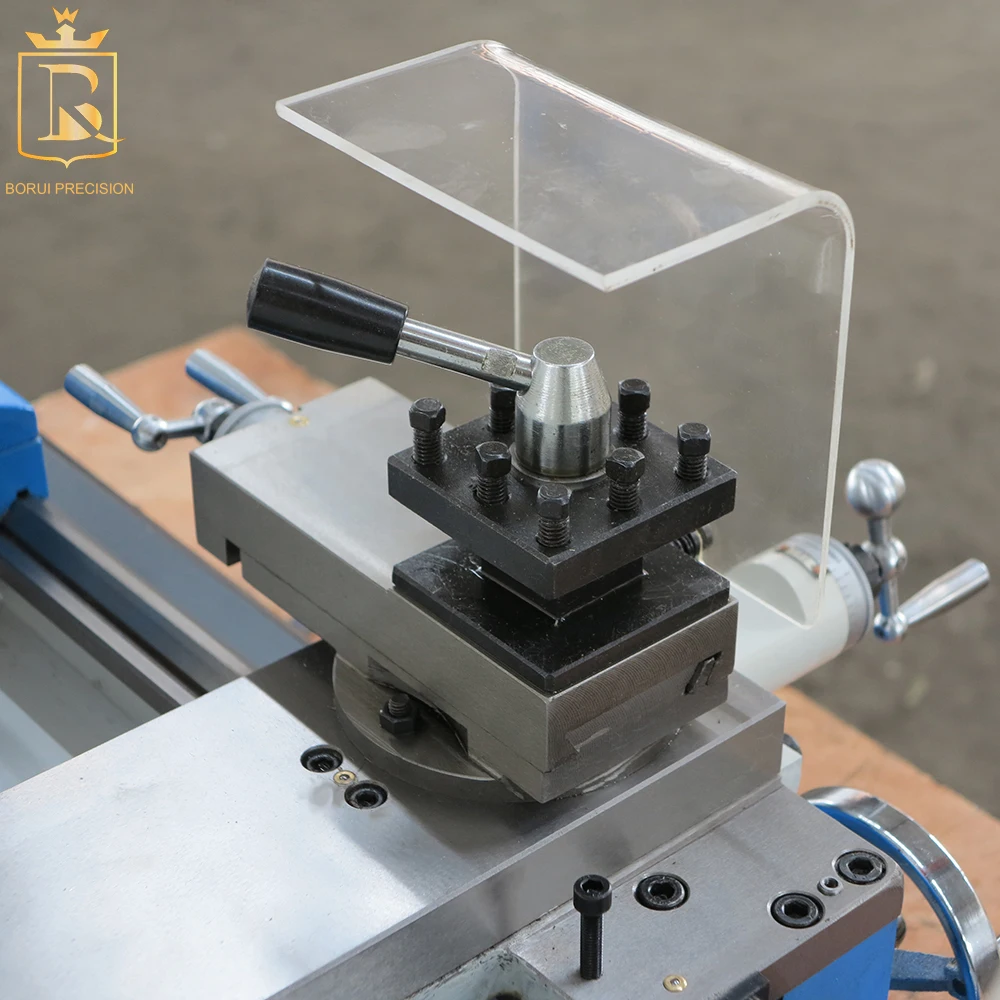

Slide
Four post tool rest,can install different
types Four turning tools,easy to operate, tool base bottom the design has the locating
pin, the tool rest reset precision is high.
types Four turning tools,easy to operate, tool base bottom the design has the locating
pin, the tool rest reset precision is high.
The tool holder is installed to prevent
machining iron splashes, to ensure the safety
of users.
machining iron splashes, to ensure the safety
of users.

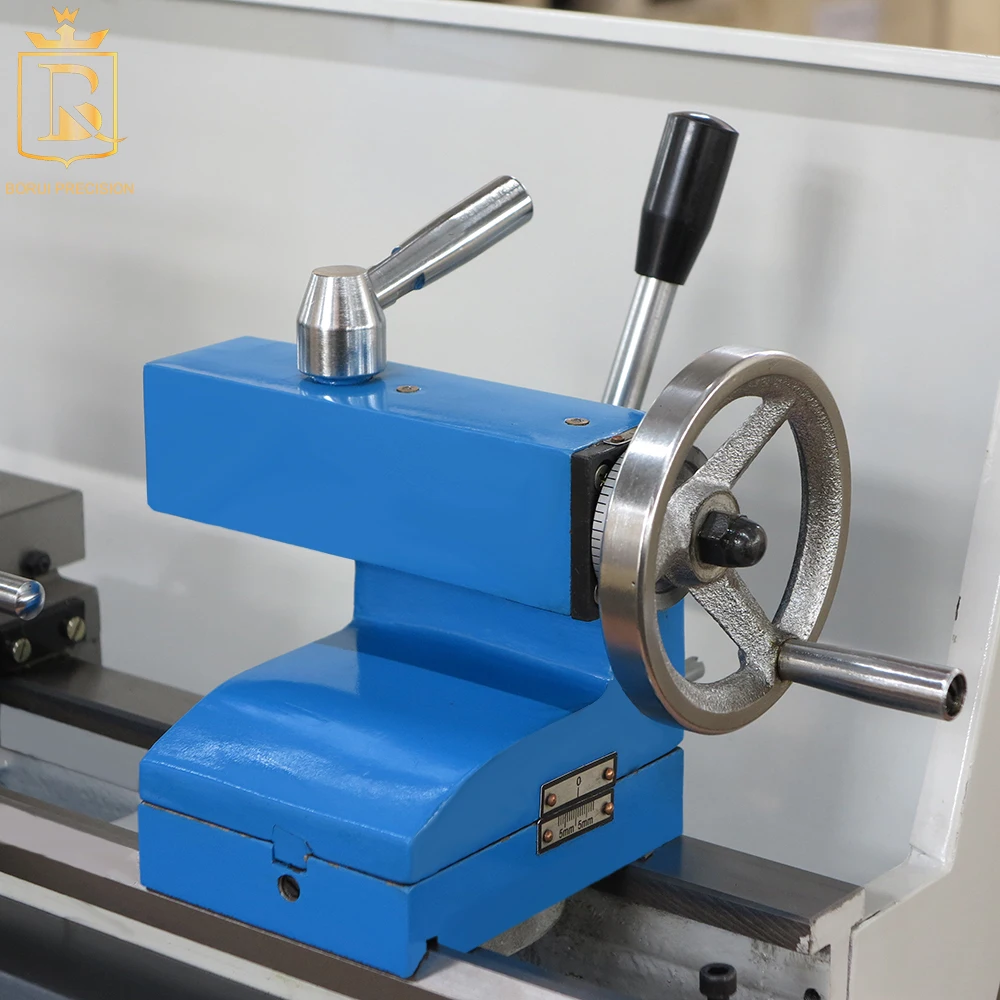

Quick Lock Handle
No more spanner fixed.Easy to operate,
improve the efficiency of processing rate.
improve the efficiency of processing rate.

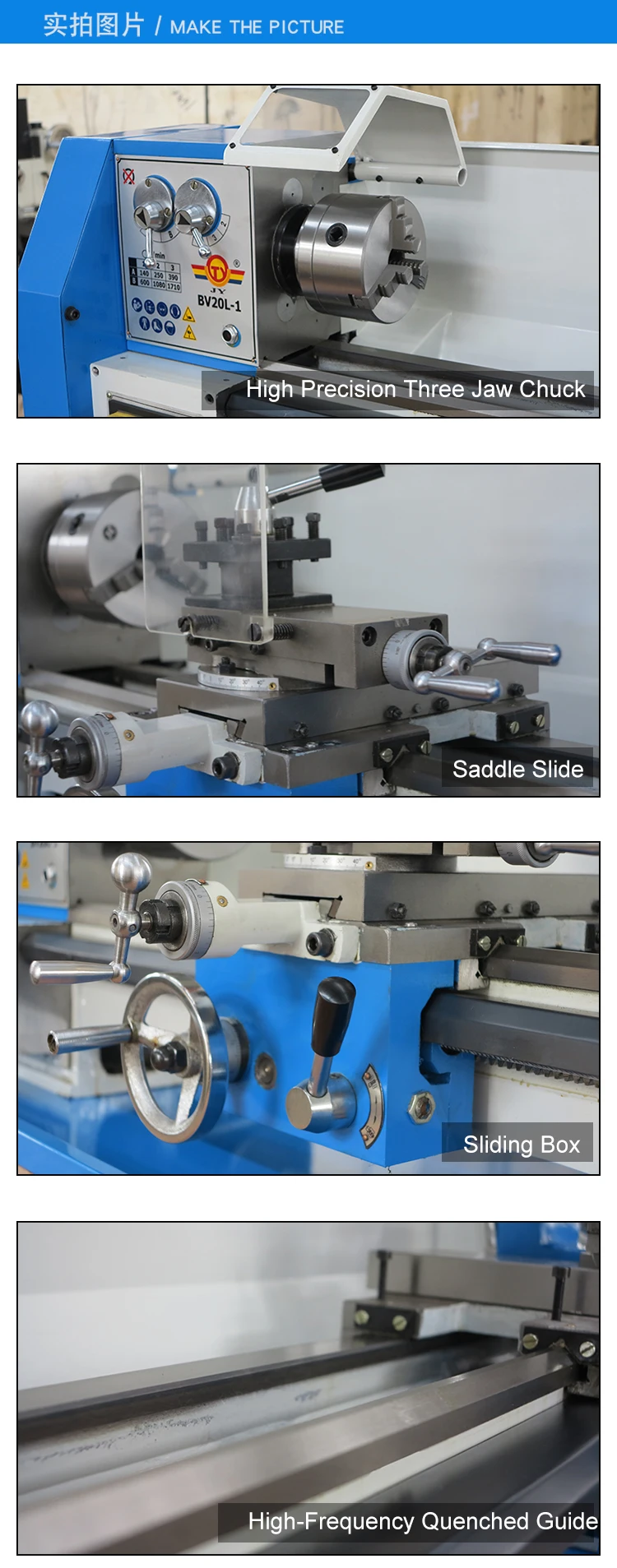

Detailed Images
