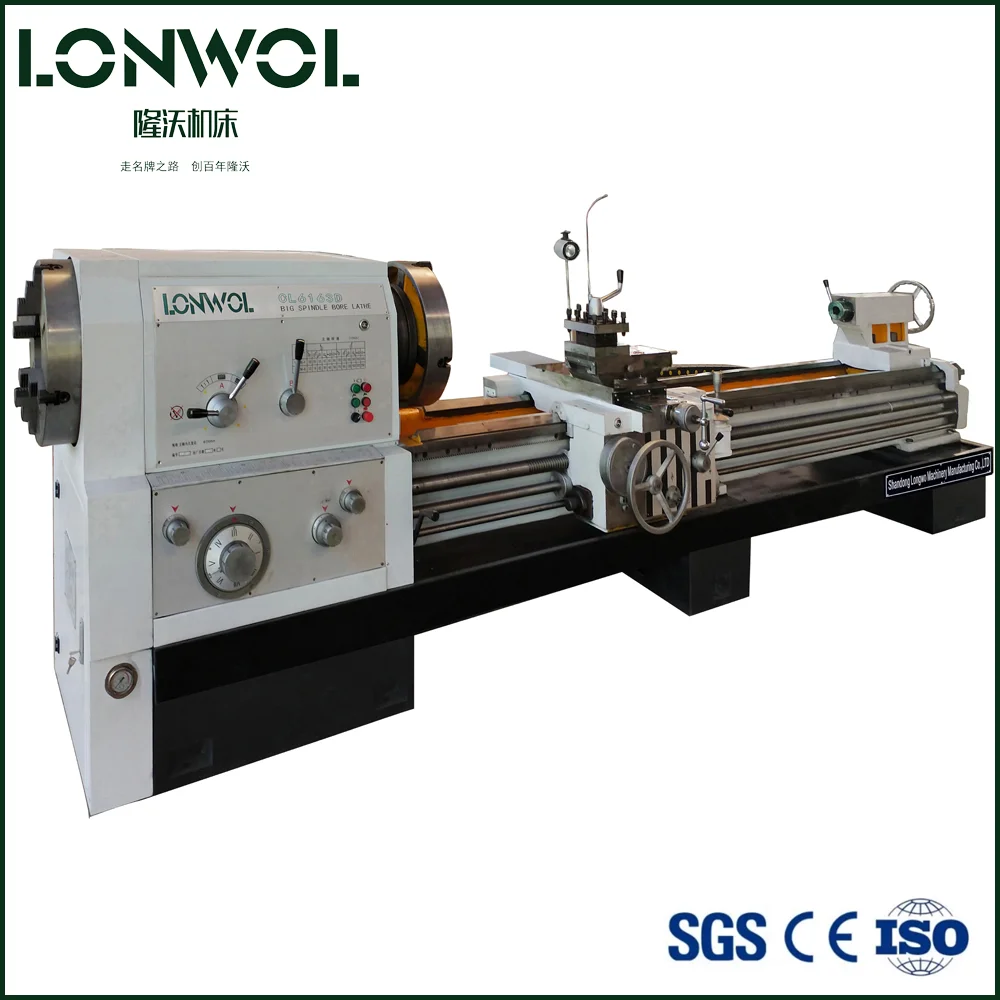

1. CL6163D is a Big Spindle Bore CNC lathe newly developed by our company. The spindle bore diameters is Φ105. The processing length of the workpiece is 750mm, 1000mm, 1500mm, 2000mm and so on. The machine tool is continuously variable and the main motor directly drives the spindle. 2. The bed is cast as a whole, and the width of the bed rail reaches 550mm. 3, The machine configuration is a high standard, 11KW, the high quality main motor to ensure that the machine has a very high low-speed torque.

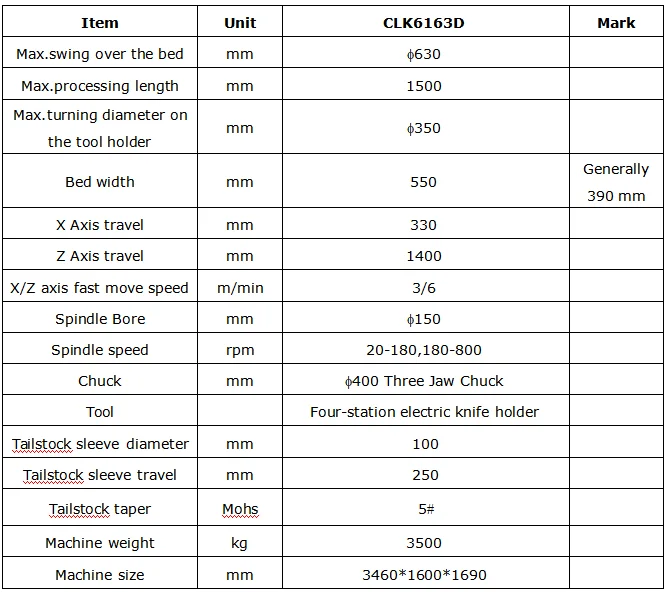

Specification
Machine Accuracy
The accuracy of this machine tool is referred to GB/T 16462-1996 "Precision Inspection of CNC Horizontal Lathe".
Test items
Unit
Precision value
Machining dimensional accuracy
IT7
Machining workpiece roundness
mm
0.01
Machining workpiece cylindricity
mm
0.025/250
Machining workpiece flatness
mm
0.02/φ200
Machining workpiece surface roughness
μm
Ra1.6
X-axis repeat positioning accuracy
mm
0.008
Z-axis repeat positioning accuracy
mm
0.012

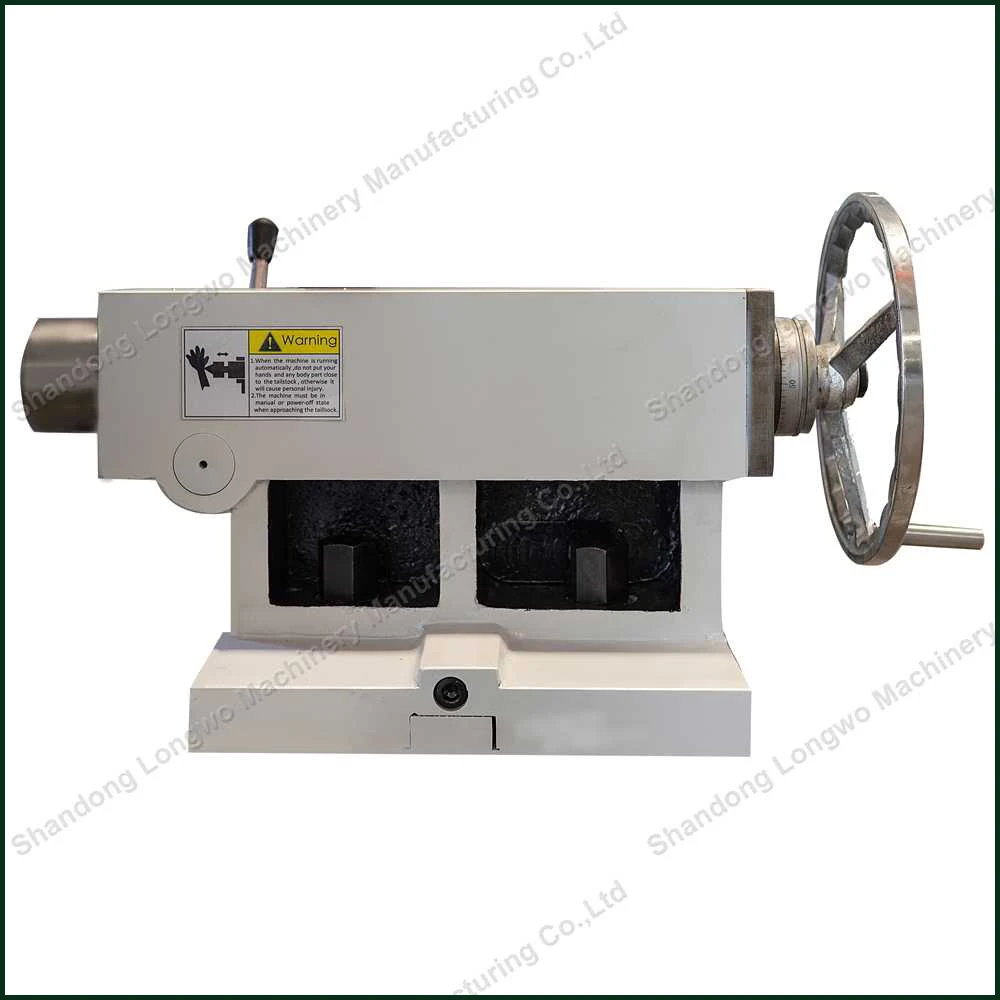

Machine Main Part

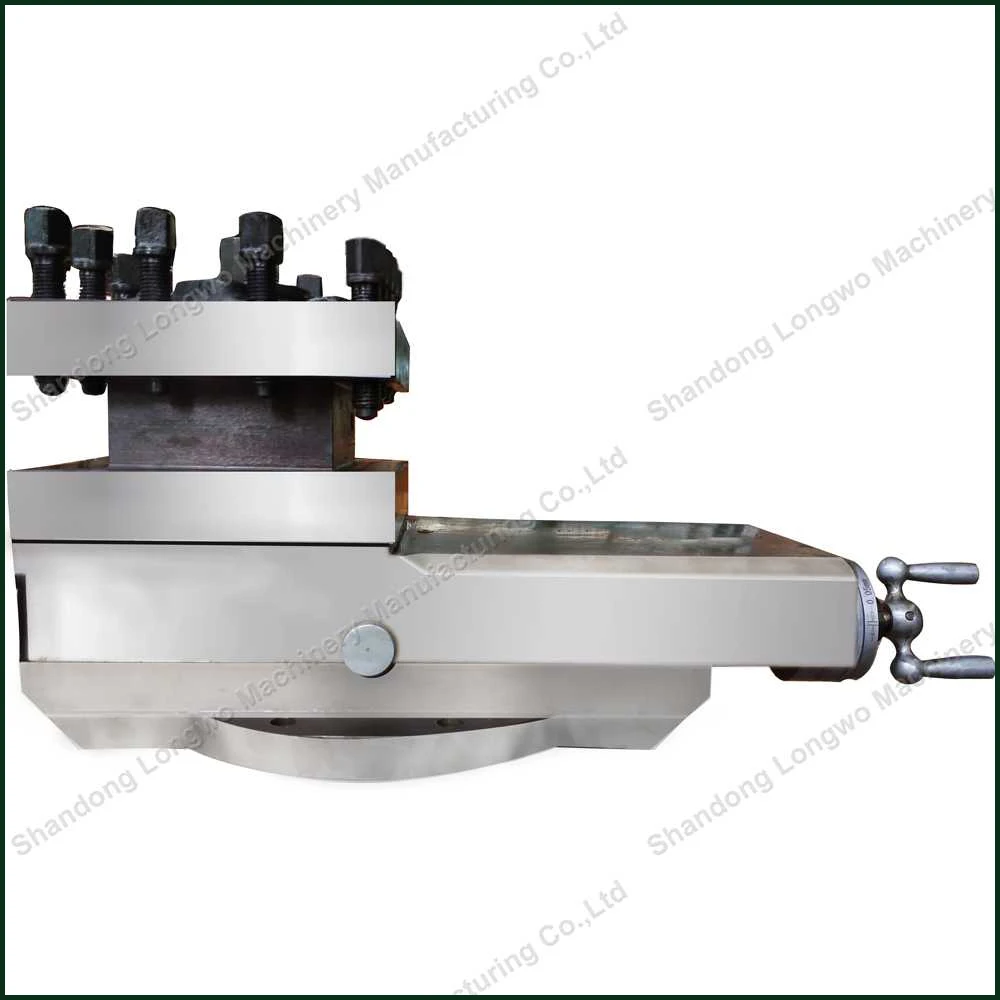

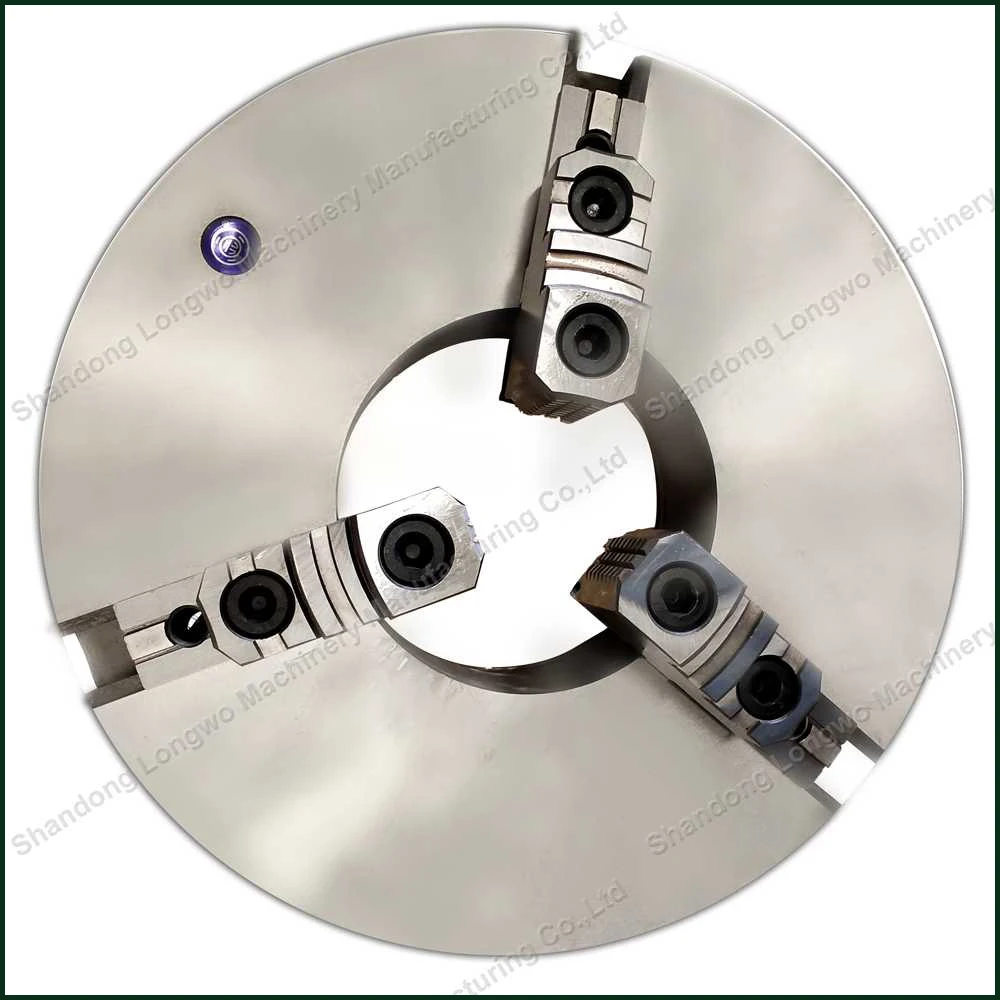

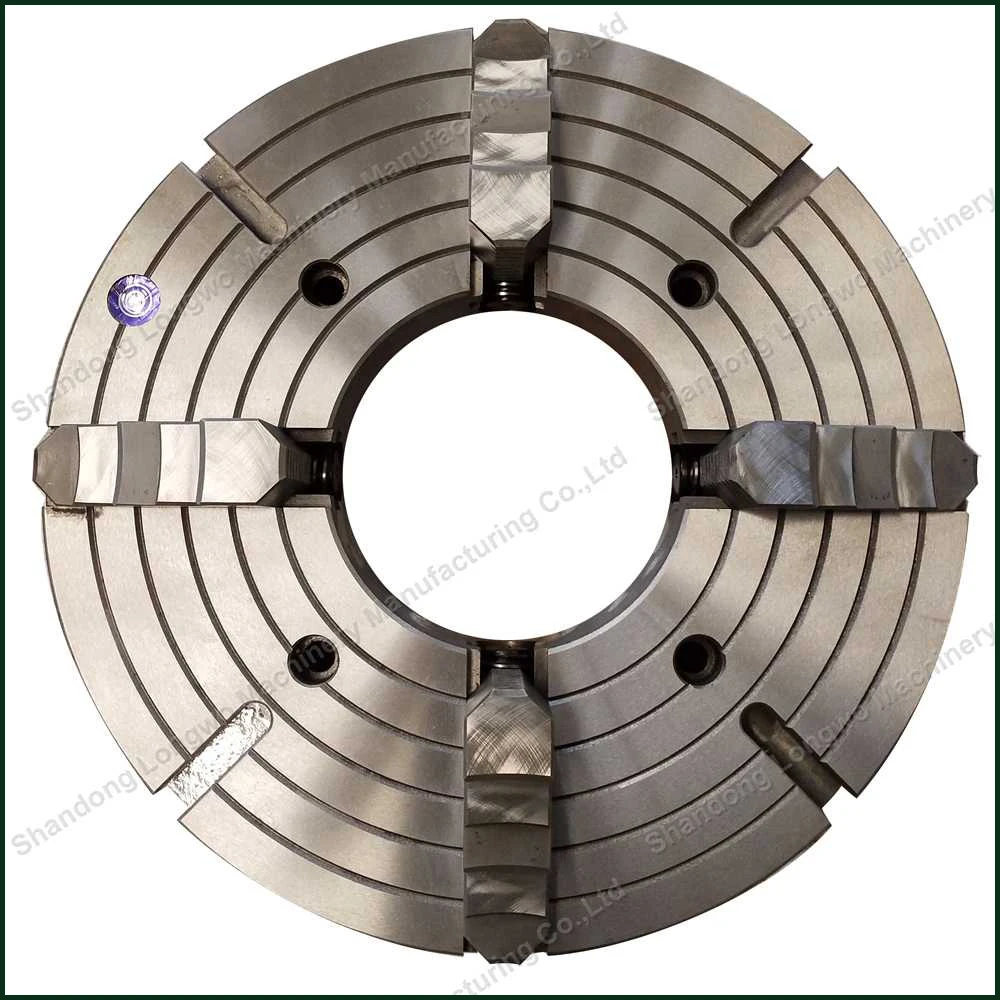

1.Bed: The width of the bed rail is 550mm, the material is HT250; the super-audio quenching of the guide rail reaches HRC55±3, and the roughness reaches Ra0.63 after grinding by high-precision guide rail grinding machine, which has high precision and wear resistance. The machine bed and the foot of the bed are integrated, which greatly improves the rigidity of the machine. 2.Headstock: integral spindle unit, variable frequency control spindle motor, full stepless speed regulation. The spindle is lubricated and cooled by an electric lubrication pump. The Headstock has high rigidity and long service life. A three-jaw manual chuck is provided on the front end of the spindle. 3.Two-axis feed: Both X and Z axes adopt high-precision ball screw direct drive and screw double support structure, which adopts precision ball screw bearing positioning and support; Z-axis screw nut hanger is an integral casting structure. 4.Tool:This machine is equipped with 192X192 vertical four-station electric tool holder.
