LINYI Largest manufacturer 4x8 feet plywood process machine wood peeling veneer machine
- Category: >>>
- Supplier: Shandong Jinlun Machinery Co. Ltd.
Share on (62336476964):
Product Overview
Description
Product Description
VENEER PEELING MACHINE
wood veneer peeling machine is the first step turn log to veneer .
One complete peeling line including : 1 set log debarker ,1 set peeling machine ,1 automatic veneer stacker , 2 conveyors .
Our veneer peeling machine have the advantage as following :
1 ,Stable work condition : 20 years experience & mature technicque ,guaratee it could work stably wihout worning ,
2,long work life : strong structure make it could work like more than 10 years without shape change .
3,High log to veneer outrate ; our new design control system ,could significantly improve the veneer out rate.
4,High work speed : new model could improve work speed from 50m/minute to 80m/minute
5,Reliable after sale service ; During 1 years warrany ,our engineer will come to you side to help solve problem and make setup .
wood veneer peeling machine is the first step turn log to veneer .
One complete peeling line including : 1 set log debarker ,1 set peeling machine ,1 automatic veneer stacker , 2 conveyors .
Our veneer peeling machine have the advantage as following :
1 ,Stable work condition : 20 years experience & mature technicque ,guaratee it could work stably wihout worning ,
2,long work life : strong structure make it could work like more than 10 years without shape change .
3,High log to veneer outrate ; our new design control system ,could significantly improve the veneer out rate.
4,High work speed : new model could improve work speed from 50m/minute to 80m/minute
5,Reliable after sale service ; During 1 years warrany ,our engineer will come to you side to help solve problem and make setup .

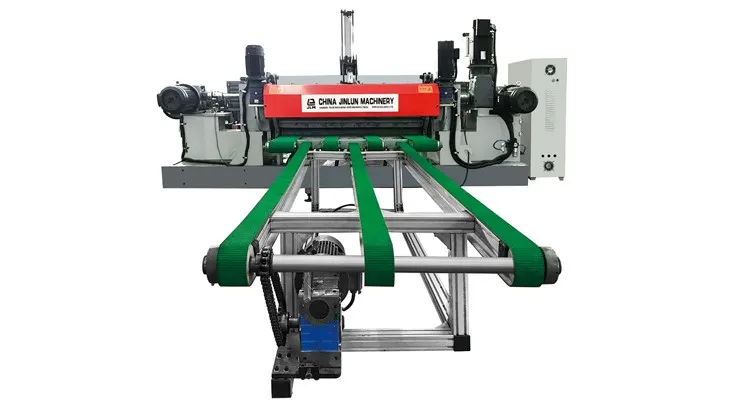

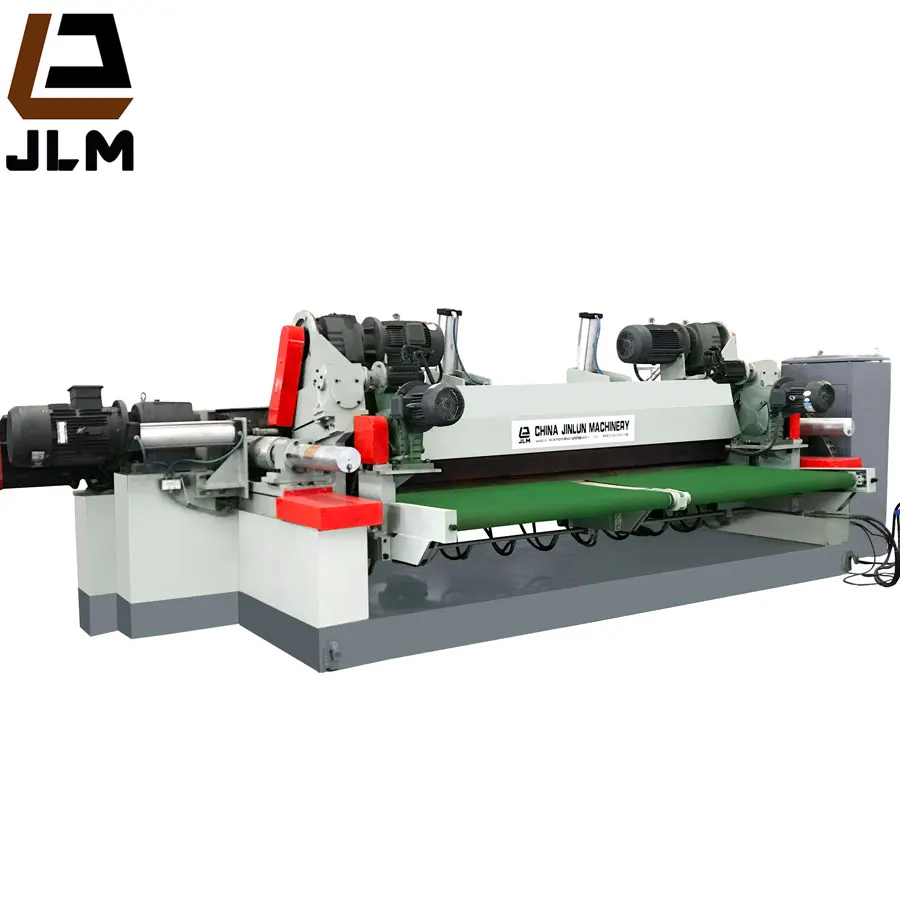

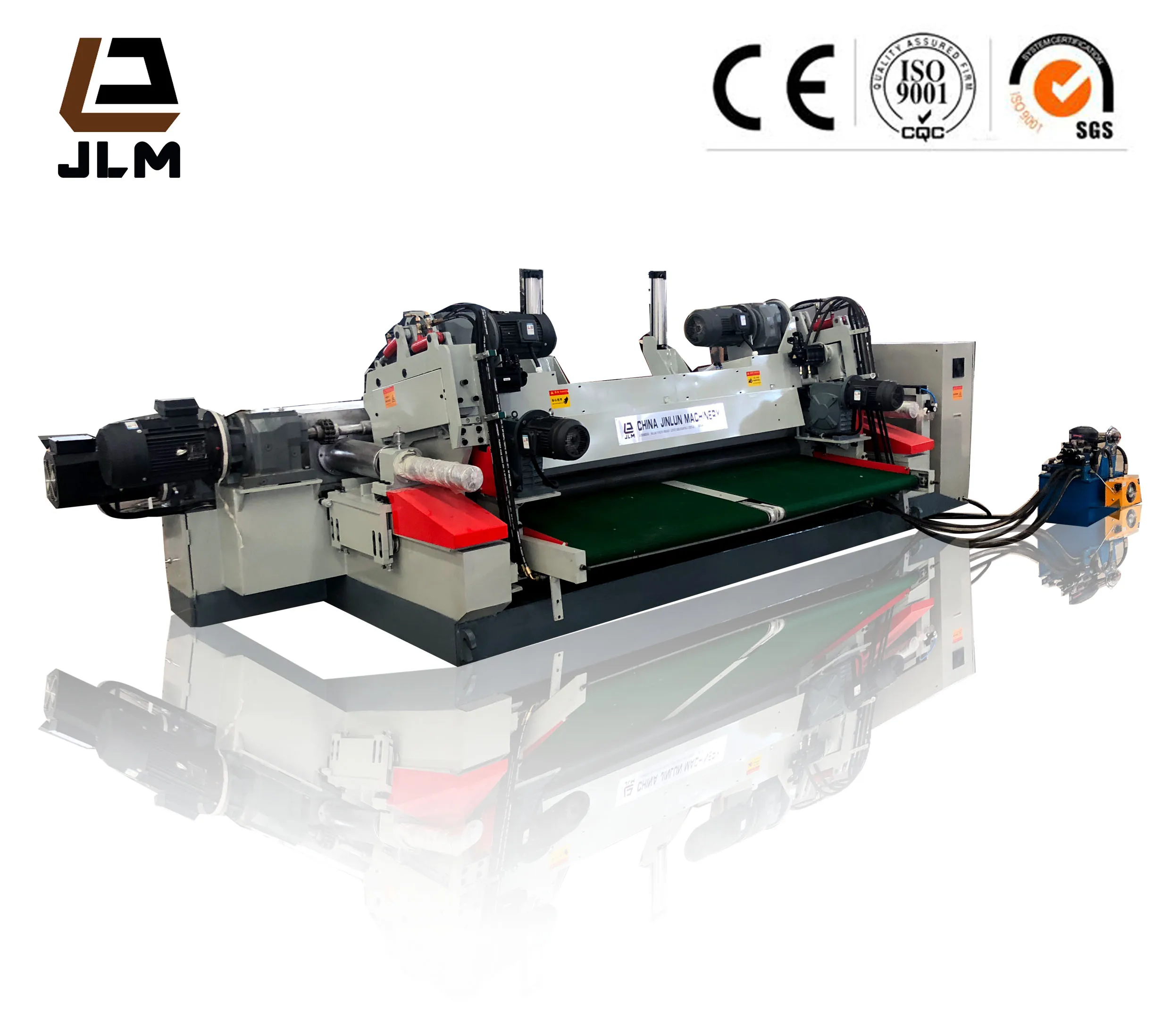

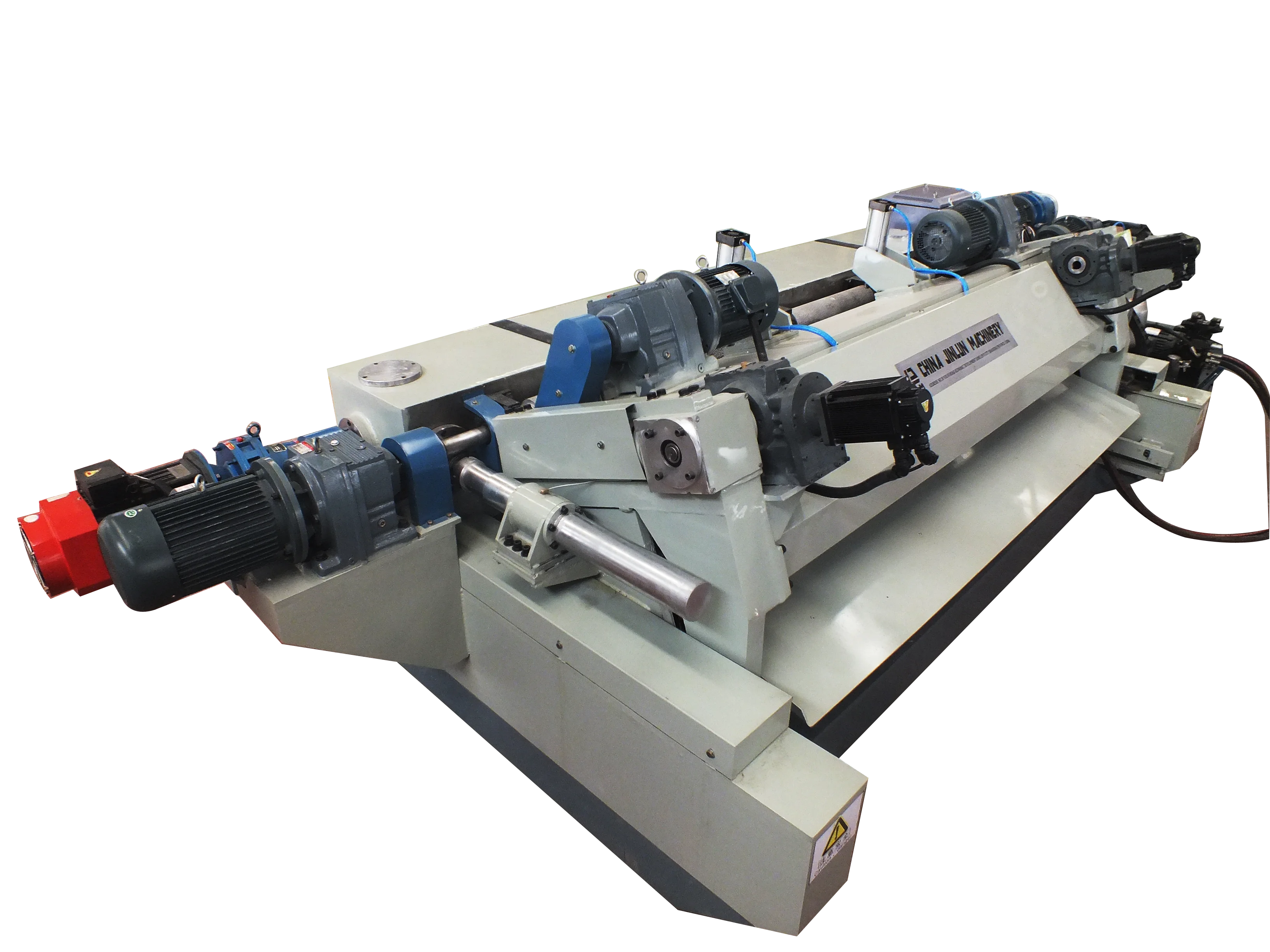

Detailed Images
Size Information
4ft veneer peeling machine | 8ft veneer peeling machine | 10ft veneer peeling machine | ||||||
Type | JLXQ130-40A | Type | JLXQ260-50A | Type | JLXQ320-50A | |||
Cutting Size (DxL) | Φ400×1400mm | Cutting Size (DxL) | Φ500×2700mm | Cutting Size (DxL) | Φ500×3300mm | |||
left log Dia. | Φ24mm | left log Dia. | Φ30mm | left log Dia. | Φ35mm | |||
Cutting Thickness | 1.0~3.5mm | Cutting Thickness | 1.0~3.5mm | Cutting Thickness | 1.0~3.5mm | |||
Speed | 30~80m/min | Speed | 30~80m/min | Speed | 30~80m/min | |||
Power | 40.5KW | Power | 54KW | Power | 74KW | |||
Single Roller Dia | 101mm | Single Roller Dia | 101mm | Single Roller Dia | 125mm | |||
Doubel roller Dia. | 110mm | Doubel roller Dia. | 125mm | Doubel roller Dia. | 200mm | |||
Weight | 6000kgs | Weight | 11000kgs | Weight | 13000kgs | |||
Overall size | 4100x2150x1600mm | Overall size | 6100x2150x1600mm | Overall size | 6800x2250x1600mm | |||
