2024 Full automatic eco friendly Edible pasta drinking straw making machine / disposable straw machine
- Category: >>>
- Supplier: Jinan Sunward Machinery Co. Ltd.
Share on (62336587796):
Product Overview
Description
Full automatic eco-friendly Edible pasta drinking straw making machine / disposable straw machine
Brief Introduction
1.1 Pasta/macaroni/Italy noodles/spiral/shell/Instant noodle Introduction
Disposable drinking straw is a new type of non-polluting, degradable habit within 60 days. In order to meet the needs of market customers, our company has developed a new type of pasta straw. The main raw materials are corn starch, rice flour, flour and other grain flour. The products produced are all green, non-polluting and edible.

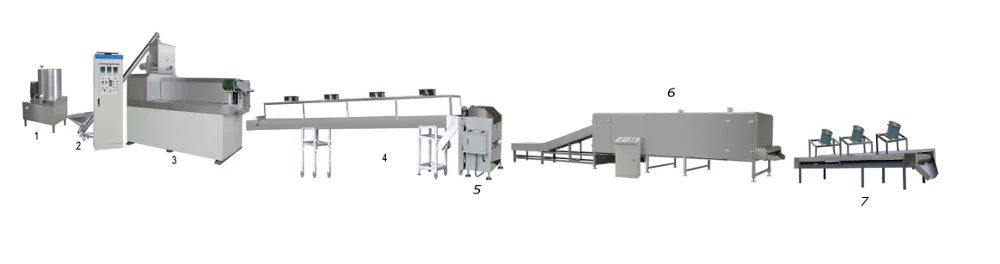

1.2 The whole line of pasta straw machine / rice straw making machine / processing line
1.Mixer → 2.Screw Conveyor → 3.Single Screw Extruder Machine→4.Cooling & Cutter Machine→5.Climbing dryer machine→6.Cooling machine
1.3 Voltage of pasta straw machine / rice straw making machine / processing line
Three phases: 380V/50Hz, Single phase: 220V/50Hz. we can make it according to customers' Local voltage according to different countries.
1.4 Raw materials of pasta straw machine / rice straw making machine / processing line
potato starch, potato powder , corn starch,wheat or other grains.
1.5 Capacity of pasta straw machine / rice straw making machine / processing line
100kg/h-150kg/h(Full automatic eco-friendly Edible pasta drinking straw making machine / disposable straw machine)
1.6 The stainless steel Italy long pasta straw machine needs two workers to operate.

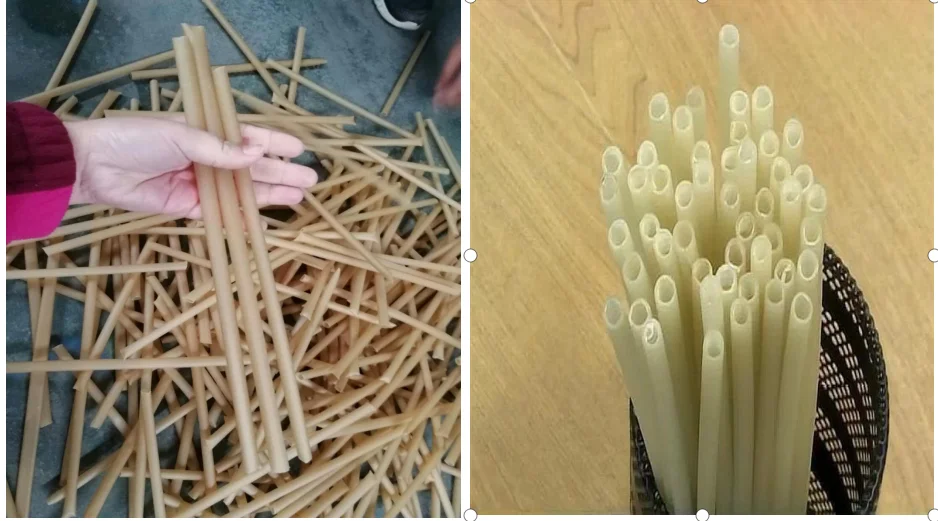

1.7 Samples of pasta straw machine / rice straw making machine / processing line
Technical Parameter
Parameter of pasta drinking straw machine | ||||
Model | Installed Power | Power Consumption | Production Capacity | Dimension |
EXT 100 | 70kw | 50kw | 100kg/h | 27000*2000*2200mm |
Details of machine

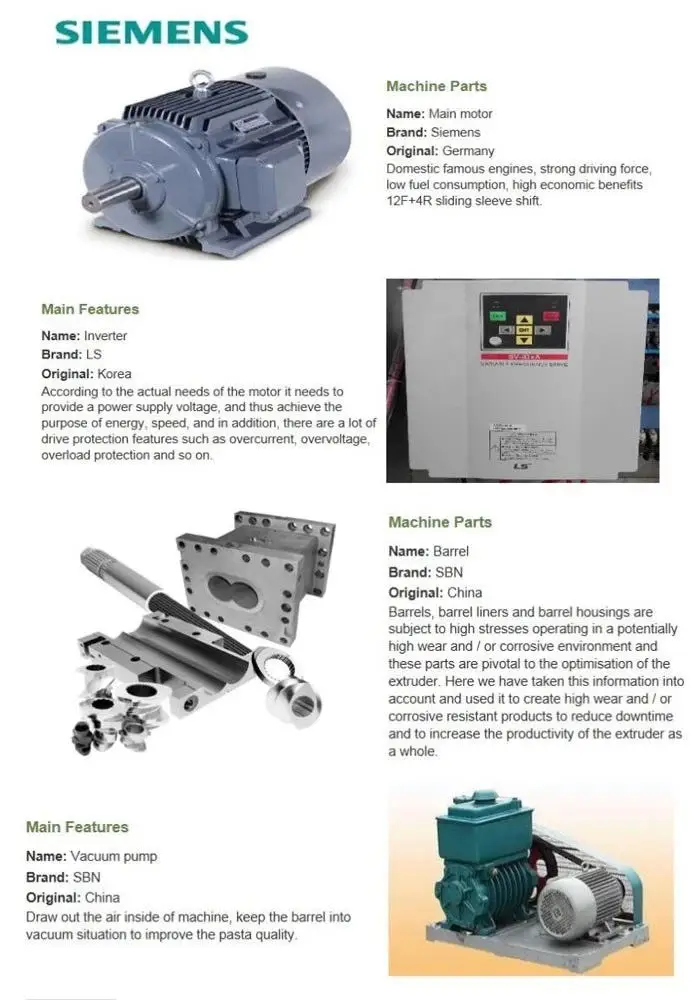

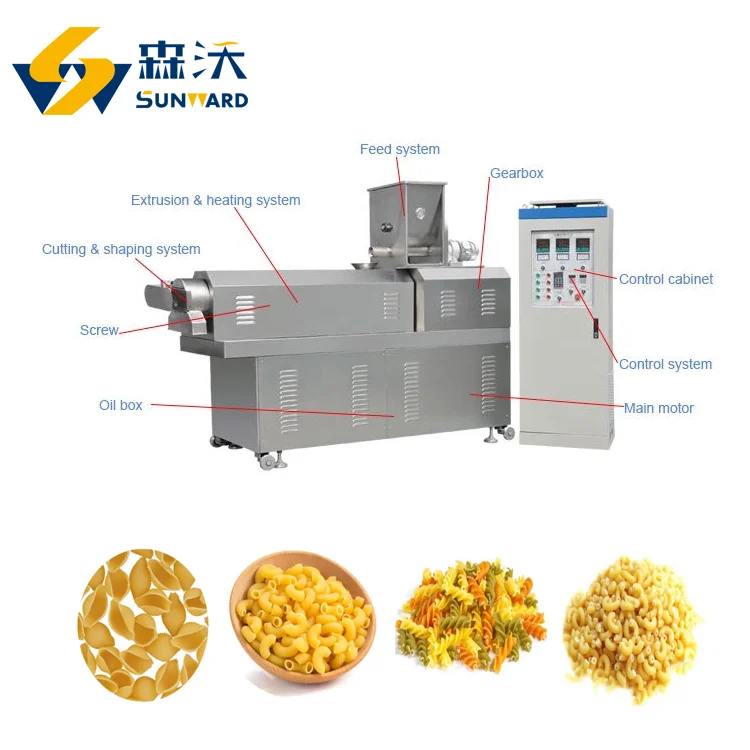

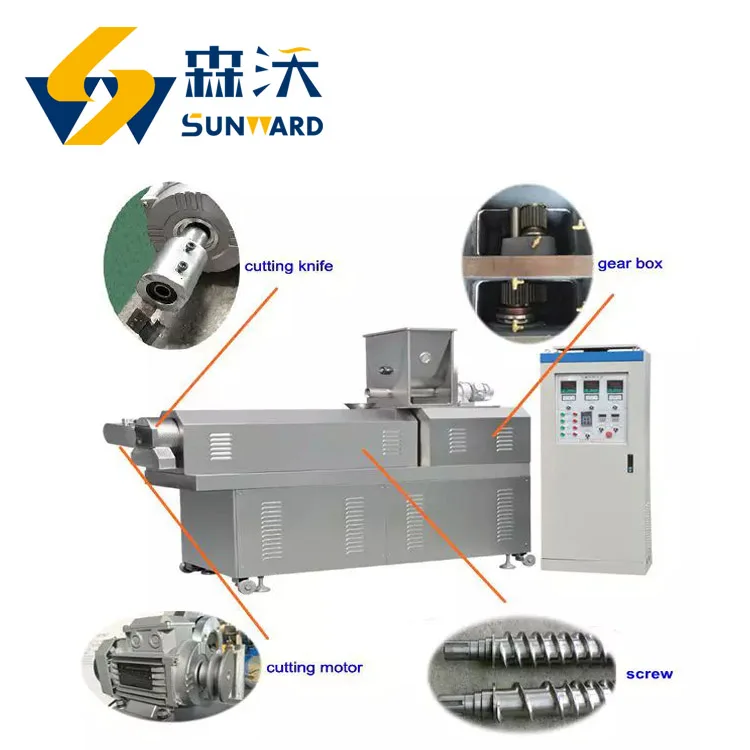

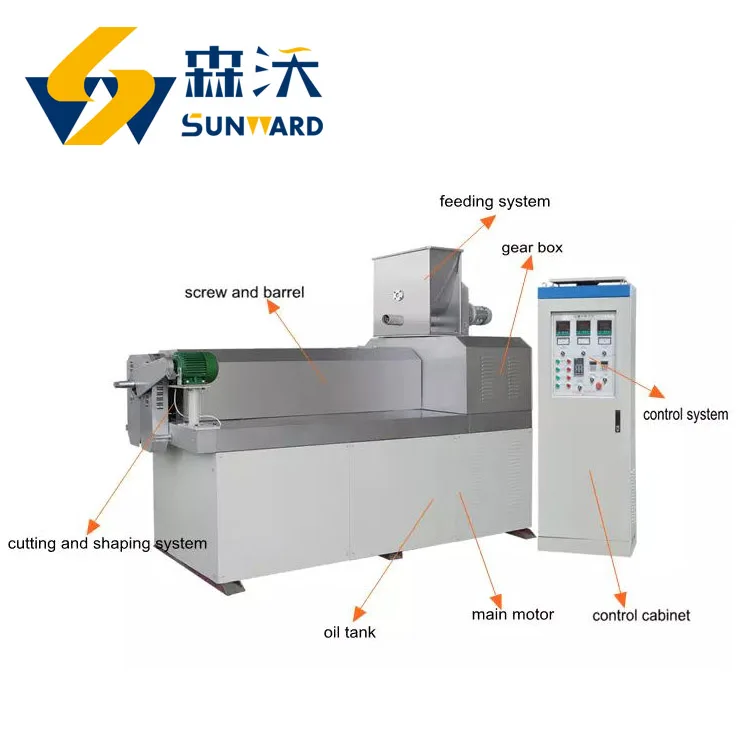

2.1 Single screw extruder
1.The main extruder adopts frequency speed controlling with high automation.
2.The screws are made of the stainless steel and special craft, which has the advantage of durable usage, high pressure,and longer life.
3.The forced lubrication system ,which can guarantee the equipment transmission life longer.
2.The screws are made of the stainless steel and special craft, which has the advantage of durable usage, high pressure,and longer life.
3.The forced lubrication system ,which can guarantee the equipment transmission life longer.
4.It has the widest range of applications and can produce different products with different equipment and models.
2.2 Multi-layer dryer
1.We have four types of dryers, which includes fuel ovens, gas ovens, electric ovens, and high temperature inflated ovens (used to produce corn flakes).
2.The electric oven has three layers of five meters / five layers of five meters / five layers of eight meters / seven layers of eight meters / seven layers of eleven meters, etc., each layer has electric heating tubes, the purpose is to be more evenly heated.
3.Dryer is compact, has small dry area and a largesuperficial area. It also features small scale of heat elimination and high thermal effciency.
4.Mesh belt conveyors and thermal insulation boards all use stainless steel material, making the equipment clean and sanitary.
5. The speed of mesh belt conveyor is adjustable, the drying period for food in the oven can be adjusted.
6. The automatic temperature control system makes it possible to set the temperature according to your needs.
2.The electric oven has three layers of five meters / five layers of five meters / five layers of eight meters / seven layers of eight meters / seven layers of eleven meters, etc., each layer has electric heating tubes, the purpose is to be more evenly heated.
3.Dryer is compact, has small dry area and a largesuperficial area. It also features small scale of heat elimination and high thermal effciency.
4.Mesh belt conveyors and thermal insulation boards all use stainless steel material, making the equipment clean and sanitary.
5. The speed of mesh belt conveyor is adjustable, the drying period for food in the oven can be adjusted.
6. The automatic temperature control system makes it possible to set the temperature according to your needs.

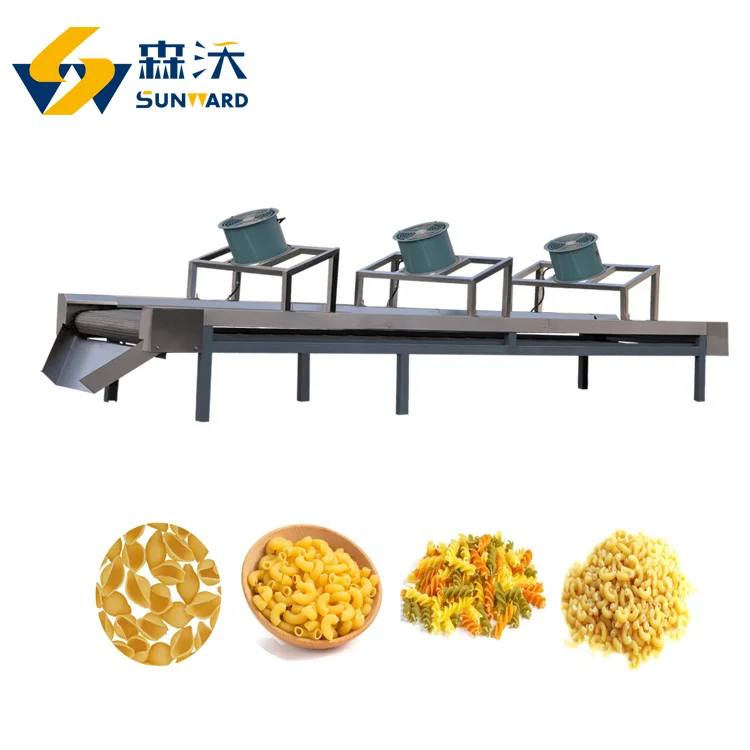

2.3 Cooling machine
1.General length is 5 meters, but we can made it according to our customers' requirement.
2.The above are fans, which used to speed up the cooling.
3.The goods are transferred by the belt while they are cooling by fans.
4.Material touching the food is stainless steel.
5.Transferring speed can be adjusted.

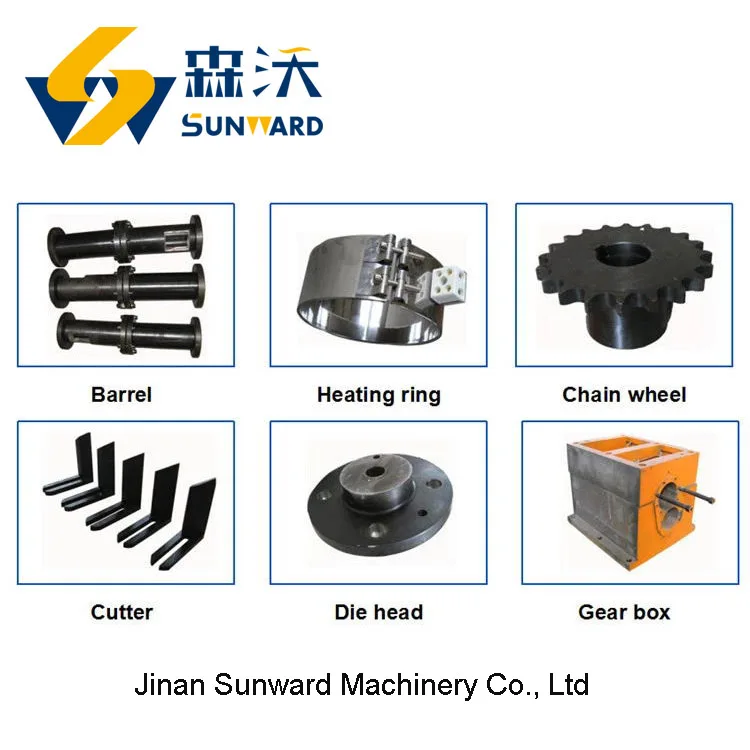

2.4 Other fittings
Company Information
Jinan Sunward Machinery Co., Ltd is an industry and trade integrated enterprise. The company is committed to R & D extrusion machinery and related ancillary equipments. It is covering mainly machinery and equipment for corn meal milling system, corn flakes/breakfast cereal system, baby food system, corn puff snacks system, pellets system, artificial rice system,soy nuggets system; as well as pet food/fish food system.
Jinan Sunward Machinery Company is founded in 2008. For supplying best service, technology department, Sales department, producing department , after- sales department are always available for you. Sales department includes two international sales department and two domestic sales department. One sale department is located in Wu Jia Pu Industrial Park,Jinan. The other sale department is located in No 130 Wu Ying Shan Middle Road, Jinan.
Our machines have been exported to many countries of Asia, America, Africa, Europe etc. Machines are welcome in the countries. So until now, there are not only direct customers, but also some long term cooperation agents. Such as Indonesia agent, Nigeria agent and so on.
Packaging & Shipping

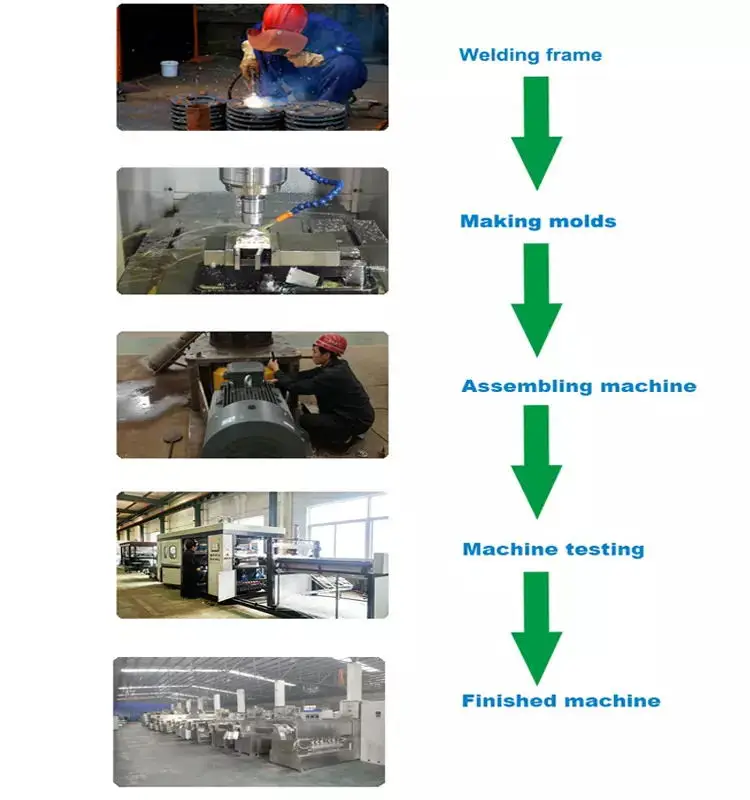

1. Testing Machine before package.
2. Packaging: inside is covered in plastic film, outside is wooden case.
3. Shipping: 15-35 working days after receiving deposit.
FAQ
1. What's the pre-sale service of your company?
Related machines’s technical parameter will be supplied to customer.
1. According to customer’s factory size, factory layout can be provided in advance.
2. According to customer’s material cost, general formulation can be prepared well.
3. Special machine can be supplied as customer’s request.
4. Professional Advice about Market, machines, processing , materials, packing can be supplied.
5. Suggesting professional ship agent or helping book ship as customer request.
2. What's the after-sale service of your company?
1. Allocation chart as the buyer’s request will be supplied.
2. Operation manual will be supplied after shipment.
3. One year warrantee, life time maintenance with cost price.
4. Free easy broken spare parts will be sent with container .
5. First installation can be done by engineer.
6. Training workers in customer’s factory.
3. If machines wearing parts need changing, what should we do?
We can offer the wearing parts all the time, and offer video.
4. What's the payment terms if we want to buy the machines?
L/C, T/T 30% down payment, 70% balance before delivery.
Related Products

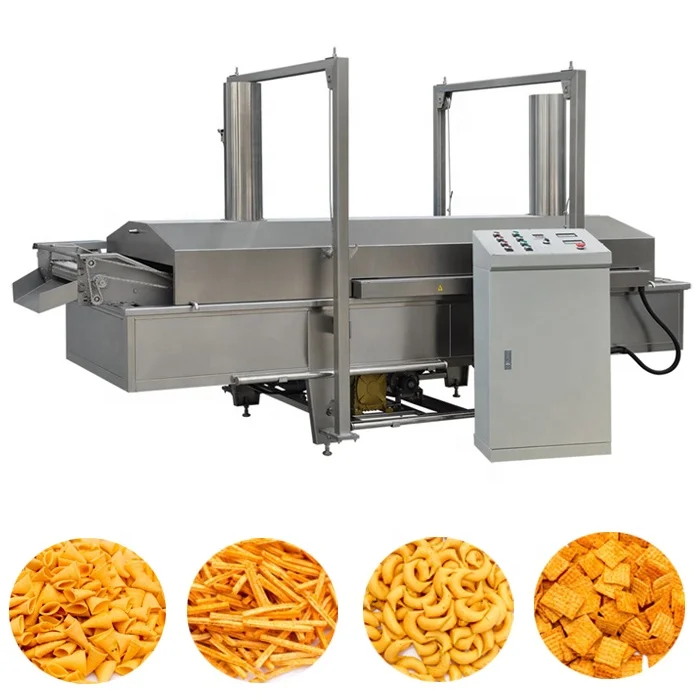

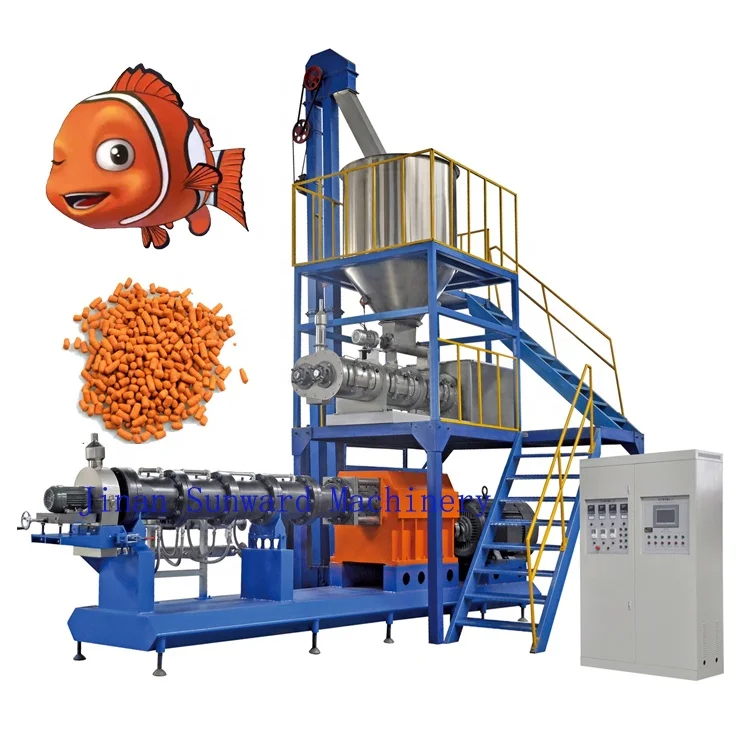

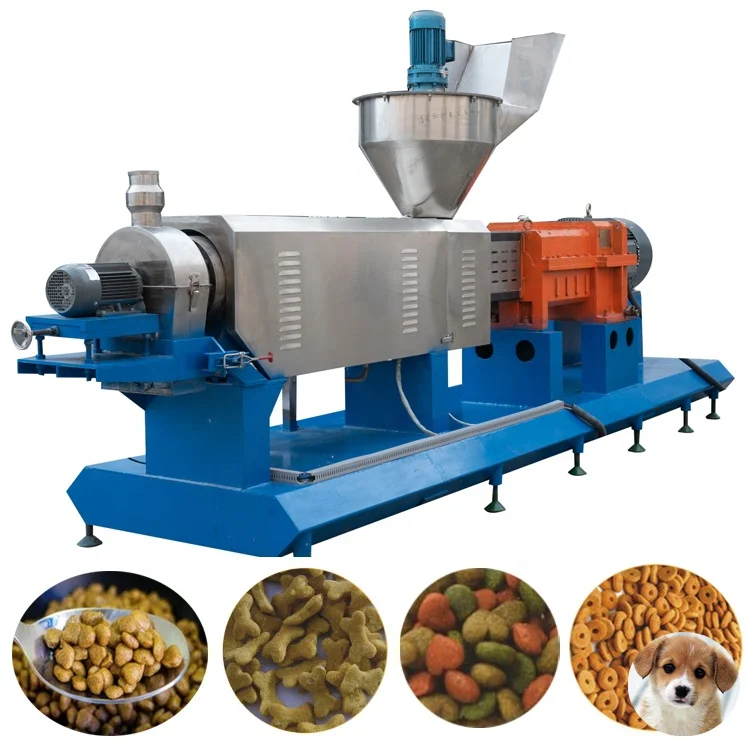

Fish Feed Machine Fried Snacks Machine Pet Food Machine

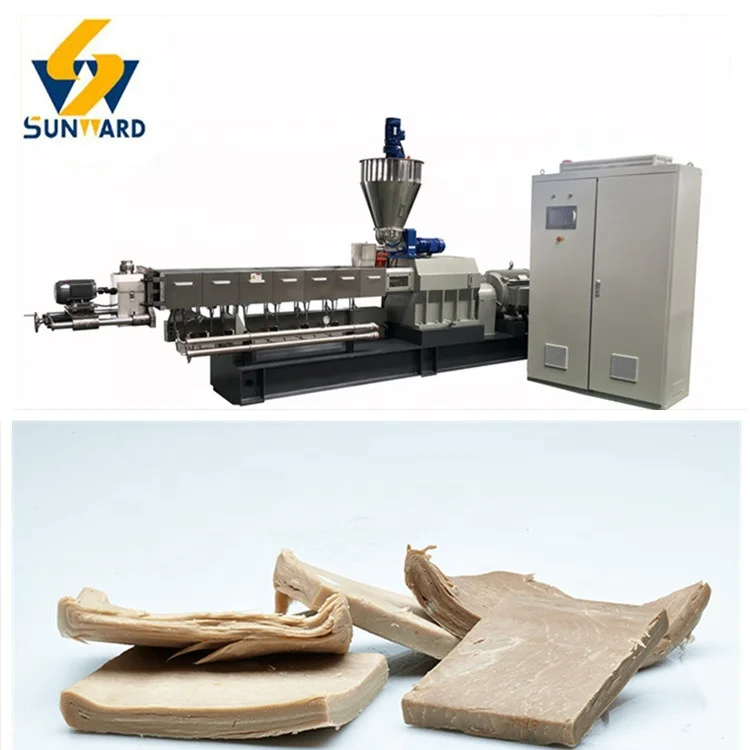

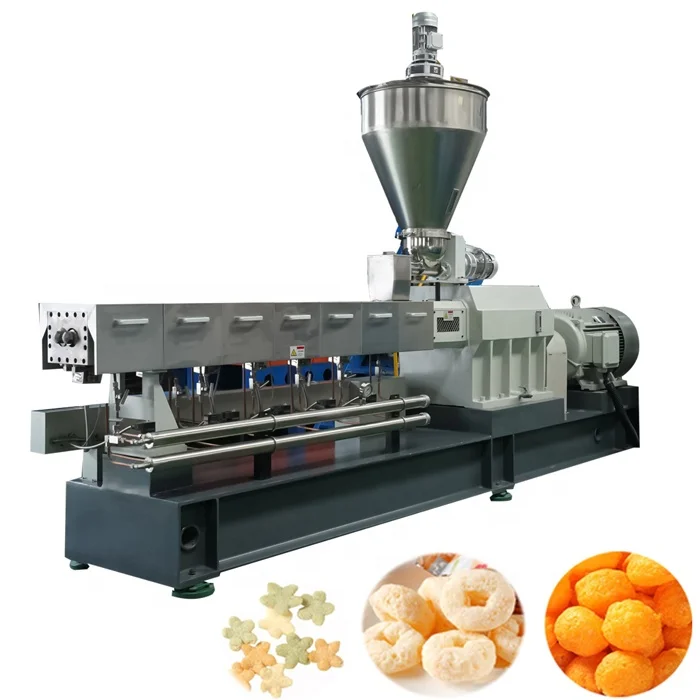

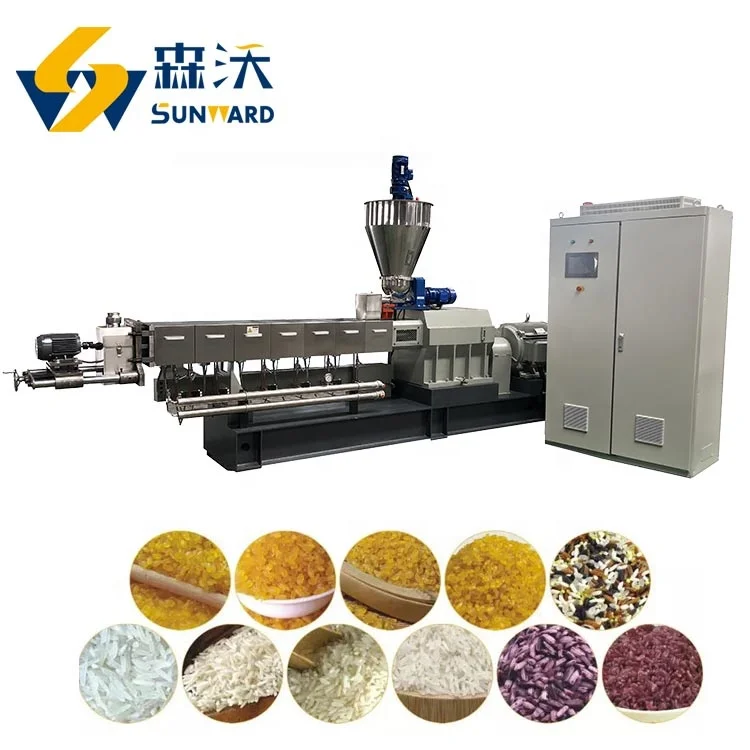

Artificial Rice Plant Puffed Snack Food Machine Soya Protein Machine
