HBFL New design popular cold drawn wire drawing machine
Product Description
Item No. | Product name | Quantity |

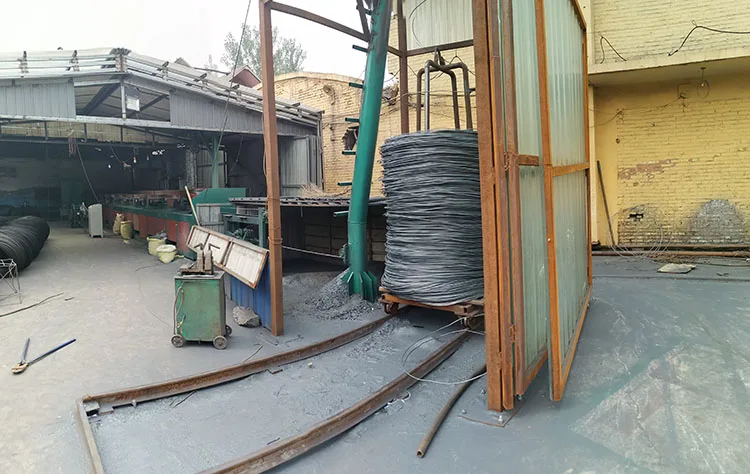

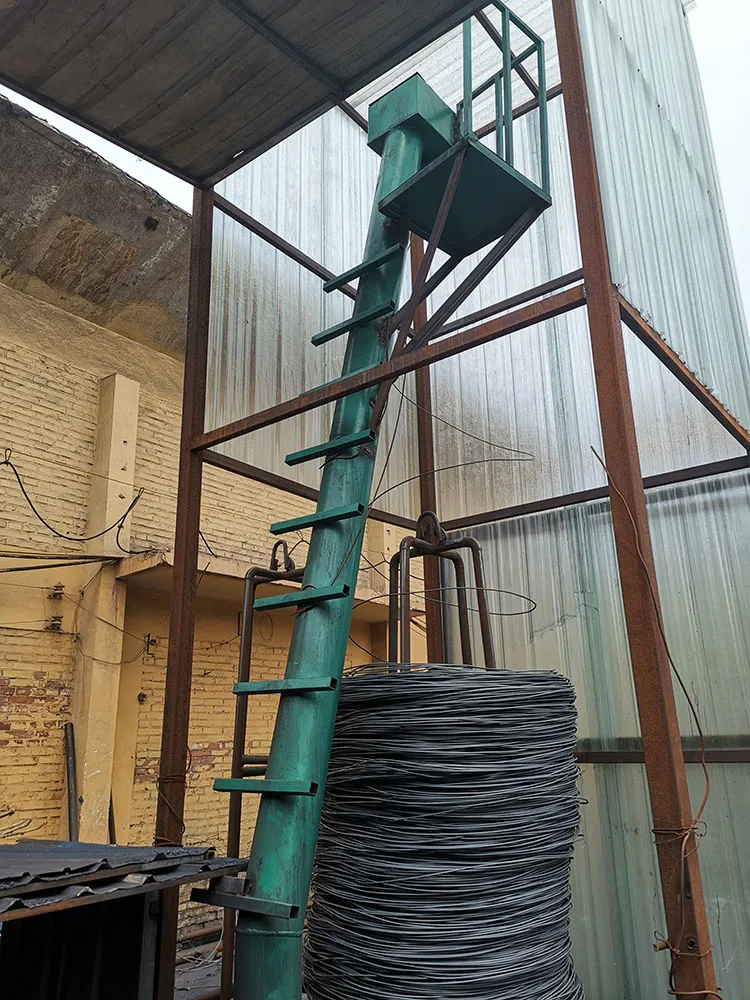

1 | Vertical pay off stand | 1 |
2 |
| 1 |

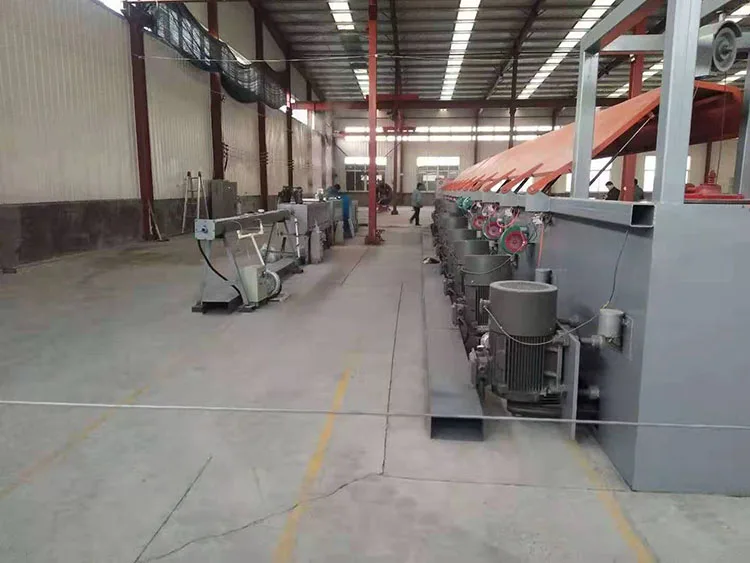

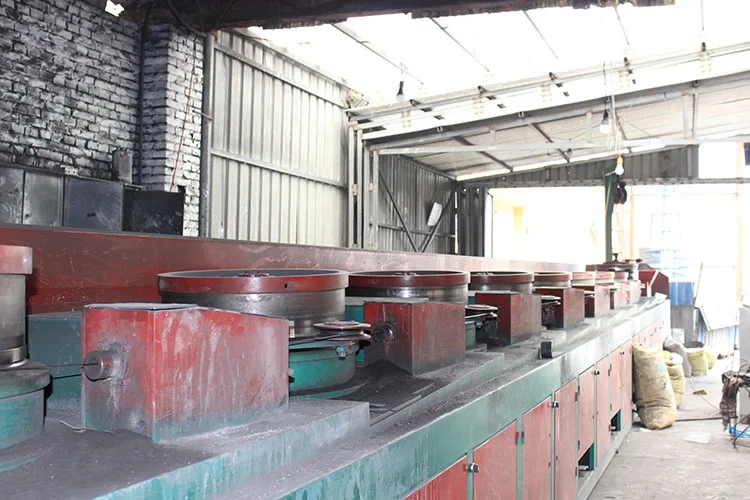

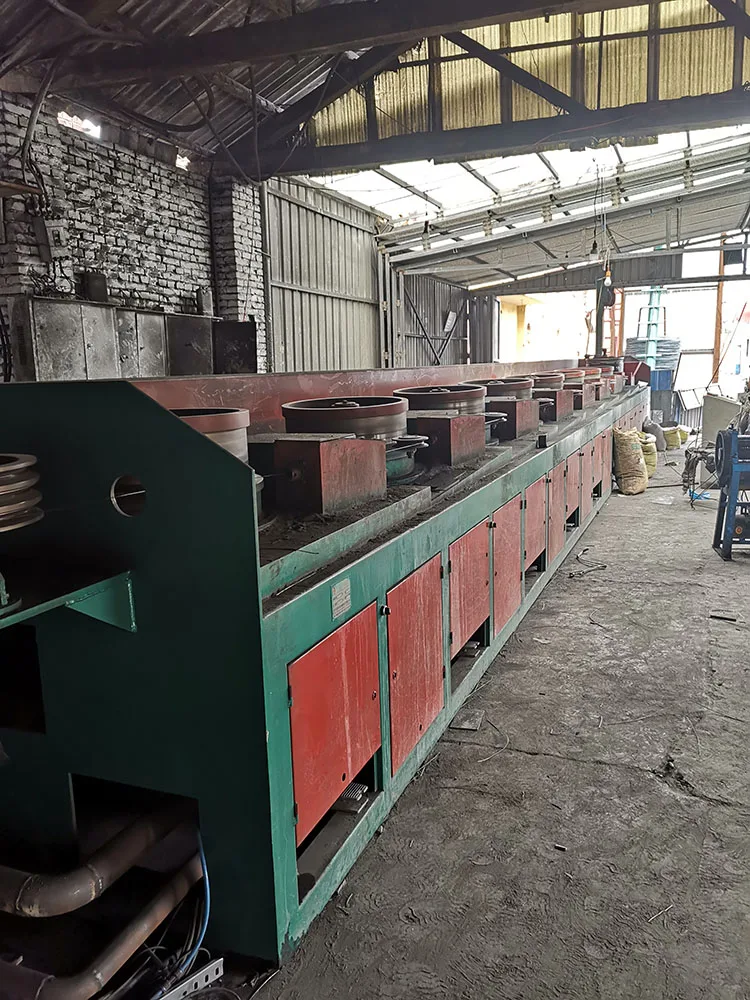

3 | Main machine of Straight line wire drawing machine includes dust removal+control cabinet | 8 |

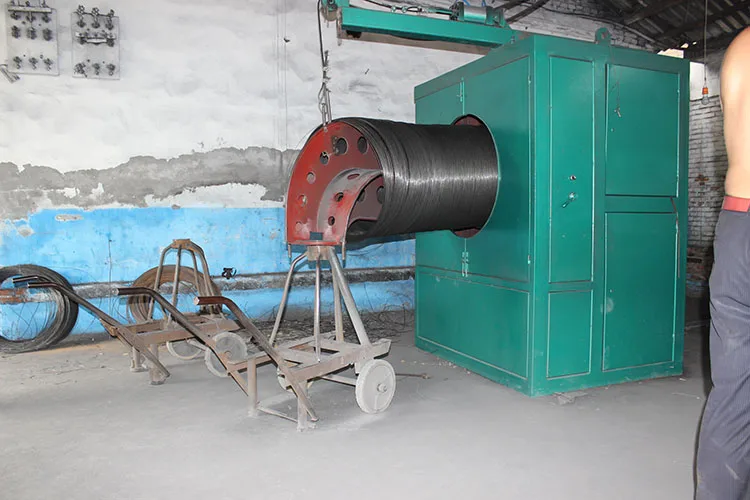

4 | H type wire collection or elephant nose wire collection | 1 |
5 | Pointer machine | 1 |
6 | Butter welding machine | 3 |
7 | Wire drawing Powder | 200kg |
Total Price | ||
Mold type | HBFL-8/550 straight line wire drawing machine |
Drum diameter (traction diameter) | 550mm |
Quantity of drum | 8 |
Input wire diameter | Φ6.0mm |
Output wire diameter | Φ2.0mm |
Inelt wire tensile strength | ≤450mpa |
Maximum compressibility | 90.5% |
Max speed | 12m/s(Φ2.0mm ,1200Kg/H) |
Motor | 22KW*8+ wire collection 15KW=191KW |
The motor is decorated | Motor erection |
Mold size | Φ40mm×30(tungsten steel) |
Drum (tower wheel) arrangement | The nose is upright and inclined |
machine direction | From right to left |
Wire collection type | H type wire collection or elephant nose type |
The finished straightening | finished straightening |
wear-resisting part | Rotating part in contact with wire The surface is sprayed with tungsten carbide |
Roll cooling | Spray water cooling |
Die box cooling form | The first end adds the rotation to pull the pink bar, directly draws the water cooling in the second area |
|
User supplied liquid, external circulation |
Tension frame | Built-in inflation detection |
Rack | 20 steel plate, square pipe welding machine, the body to the minimum |
Drive | Transmitte belt |
Bearing support form | The box is closed |
Safety device | Safety cover, add the observation window, open the cover and automatically slow down, stop the wire for detection |
Bearing lubrication | Tank self-lubrication |
Vacuuming design | Reserve suction holes |
lighting | Each machine is equipped with individual lighting |
Parking brake | Pneumatic brake |

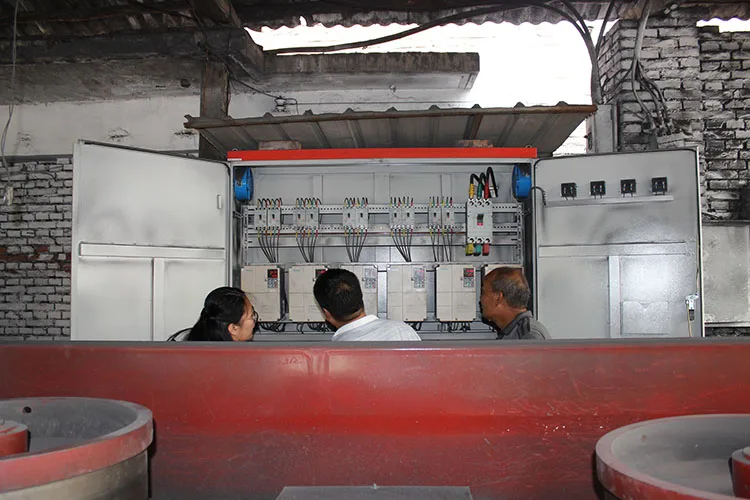

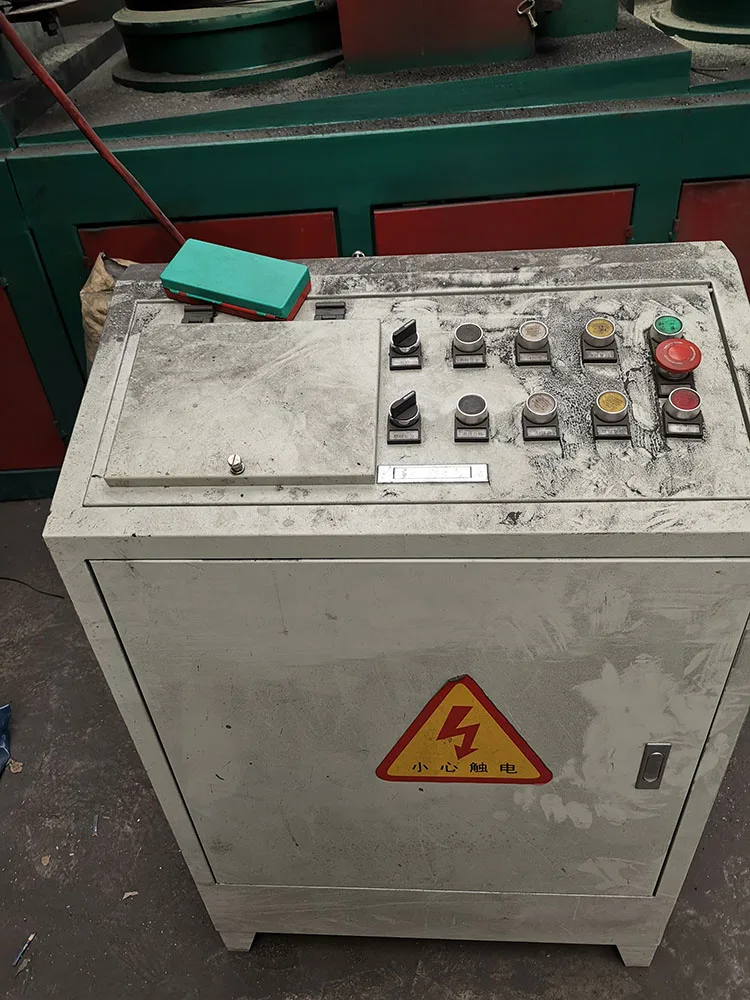

Electric cabinet | Vito structure, protection grade IP54 |

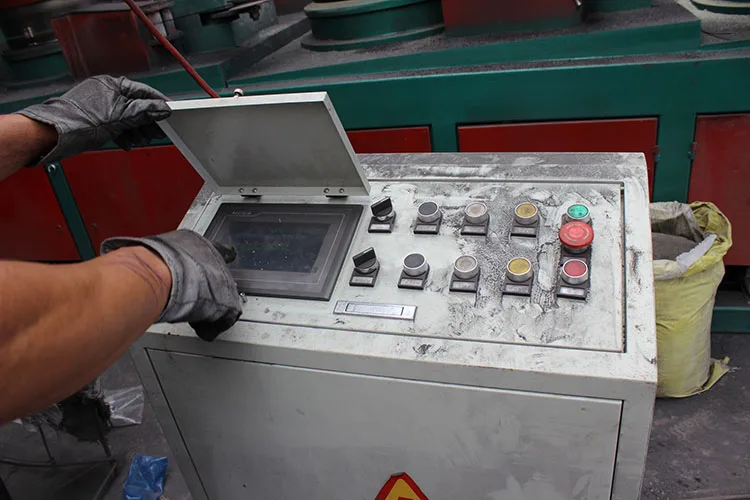

Electrical system | Frequency conversion speed control 485 communication PLC Control |
Energy consumption monitoring | Electricity meters are installed |
Frequency conversion motor brand | Hebei mengniu motor(China famous brand) |
Low voltage electrical appliances | Delixi brand |
The inverter | 22 kw huichuan inverter, 485 communication, |
Field cable supply | The special control cable shall be provided by the supplier Other control cables and power cables shall be provided by the demander
|
Gas, water, electricity | The demander receives the device interface |
