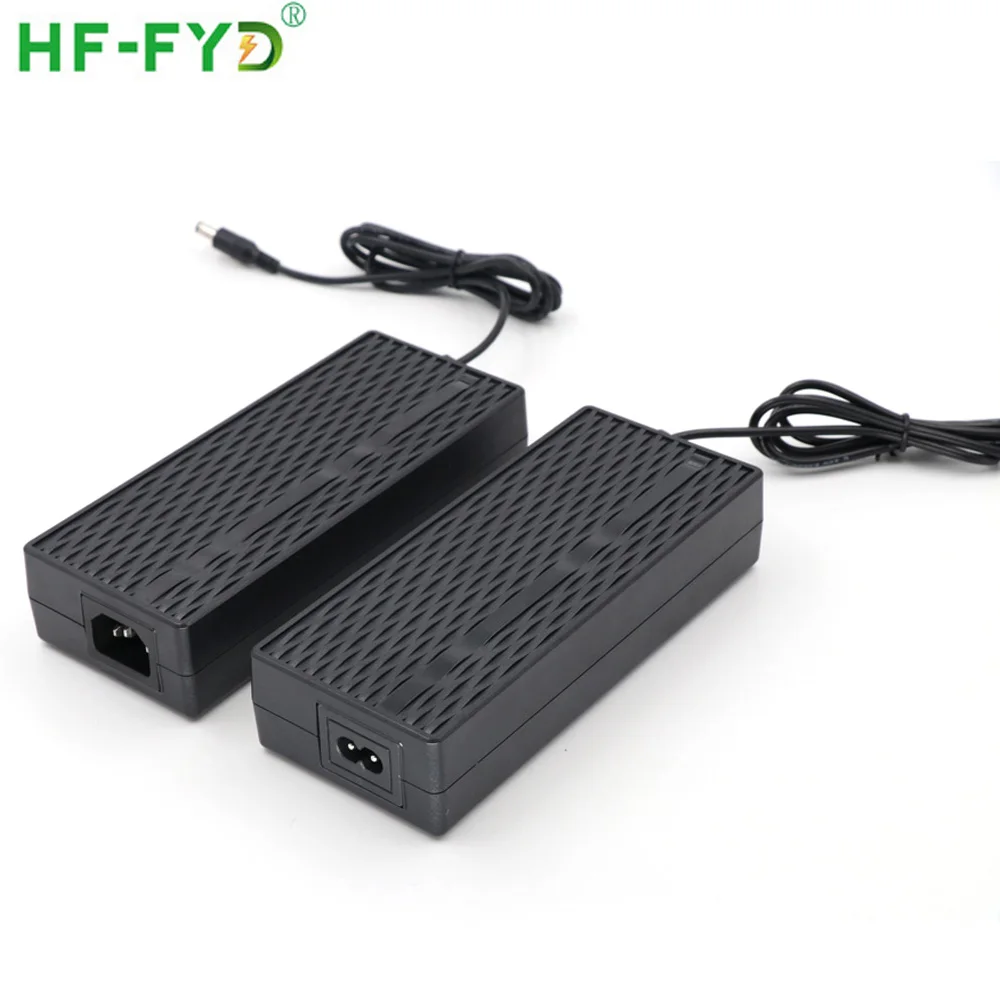

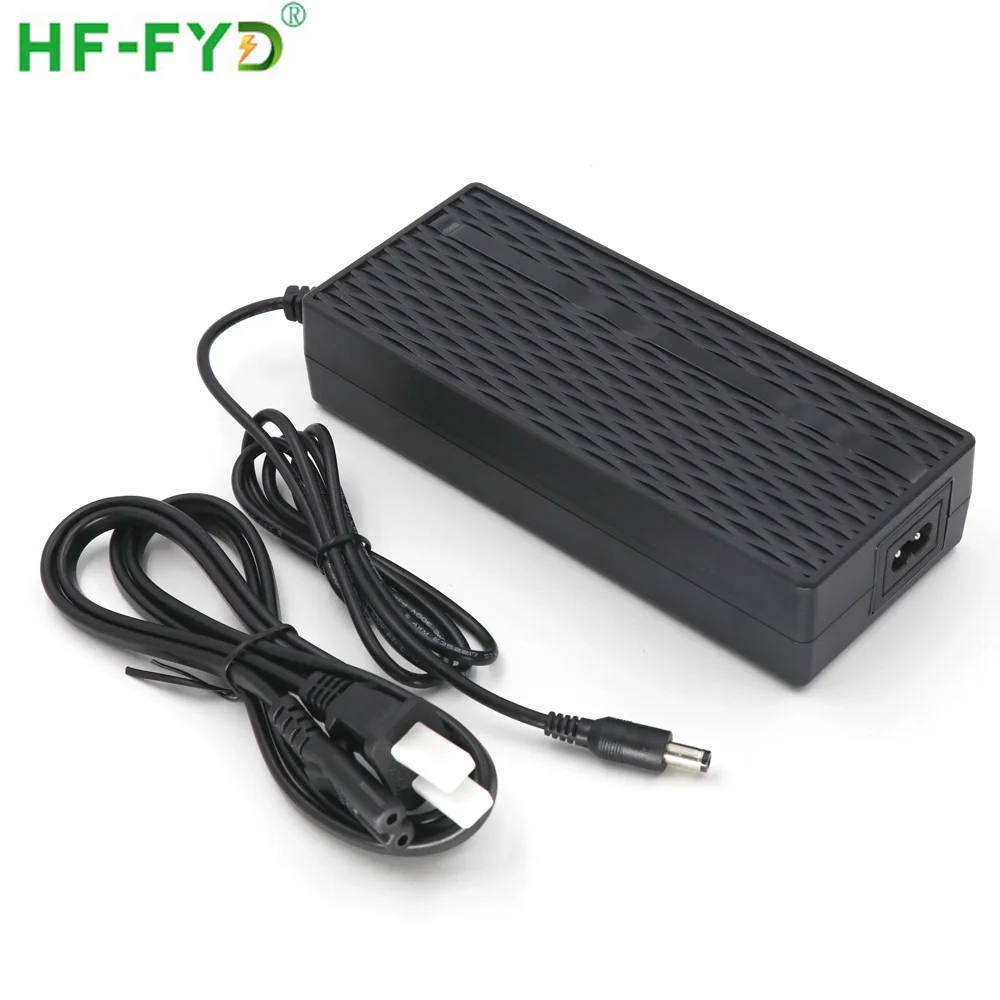

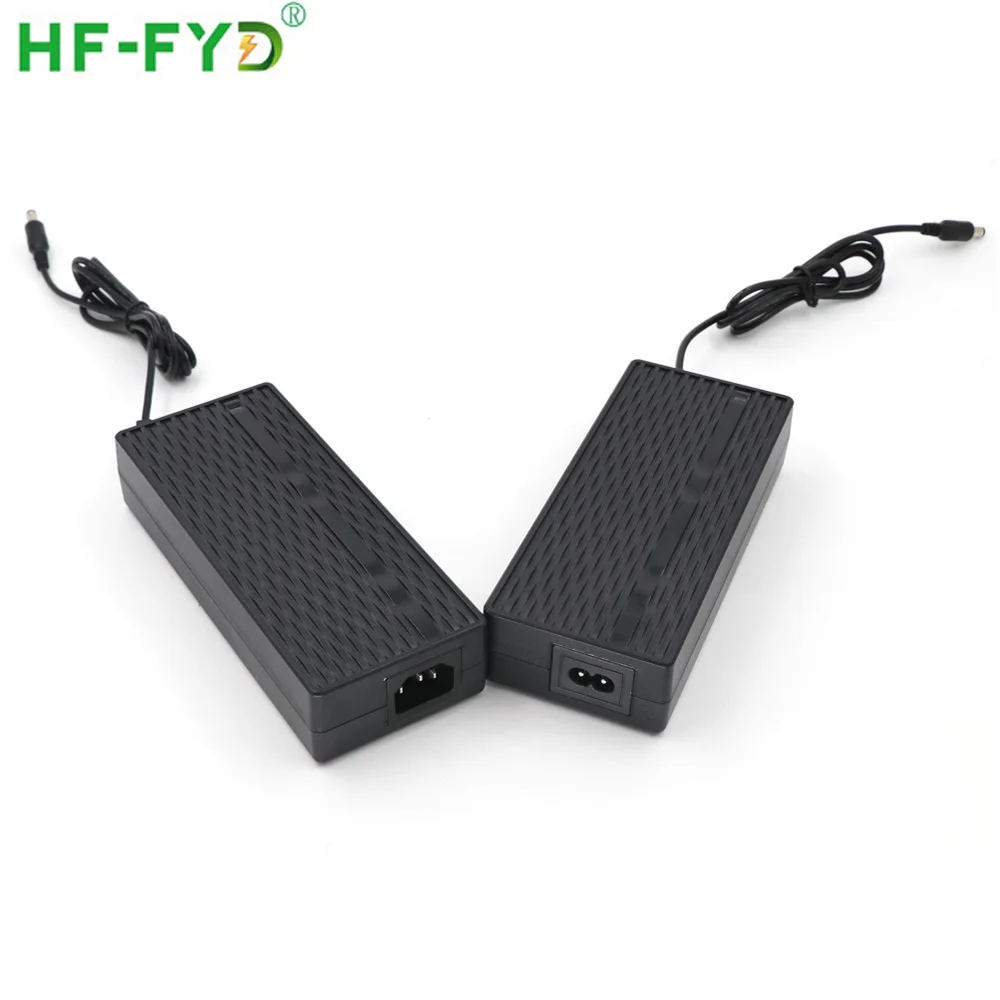

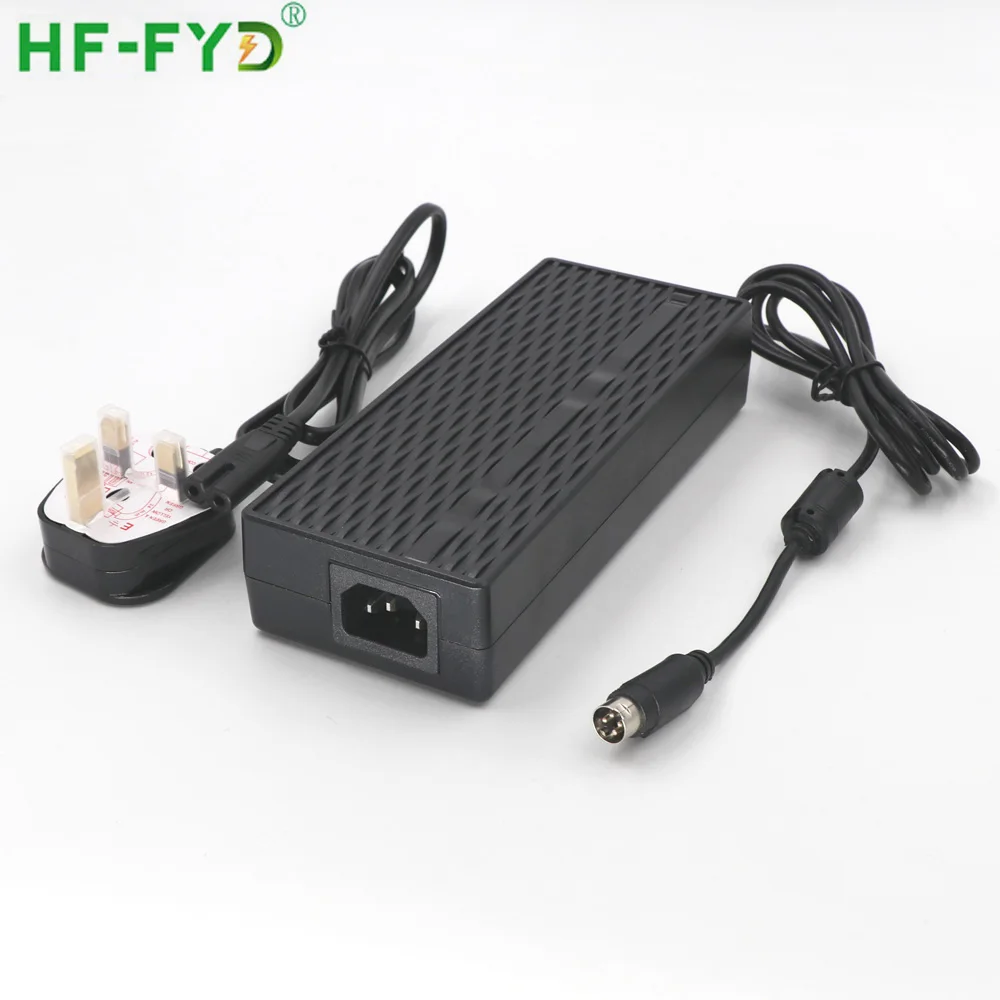

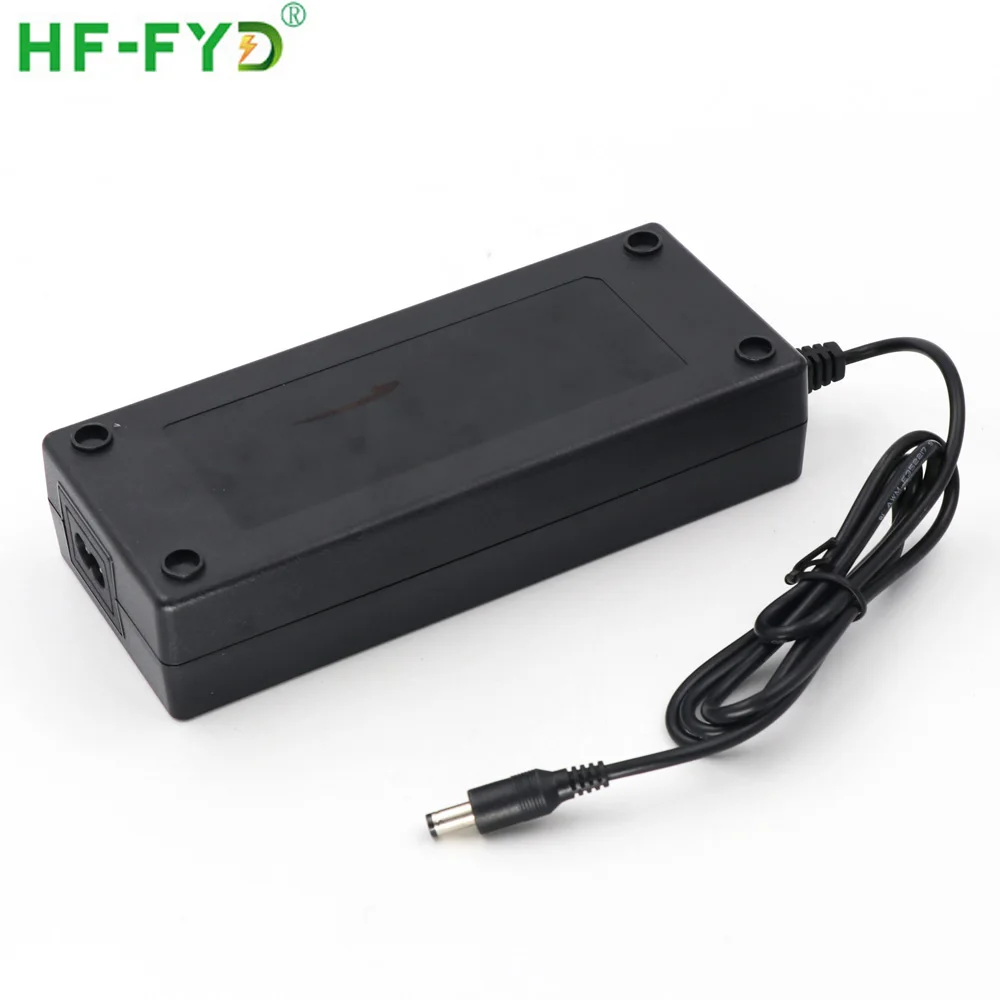

HF FYD FY1505462000 e bike lithium ion battery charger 54.6v with kc certificate

Product Overview

Description

                             FY1505462000 e-bike lithium ion battery charger 54.6v with kc certificate



Application

Widely used in the li-ion battery, hoverboard,balance electric scooter,etc.



Electric Performance

Power	109.2W
Model	FY1505462000
Input Voltage	100-240V
Ourput Voltage	54.6V
Output Current	2A
Color	Black or White
Certificate	CE,UL,CB,PSE,KC,CCC,etc
Warranty	2 years
Efficiency	85%

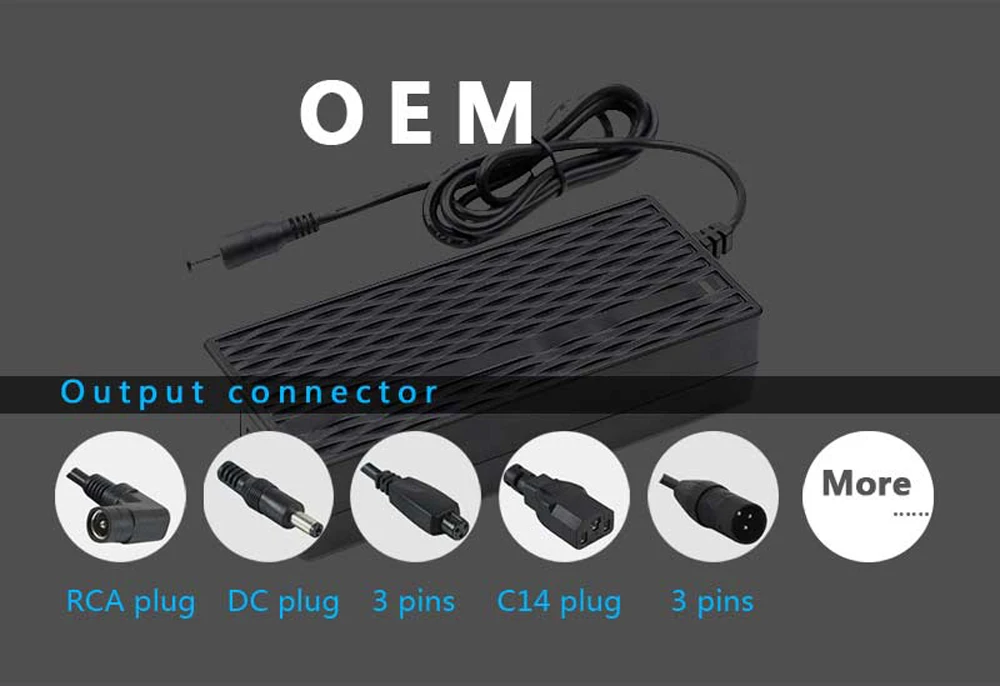

DC plug	3PIN

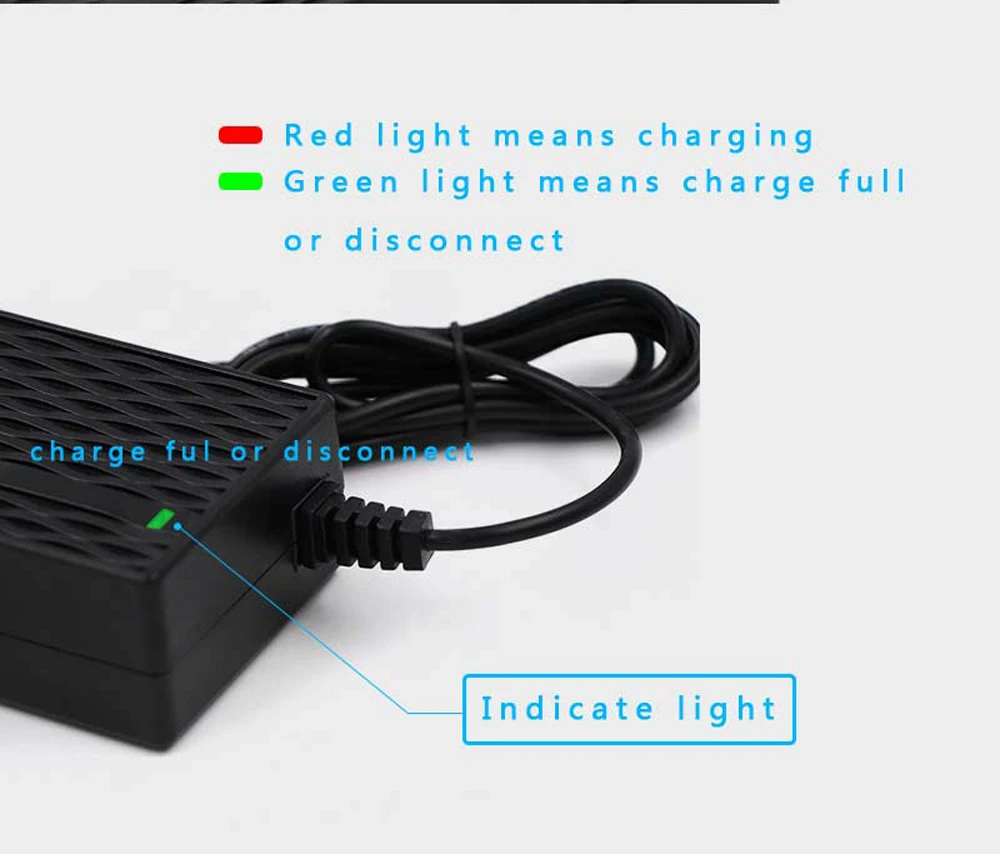

RED LED Light	Charging
Green LED Light	Charge Full or Disconnect



Input Voltage

Minimum	Norminal	Maximum
100Vac	110Vac/240Vac	264Vac



Input Frequency

Minimum	Norminal	Maximum
47Hz	50Hz/60Hz	63Hz



Input Current Limiting

The input current should be less than 3.0A, under minimum AC inpug and full load.



Maximum Energy Consumption in NO-Load

The input power shall be less than 2.0W at 100~240Vac input



Efficiency

The power supply efficiency shall be greater than 85% under rated inpug voltage. It will be measured at the typical load and maximum load.



DC Voltage Regulation

Rating Output Voltage	No Load Voltage Range	Load Output Voltage Range
54.6V	54V~56V	30-52.5V
Output Invariable Current	Output Invariable Current Range	Turn Lamp Current
1.5A	1.4A~1.7A	<500mA



Line/Load Regulation

Output	Load Condition		Line Regulation	Load Regulation	Remark
Rate	Min. Load	Max. Load
+54.6V	0.1A	2.0A	±5%	±5%



Dielectric Strength Testing

Item	Specification		Remark
Primary to Seondary	1.5KVac	<5mA/60S	No Arcing
Primary to P.G	N/A	N/A	No Broken



Protection

Over-voltage protection

Over-curent protection

Short-circuit protection

Over protecti

Standard

Meet EN61558,60950-1( information technology and similar electric apparatus safety requirement) standard requirement.





After Sevice

This product can be repair within two years for any defects or irregularities caused by the factory.



Packing

Inside Package	White box with PE bag
Package	40PCS/CTN
Outer Package	Carton







Q1: Can I have a sample order for charger?

A:Yes. We welcome sample order to test and check quality. Mixed samples are acceptable.



Q2: What about the lead time?

A:Sample needs 1-3 days, Mass production time needs 3-7 days for order quantity more than.



Q3: Do you have any MOQ limit for charger order

A:Low MOQ, 1PCS for sample checking is available.



Q4: How do you ship the goods and how long does it take to arrive?

A:We usually ship by DHL,UPS,FEDEX,SF or TNT, It usually takes 3-5 days to arrive. Airline and sea shipping also optional.



Q5: How to proceed an order for charger

A:Firstly let us know your requirements or application.

   Secondly we quote according to your requirements or our suggestions.

   Thirdly customer confirms the samples and places deposit for formal order.

   Fourthly we arrange the production.



Q6: Is it OK to print my logo on charger product?

A:Yes. Please inform us formally before our production and confirm the design firstly based on our sample.



Q7: Do you offer guarantee for the products?

A:Yes. We offer 2 years warranty to our produts.



Q8: How to deal with the faulty?

A:Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.

   Secondly, For defective products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
