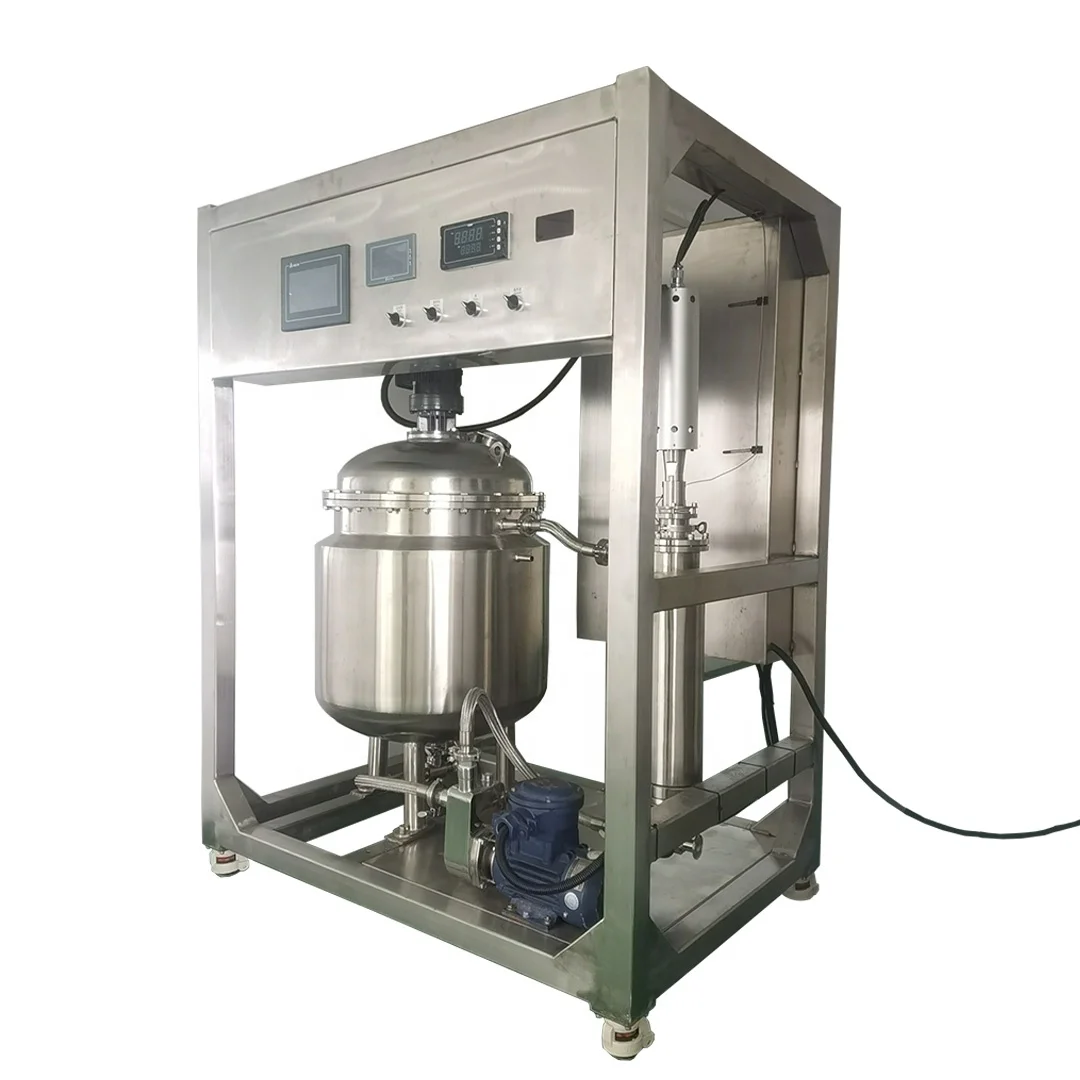

Ultrasonic Dispersion Emulsifying Homogenizer Mixing Equipment
- Category: >>>
- Supplier: Hangzhou Precision Machinery Co. Ltd.
Share on (62336743796):
Product Overview
Description
Product Description
Ultrasonic homogenizing is a mechanical process to reduce small particles in a liquid so that they become uniformly small and evenly distributed.When ultrasonic processors are used as homogenizers, the objective is to reduce small particles in a liquid to improve uniformity and stability. These particles (disperse phase) can be either solids or liquids. A reduction in the mean diameter of the particles increases the number of individual particles. This leads to a reduction of the average particle distance and increases the particle surface area.
JH-ZS100 series can be used for large-scale experiments and small and medium-sized industrial production.
JH-ZS100 series can be used for large-scale experiments and small and medium-sized industrial production.
Product parameter | ||||||||
Model | JH-ZS30 | JH-ZS50 | JH-ZS100 | JH-ZS200 | ||||
Frequency | 20Khz | 20Khz | 20Khz | 20Khz | ||||
Power | 3.0Kw | 3.0Kw | 3.0Kw | 3.0Kw | ||||
Input Voltage | 220V | 110/220/380V,50/60Hz | ||||||
Processing Capacity | 30L | 50L | 100L | 200L | ||||
Amplitude | 10-100μm | |||||||
Cavitation intensity | 1~4.5w/cm² | 1~4.5w/cm² | 1~4.5w/cm² | 1~4.5w/cm² | ||||
Temperature Control | Jacket temperature control | |||||||
Pump power | 0.75Kw | 0.75Kw | 1.5Kw | 2.0Kw | ||||
Pump rate of flow | 0~0.75T/H | 0~1.0T/H | 0~2.88T/H | 0~5.0T/H | ||||
Agitator Power | 0.55Kw | 0.75Kw | 1.1Kw | 2.2Kw | ||||
Agitator Speed | 130rpm | 0~500rpm | 0~1000rpm | 0~1500rpm | ||||
Explosion proof | Optional | |||||||
