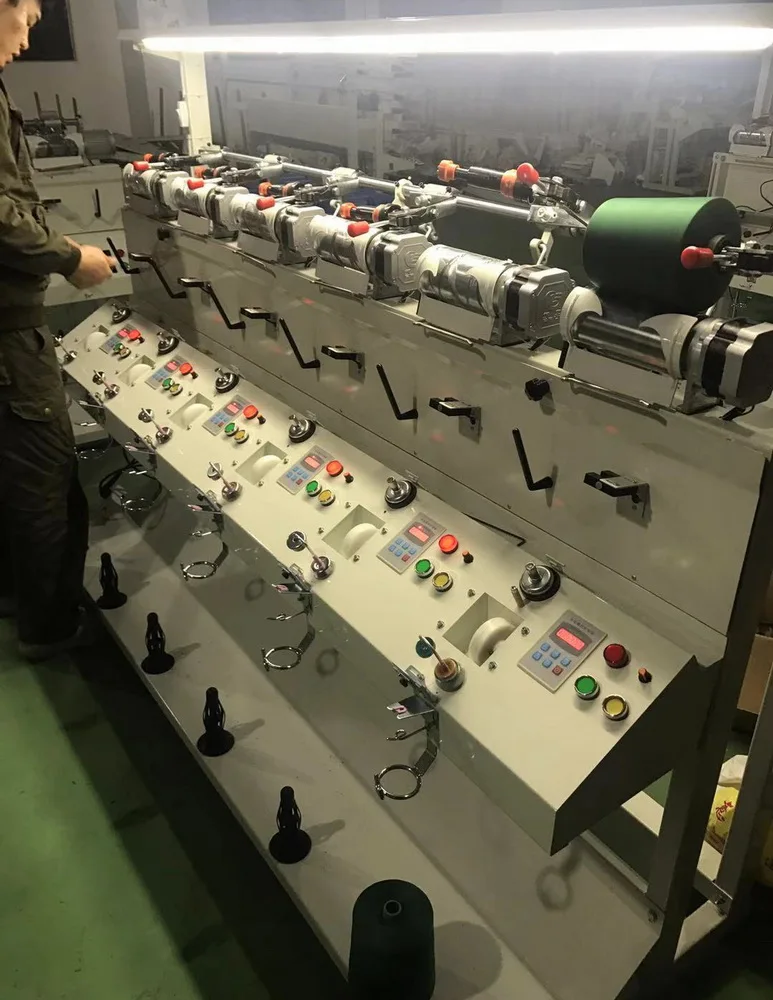

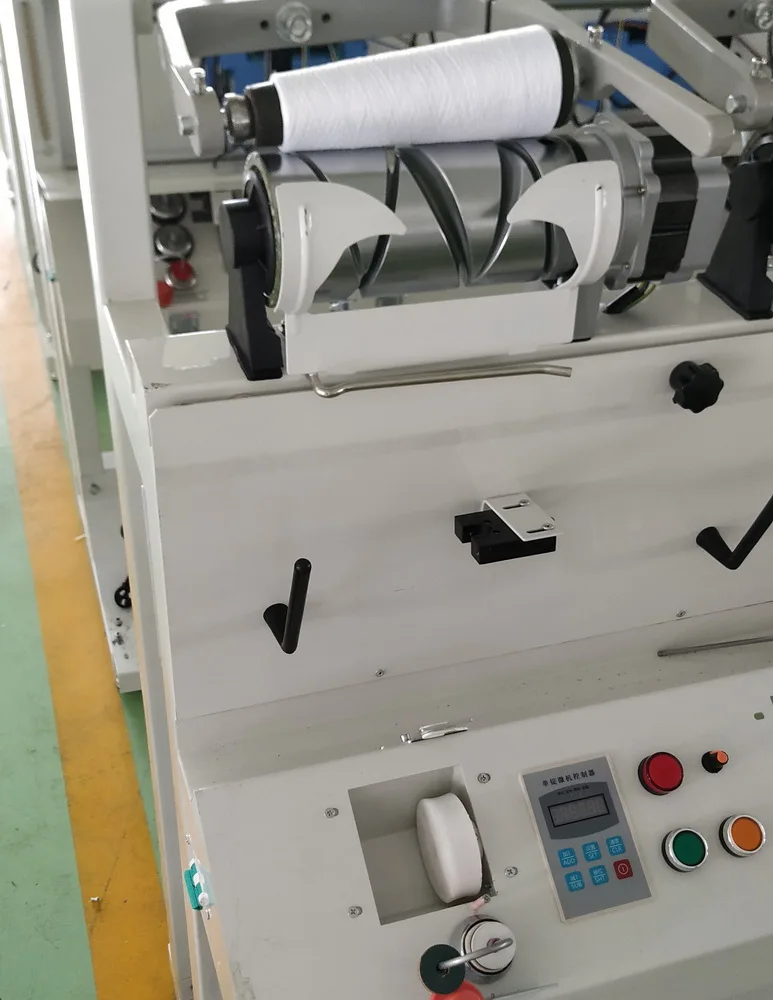

High Speed Yarn Oiled Special Winding Machine
- Category: >>>
- Supplier: Foshan Gonghong Textile Machinery Co. Ltd.
Share on (62336827854):
Product Overview
Description
GH018-Z type yarn oil special winder
GH018-Z type yarn oil special winder, used in chemical fiber, filament, low stretch yarn, polypropylene, nylon, silicone oil/ liquid wax and winding into a cone or a cylinder, for the next process, good forming, without the phenomenon of edge collapse. GH018-Z type to alleviate the labor intensity of the process, adaptation high-speed production. (For the major manufacturers: lace factory, knitting factory, circular knitting machine, hosiery machine, etc..)
GH018-Z Technical parameters
Technical characteristics | Technical parameters |
Bobbin spec | 6″(170mm) |
Layout | Double sides, per machine has (12-96)spindles |
Power supply | Three-phase 380V 50/60HZ |
Transmission | Every spindle is driven by a AC motor individually |
Power consumption | 0.09KW/spindle |
Take-up package | Cylindrical(0°)cone;4 °20′,5°57′,9°15′cone |
Package diameter | Max.200 and 290mm |
Yarn speed | 300-1000m/min |
Anti overlapping electronic device | Control by the inverter |

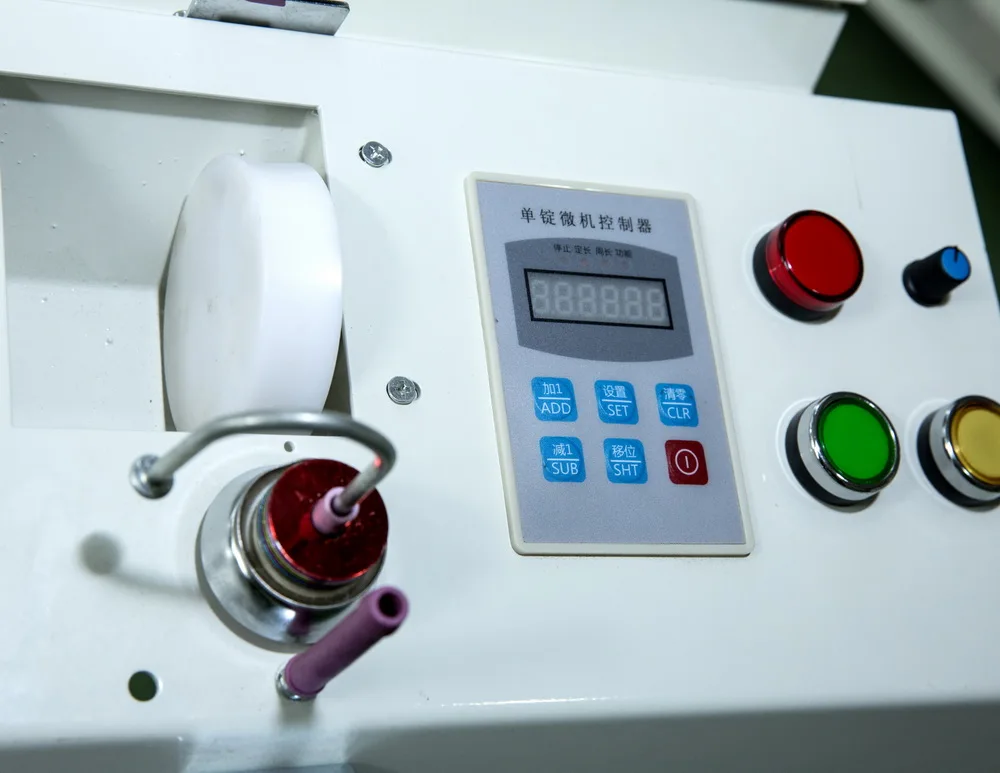

Programmable controller (PLC) centralized control / display meter | |
Tension device | Every spindle has a self-cleaning yarn tension and waxer adjusting device |
Every spindle has a mechanical slub catcher | |
Yarn break control device | The spindle will stop when the yarn breaks by a yarn break control device |
Speed regulation | Frequency control |
Soft package edge traverse device | Mechanical/suitable for loose type |
Electronic yarn clearer | Ordered separately |
Splicer | Ordered separately |
Lighting system(lamp) | Ordered separately |
Dimensions | 13700(length)×1050(width)×1650(height)mm |
