Product Overview

Description



Introduction



Hello eveyone!
This 0.96 inch oled display module is made of 128x64 individual OLED pixels, 7pins,each one is turned on or off by the controller chip SSD1306. This display makes its own light, no backlight is required. Three colors available, blue, white, and yellow blue.





Specification


Size
0.96inch
Controller chip
SSD1306
Pixel
128x64
Interface
SPI / IIC communication
Color
white, blue, yellow blue
Driving voltage
3.3V~5V
Pins
7pins



Pin Definition:
GND- power ground
VCC-3.3V-5V power supply
DO- IIC CLK
DI- MOSI DATA
RES- reset
DC- data/command
CS- MOSI DATA

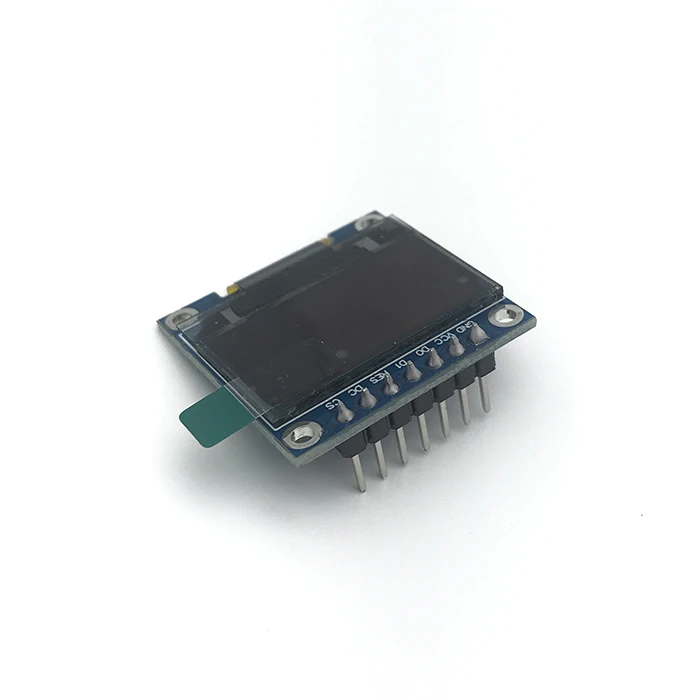

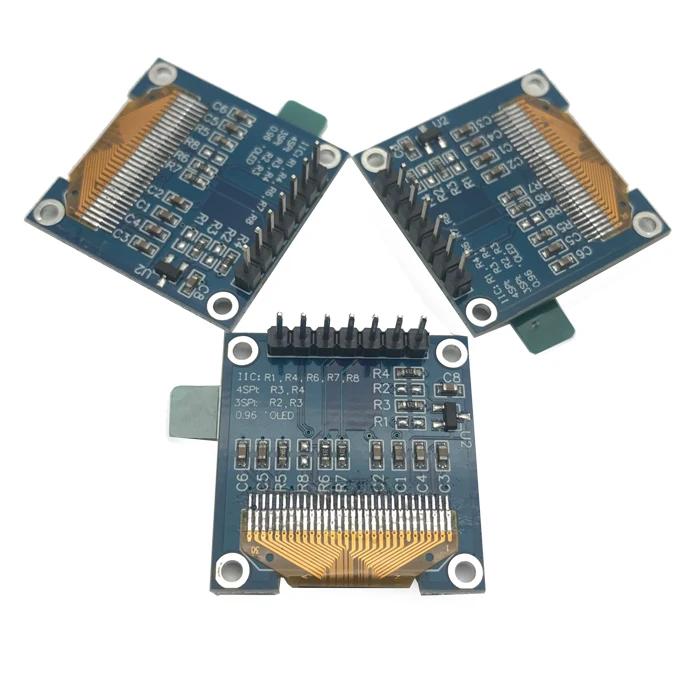

Details Images
