honed tube 4140 honed pipe 42crmo4 price
- Category: >>>
- Supplier: Sichuan Liaofu Special Steel Trading Co. Ltd.
Share on (62336865669):
Product Overview
Description
best sae 4140 steel tube 1.7225 tube,4140 honed tube.

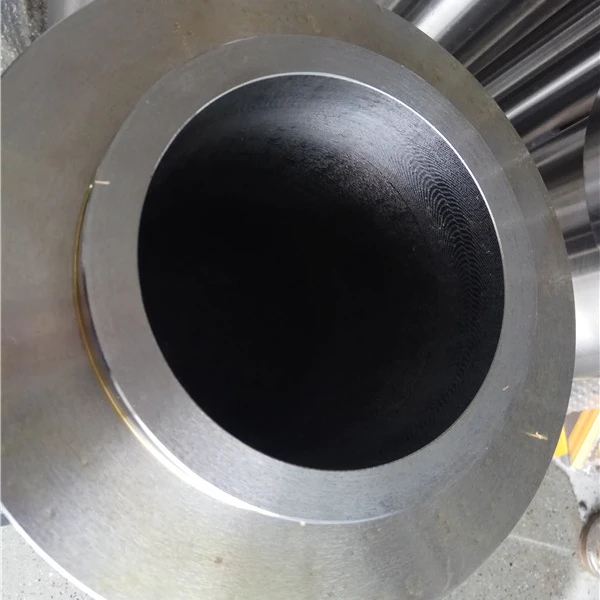

The honed tube can be tolerance+-0.1mm and RA(inner roughness can be 0.1-0.6)
Standards:ASTM,JIS,GB,EN(DIN,BS,NF) Or Per as clients’ requires.
Product Basic Information:
1.Chemical Composition and Mechanical Properties(In Quenched & Tempered State):
Material | 4140 | ||
Chemical Composition | Mechanical Properties(In Quenched & Tempered State) | ||
C | 0.38-0.45 | Tensile strength(MPA) | ≥1080 |
Si | 0.17-0.37 | Yield strength (MPA) | ≥930 |
Mn | 0.50-0.80 | Elongation(δ5/%) | 12 |
Cr | 0.90-1.20 | Reduction in Area (ψ/%) | 45 |
Mo | 0.15-0.25 | Impact (J) | 63 |
P | ≤0.035 |
Hardness |
≤217HB |
S | ≤0.035 | ||
Cu | ≤0.30 | ||
Ni | ≤0.30 | ||
2.Product Application Areas:
Our products have been used in all kinds of areas, such as aviation,aerospace,navigation,nuclear energy,chemical industry,
electronic information,achine manufacture, petrochemical, automotive,instrument and meter, Communication ,transportation, and medical instruments, etc.
3.Similar steel grade & equivalent steel materials:
USA | Japanese | Gemany | British | France | International | Chinese |
ASTM&AISI&SAE | JIS | EN DIN | EN BS | EN NF | ISO | GB |
4140 | SCM440 | 42CrMo4 1.7225 | 42CrMo4 1.7225 | 42CrMo4 1.7225 | ------ | 42CrMo |
4 we have sold 4140 hot rolled and 4130 cold drawn steel tube before,aslo we can produce machined steel pipe according to drawing,we have sold to Israel,brazil,Portugal and son on,u can check some of the pictures below
4130 steel tube

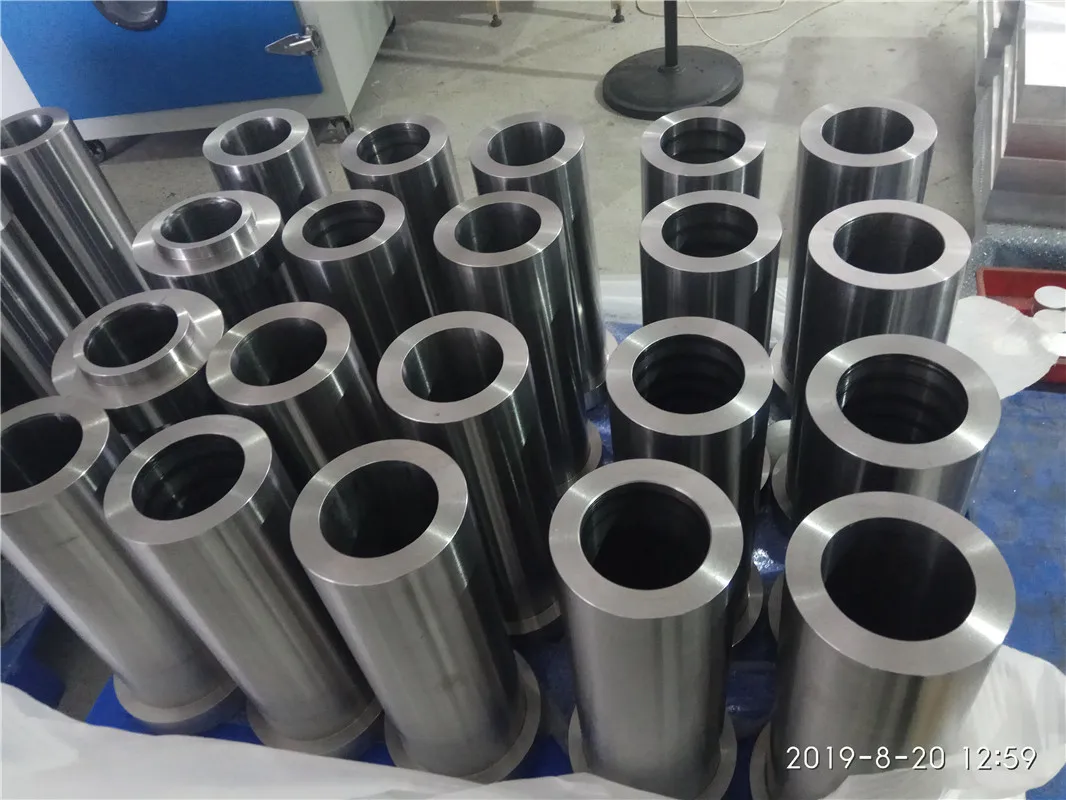

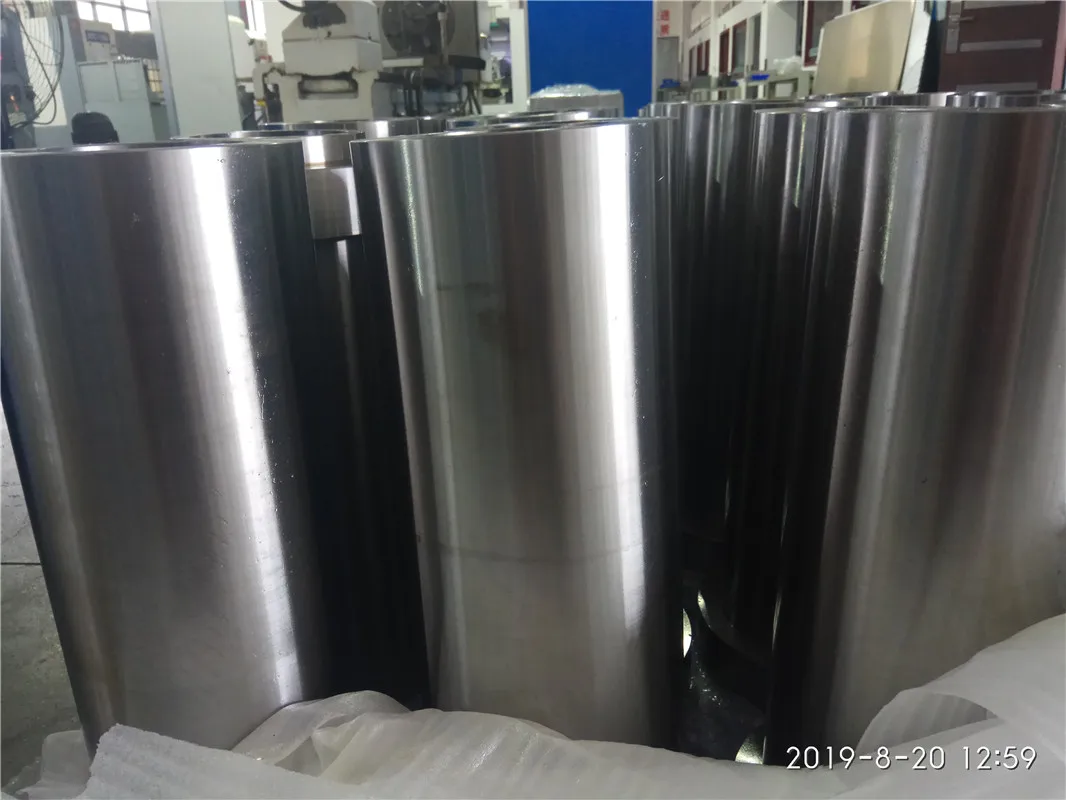

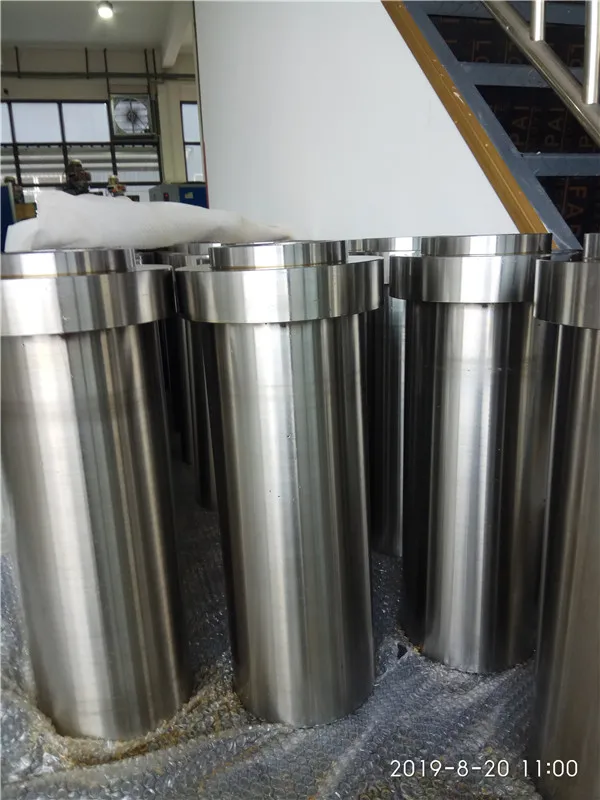

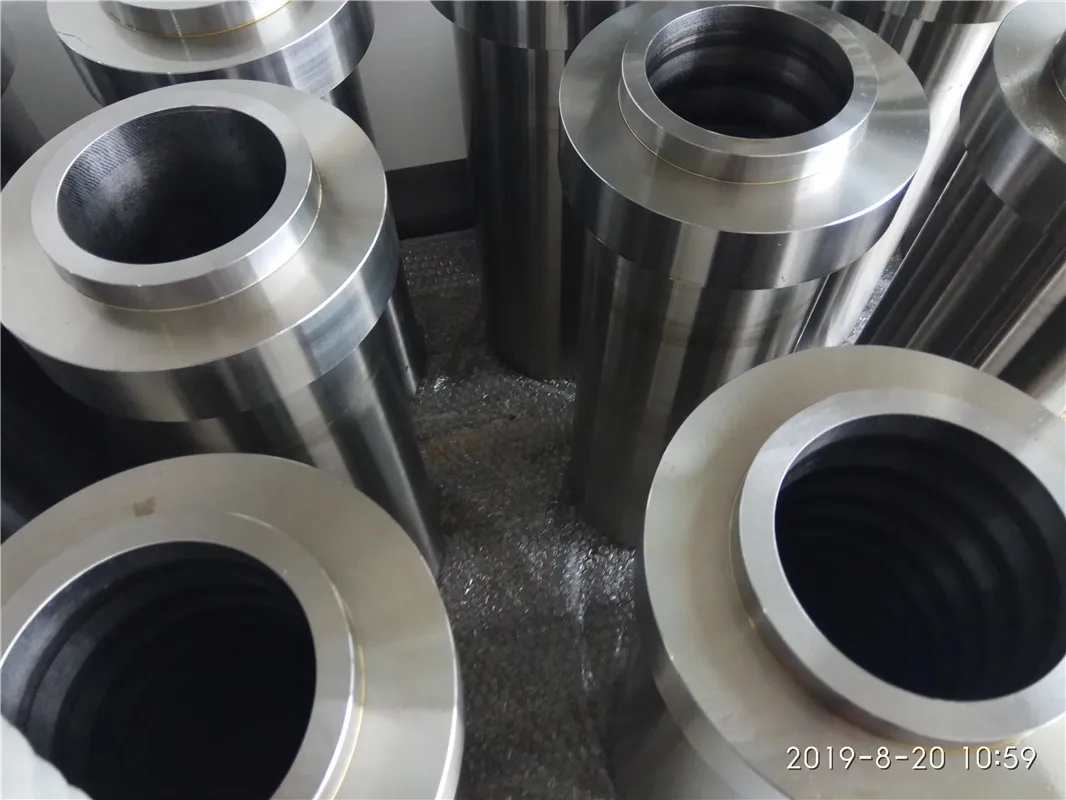

4140 machined steel pipe
1010 1020 1045 5140 30crmnsia steel pipe
Product Sales Information:
Material | 4140 steel tube |
Size | outside Diameter:10mm-500mm Length:500mm-6000mm |
Origin place | Made In China |
Delivery Condition | Hot rolled,cold drawn,forged |
Surface require | Black,grinding,bright,polish |
Heat treatment | Quenched,Tempered,annealed |
Packing | seaworthy packing ,wooden case ,carton,woven bag or at client's requires |
Delivery time | In 40-50 days |
Trade Term | EXW,FOB,CIF |
Payments | T/T or L/C at sight |
Port | China main Port,such as shanghai,Dalian,Shenzhen port. |
MOQ | 1 Ton |
Company Main Products:
Alloy Steel | 4140,4142,42CrMo4,1.7225,SCM440,4130,SCM430,25CrMo4,1.7218,34CrNiMo6, 1.6582,4340,SNCM439,36CrNiMo4,1.6511,SACN645,1340,SMn438,SNC236, |
Tool Steel | H13,1.2344,SKD61,D2,SKD11,1.2379,1.2510,01,SKS3,95MnWCr5,D3,SKD1,1.2419, SKS31,H21,SKD5,1.2581,P20,35CrMo7,1.2738,1.2316,M2 |
Bearing Steel | GCr15,52100,SUJ1,SUJ2,100Cr6,1.2067,55C,8620,4320,9310,440C,M50 |
Spring Steel | 9260,SUP6,SUP7,1.7108,54SiCr6,1.7102,5155,SUP9,1.7176,5160,1.7177,6150, SUP10,51CrV4,1.8159 |
Stainless Steel | 321,sus321,1.4541,304,SUS304,1.4301,410,SUS410,1.4006,420,1.4021,1.4028, 434,1.4113,316L,SUS316L,1.4435,630,1.4542,431,1.4057, |
Certifications:
Factory Manufacture Process:
1.Forged Ingot
2.Material Taking Machine
3.Forged Machine
4.Sawing Machine
