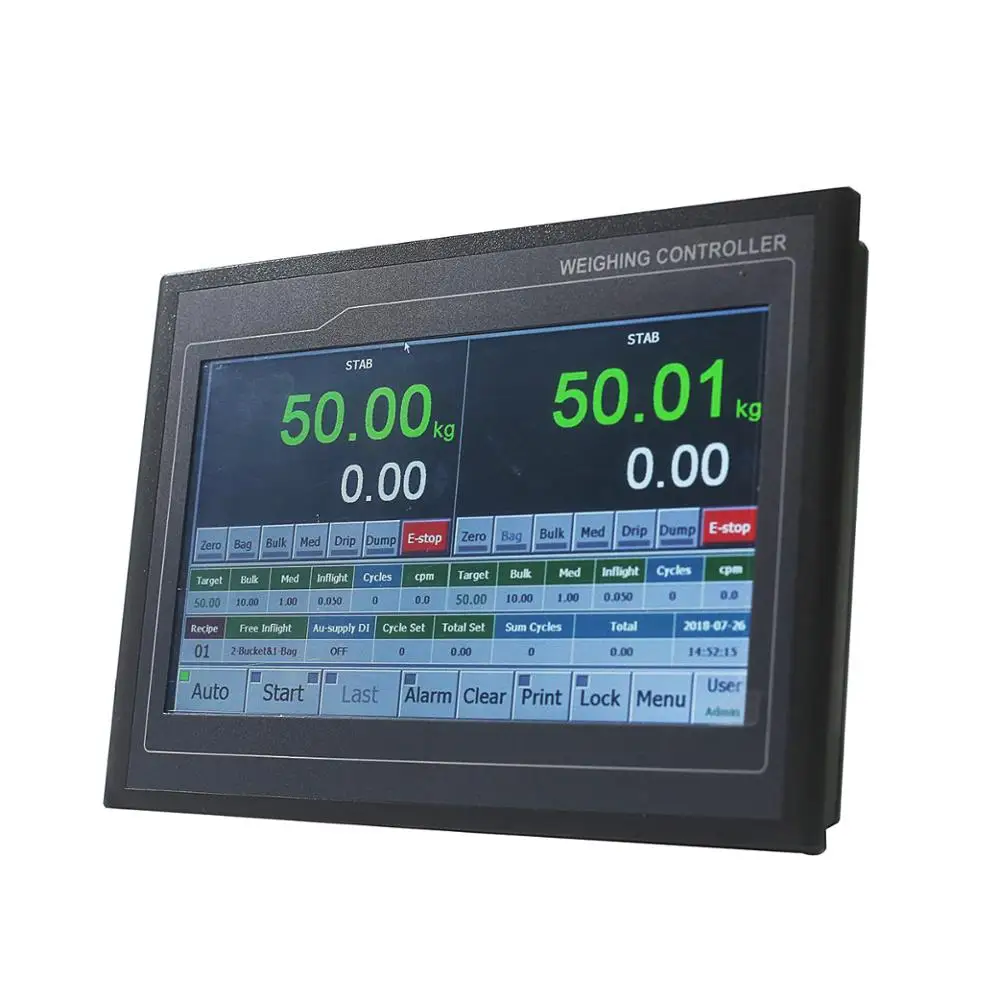

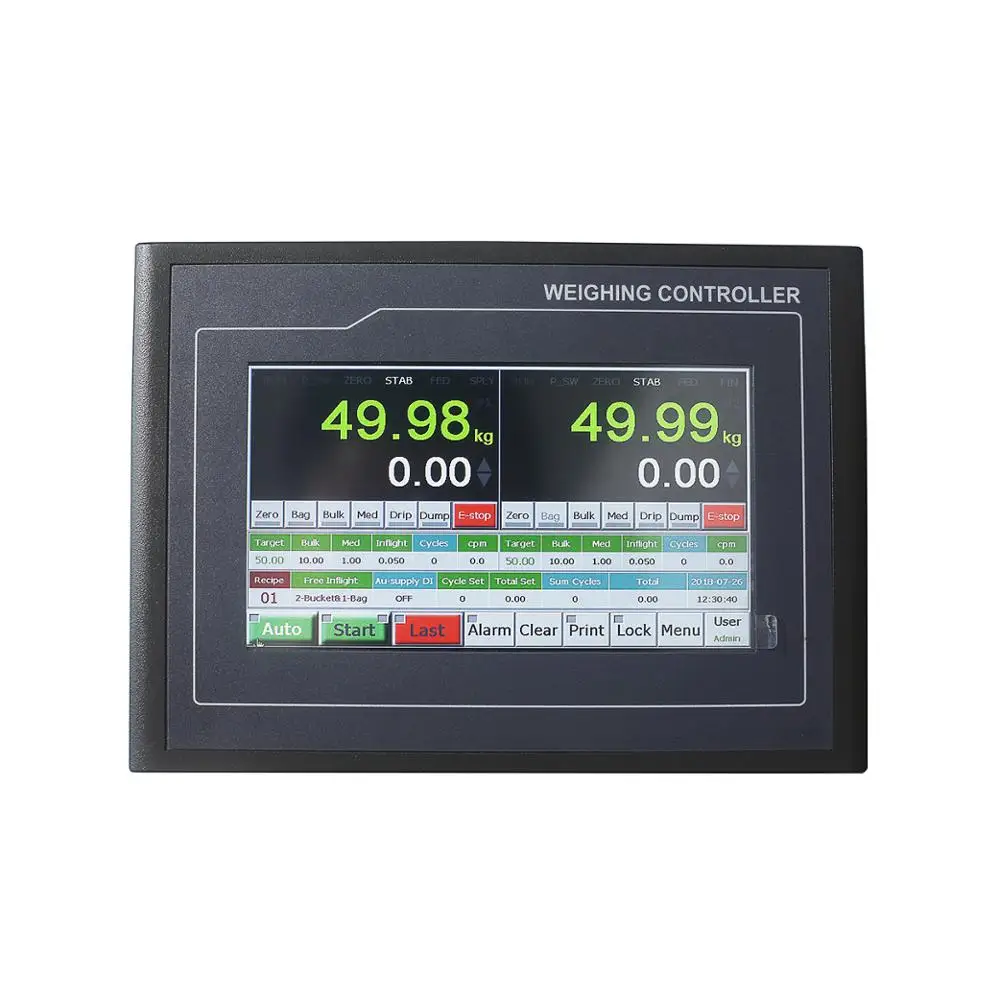

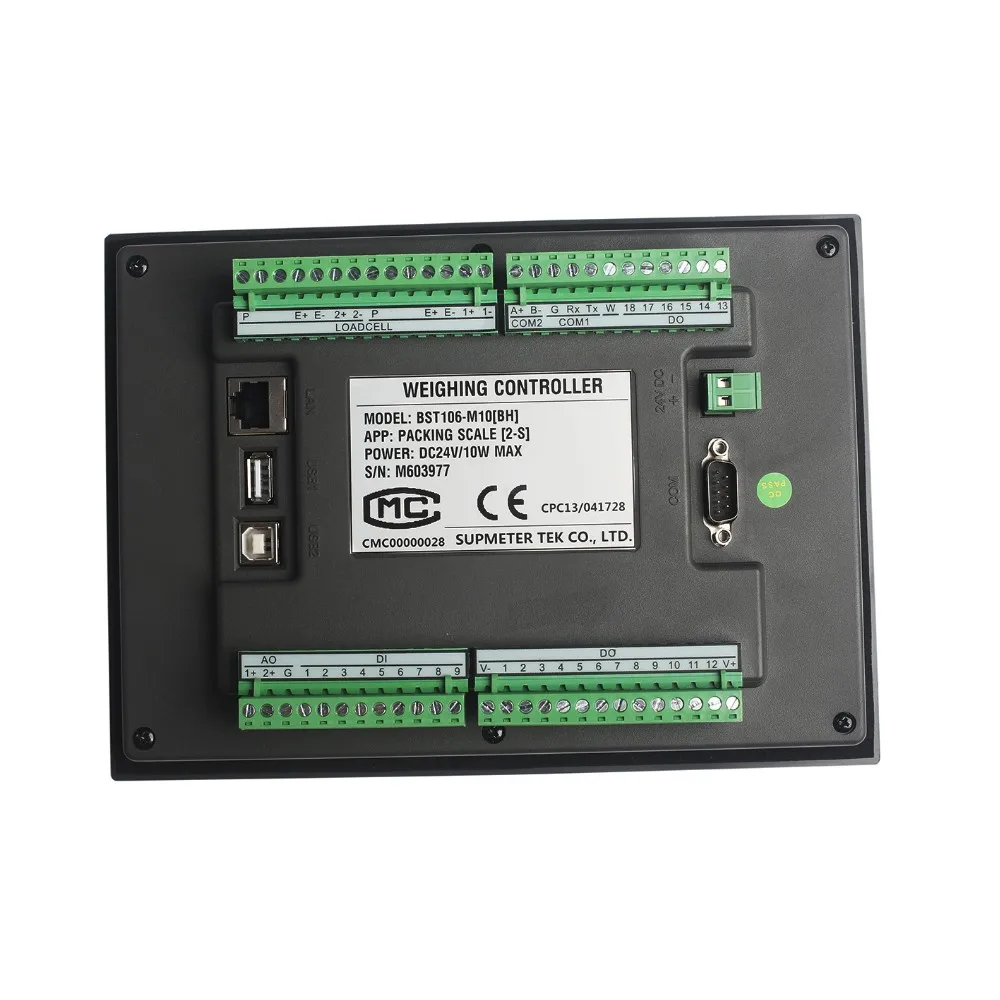

2 Scale Corn/Flour Bag Packaging Controller for Packing Scales, 2 weighing hopper/bag Weight Control with Ethernet

Main Features:

Suitable for Ration Packing Scale with optional modes 1-Bucket Scale, 1-Bag Scale, 2-Bucket Scale[1-Bag] , 2-Bucket Scale[2-Bag] and 2-Bag Scale.

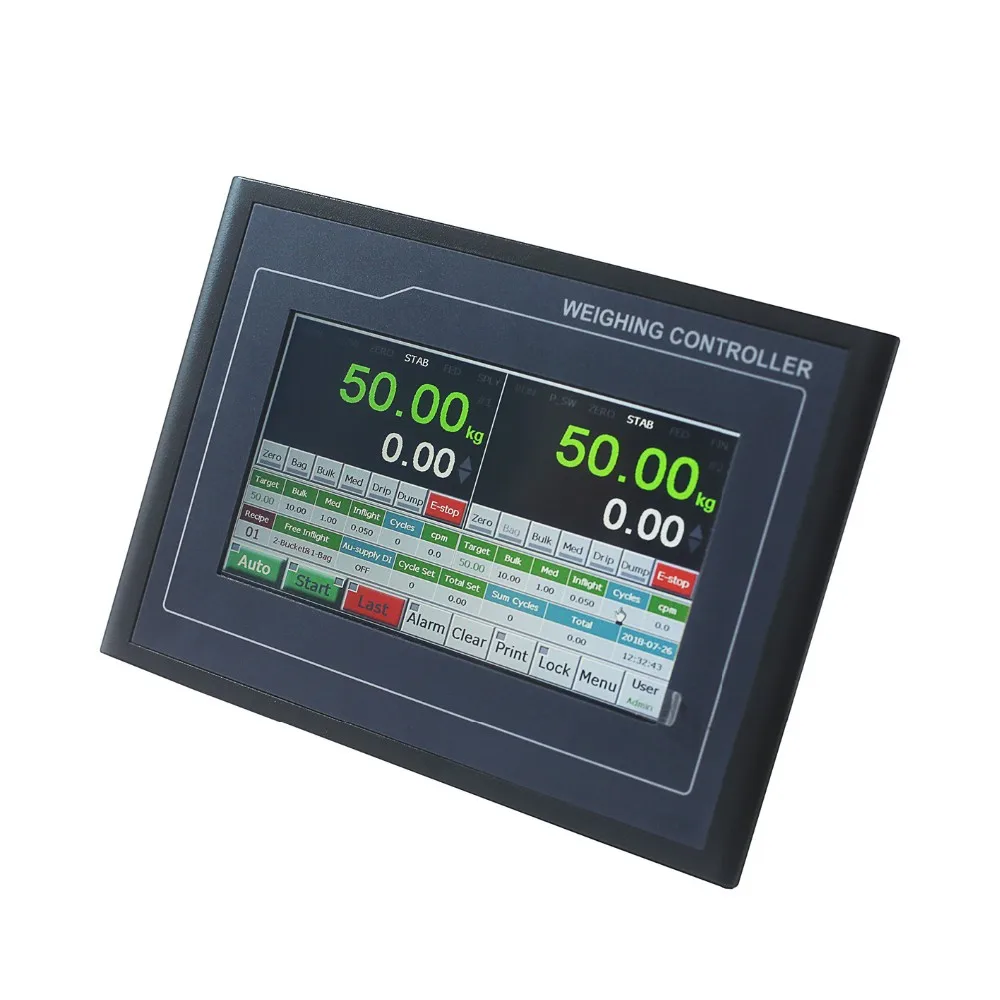

7"/10.2" Ultralight and ultrathin TFT touch screen with embedded weighing/control module.

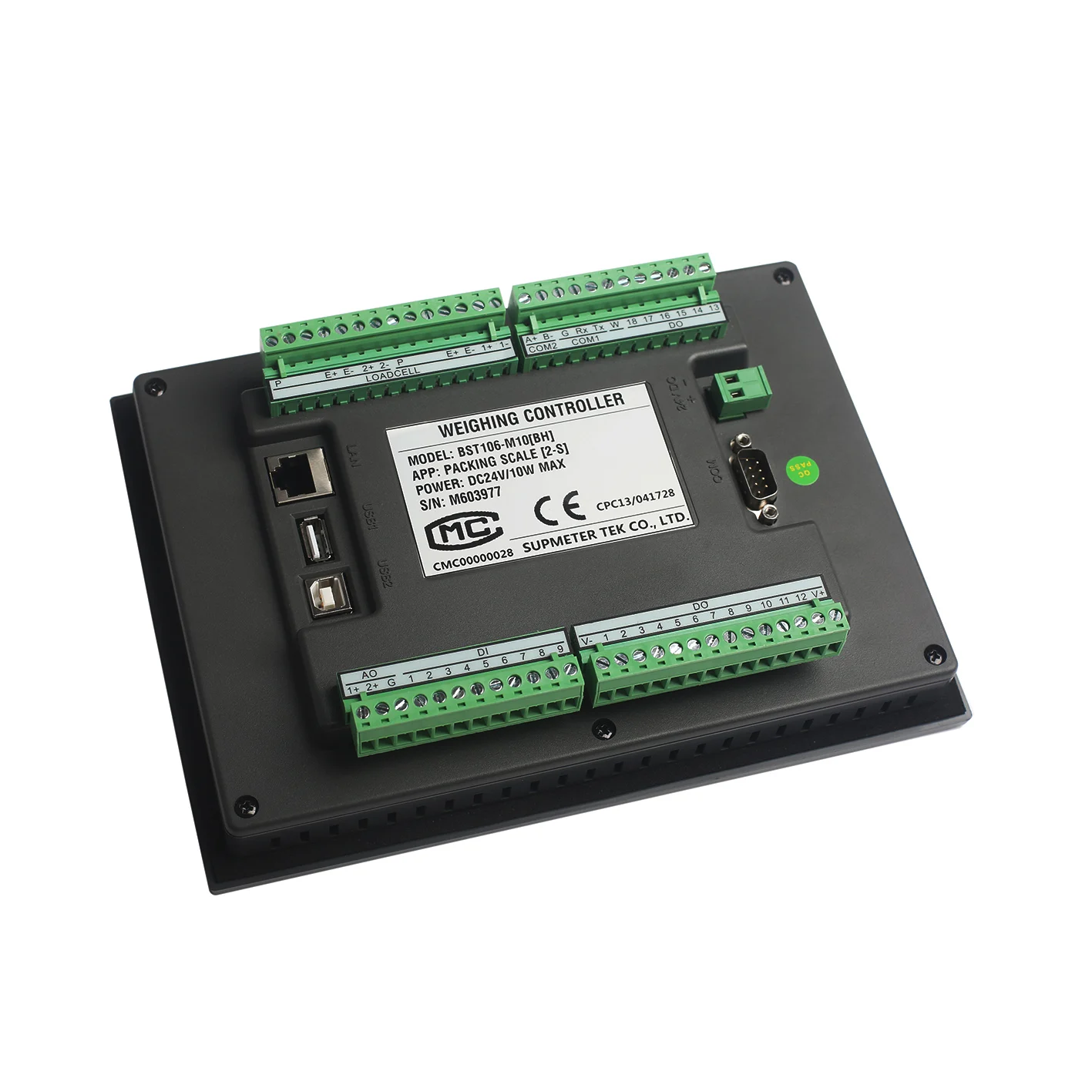

Loadcell Interface

2 Loadcell ports. Max. Connection Quantity: 2×8 Loadcells (350Ω).

24-bit High-precision and high-speed ∑-△A/D conversion module with 1/1,000,000 internal resolution and sampling frequency 800Hz.

I/O Interface

9 Definable normally open switch inputs [DI] and 12/18 definable normally open transistor switch outputs [DO].

Digital Communication Interface

COM1[RS232]&COM2[RS485] for connecting Host IPC/PLC and LED Remote Display.

COM[RS232] for connecting RS232 Serial Printer.

USB1 for connecting USB mouse, downloading HMI software from U-disk and copying data to U-disk.

LAN: Optional Ethernet port.

Changsha SUPMETER Technological Co., Ltd., as a council member of China Weighing Instrument Association (CWIA), is a high-tech enterprise which specializes in designing and manufacturing weighing/batching controller, force measuring controller, explosion-proof controller and related system software.
