6V 250 IH 2.5A IT 5A 16V 40s 1.21W Rmin 0.02 Ohm 6V Series thermistor PPTC resettable PolySwitch PTCs fuse THT

Product Overview

Description



       Positive temperature coefficient devices, also known as re-settable fuses, providing over-current protection for electronic circuits and devices. The resistance of PTCs rises as the temperature rises. With this feature, the value change of resistance is not obvious when the safe current passes, the resistance value changes drastically when abnormal current passes, this reaches the purpose of limiting abnormal current. the resistance value will “reset” automatically when the abnormality is eliminated and temperature returns to a safe level .

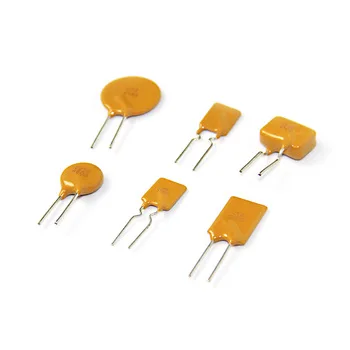

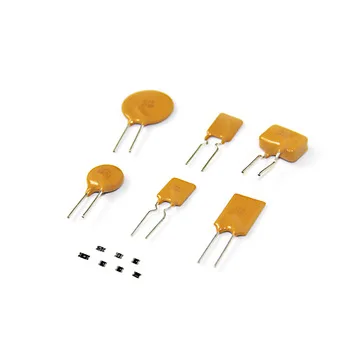

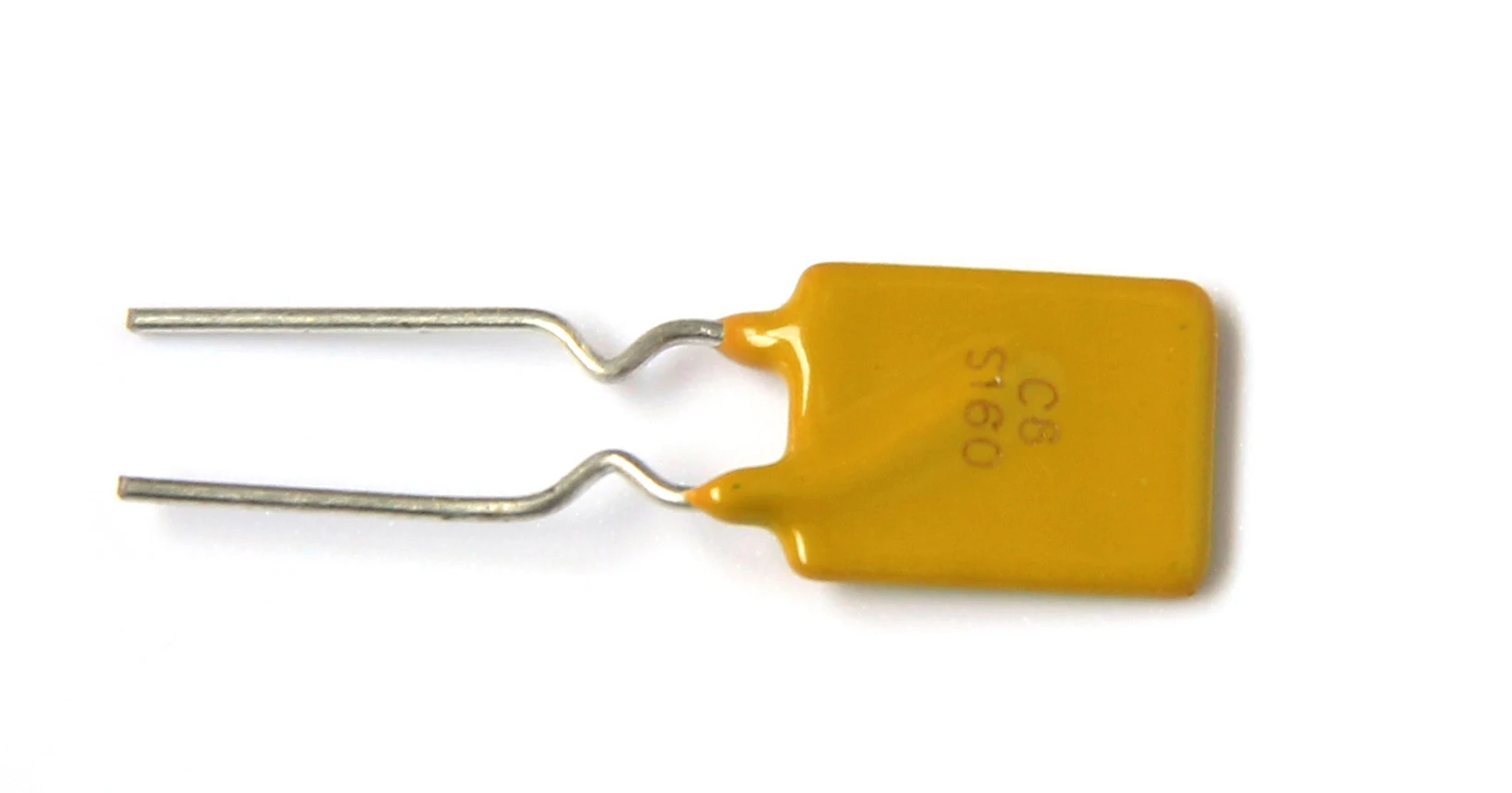

v Radial leaded devices.

v Faster tripping,typical application in micro-motors for automobiles

v Protecting against over-current and over-temperature faults

v Available in lead-free version.
