Hot sale price drinking paper straw making machine with ce certificate
- Category: Straw Making Machines >>>
- Supplier: Wenzhou Bonjee Machinery Co. Ltd.
Share on (62336949926):
Product Overview
Description
Product Description
Main Technical Data | ||
Number of roller | 2-5 layers | |
Tube diameter | 6mm --12mm | |
Tube wall-thickness | 0.3-2 mm | |
Cutting Length | 120-950mm 5 cutters 120-1050mm 6 cutters | |
Winding head | 2 | |
Power | 5.9 KW | |
Cutter system | Multi-blades 5 sets / 6sets | |
Gluing system | Single /Double sides | |
Operator | 1-2 person | |
Winding speed | 40--60 m/min | |
Speed control | Frequency | |
Working Air Pressure | 0.6Mpa | |
Power Supply | 380V/3Phase/50Hz | |
Measurement | 5600*1600*1750mm | |
Working Space | 8000mm * 6000mm*1800mm | |
Weight | 1500kgs | |
Main Features
1) Simple structure, easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) Servo motor synchronism tracking cutting system.
4) Running in a high way with maximum speed of 45~100 meters/min
5) Original paper straw machine designer.
Product Application

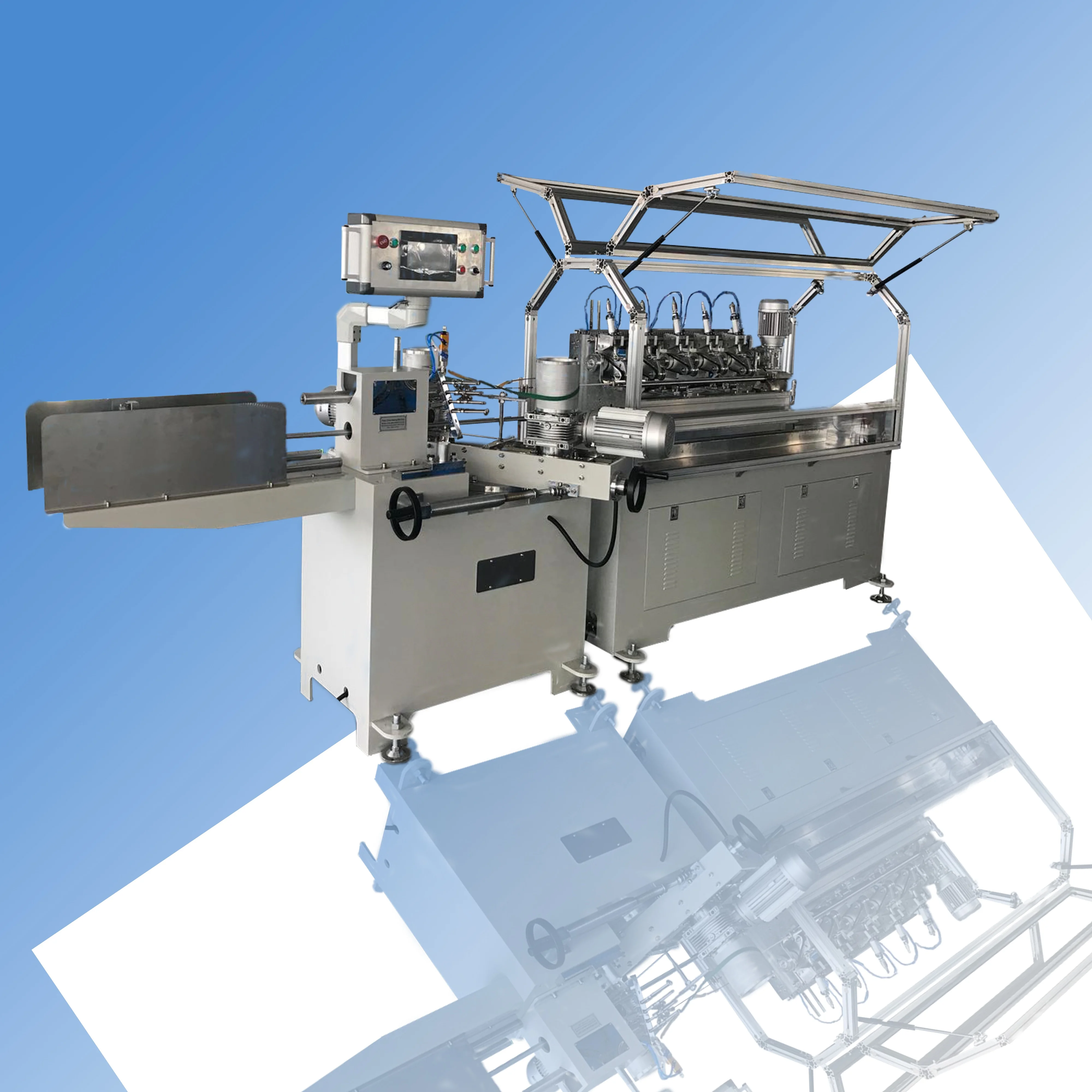

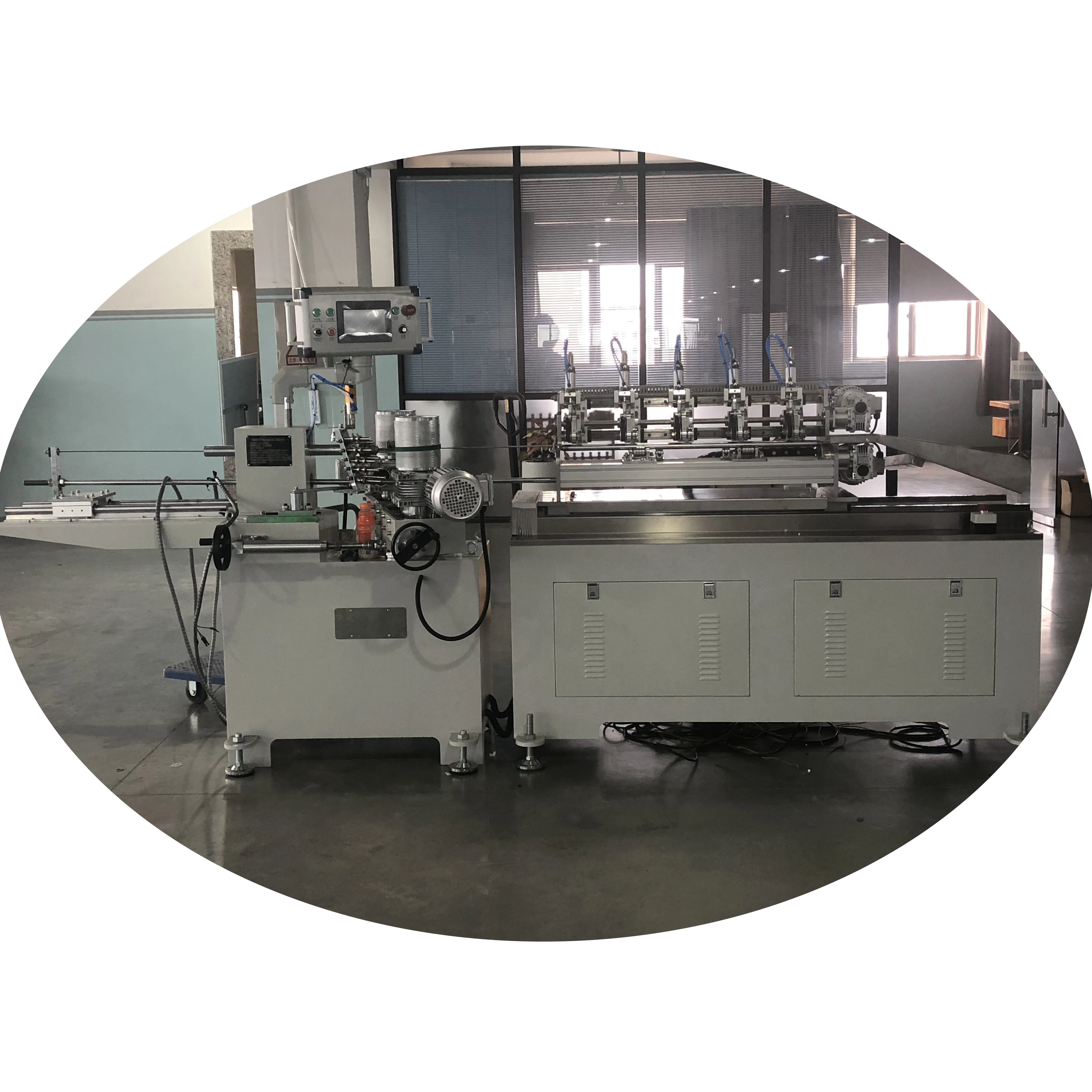

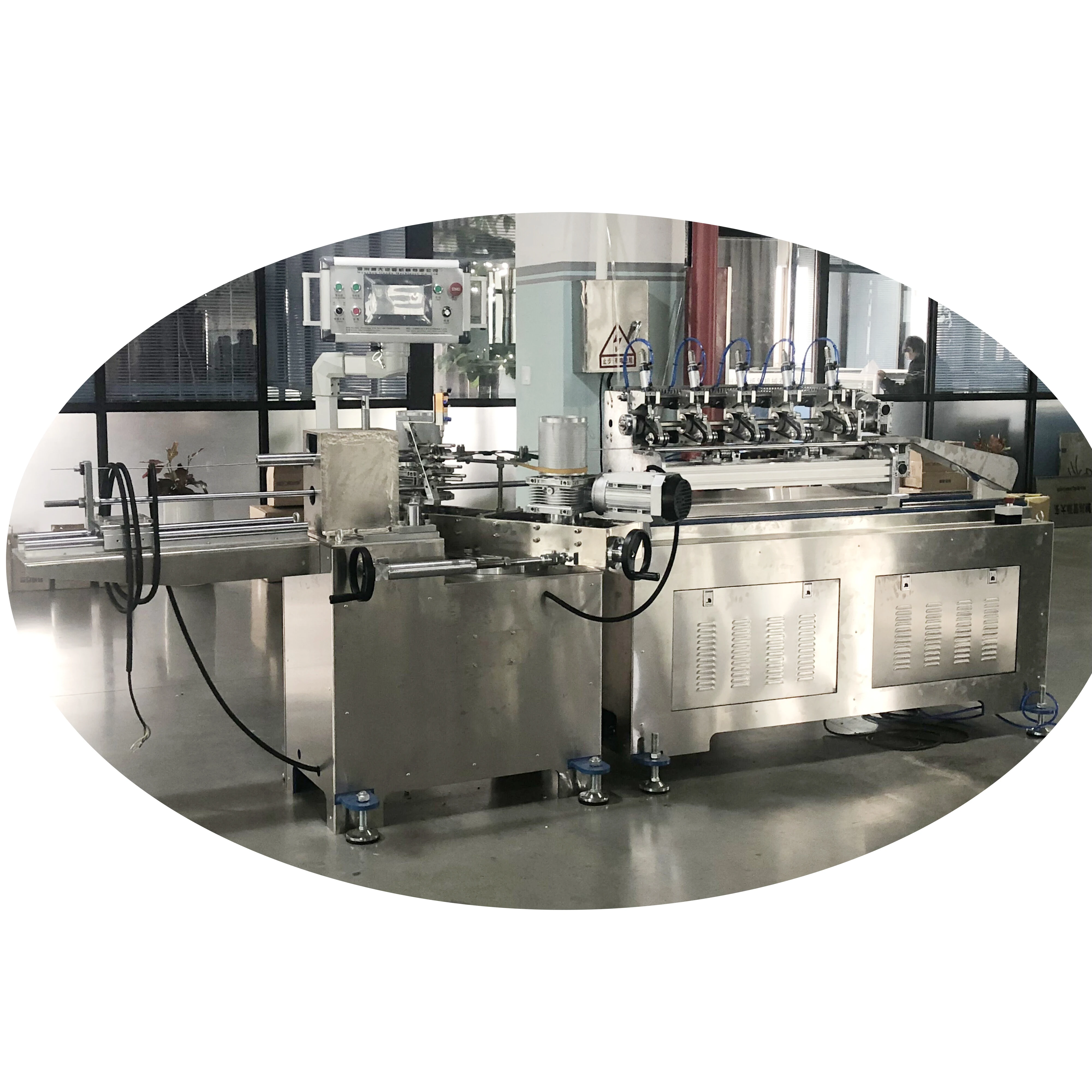

UNL-XG50 Paper Drinking Straw Making Machine is special for paper drinking straws production. Equipped with Numerical and Multi-blades Cutting System. PLC controlling system with automatic operation. Synchronous cutting system controlled by servo motor. It means the cutting part moves together with paper tubes and cutting in a high precision. Adopt with Multi-cutters online cutting system. Paper straws can be finished in one-step.
