High Quality GH019 HT Automatic 6 Inch Tube High Speed Winding Machine

Product Overview

Description

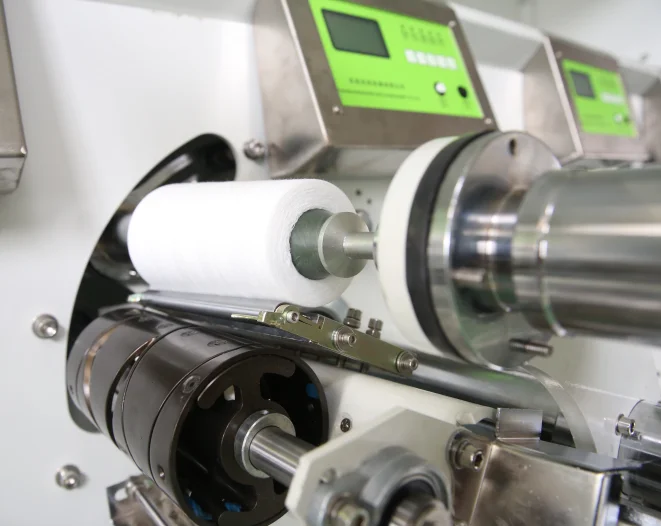

GH019-HT Automatic 6 Inch Tube High Speed Winding Machine



Function features:

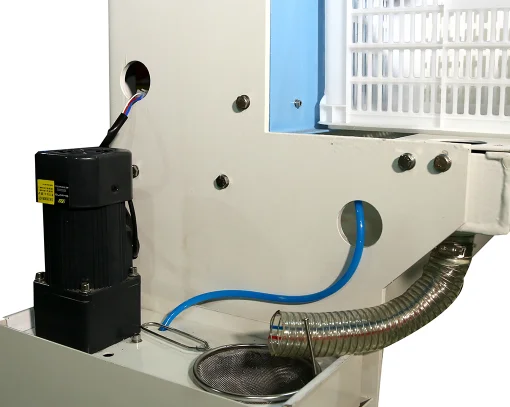

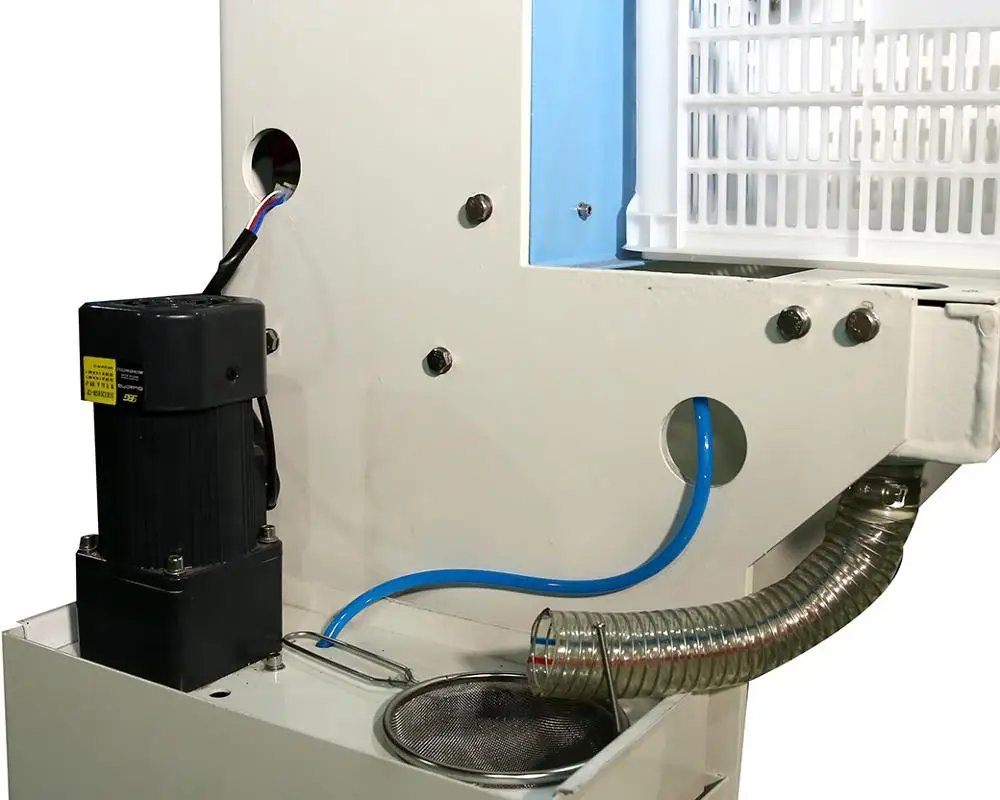

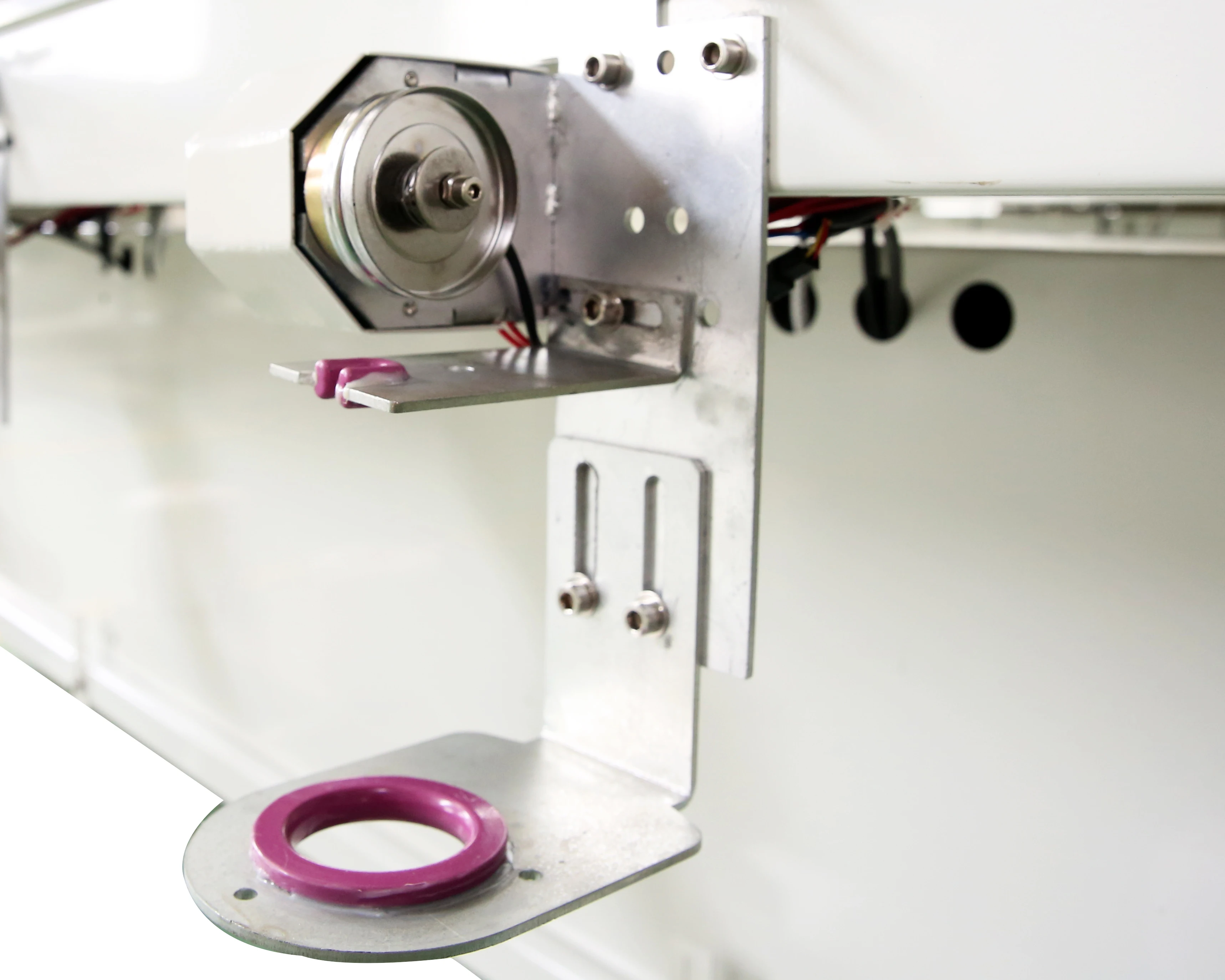

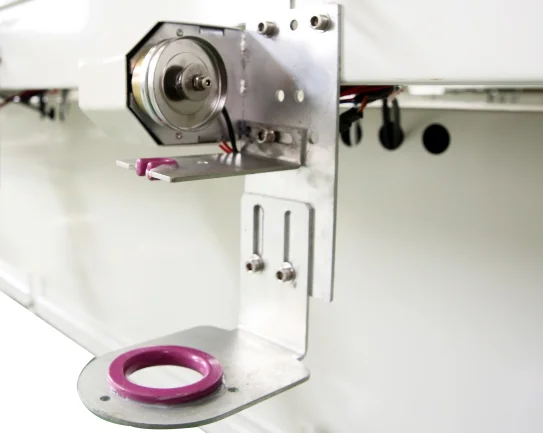

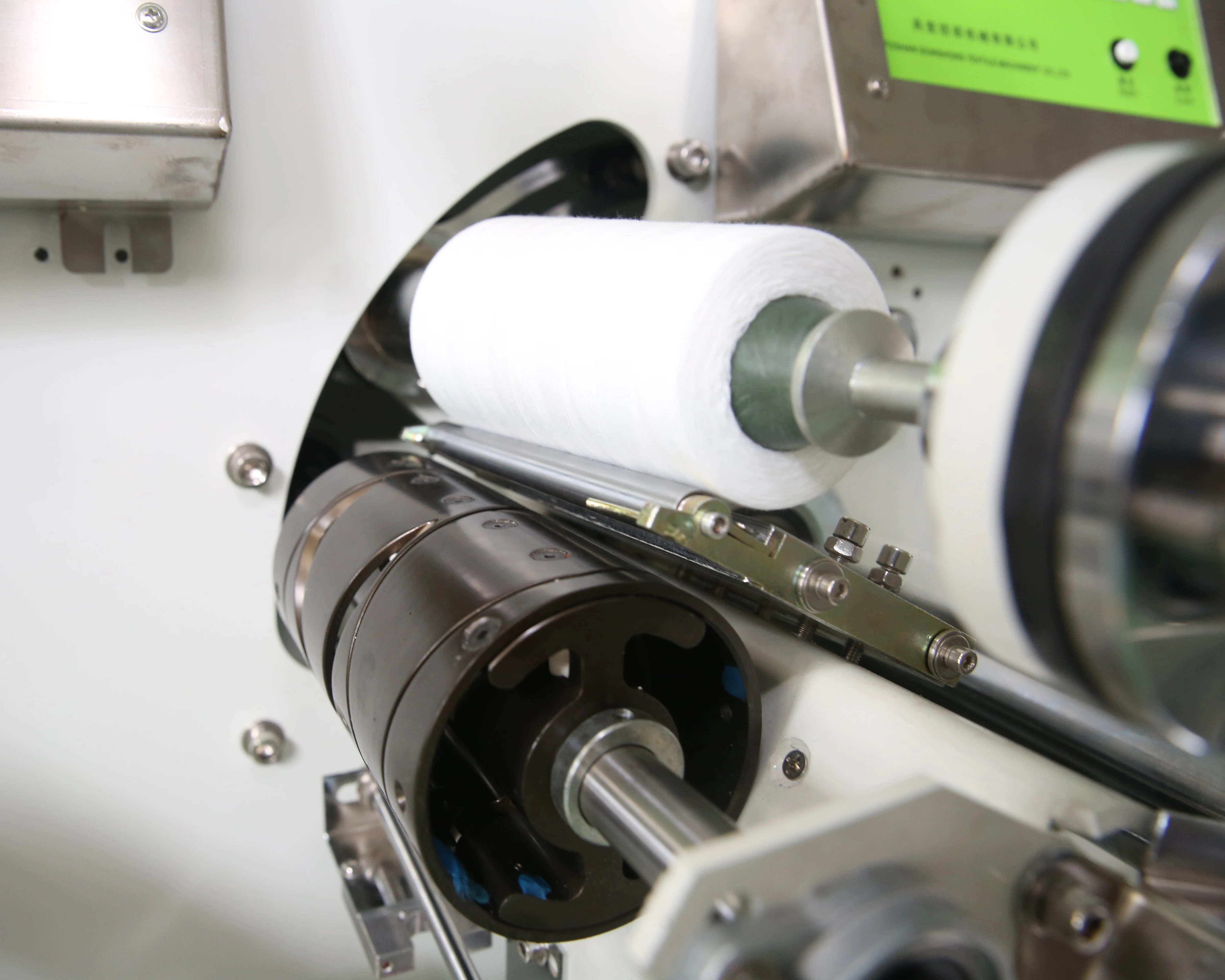

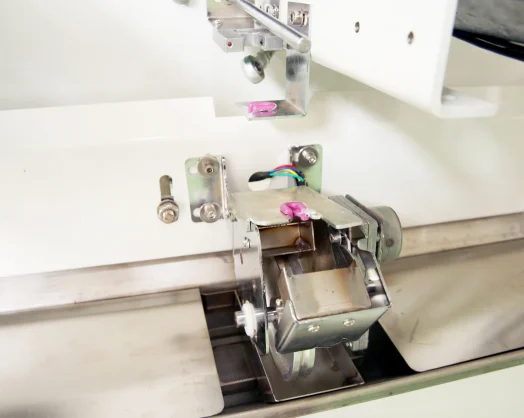

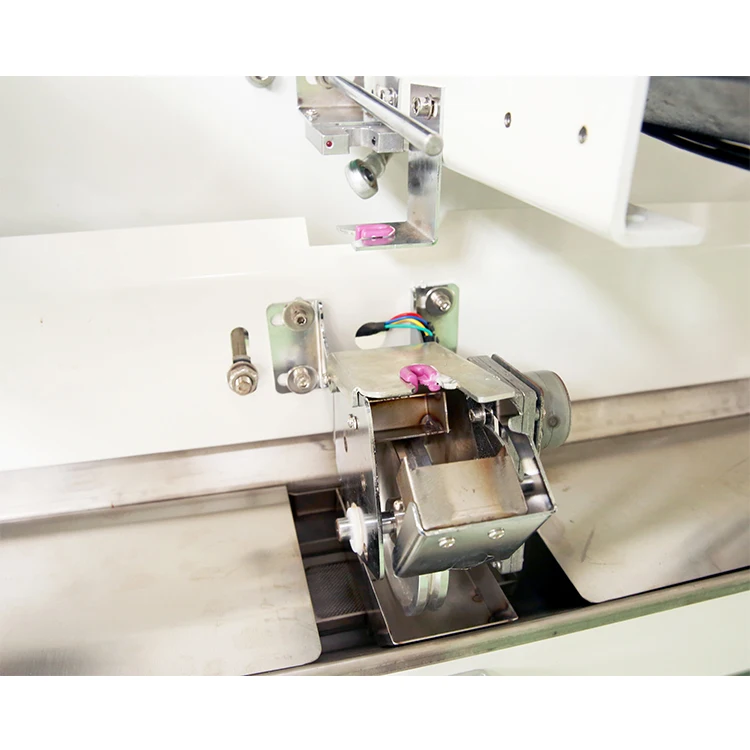

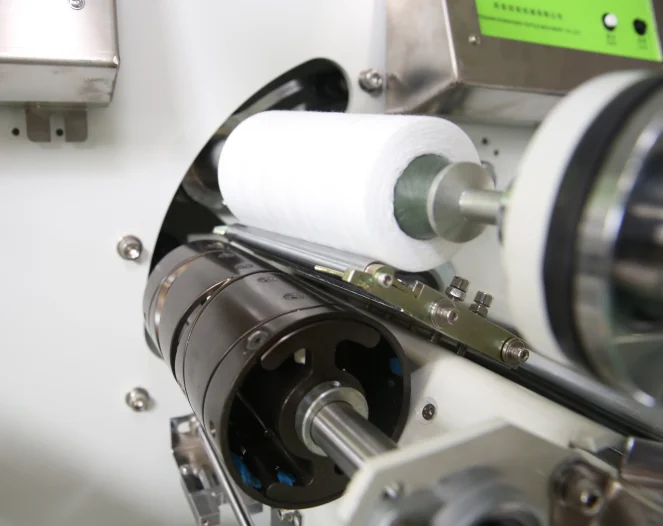

High speed winding machine is applicable for the winding various raw material thread such as sewing thread, embroidery thread, nylon thread etc. It has the structures such as the independent computer control of each spindle, variable frequency speed governor, grooved drum thread feeder, electromagnetic tension control, oil pump cyclic oiling device etc. It features as good looking, high efficiency, easy operation, assured safety and reliability and broad applicability, etc.



Parameter No.	Name	Range
0	Password	0000~99999
	Setting Parameter value
1	Full bobbin length	0~30000 (m)
2	Thread winding speed	200~1000 (m/min)
3	Oil wheel speed ratio	30~2000
6	Starting tension	0~100%
7	Ending tension	0~100%
8	Yarn detector condition	0.0~9999″
9	Empty bobbin position confirmation	Computer test value
10	Positioning confirmation	Computer test value
11	Length correction coefficient	0.800~1.200

High speed winding parameter table on the top board





High speed winding main specification

Model	SA	ST	SY
Shape formation	Cone-type	Column shaped	Horn-type
Tube angle	0°~2°20′	0°	0°
Max. Winding diameter	Φ115mm
Spindle number	4
Maximum drum	1000m/min
Pattern round number	3~4
