Product Overview
Description
Factory Supply Stainless Steel Wafer Type DIN Lift Check Valve for Waste Water Fluid
Product Description
DESCRIPTION
1. Working pressure: 4.0Mpa
2. Working temperature: -100℃～+400℃
3. Face to face according to DIN3202 K4
4. Flange according to EN1092-2, etc.
5. Testing: DIN3230, API598
6. Medium: Fresh Water, Sea water, food stuff, all kinds of oil, acid, alkaline liquid etc.
2. Working temperature: -100℃～+400℃
3. Face to face according to DIN3202 K4
4. Flange according to EN1092-2, etc.
5. Testing: DIN3230, API598
6. Medium: Fresh Water, Sea water, food stuff, all kinds of oil, acid, alkaline liquid etc.

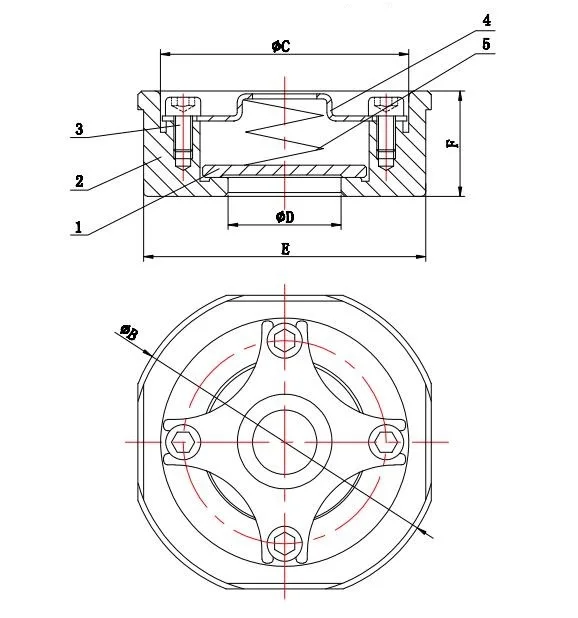

NO. | PART | MATERIAL |
1 | Disc | SS304/SS316 |
2 | Body | SS304/SS316/Brass |
3 | Bolts | SS316 |
4 | Spring cover | SS316 |
5 | Spring | SS316 |
DN(mm) | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 |
ΦDmm) | 53 | 63 | 73 | 84 | 94 | 107 | 126 | 144 | 164 |
ΦE(mm) | 15 | 20 | 25 | 30 | 38 | 47 | 62 | 77 | 95 |
F(mm) | 16 | 19 | 22 | 28 | 31.5 | 40 | 46 | 50 | 60 |

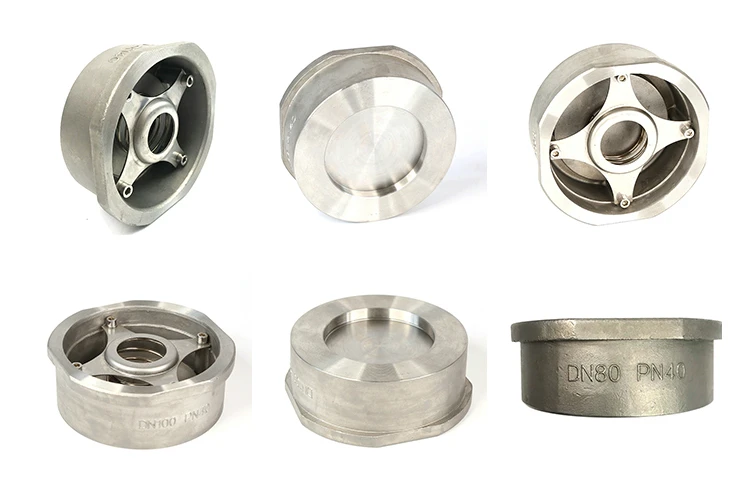

Product Show
Processing Equipment
①Casting ②Machine work ③Shot blasting ④Hot spray
⑤Accessories producing ⑥Assemble ⑦Testing one by one ⑧Package
*Laizhou Dongsheng Valve are the factory focused on valves since 2002.
*All production processes are finished in our own factory to guarantee the quality.
*All these producing based on ISO9001 standard.
*All production processes are finished in our own factory to guarantee the quality.
*All these producing based on ISO9001 standard.
Testing Equipment
CHEMICAL ANALYSIS
SPECTROMETER TEST
PRESSURE TEST ONE BY ONE
ZINC THICKNESS TEST
TENSILE FORCE TEST
DIMENTION TEST
*PRESSURE TESTING BASED ON API598 ONE BY ONE
*NO LEAKAGE GUARANTEED BASED ON ZERO PRESSURE
*NO LEAKAGE GUARANTEED BASED ON ZERO PRESSURE
