30 years manufacturing factory 3 speed counter rotation grain auger gearbox
- Category: >>>
- Supplier: Pingyang Jinge Imp. & Exp. Co. Ltd.
Share on (62337019975):
Product Overview
Description
Product Description

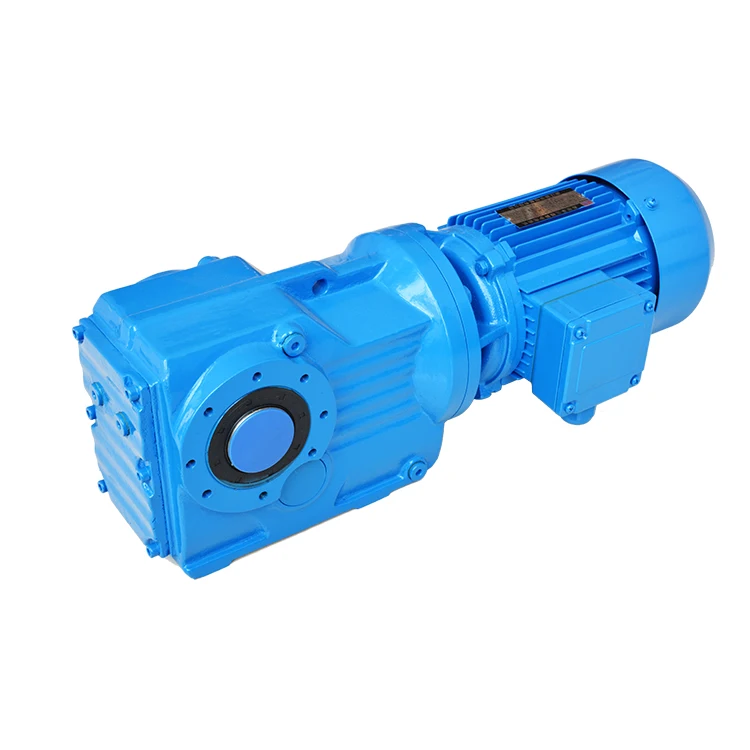

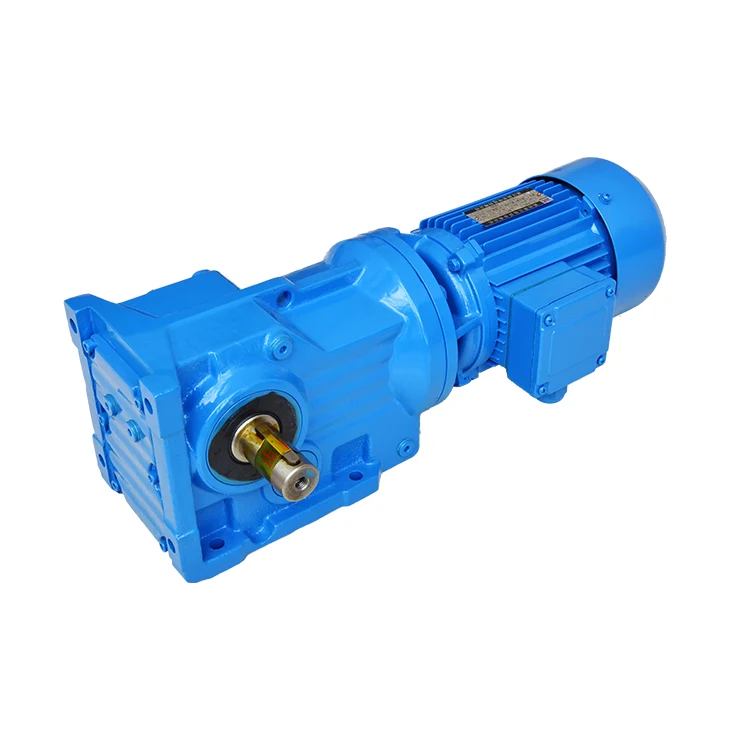

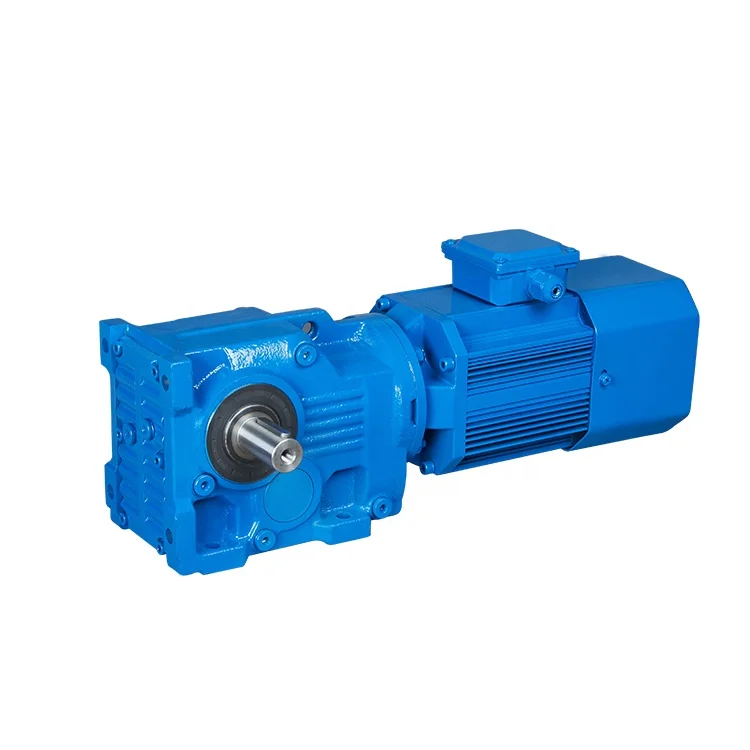

We are manufacturing K Series bevel helical geared motors which offer ratios from 6:1 to 180:1 in three stages. Motors are available up to 90kW and output torque capacity up to 12,300 Nm.
The K Series Helical Bevel Geared Motor is designed with integral cast feet for base or end mounting and can be offered with single or double extended output shafts. Bevel Helical Geared Motor Units are also available shaft mounted or with output flanges and are available for mounting horizontally or vertically. The units can also be offered with a bolt on torque reaction bracket and all variants are available either motorized or with an input shaft assembly.
SPECIFICAITON
High-strength cast iron HT250 | |
Gear material | 20CrMnTi |
Input Power | 0.12-200KW |
Output Torque | 3.5-21700N.m |
Output Speed | 5-371 RPM |
Gear Accuracy | 7 to 6 level |
Gear Surface hardness | HRC58°-62° |
Input/Output shaft hardness | HB220-250 |
Noise(Max) | 60-70dB |
Tem.rise(Max) | 40°C |
Tem.rise(Oil Max) | 50°C |
Vibration | ≤20um |
Backlash | ≤20Arcmin |
Effeciency | Single stage 98%, Double-stage:96%, Three-stage:94% |
Mounting Position | Foot / Flange Mounting |
Motor | IP55,F Class |
