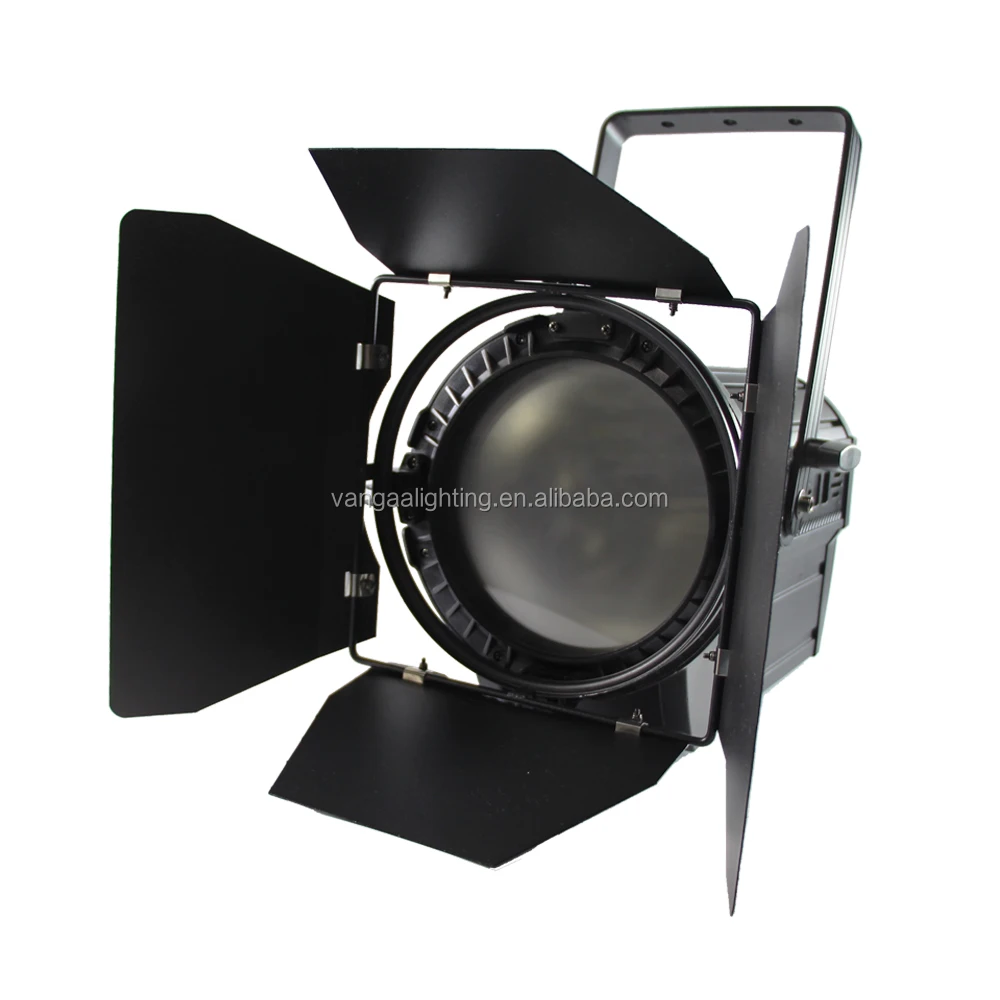

VanGaa Film TV 200W RGBW 4 в 1 светодиодный прожектор Френеля с зумом, сертификация CE, светодиодный прожектор Френеля
- Category: LED Stage Lights >>>
- Supplier: Guangzhou Weijia Photoelectric Tech. Co. Ltd
Share on (62337070177):
Product Overview
Description
The Manufacturer
●Fresnel LED Light for Studio Light, Photography Lights, Video Lighting, Photography Accessories
●A true focuasble Fresnel fixture (15°-60°) that produces soft, directional illumination
Flicker-free at any frame rate or shutter angle
●Ultra-smooth dimming from 100% to 0, with no noticeable color shift throughout the entire range
●Full Spectrum Daylight balanced light
●Provides efficient thermal management to ensure color quality and long life
●4-way Barndoors
●AC Adapter with International Plug Set
PRODUCT SPECIFICATIONS: 8-inch Fresnel lens, 4-button LCD menu, 3-pin DMX In/out, Wired Digital Communication Network, powerCON In/Out to daisy chain power, Multi-voltage operation: AC 100-240V, 50/60Hz, 17.91” x 10.43” x 11.49” / 455x265x292mm, 18.74 lbs / 8.5 kg.
Information | ||
Light source | 1pc 200W RGBW 4in1 COB LED Lamps | |
Beam angle | 15-60° Manual Zoom | |
Noise | under 45db | |

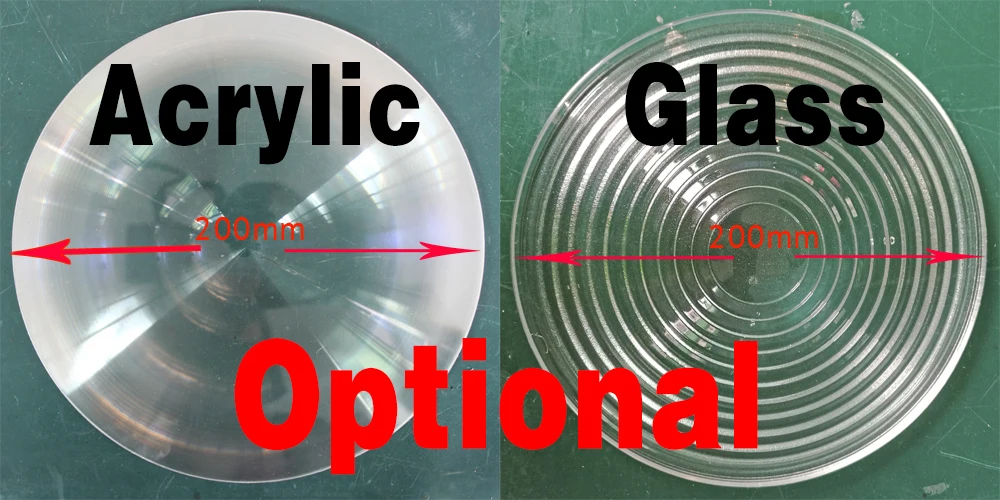

Fresnel lens | 200mm/8” | |
DMX channel | 9CH DMX-512 | |
Related power | 250W AC100-240 V, 50/60 Hz | |
Body dimension | D455*W265*H292mm/ 17.91” x 10.43” x 11.49” | |
Net weight | 8.5KG/18.74 lbs | |

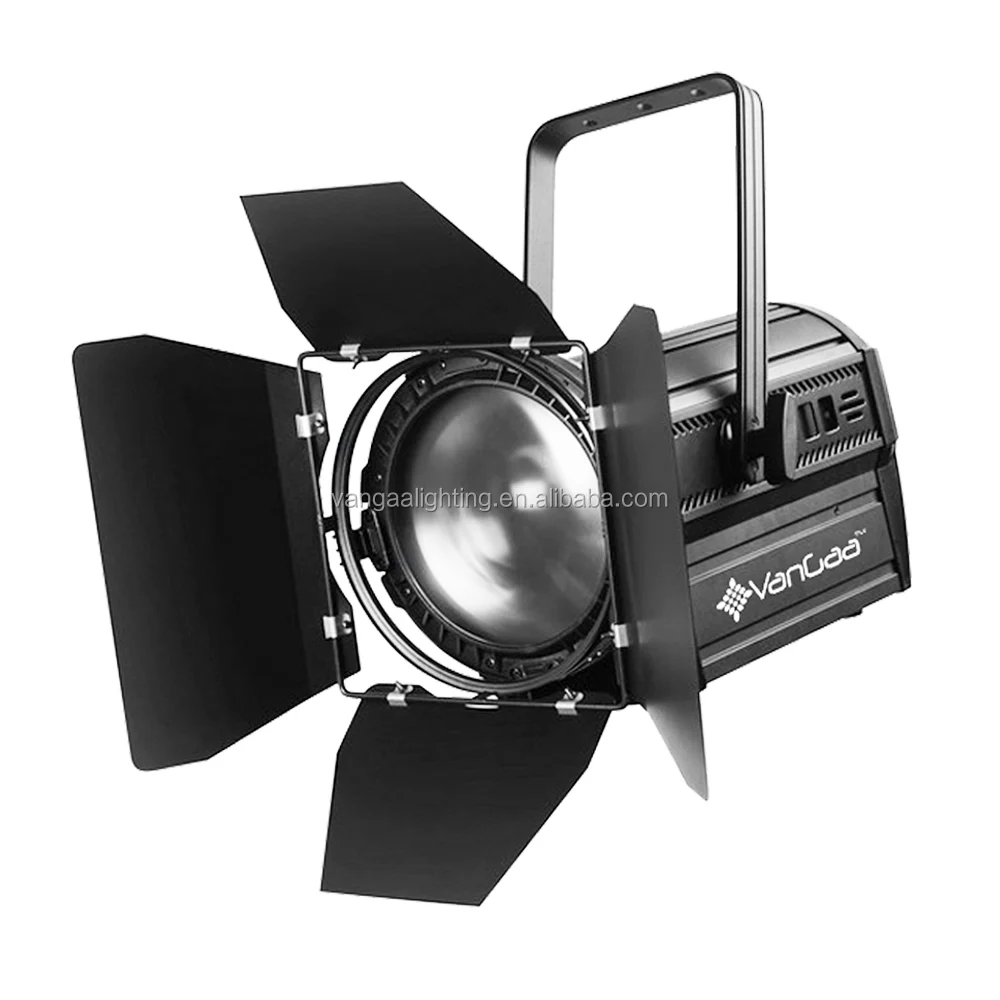

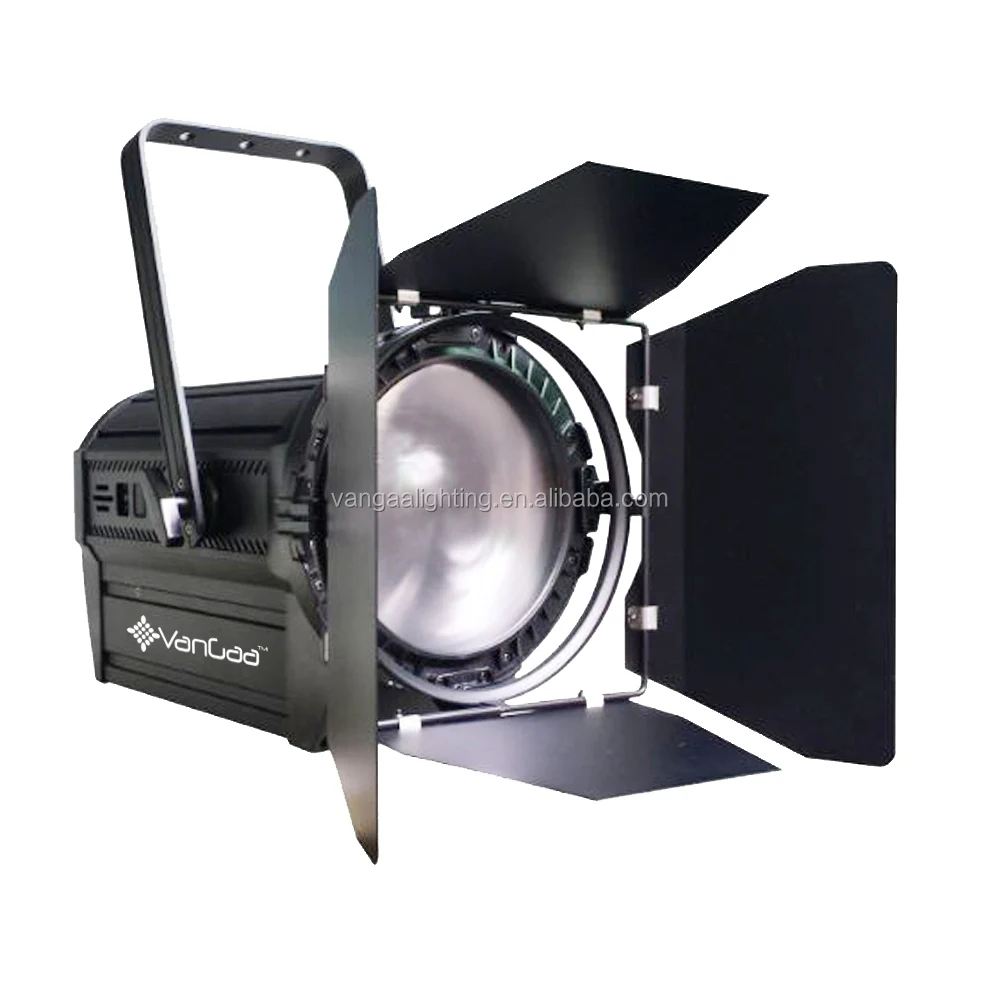

VanGaa 200W PB200D RGBW 4in1 led COB fresnel spot light for Photography Lights
Designed for various theater studio TV station lighting Photography Lights
Combining the benefits of modern LED light-sources with the features of a traditional stage lighting Fresnel fixture, the VanGaa PB200D offers the best of both worlds. Low power consumption, minimal excess heat and long lamp life are combined with a wide zoom range and barn doors to create a pair of truly versatile fixtures. Create soft-edged beams for highlighting or illuminating the stage..
Designed for various theater studio TV station lighting Photography Lights
Combining the benefits of modern LED light-sources with the features of a traditional stage lighting Fresnel fixture, the VanGaa PB200D offers the best of both worlds. Low power consumption, minimal excess heat and long lamp life are combined with a wide zoom range and barn doors to create a pair of truly versatile fixtures. Create soft-edged beams for highlighting or illuminating the stage..
A Professional Lighting Kit for TV Station
Control
* 3-pin+5-pin DMX In/Out and powerCON In/Out
* 4-Button LCD Operational Menu
Color
1pc 200W RGBW 4in1 COB LED Lamps
Installation method
* Tripod 1.9M-4M Optional* Clamps load capacity 150kg
* Safety rope Auxiliary fixation
* Pantograph extend 2.5m
* Slide rail
* Safety rope Auxiliary fixation
* Pantograph extend 2.5m
* Slide rail
VanGaa LED Studio Fresnel Light Series
Product Description
●The internal adopts full copper radiator large area, good heat dissipation, ensure the lifespan of the LED Lamps;
●Through efficient optical lenses, with special heat dissipation design, make the light is downy, small stray light, no glare, eyes more comfortable;
●Use the LED video projector scheme, the light energy saving 80%;
●Because of almost no infrared radiation, it has greatly improve work environment.
Technical Specifications
Light Sources
* LED: 1pc 200W RGBW 4in1 COB LED Lamps
* Lifespan: 500,000h

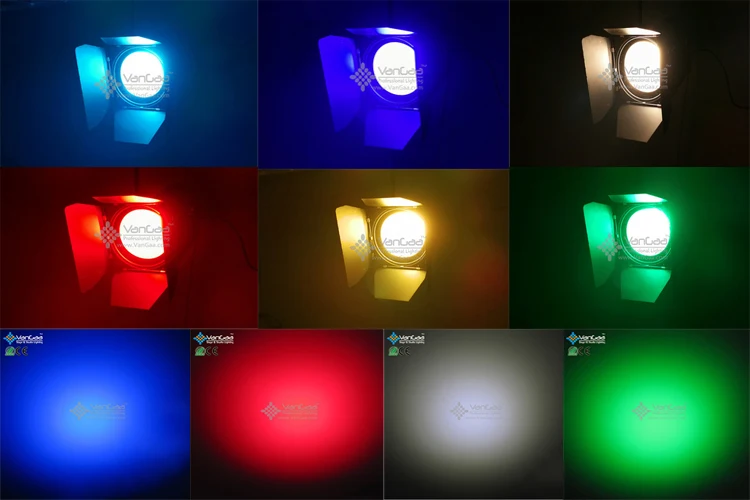

* Color: RGBW color mixing
Optics
* Beam angle: 15-60degree Manual zoom
* Dimmer: 0-100% linear dimmer
Light Output
* Luminous flux: 9775.3lm
* Illuminance: 2700 Lux (6m 15°)
* Optimal projection distance: 3-10m
Control
* Control mode: DMX-512; Auto run

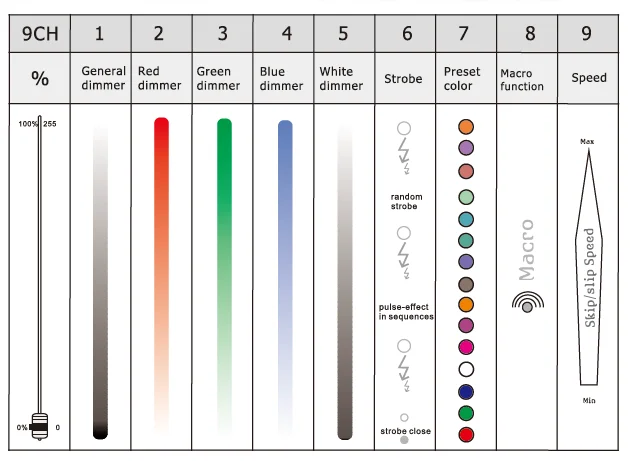

* DMX channel: 9CH
* Display of control panel: LCD display + 4 buttons
* LED: 1pc 200W RGBW 4in1 COB LED Lamps
* Lifespan: 500,000h
* Color: RGBW color mixing
Optics
* Beam angle: 15-60degree Manual zoom
* Dimmer: 0-100% linear dimmer
Light Output
* Luminous flux: 9775.3lm
* Illuminance: 2700 Lux (6m 15°)
* Optimal projection distance: 3-10m
Control
* Control mode: DMX-512; Auto run
* DMX channel: 9CH
* Display of control panel: LCD display + 4 buttons
Power Supply
* Related voltage: AC100V-240V, 50/60Hz
* Related power: 250W
Construction
* Body dimension: D455*W265*H292mm
* Net weight: 8.5kg
* Shell color: black
* Shell material: aluminium die casting
Working Environment
* Working temperature: -25-40℃
* Cooling: Radiator and Fan
* Protection rating: IP20
Standard Configuration Spare Part List
* Cable: 1pc 3-pin DMX cable, 1pc power cable with plug(America standard, Euro standard, or other standard)
* User manual: English version user manual
Optional Configuration Spare Parts List
* Clamps: different style clamps optional (choose from VanGaa homepage “Accessaries series”)
* Safety rope: different size safety ropes optional (choose from VanGaa homepage “Accessaries series”)
* Related voltage: AC100V-240V, 50/60Hz
* Related power: 250W
Construction
* Body dimension: D455*W265*H292mm
* Net weight: 8.5kg
* Shell color: black
* Shell material: aluminium die casting
Working Environment
* Working temperature: -25-40℃
* Cooling: Radiator and Fan
* Protection rating: IP20
Standard Configuration Spare Part List
* Cable: 1pc 3-pin DMX cable, 1pc power cable with plug(America standard, Euro standard, or other standard)
* User manual: English version user manual
Optional Configuration Spare Parts List
* Clamps: different style clamps optional (choose from VanGaa homepage “Accessaries series”)
* Safety rope: different size safety ropes optional (choose from VanGaa homepage “Accessaries series”)
Production Images
Product package:
Thick woodboard
Long hinge
Quality aluminum alloy
Best rubber wheels
Panel Light Series
Company Profile
About us
Guangzhou VanGaa lighting Co,Ltd , Founded in 2014,Located in Huadu district of Guangzhou City. Well trained staff, strict
quality control, and professional sales team, provide excellent before sale and after sale service.
* Manufacturer / Factory
* Accept OEM & ODM
* Qualified with CE, ROHS, FCC certificates
* One store service from product to your door
* Our goal : keep growing and expanding with clients
Certificate
ISO certified factory, products strictly in compliance with CE, RoHS standards.
Packing&Shipping
FAQ
Q. Can i order light with my own design and Logo?
A:Definitely yes,we offer custom services according to your specific requirements
Q.what format do you need for logo?
A:PDF,AI,JPG,CDR,PSD etc.
Q. Are there any other related products?
A:Yes，we can purchase Filght case，Lamp hang，Constant force hinge，Slide way，Tripod，Safety rope
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q. How to proceed an order for led light?
A: 1 let us know your requirements or application.
2 We quote according to your requirements or our suggestions.
3 customer confirms the samples and places deposit for formal order.
4 We arrange the production.
Q. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
A: 1 let us know your requirements or application.
2 We quote according to your requirements or our suggestions.
3 customer confirms the samples and places deposit for formal order.
4 We arrange the production.
Q. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q: Do you offer guarantee for the products?
A: Yes, we usual offer 1 years warranty to our products( Of course you can opt for a lifetime warranty).After the warranty period, we can continue to provide after-sales service of products and replacement of spare parts
