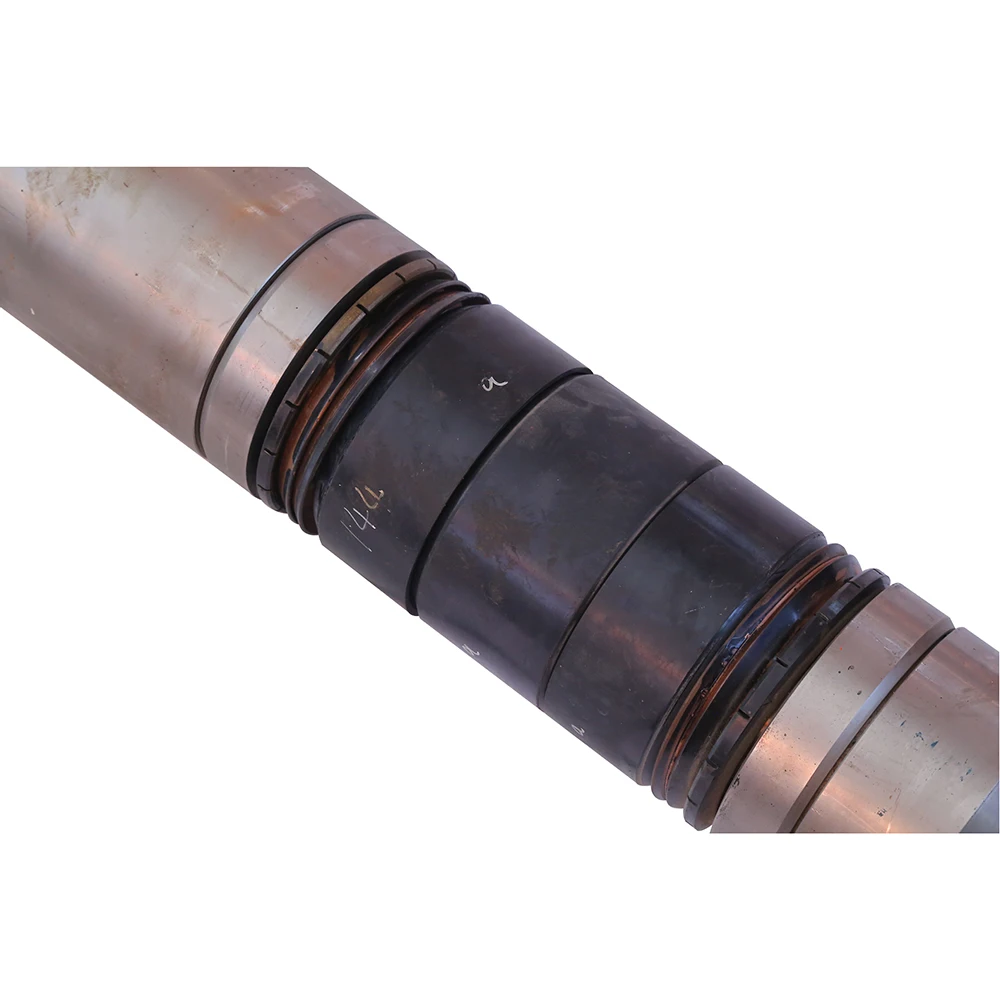

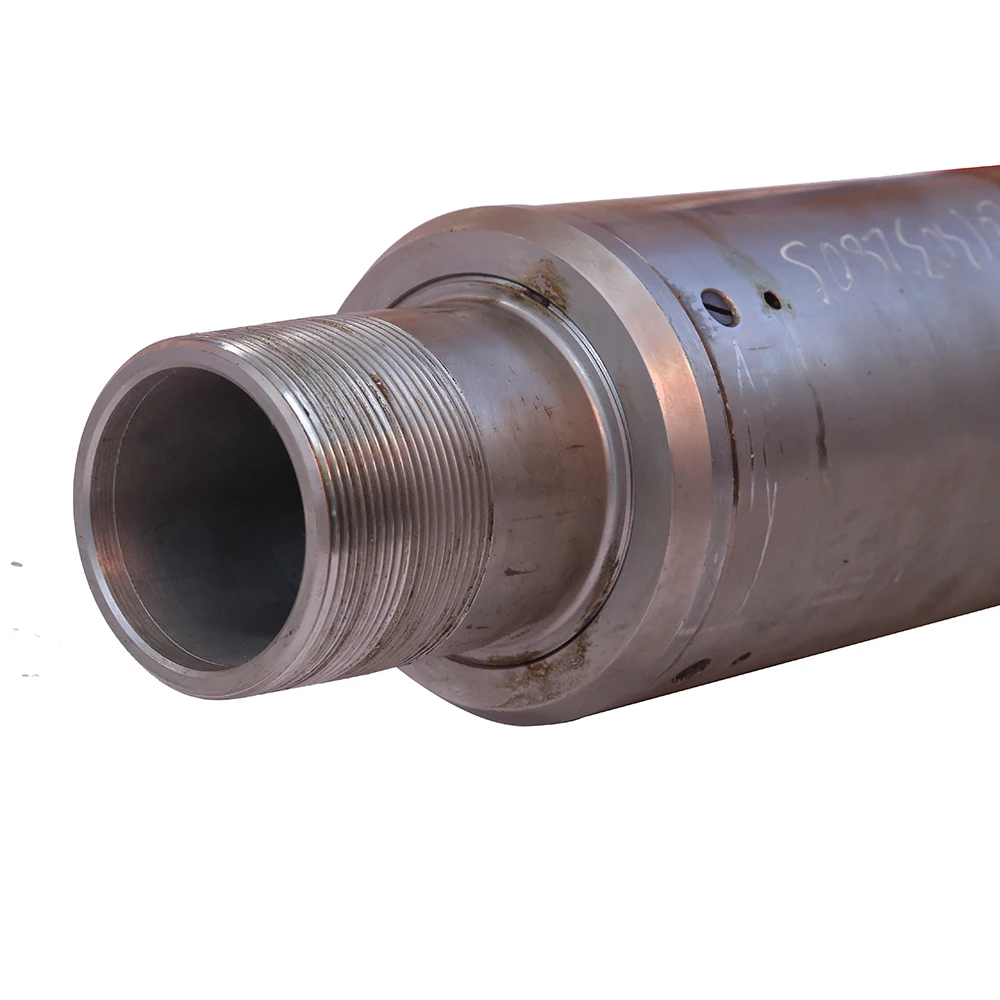

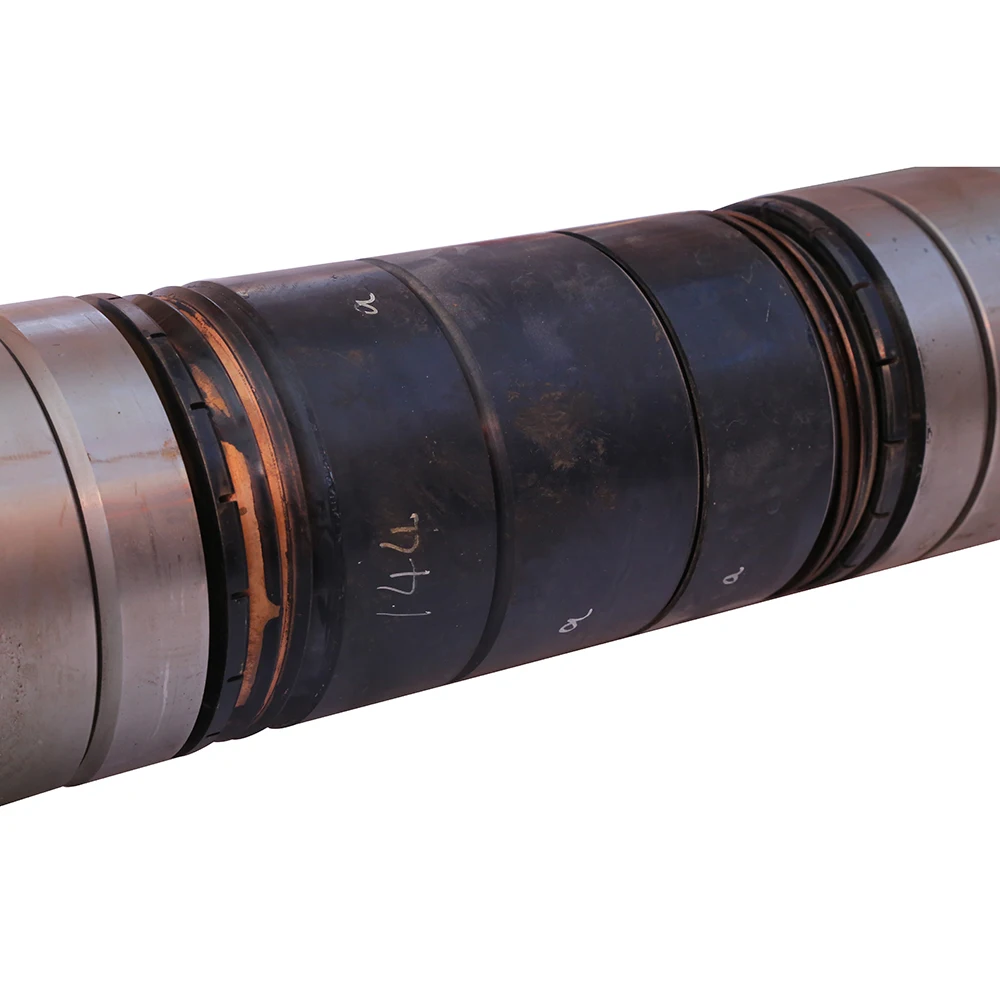

down hole tools Y211 Y241 Y341 Y344 completion packer inflatable retrievable packer

Share on (62337086689):


Price:

Quantity:


Product Overview

Description


Product Description
1. Application
The packer features a non-welded design that provides a strong and effective seal in the vertical, deviated and horizontal wells.
They are available for virtually all drilling, completion, and workover requirements  and etc.
2. Features
- Set by hydraulic pressure
- Release by straight pull / rotate
- Pressure rating up to 10000 PSI (68.9MPa); Temperature application up 150℃ (302℉)
- Good performance
3. Technical data
See data sheet as below
Type
Casing Size
Casing WT.
OD/mm
ID/mm
Overall Length
Y344-102
5″
18#-13#
102
45
1310
Y344-115
5 1/2″
23#-17#
115
54
1780
Y344-146
7″
32#-23#
146
62
1410
Y344-148
7″
32#-23#
148
80
1410
Y344-148
7″
32#-23#
148
90
2100
