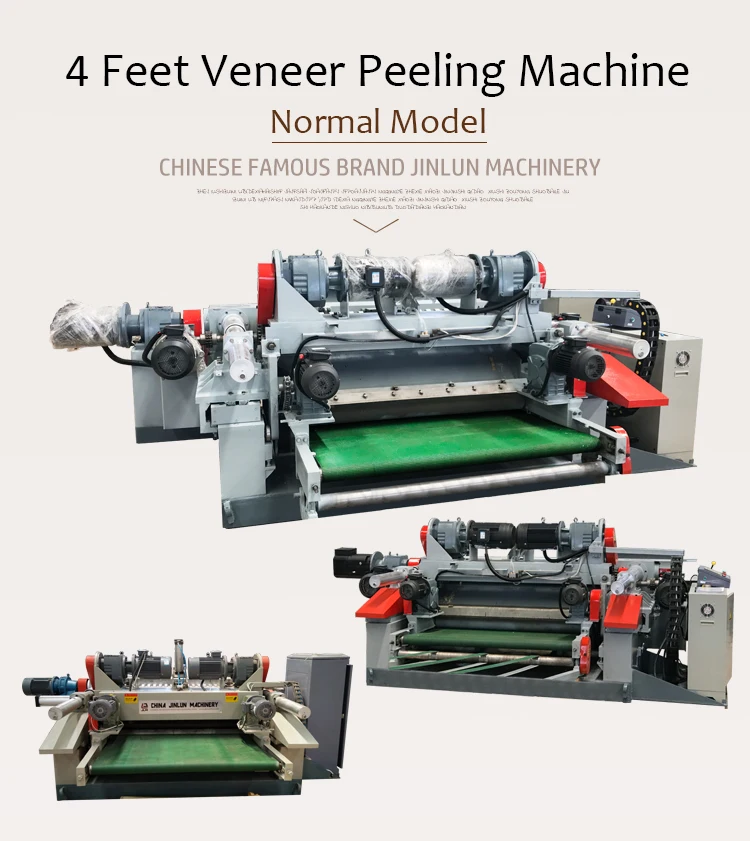

2019 JINLUN 4 feet wood veneer peeling machine wholesale
- Category: >>>
- Supplier: Shandong Jinlun Machinery Co. Ltd.
Share on (62337112827):
Product Overview
Description
| No. | Parameters | Numerical value |
| 1 | Model | JLXQ130-50BB |
| 2 | Max. lo length | 1300mm |
| 3 | Max.log diameter | 500mm |
| 4 | Veneer thickness | 0.18-4.0mm |
| 5 | Residue log | 28mm |
| 6 | Single roller power | 5.5kw*2 Hardened reducer |
| 7 | Double roller power | 7.5kw*2 Hardened reducer |
| 8 | Feeding power | 7.5kw servo |
| 9 | Clipper power | 1.5kw servo |
| 10 | Transportation power | 1.5kw |
| 11 | Hydraulic station | 1.5kw |
| 12 | Total power | 61.5kw |
| 13 | Speed | 30-100m/min |
| 14 | Product capacity | 80m³/8 hours |
| 15 | Blade size | 1500*180*16mm |
| 16 | Veneer tolerance | ±0.05mm |
| 17 | Weight | 7200KG |
| 18 | Overall size | 4600x2150x1550mm |
