4g lte bus wifi router mt7620a openwrt with sim card slot oem router
- Category: Wireless Networking >>>
- Supplier: Shenzhen Zhibotong Electronic Co. Ltd.
Share on (62337204520):
Product Overview
Description

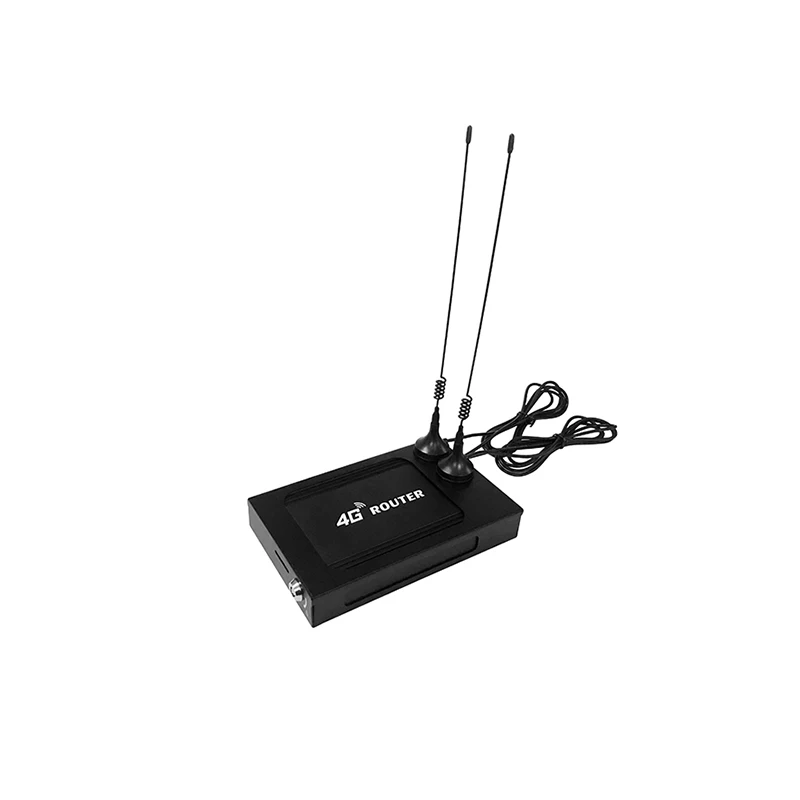

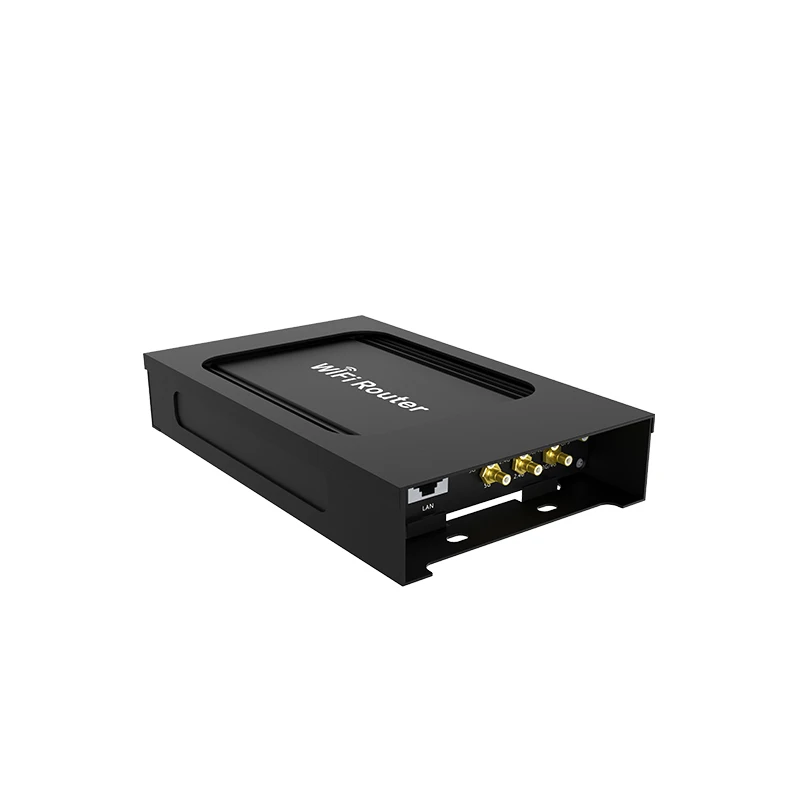

4g lte bus wifi router mt7620a openwrt with sim card slot oem router

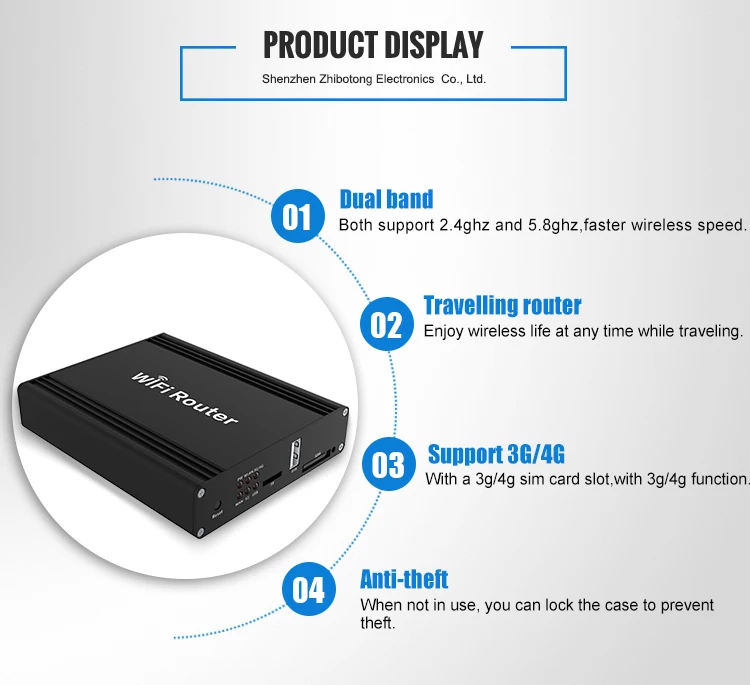

Product Display
Specification
Hardware | |
Main Chipset | MT7620A+7612E |
RAM | DDR2 128MB (Max 256MB) |
FLASH | 16MB (Max 32MB) |

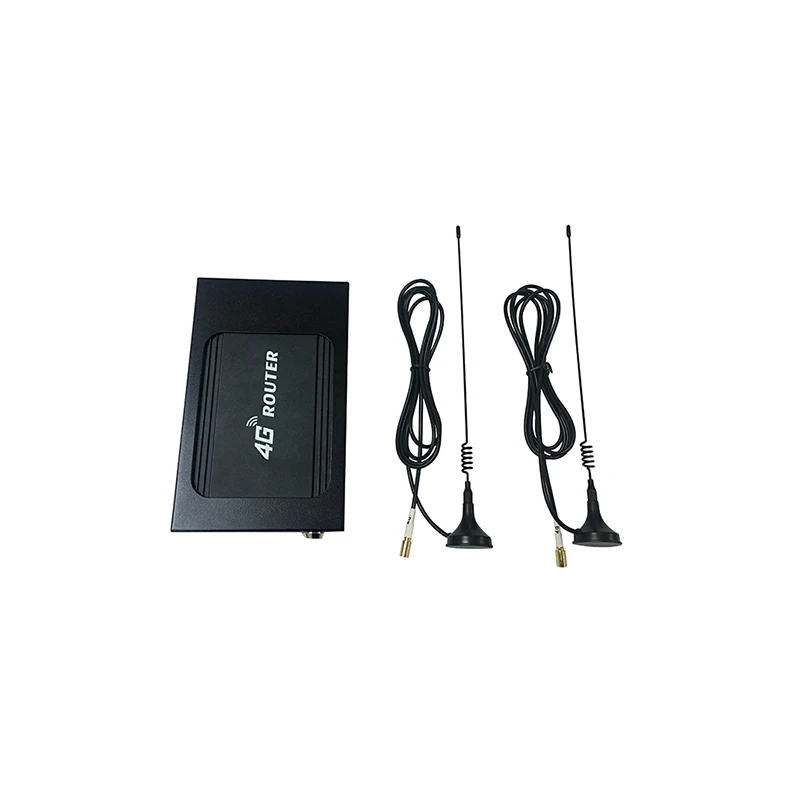

Antenna | 7 external 5dbi OMNI antennas (4 for Wi-Fi antennas, 2 for 3/4g module antenna, 1 for GPS antenna, the details need according to customer’s requirements) |
Interface | 1* 10/100M Auto MDI/MDIX LAN |
Button | Reset |

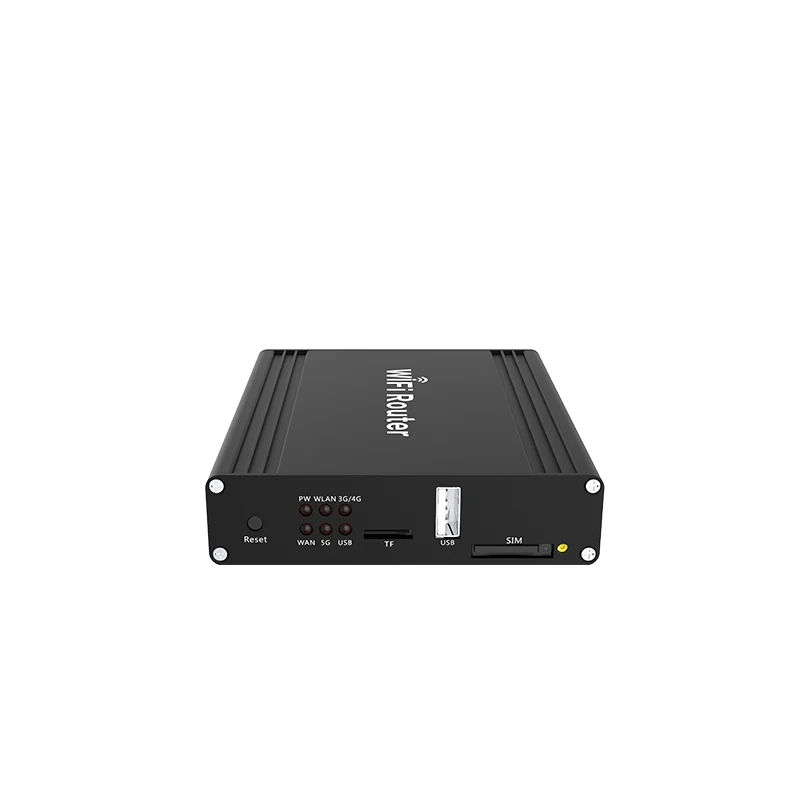

LED | Power,WLAN,LAN,3G/4G,USB,5G., |
Power | Input 12V 1A(9-28V) |
Dissipation | ≤ 15W |

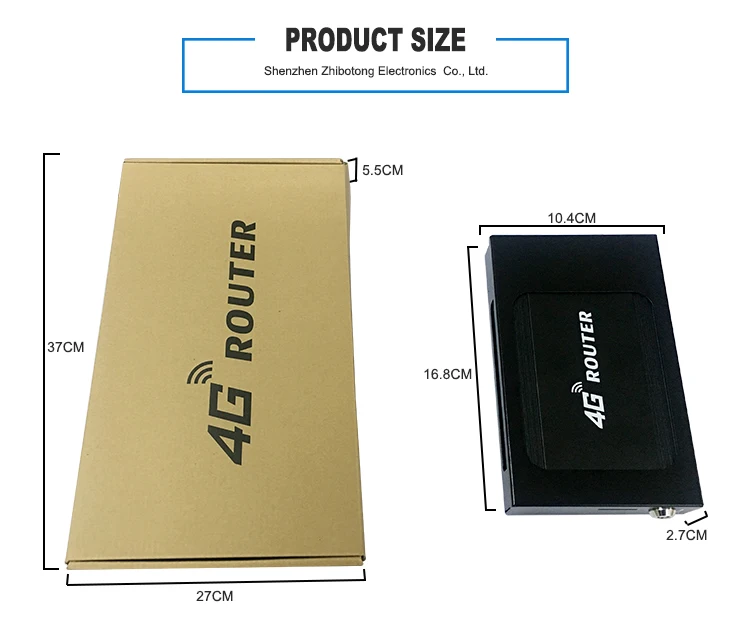

Product Size | 125.5*100.5*25mm |
Wireless | |
Protocol Standard | IEEE 802.11n,IEEE 802.11g,IEEE 802.11b,IEEE 802.11a,IEEE 802.11ac |
Wireless Rate | 2.4GHz,Up to 300Mbps, 5.8GHz, Up to 900Mbps |
Work Frequency | 2.4G:2412 MHz-2484MHz(channel 1 -channel 14). 5.8G: 5725MHZ-5850M(channel:149,153,157,161,165) |
RF Output Power | 802.11b 18dBm±2dBm 802.11g 15dBm±2dBm 802.11n 15dBm±2dBmu 802.11a 20dBm±2dBm 802.11ac 20dBm±2dBm |
Receive sensitivity | 802.11b ≤-76dBm 802.11g ≤-65dBm 802.11n ≤-61dBm 802.11a ≤-64dBm 802.11ac ≤-59dBm |
PPM | ±10 |
Distance | 50 Meters |
QTY of current users | 45-55 |
Wi-Fi security | 64/128/152 WEP |
WPA-PSK/WPA2-PSK,WPA/WPA2 Security system | |
Packaging & Shipping
Company Information
FAQ
1.Do you accept PCBA orders only?
A1:Yes, as an OEM/ODM manufacturer, we can provide PCBA in a short time with good quality.
2.Do you provide firmware support?
A2:Yes, unlike other companies which are buying solutions from design company, we have our own firmware development team to support you in 100%.
3.What is the MOQ(Minimum Order Quanlity)?
A3:If buy our existing products,then MOQ is 100 units.If need customize the products,then MOQ is 1000 units.
4.What's the lead time?
A4:For existing products,usually within one week after payment.For customized products,usually 25-30 days.
5.How to pay?
A5:We accept the payment by PayPal,T/T,Western Union and Alipay.
Other questions, pls send us inquiry for further discussion, thank you!
We are here
Remark
1.Please kindly note that this is not inclued 3G/4G modem cost on Alibaba.
2.If you need to support 3G/4G function, please let me know your ISP (Internet Sevice Provider) company or work bands.So that I can be quoted the best price for you.

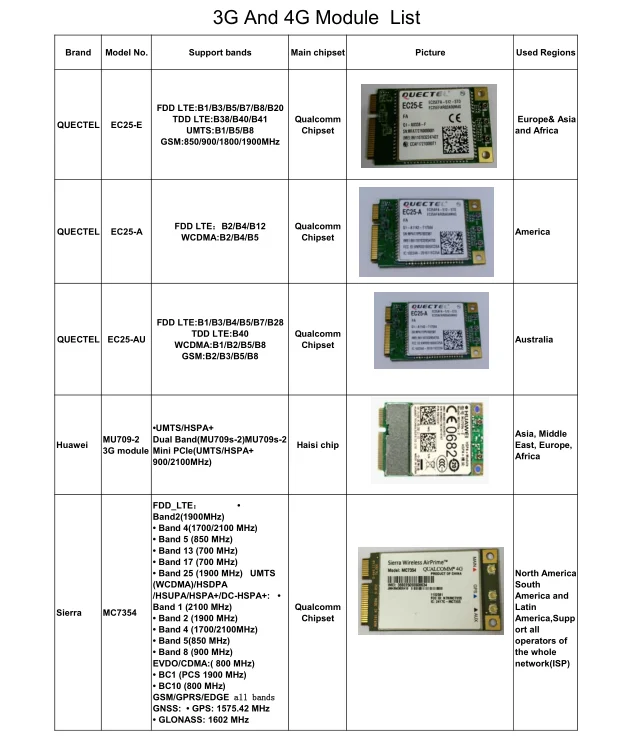

3.We usually use in 3G and 4G module as below:
♥Welcome to place order to us♥
