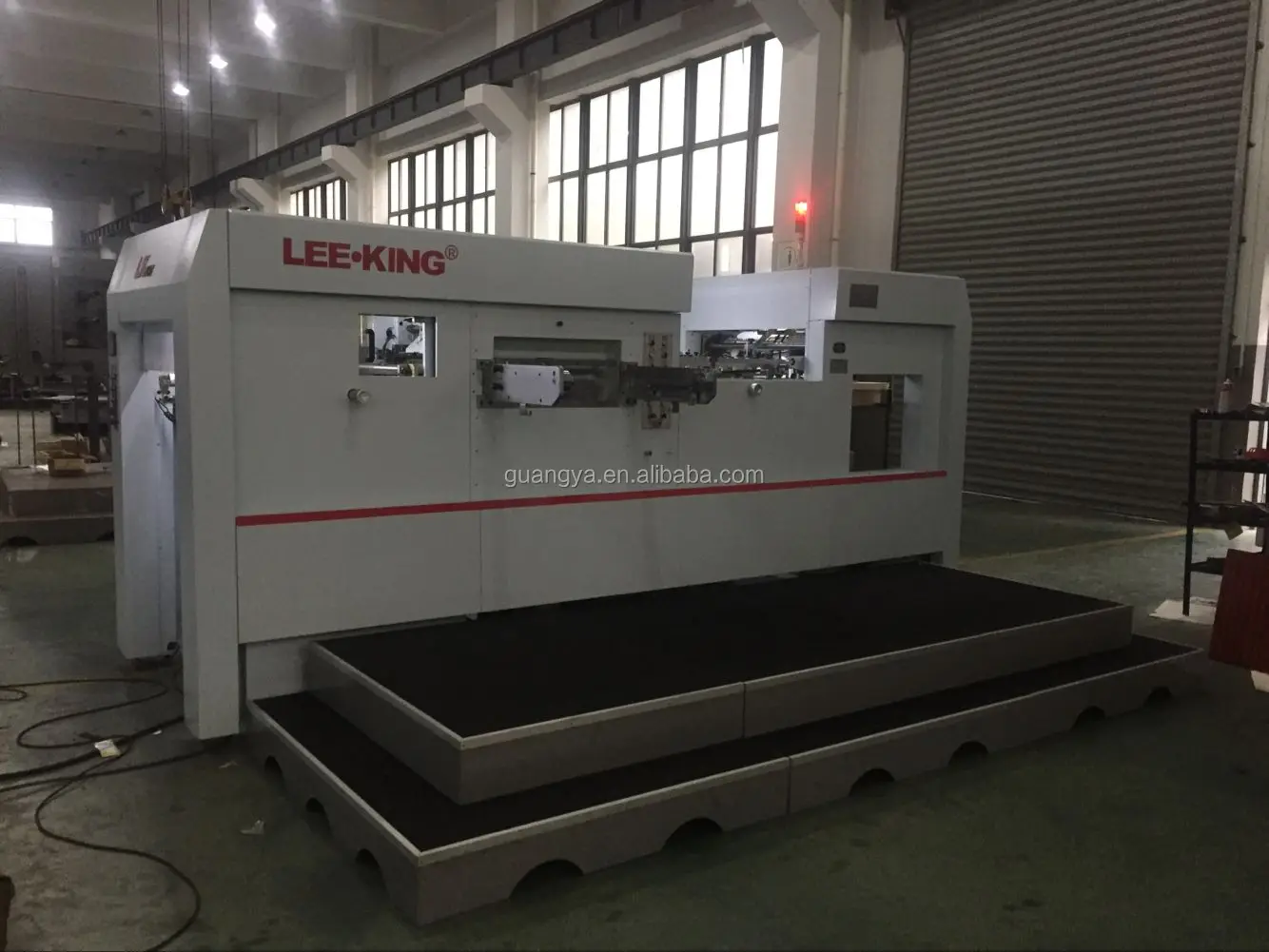

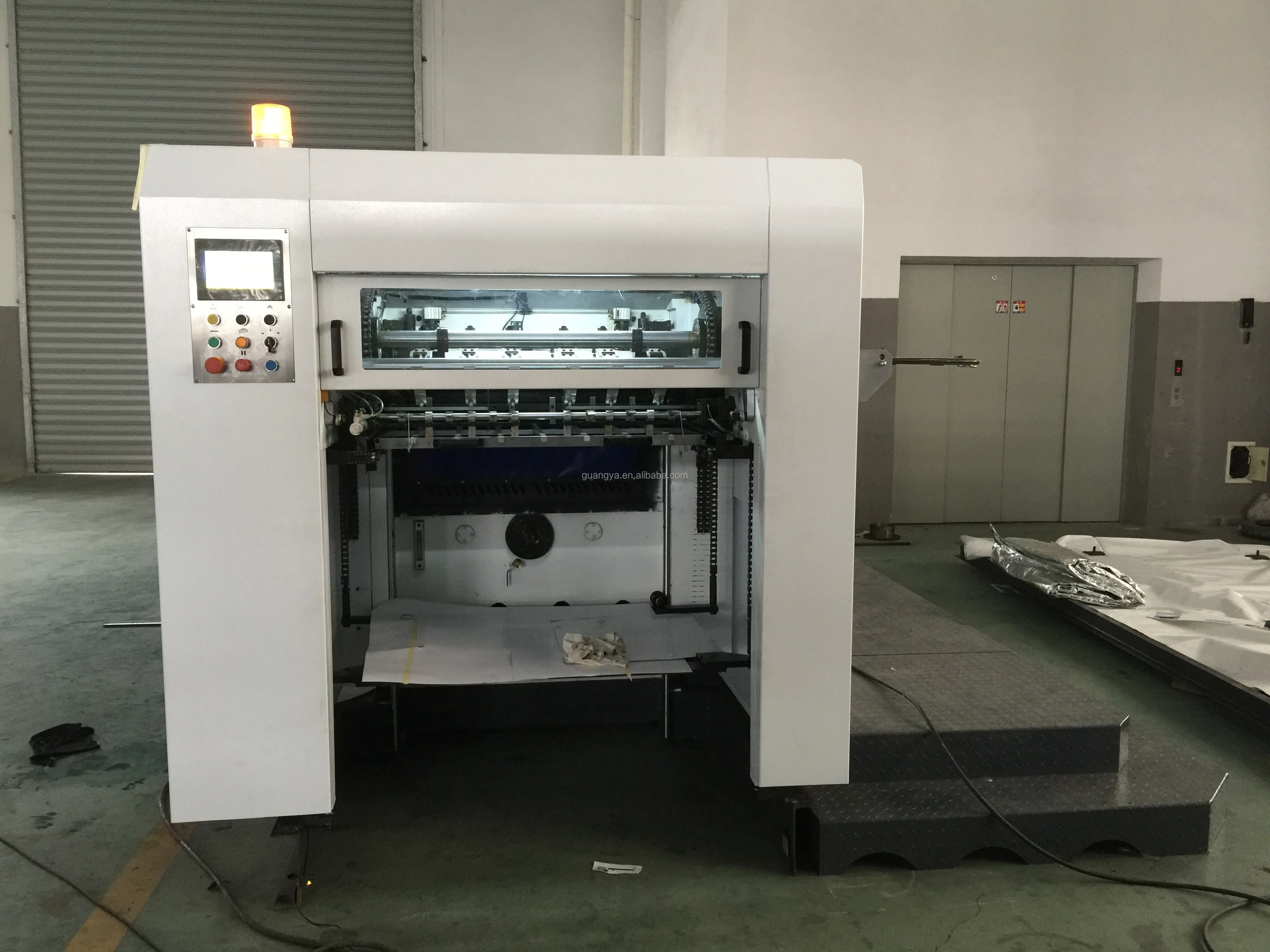

LK 106M Creasing machine and flatbed die cutteris specially designed for die cutting, embossing, creasing process. It with big advantage in machine safety, labor saving and products precision. it equipped over 20 safety sensors, once one of them being triggered, the whole machine would shut itself down immediately to keep the safe of the operators. With maximum sheet size 1060*770 MM and high producing speed, it could satisfy bulk products producing. This machine quite suits for cardboard box die cutting process .
Max. sheet size
1060*770 MM
Min. sheet size
450*370 MM
Max. die cutting size
1050*750 MM
Paper range
90 - 2000 GSM
Gripper margin
8 - 17 MM
Max. cutting force
300 T
Max. working speed
7500 S/H
Max. delivery pile height
1200 MM
Max. feeding pile height
1350 MM
Main motor power
11 KW
Power Rating
17.6 KW
Machine weight
16000 KG
Air requirements
0.6 Mpa, > 0.37M3/Min
Overall machine dimensions
5050*4200*2260 MM
Applied materials
Not only paper, our die cutting machine suit for material like, cardboard, corrugated and multiple kinds of plastic sheet.
Function
Not only die cutting, but also creasing, , embossing functions are available om this machine. Suit for box, carton, paper bag, hanger tag producing.
Detailed Images
Feeder
* Pile tray with handle allowing manual lateral correction of the pile during production. * Feeder protective device in case of crashing. * Feeder is equipped with 4 lifting suction cups and 4 transport suction cups. * The suction cups are adjustable according to the paper deformation in lateral way. * Side blowers adjustable with Centerline marks. Blowers on both side of the feed system separate the product for a smooth feeding process. * Adjustable while in operation: to fine tune the feeder cycle to the platen. * Safety system for lowering the pile tray.
Feed table
* Covered with upgrade anti-static stainless-steel plate. * Double sheet detector. * Support plates at entry of platen station. * Sheet hold-down device (guiding the sheets to the front lays). * Upper frame with manual lifting device * Wide conveyor belts ensure sheets accurately to the front and side lays units
Die cutting
* Heated upper head(optional) * Gripper reopening device * Gripper fine adjustment * Automatic "on and off" pressure device of the platen. * Equipment centering and locking. * Automatic locking of the chase against the upper beam. * Measurement of the cutting force with strain gauge automatically.
Delivery
* Pile tray. * Pneumatically controlled pivoting front joggers. * Adjustable rear and side joggers with Centerline marks. Braking Brush.
Packing&Shipping
Deep clear
Vacuum Packing
Container loading
We clean the equipment before packaging, then use film packaging to prevent secondary contamination, and finally use a fumigation high-strength wooden box. In order to provide maximum protection for the equipment.
