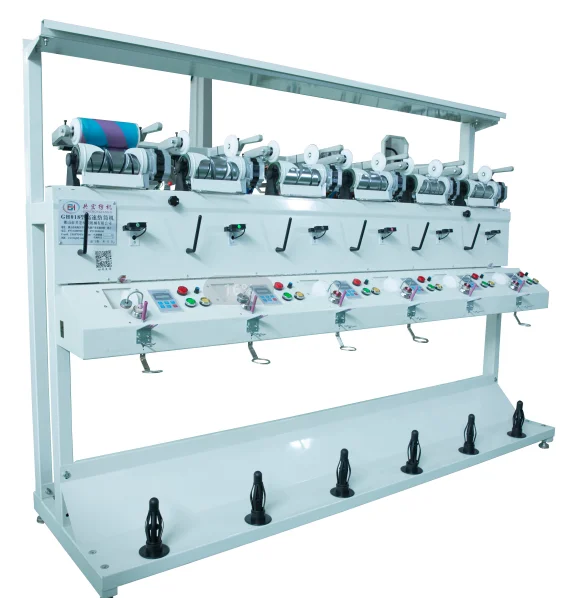

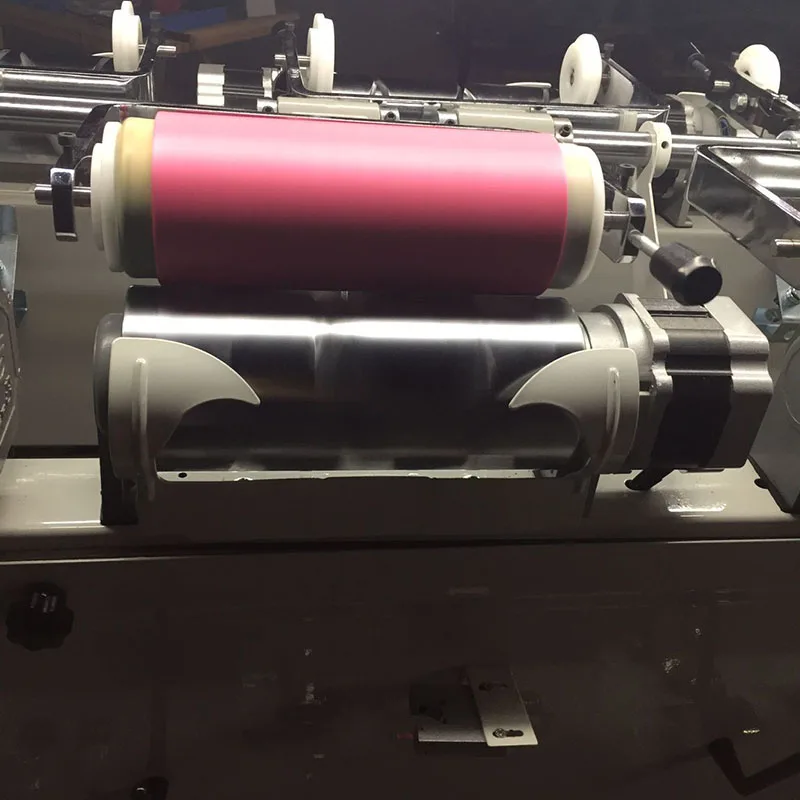

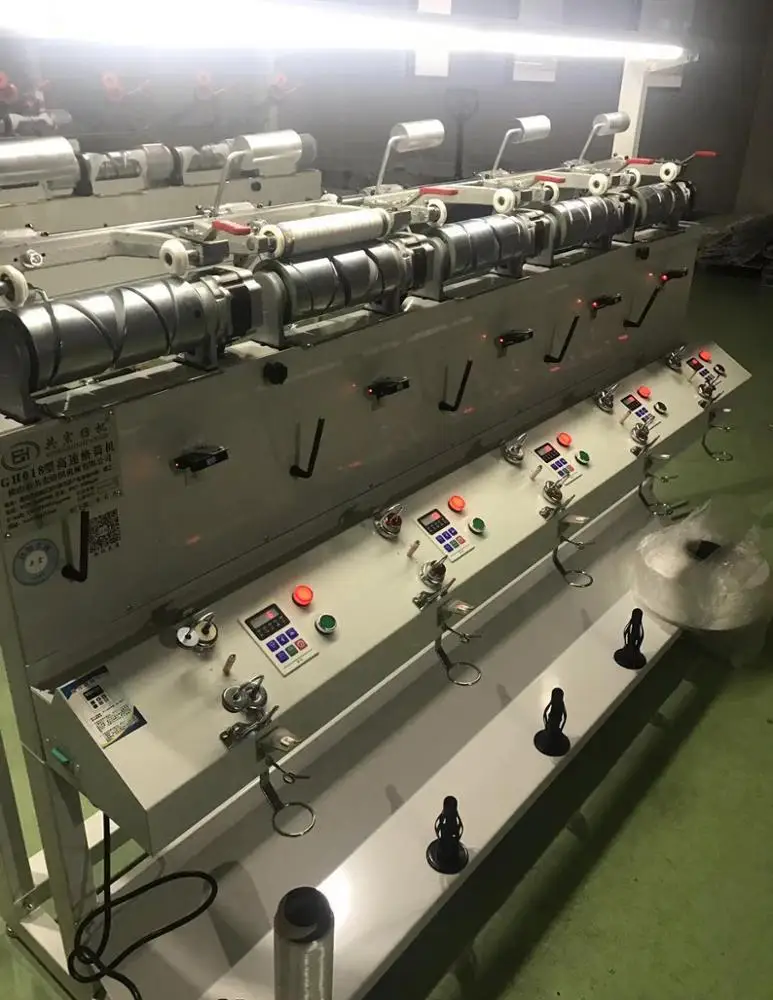

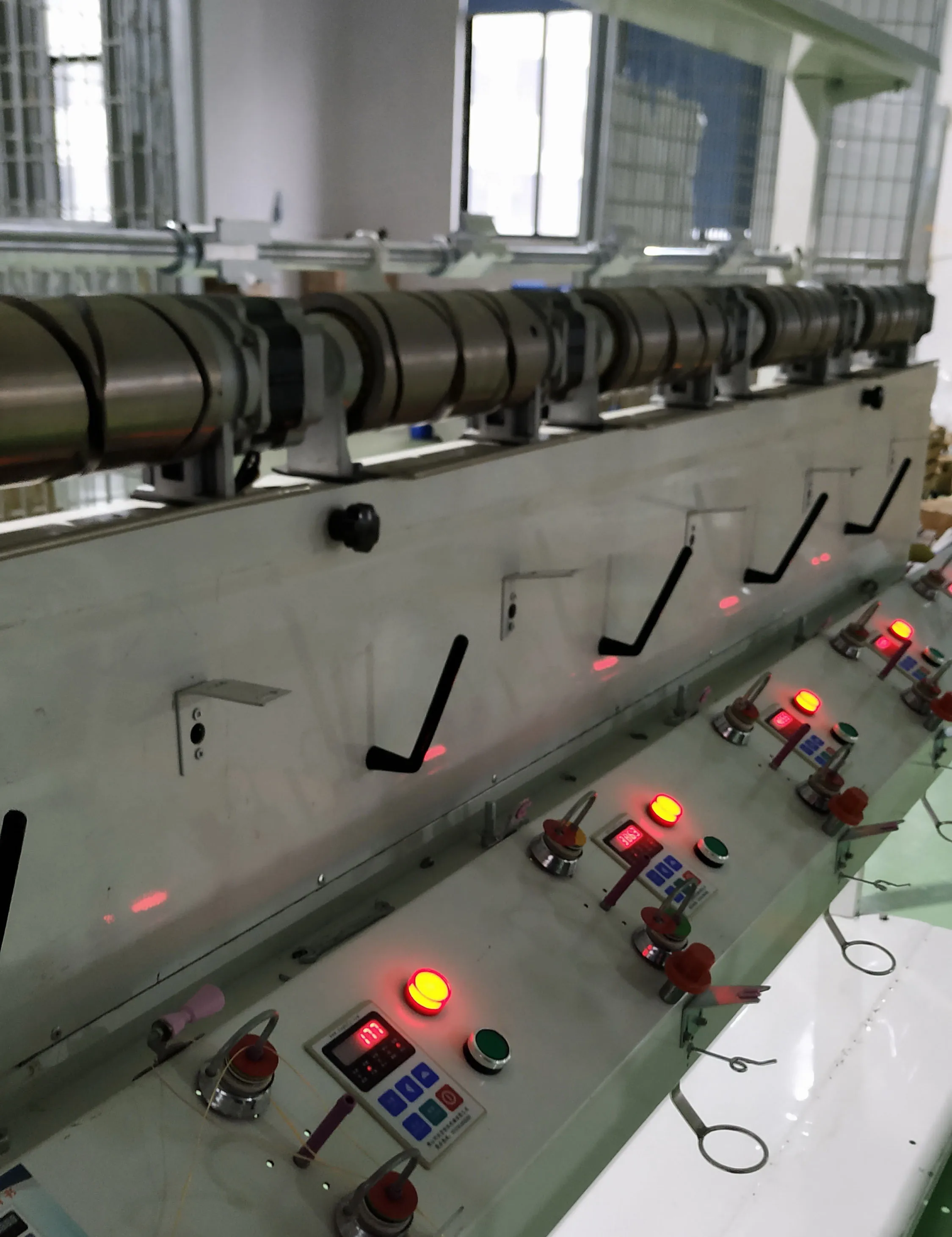

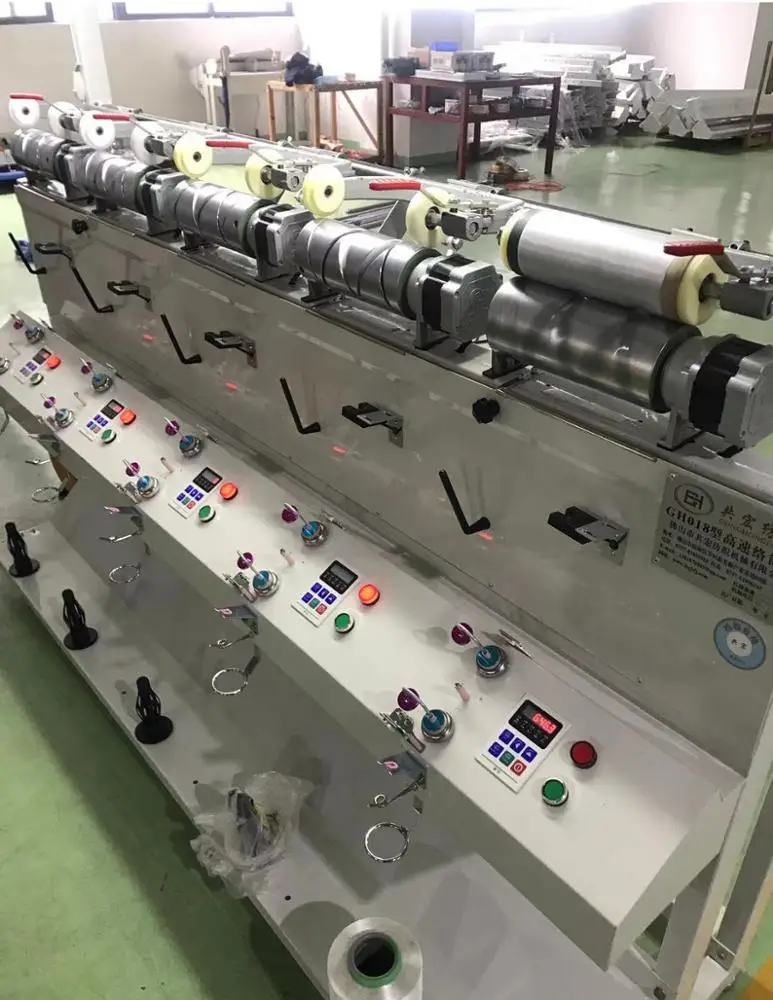

High Quality GH018 230 Type High Speed Yarn Bobbin Winding Machine
- Category: >>>
- Supplier: Foshan Gonghong Textile Machinery Co. Ltd.
Share on (62337257463):
Product Overview
Description
GH018-230 type winder
GH018-230type winder, used in chemical fiber, cotton yarn, yarn, low stretch yarn, winding into a cone or a cylinder, for the next process, it can make 3KG-4KG yarn of bobbin, good forming, without the phenomenon of edge collapse.GH018-230 type to alleviate the labor intensity of the process, adaptation high-speed production. It is suitable for hank yarn to be changed into yarn or cylinder and after dyeing. (Can be customized 2 spindles, 4 spindles)
Technical characteristics | Technical parameters |
Bobbin size | 230mm |
Structure | Single-sided machine, Each (5,10,15,20,25,30,35,40,45,50)spindles |
Power Supply | Three phase 220V or 380V 50/60HZ |
Drive | Single spindle independent AC motor drive |
Power consumption | 0.18Kw/ spindle |
The shaping bobbins | The circular column(0°)/ cone; 4°20, 5°57, 9°15 cone |
Drum diameter | A maximum of 200 and 290mm |
Yarn speed | 300-1000m/min |
Anti overlapping electronic device | Inverter control |
Length setting device | Programmable logic controller(PLG) control/ display the length |
Tension device | Rotate self-cleaning tensioner and wax each spindle |
Mechanical cleaning device | Fine-tuning machine cleaning knife for each spindle |
Yarn break automatic stop device | Electronic break stop |
Speed regulating device | Frequency control of motor speed |
Soft package edge traverse device | Mechanical/ suitable for soft type winding machine |
Electronic yarn cleaner | Optional |
Air splicer | Optional |
Blowing and suction cleaner | Optional |
Lighting system | Lamp |
Dimensions(mm) | 2050×600×1500mm |
