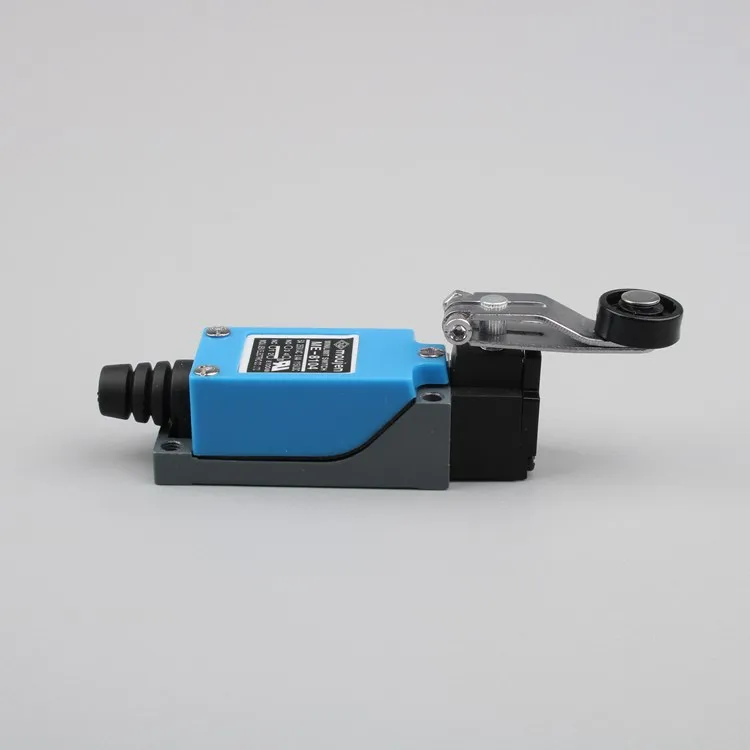

Limit Switch ME 8104 AZ8104

Category: Limit Switches >>>
Supplier: Yueqing,Lanpu,Electrical,Co.,Ltd.,[Zhejiang,China]Yueqing

Price:RUB 70.72

Price in USD:Details

Quantity:

Product Overview

Description

General Introduction
LIMIT SWITCHES are installed daily in all types of industrial machinery, in elevators, in the medical or marine sectors, all over in the world, in applications ranging from the heat of deserts to the cold of Iceland. In order to be used in a such wide variety of sectors and countries.

Features:
1. Designed for applications of small mounting space
2. Constructed with Metal based and plastic cover
3. Mechanical movement and electrical line separtes
4. Positive opening mechanism*Improved current carrying capacity to 10A

Technical Specification

Operating Speed	0.5mm~50cm/sec
Operating Frequency	Mechanical:120 operations/min;Electrical:30 operations/min
Contact Resistance	25mΩ max. (initial)
Insulation Resistance	100mΩ min(at 500VDC)
Dielectric Strength	1000VAC, 50/60Hz for 1 min between terminals of the same polarity
	1500VAC, 50/60Hz for 1 min between load currents and no-load currents parts
	1500VAC, 50/60Hz for 1 min between terminal and ground
Vibration	malfunction:10Hz~55Hz, 1.5mm double amplitude
Shock	Mechanical resistance:1000m/s2; malfunction:300m/s2
Ambient Temperature	minus 5ºC~65ºC
Ambient Humidity	<95%RH
Working Life	Mechanical:2107;Electrical:3105
Protection Degree	IP65

Model	Operating Force max	Releasing Force min	Pretravel max	Overtravel min	Movement Differential	Operating Position
LX-ME8104	7.4N(0.75kgf)	0.1N(1kgf)	20°	50°	12°	/
LX-ME8108	7.4N(0.75kgf)	0.1N(1kgf)	20°	50°	12°	/
LX-ME8107	7.4N(0.75kgf)	0.1N(1kgf)	20°	50°	12°	/
LX-ME8111	8.9N(0.9kgf)	1.5N(0.15kgf)	1.5mm	4mm	1mm	26±0.8mm
LX-ME8112/8122	8.9N(0.9kgf)	1.5N(0.15kgf)	1.5mm	4mm	1mm	37±0.8mm
LX-ME8166/8168/ 8169/9101	1.5N(0.15kgf)	/	30mm	/	/	/
