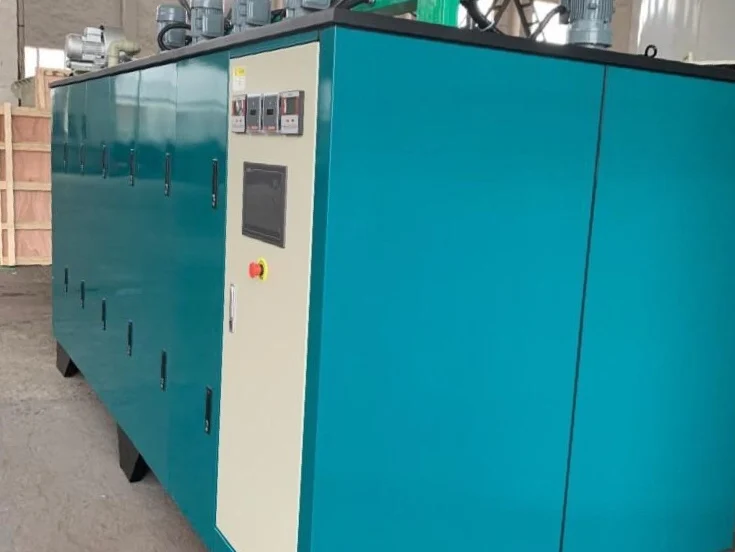

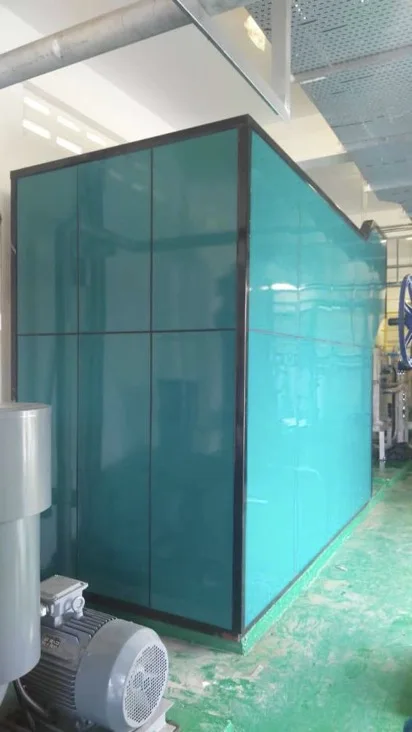

Electrocoagulation system in wastewater treatment plant for sewage disposal

Share on (62337458444):


Price:

Quantity:


Product Overview

Description



Product Description


Electrocoagulation(EC) is a broad-spectrum treatment technolgoy that removes total suspended solid(TSS),heavy metals,  emulsified oils, bacteria and other contaiminants from water.

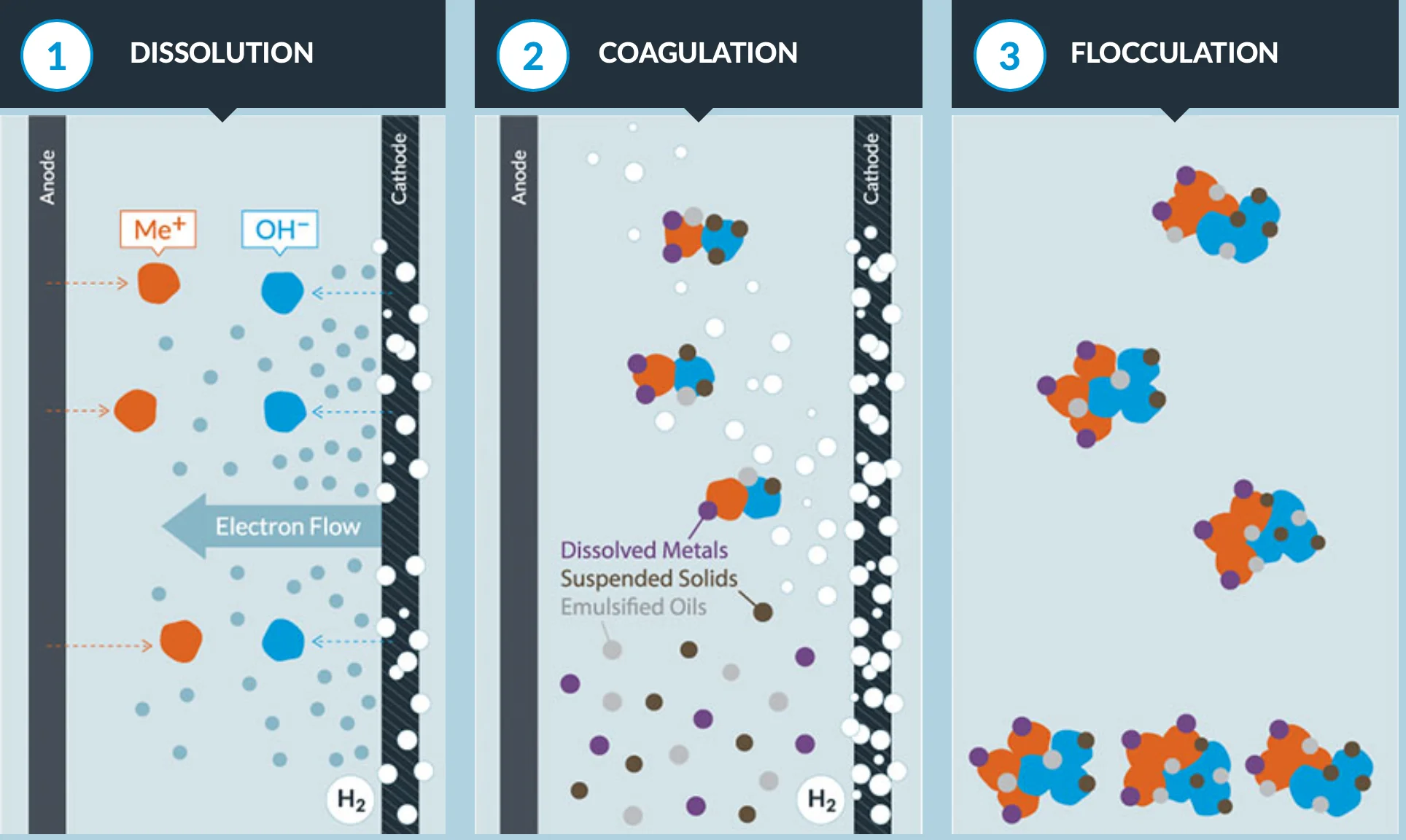

Processing Diagram


Adopt the principle of electrochemistry, taking the alloy metal such as aluminum and iron as the main ecectrode, and applying an impulse high-voltage action to generate and electrochemical reaction, transforming ecectrical energy into chemical energy, and sacrificing the anode metal ececonrode to produce a metal cation flocculant, through condensation and floating. Removal ,reduction, and oxidative decoposition of a contaminat from water.


Products Description




Product Paramenters


Model
Capacity
M3/h
Power
Consumption
Kw
Dimensions
L*W*H
mm
Electrode
Weight
Tons
Empty
Weight
Tons
Operation
Weight
Tons
EC005
0.5
3
1000*650*1300
0.3
0.3
0.8
EC10
1
3
1000*650*1500
0.65
0.4
1.5
EC20
2
6
1500*1500*1650
1.25
0.5
3
EC50
5
15
3400*1500*2900
1.9
1.9
7.8
EC100
10
20
3800*1500*2900
3.2
2.3
12.5
EC200
20
30
4200*2200*2900
5.5
2.8
18.8
EC300
30
60
4200*2200*3200
8.5
3.3
23.8
EC400
40
80
6000*2200*3200
11.5
3.5
31
EC500
50
100
8000*2200*3200
15
4
42


1. Own Advanced Oxidation
2.Strong REDUCTION & sterilization
3.Self contained Floc fomation
4.Decoloration and Deodoriztion
