Manufacturer smooth two drum sail vibratory road roller
US $4300-$4400
LUTONG LTP2030 pneumatic tire road roller sakai roller
- Category: Road Machinery >>>
- Supplier: Oriemac Machinery & Equipment (Shanghai) Co. Ltd.
Share on (62337679235):
Product Overview
Description
WEB
Product Description

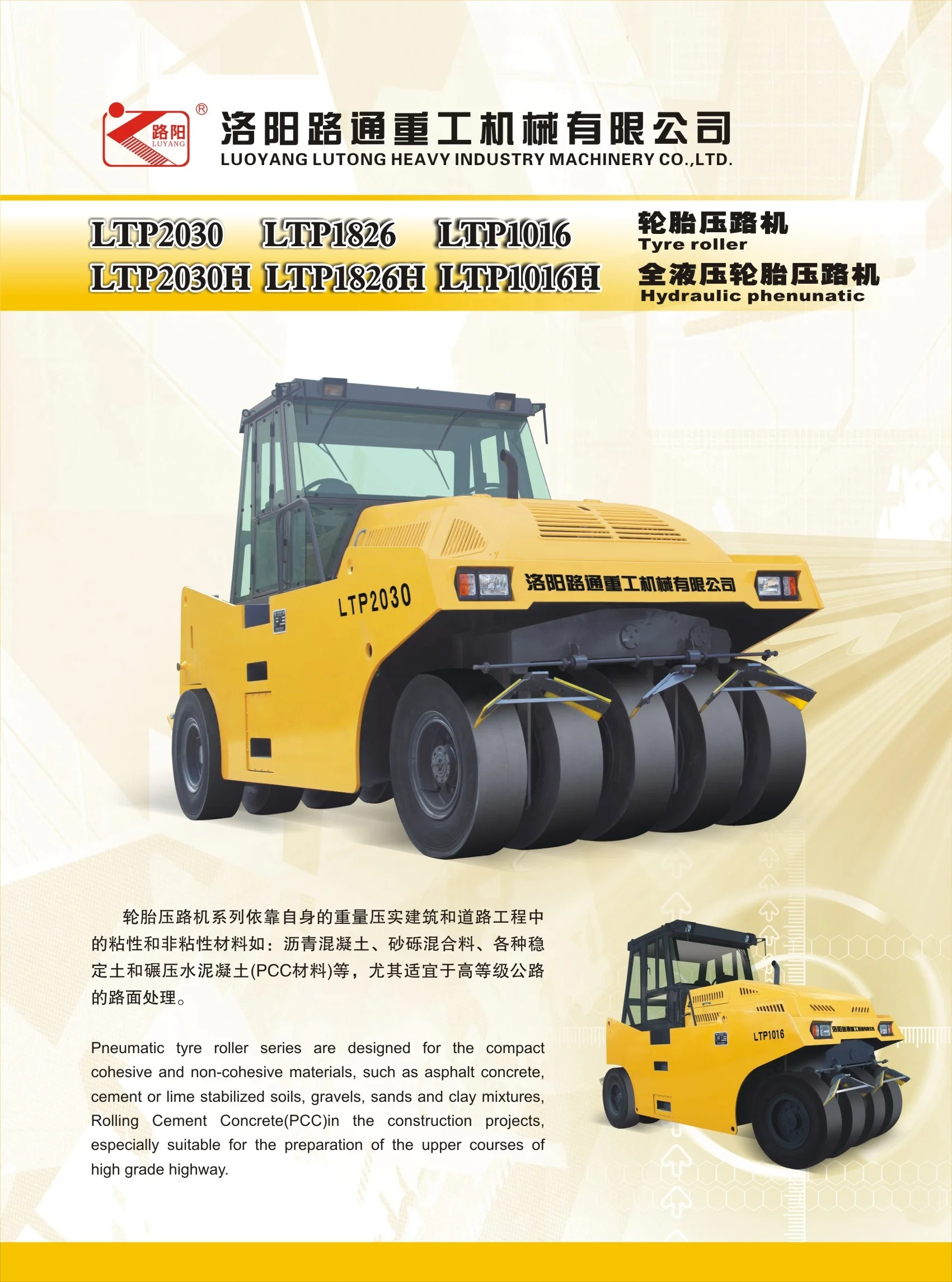

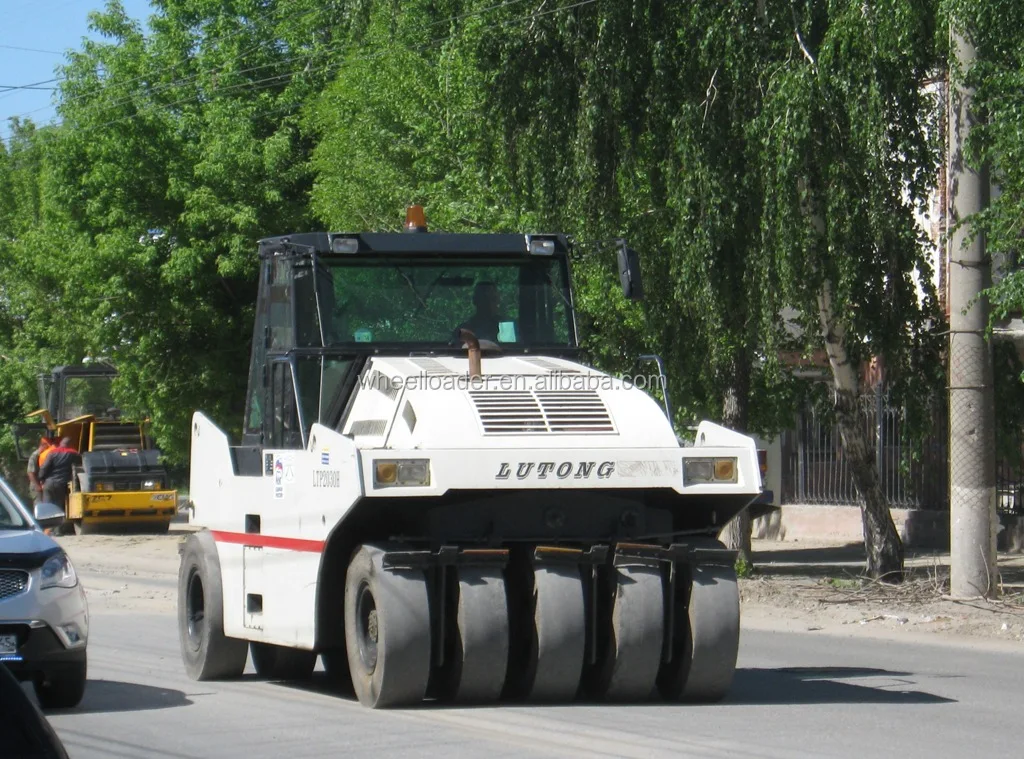

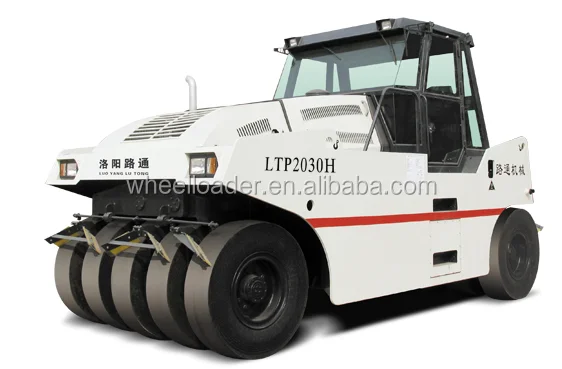

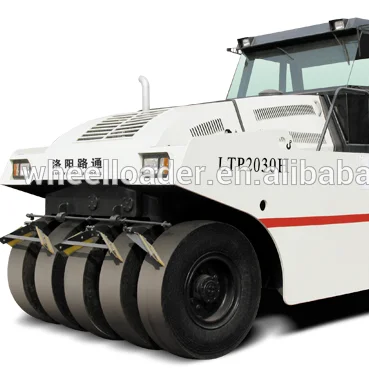

LUTONG LTP2030 pneumatic tire road roller sakai roller
Product Description
Pneumatic tyre roller series are designed for the compact cohesive and non-cohesive materials, such as asphalt concrete, cement or lime stabilized soils, gravels, sands and clay mixtures, Rolling Cement Concrete(PCC)in the construction projects, especially suitable for the preparation of the upper courses of high grade highway.
Main Features
1. Low gravitational center designed for safe and comfortable operation.
2. LTP1826/1826H/2030/2030H adopt CUM MINS 6BTA diesel engine. Powerful strength, which is suitable to all environments.

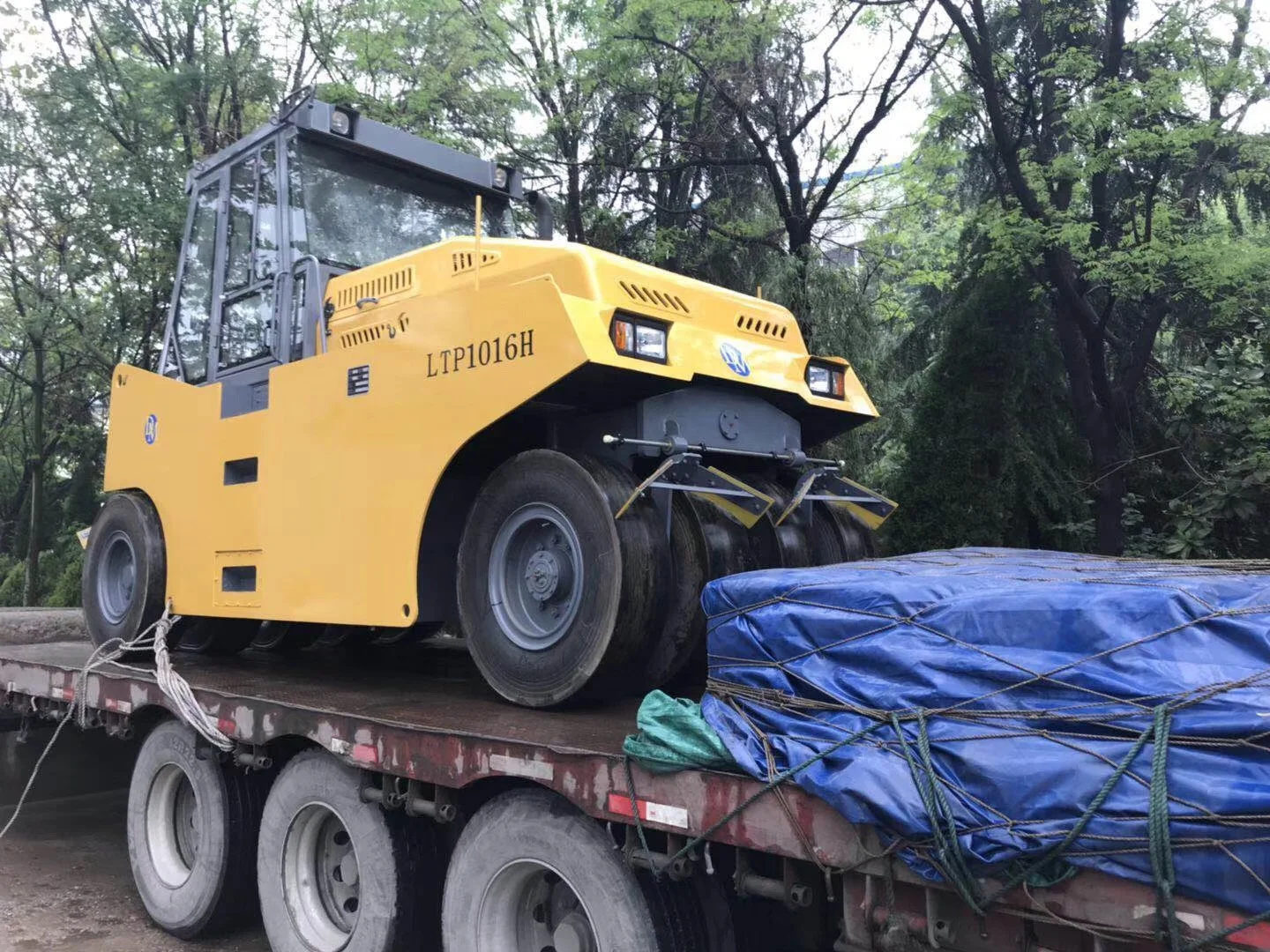

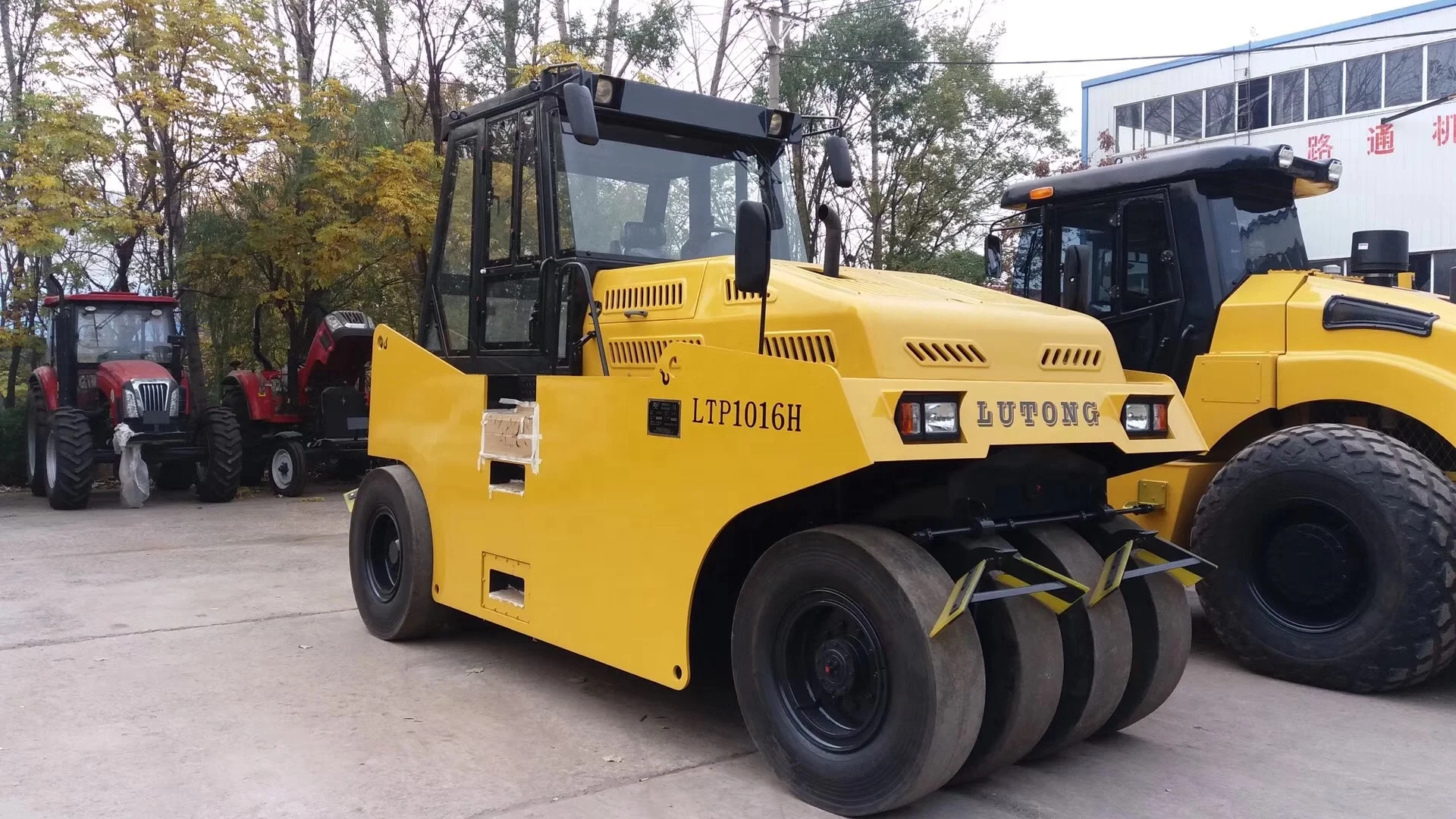

3. LTP1016/1016H adopt CUM MINS 4BT3.9 diesel engine. Powerful strength, which is suitable to all environments.
4. LTP1016/1826/2030, mechanical traveling, three forward speed and two backward speeds changes.
5. LTP1016H/1826H/2030H, hydraulic traveling, CVT, stepless speed changes, easy and reliable to operate.
6. Glass fiber reinforced plastic spraying box and multi-layer water filter ensure the stability of the system.
Parameters
| MODEL | LTP2030 | LTP2030H | |
| Operating mass | |||
| Without ballast | kg | 20000 | 20000 |
| With ballast | kg | 30000 | 30000 |
| Max. travel speed | Km/h | 20.64 | 10 |
| Tyre quantity(front+rear) | pcs | 5+6 | 5+6 |
| Grade ability | % | 30 | 30 |
| Min.turning radium | mm | 8000 | 8000 |
| Compaction width | mm | 2790 | 2790 |
| Wheelbase | mm | 3800 | 3800 |
| Overall length | mm | 4950 | 4950 |
| Overall width | mm | 2750 | 2750 |
| Overall height | mm | 3240 | 3240 |
| Diesel power | KW | 125 | 125 |
| Diesel model | 6BTA5.9 | 6BTA5.9 |
