Product Overview
Description
48V 15A EZGO Club Car Battery Charger
1). For YAMAHA ZEGO Club cart with powerwise D style or Crowfoot connector
2). Compatible with Electric Car, Wheelchair, Sightseeing Car, E-bike, Electric Golf Cart, E-Motocycle, E-Patrol Car, E-forklift, E-boat, E-Cleaner, E-sooter, E-tourist Coach, Robot and more
3). Hot sales 48V 15Amp golflift batteries charger RPC with led display for club car ZEGO skylift

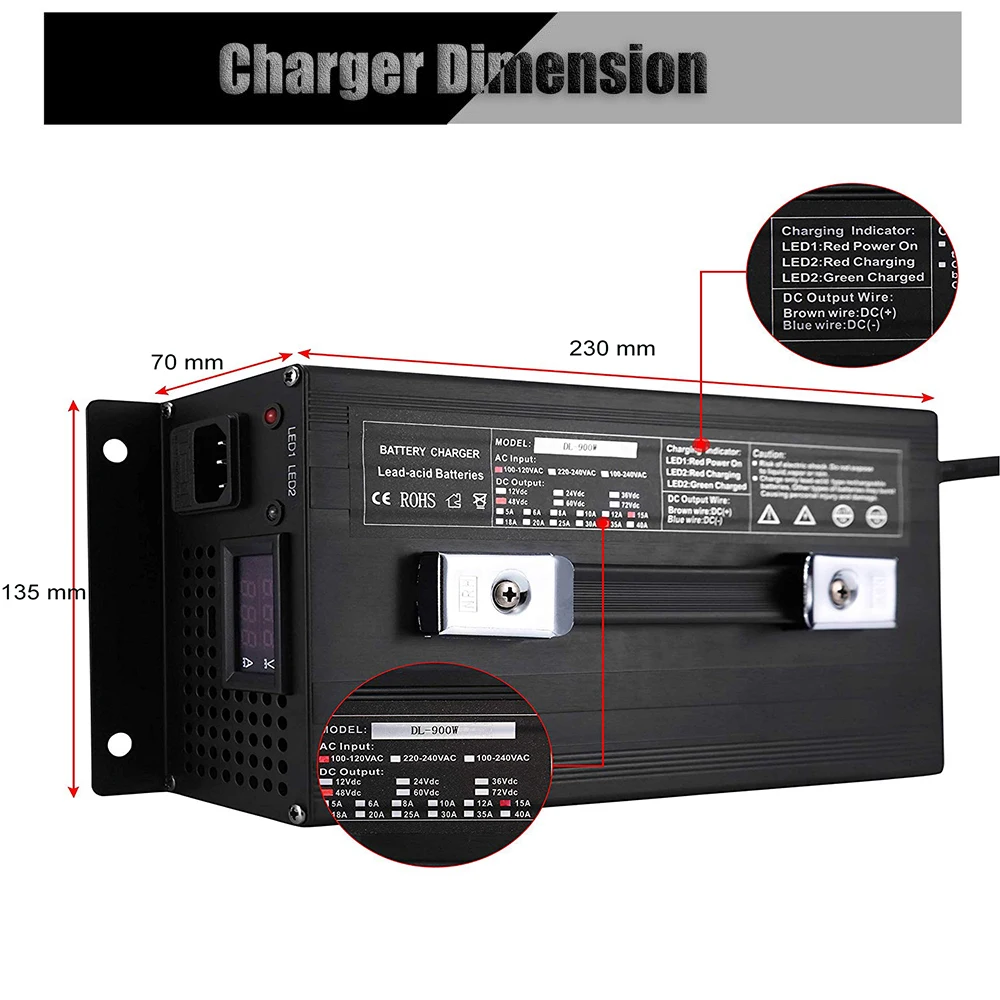

Mechanical Drawing:
Dimension: L230xW135xH70mm
Net weight: 3.5kg
Color: Black,Red

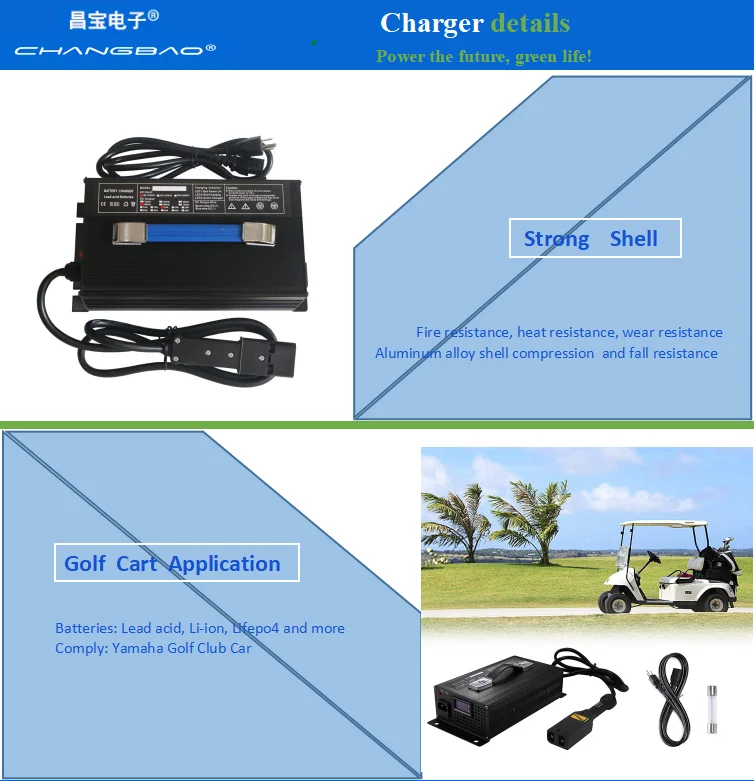

Case material: Aluminium Alloy
Compatible Battery | Lead Acid/LiFePo4/Li-ion/Li-MnO2 | ||
Input | 100 to 240 VAC 50/60Hz | ||
Output | 58.8V 15A | ||
Charge voltage | 58.8V | Float Voltage | 57V |
LiFePo4/3.65V Charge voltage | 58.4V(14S) | ||
Lithium ion/4.2V | 54.6V(13S) | ||
LED Indicator | Solid Red LED = Charging (0-99%) | ||
Dimension(LxWxH) | L230xW135xH70mm | ||
Weight | 3.5Kg | ||

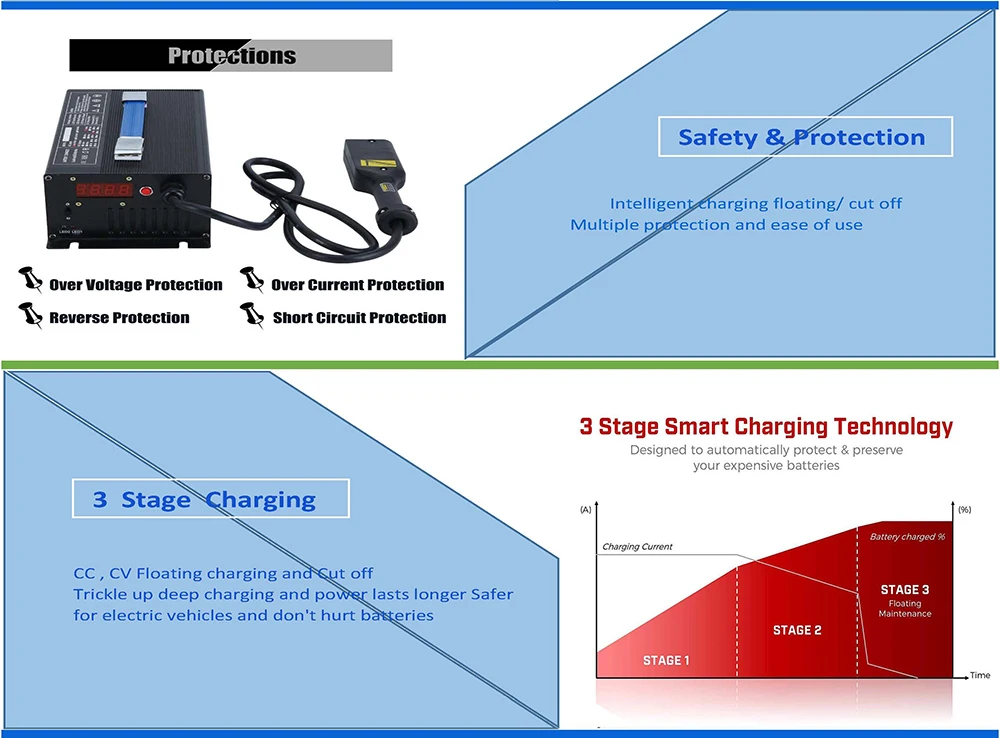

Charging Mode | CC/CV, Float/cut-off | ||
Certification | UL/cUL / ETL / CE / FCC / RoHS, EN61558 / ETL1310 Approval Standard. Recognized or tested by TUV lab, for more information, please contact us. | ||
Charging Time | Cut-off point for Li battery is 8% of CC and it can be set between 3-10%.(charging time:4-5 hours) | ||
Transition for Lead acid charger is 25% of CC.(charging time:6-8 hours) | |||
Protection | Over Current, Over Voltage, Over temperature, Short Circuit, Reverse Polarity, shut off or trickle and anti-reverse charge. | ||
Advantage | 1). Intelligent cooling fun, controlled by temperatureQuasi-resonant pulse width modulation(PWM),full automatic transition of CC,CV and Float/Cut-off, meet the demands for different Curve. | ||
1. Battery Chargers for Electric Bike & Scooter/电动自行车&平衡车充电器 (P4-P6) | |||||||||||
No. | Model | Unit Series | Battery Spec/Charger Current | Weight | Size | ||||||
12V | 24V | 36V | 48V | 60V | 72V | 144V | |||||
3S/4S | 5S/6S/7S/8S | 10S/11S | 12S/13S/14S | 15S/16S/17S | 20S | 40S | (kg) | (mm) | |||
1 | CV-63W | 63W | 4A | 2A | 1.5A | 1A | / | / | / | 0.22 | L102xW50xH30 |
2 | CV-84W | 84W | 5A | 3A | 2A | 1.5A | / | / | / | 0.37 | L132xW56xH32 |
3 | CV-135W | 135W | 7A | 4A | 3A | 2A | / | / | / | 0.45 | L172xW72.8xH35.5 |
4 | CV-180W | 180W | 8A | 5A | 4A | 3A | / | / | / | 0.65 | L197xW88xH44 |
2. Electric Vehicle Battery Chargers/电动车充电器 (P7-P16) | |||||||||||
1 | CV-120 | 120W | 6A | 3A | 2.5A | 2A | 1.5A | 1A | / | 0.8 | L135xW90xH50 |
2 | CV-180 | 180W | 8A | 5A | 4A | 3A | 2A | 2A | / | 0.9 | L155xW90xH50 |
3 | CV-240 | 240W | 10A | 7A | 5A | 4A | 3A | 3A | / | 1 | L170xW90xH50 |
4 | CV-360 | 360W | 20A | 12A | 8A | 6A | 5A | 4A | 2A | 1.2 | L180xW90xH63 |
5 | CV-600 | 600W | 25A | 18A | 12A | 10A | 8A | 6A | 3A | 2.5 | L210xW120xH70 |
6 | CV-900 | 900W | 40A | 25A | 18A | 15A | 12A | 10A | 5A | 3.5 | L230xW135xH70 |
7 | CV-1200 | 1200W | 50A | 35A | 20A | 18A | 15A | 12A | 6A | 4.5 | L260xW175xH90 |
8 | CV-1500 | 1500W | 80A | 45A | 30A | 25A | 20A | 15A | 8A | 5.5 | L300xW175xH90 |
9 | CV-2000 | 2000W | 100A | 60A | 40A | 30A | 25A | 20A | 10A | 6.5 | L330xW175xH115 |
10 | CV-4000 | 4000W | / | 100A | 80A | 60A | 50A | 40A | 20A | 10 | L380xW250xH150 |
3. Lithium-ion Battery Packs Chargers/锂电池充电器 (P17) | |||||||||||
No. | Model | Unit Series | Charger Spec | Weight | Size(mm) | ||||||
4.2V | 8.4V | 12.6V | 16.8V | 21V | 25.2V | 50.4V | (kg) | ||||
1 | CV-15W | 18W | 1-2.5A | 1-2A | 1A | 1A | 0.5A | 0.5A | / | 0.13 | L71xW42xH26 |
2 | CV-42W | 42W | 3-4A | 3-4A | 2-3A | 2A | 1-2A | 1-1.5A | / | 0.18 | L89xW46xH36 |
3 | CV-63W | 63W | 5A | 5A | 4A | 3A | 2-3A | 2A | 1A | 0.22 | L102xW50xH30 |
4 | CV-84W | 84W | / | 6A | 5-6A | 4-5A | 4A | 3A | 1.5A | 0.37 | L132xW56xH32 |
5 | CV-135W | 135W | / | 7A | 7A | 6A | 5A | 4A | 2A | 0.45 | L172xW72.8xH35.5 |
6 | CV-180W | 180W | / | 8A | 8A | 7-8A | 6-7A | 6-7A | 3A | 0.65 | L197xW88xH44 |
FAQ
1. The LED turns off while charging.
-This charger has a build-in thermal protection function. Battery charging is shut off when the temperature of charger increases beyond set limit, and LED turns off (no color). Once the charger temperature drops to acceptable limit, the charging process is resumed and the LED turns on (Green/Red color).
2. LED color changes to Yellow
-This indicates that battery is not being charged correctly. Remove the battery pack from Charger and re-insert into charger. If this occurs repeatedly, either battery is dead or charger is not working.
3. Battery is inserted in the charger, but the LED does not change to RED.
-This indicates that battery is not being charged correctly. Remove the battery from charger and re-insert into charger. If this occurs repeatedly, either battery is dead or charger is not working.
4. LED changes to Green, but the capacity is too low.
-This indicates that battery is not being charged correctly. Remove the battery from charger, clean the contacts with a soft clean cloth, re-insert into charger. If this occurs repeatedly, either battery is dead or charger is not working.
-This charger has a build-in thermal protection function. Battery charging is shut off when the temperature of charger increases beyond set limit, and LED turns off (no color). Once the charger temperature drops to acceptable limit, the charging process is resumed and the LED turns on (Green/Red color).
2. LED color changes to Yellow
-This indicates that battery is not being charged correctly. Remove the battery pack from Charger and re-insert into charger. If this occurs repeatedly, either battery is dead or charger is not working.
3. Battery is inserted in the charger, but the LED does not change to RED.
-This indicates that battery is not being charged correctly. Remove the battery from charger and re-insert into charger. If this occurs repeatedly, either battery is dead or charger is not working.
4. LED changes to Green, but the capacity is too low.
-This indicates that battery is not being charged correctly. Remove the battery from charger, clean the contacts with a soft clean cloth, re-insert into charger. If this occurs repeatedly, either battery is dead or charger is not working.
