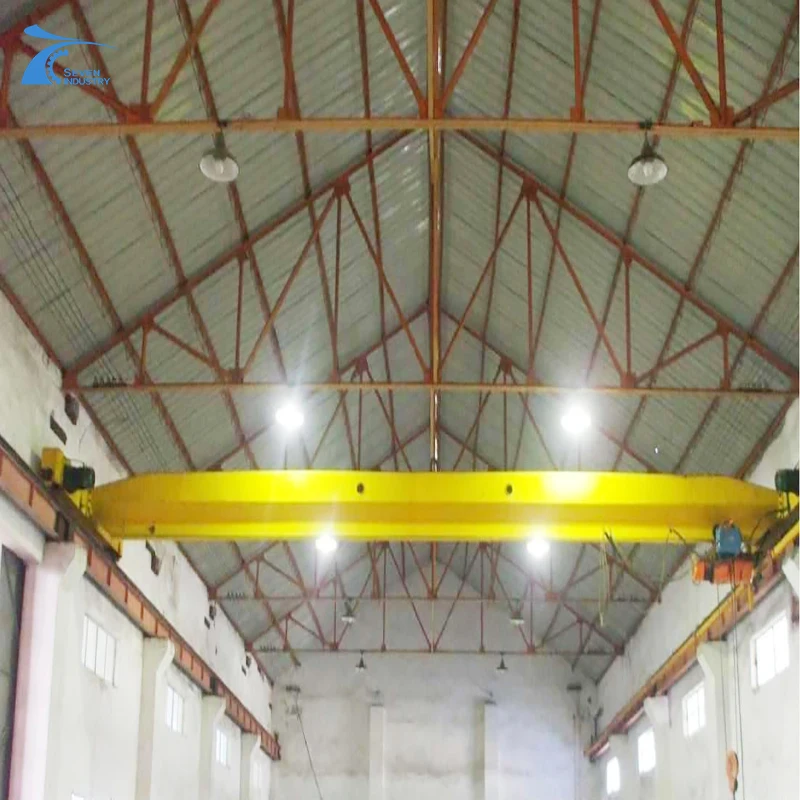

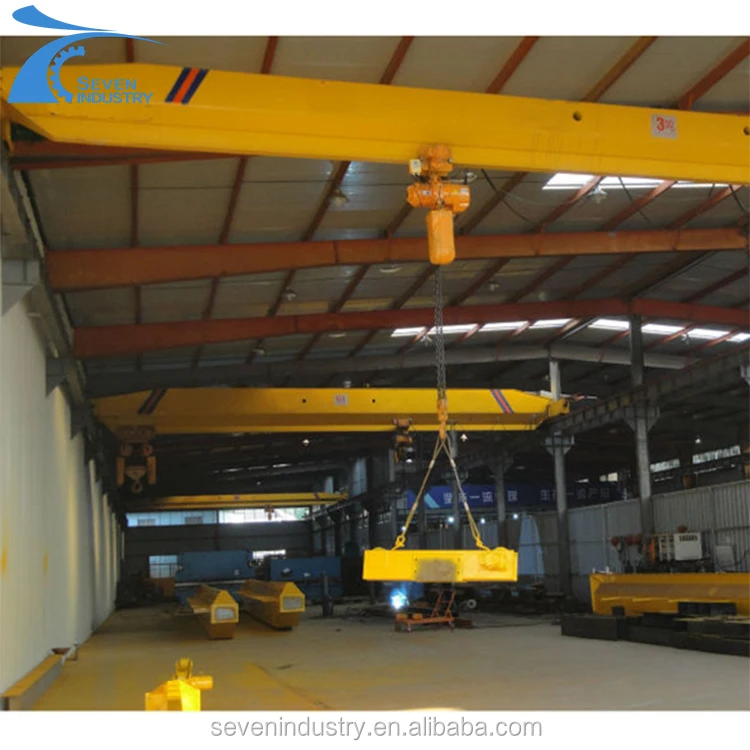

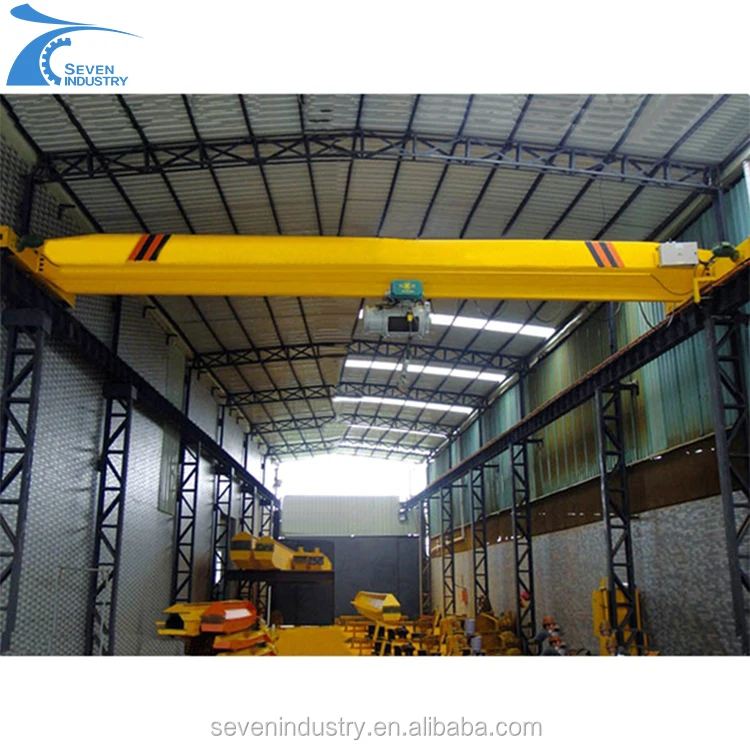

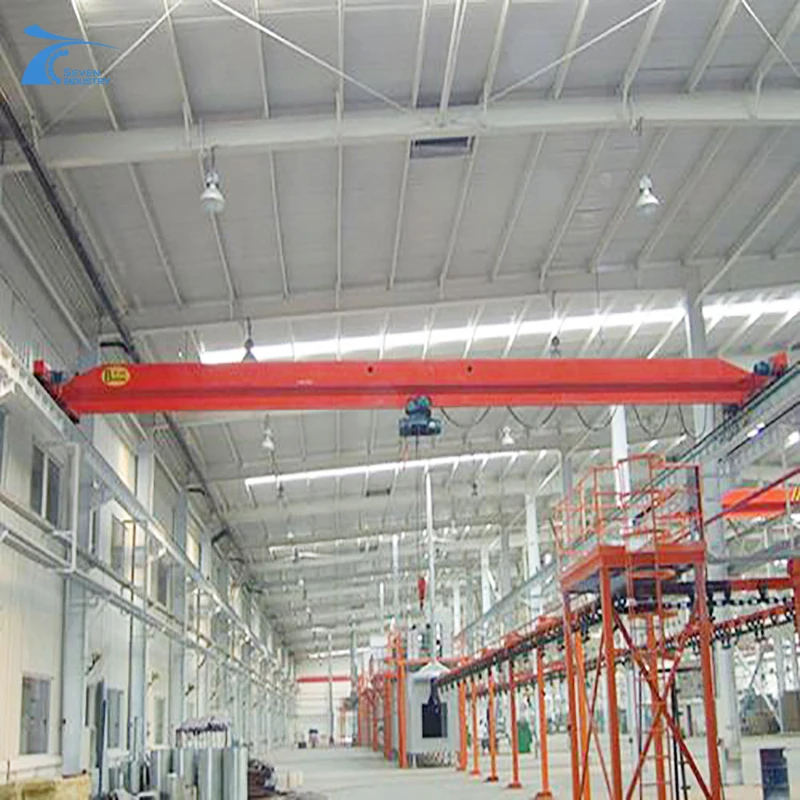

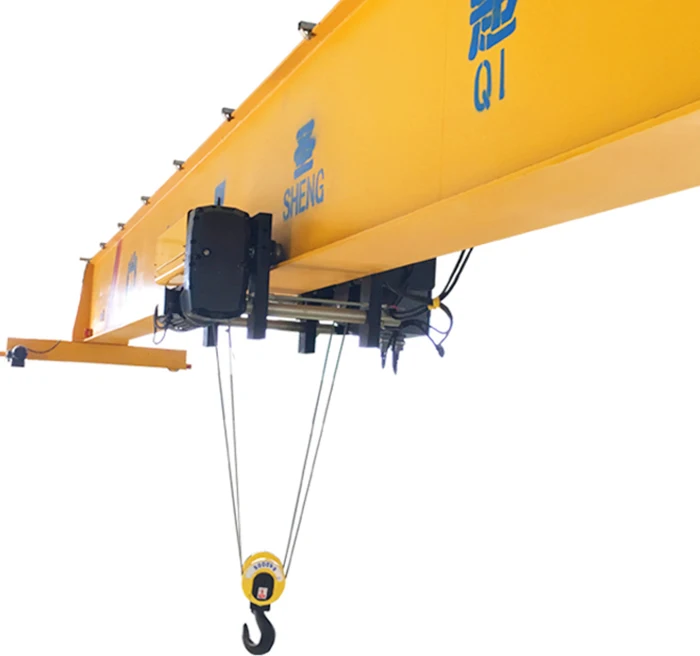

Single girder overhead crane is the most effective hoisting equipment used in plant or workshop. Overhead crane can travel on top of runway, so it’s also called bridge crane. There is also another type of overhead crane called single girder underhung/suspension crane. It travels under the runway which is fixed on roof of plant. With single girder overhead crane, you can achieve six motions: up, down, left, right, forward,back.
1
Item
Single girder overhead crane
2
Lifting Capacity
0.5-20t
3
Span
7.5-31m
4
Lifting Height(Under Hook)
6-30m
5
working duty
A3-A5
6
Cross Traveling Speed
20m/min
7
Longitudinal Traveling Speed
20m/min(ground control)
30m/min(cabin control)
8
Rail and length
On your needs
9
Outdoor Or Indoor
Indoor
10
Control Model
Optional

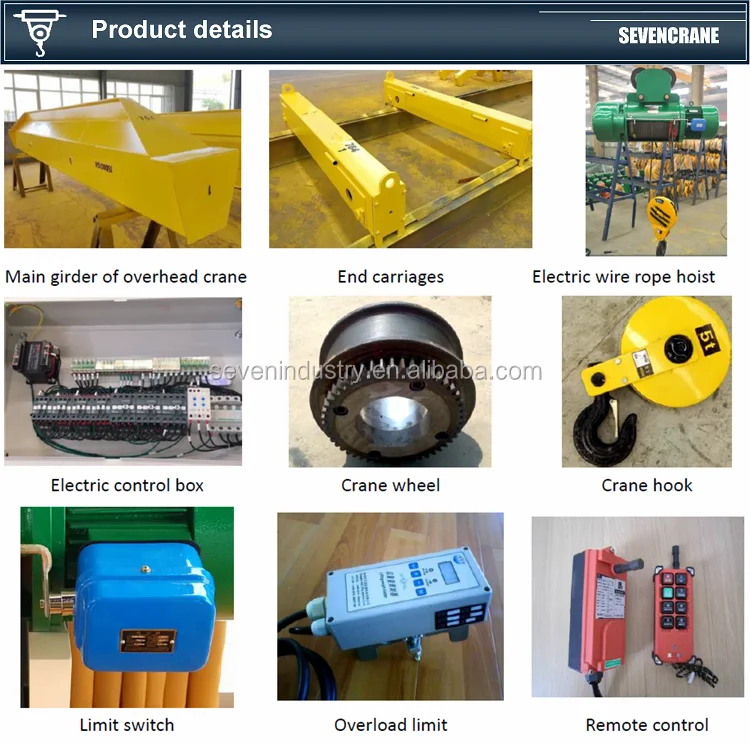

Detail products
APPLICATION
building materials, logistics, warehousing, engineering, metallurgy, power industry, chemical industry, steel storage, open storage areas, cargo yard ect.
FEATURE & ADVANTAGE
compact design, samll deadweight, large capacity, easy operation, non-stop run, design lifespan 20 years.
Based on different requirements of site, we can offer suitable solution and proposal.

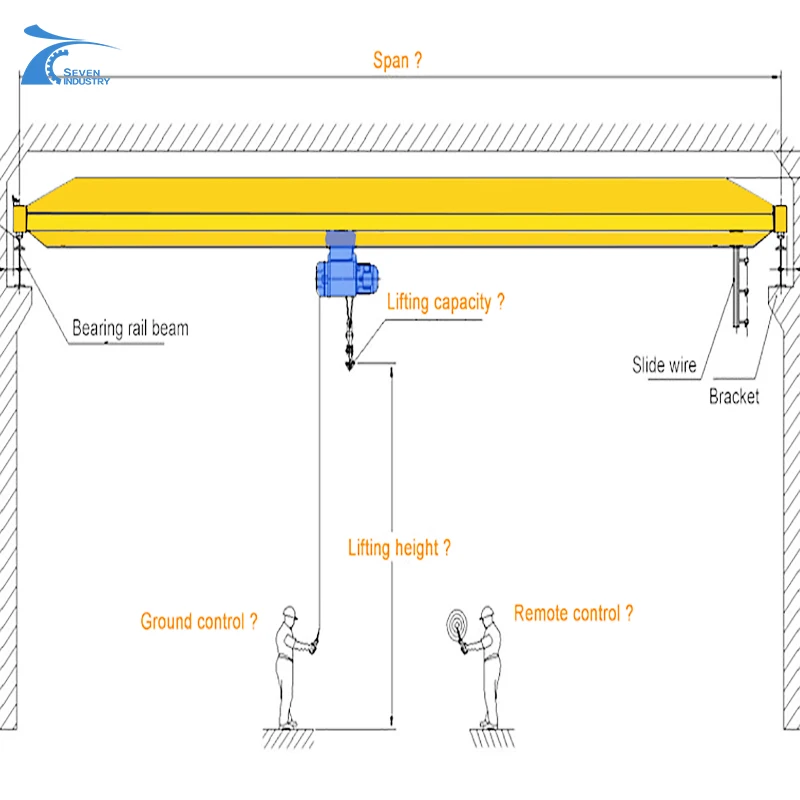

Technical design base:
Capacity: According to weight of lifting load, working environment, plant structure load capacity, crane wheel pressure and so on. Our single girder overhead crane can be designed up to 20t capacity. Single girder underhung/suspension crane can be designed up to 10t capacity.
Span: According to distance between runways or columns in workshop, our engneers can derive specific technical scheme. Further more, if customer can provide layout of the plant, our engineer will offer precise and economic solution. Generally, span of crane can be up to 31.5m and available for customized span.
Lifting height: According to distance from roof top to ground in workshop, our engneers can confirm lifting height needed. Also, height from roof top to runway will be very important for installation. If customer can provide drawing of the plant section, we can find better choice for you.
Power supply: Power grid is very different from country to country. To insure our equipments have stable and
reliable performance, please inform us local power supply conditions. For example: Voltage 220v,380V, 400v, 415v or 440v. Frequency 50Hz/60Hz. 3 phase.
Control method: Pendant control, remote control(wireless radio control), cabin control.
FOR CRANE SAFETY, WHAT WE DO?
Our single girder overhead crane apply measures as below to insure crane safety during operation:
Overload limiter, for liftingsafety
Electromagnetic brake, quick response, up to 1000000 times braking lifespan.
Limit switch for long traveling
Welding quality inspection, guarantee load capacity of main girder and end beam/carriage.
Thermalelectromechanical protector
Electrical protection system

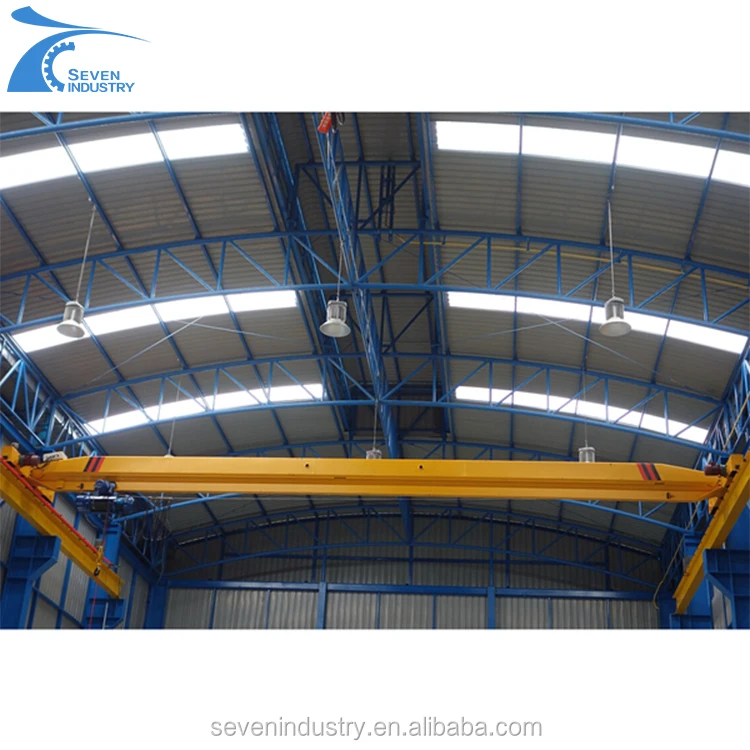

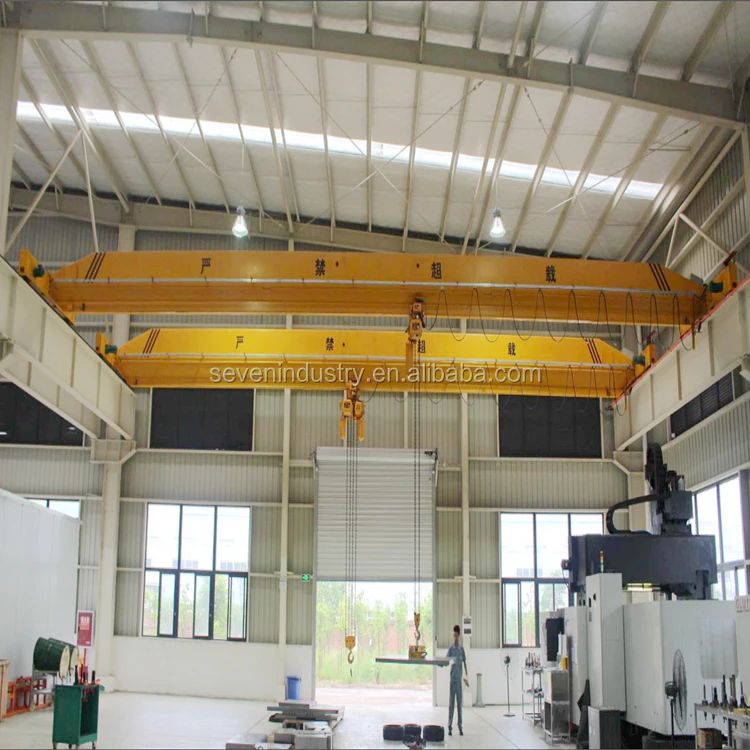

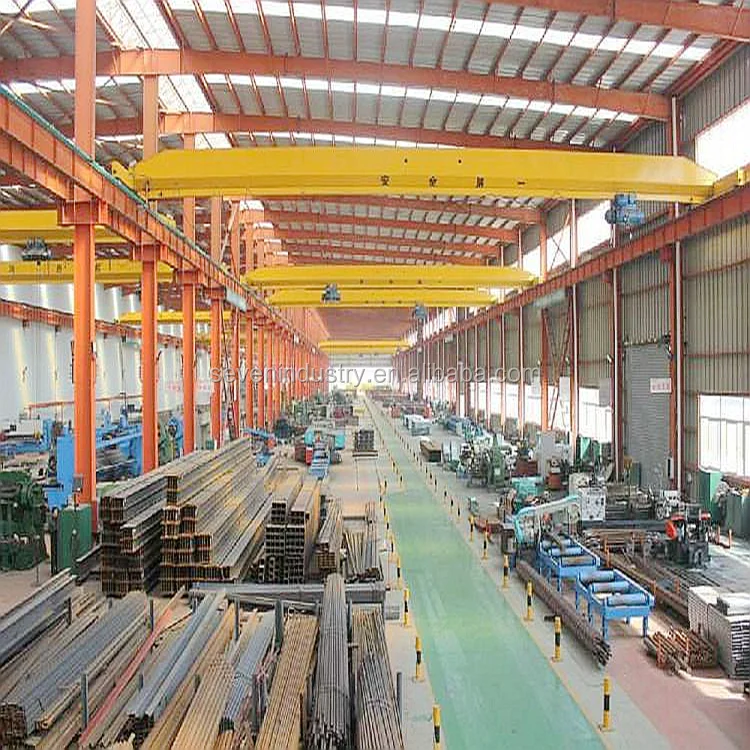

Detailed Images
Related Products
Packing&Shipping
1.Componentsare packed in high-qualityFumigation free wooden boxto reduce transportation deformation. 2.Steel structureare warpped inPlastic sheeting.Reduce wear and tear during transportation. Delivery:
1. If size avalibale container ship, usually container. 2. small size, usually truncated by bulk carrier or container. 3. The mode of transportation is based on economical and safety.
After Sales Service

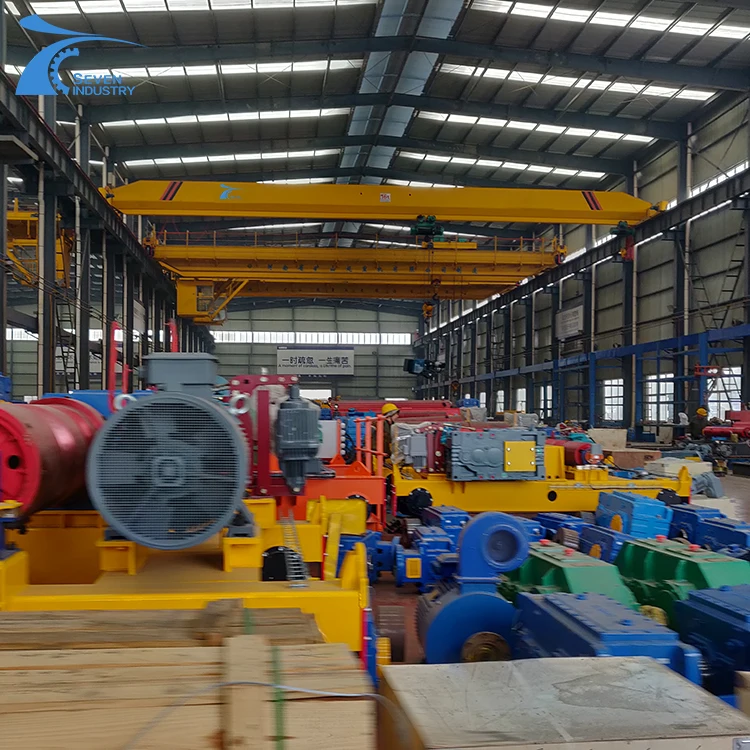

Company Introduction
