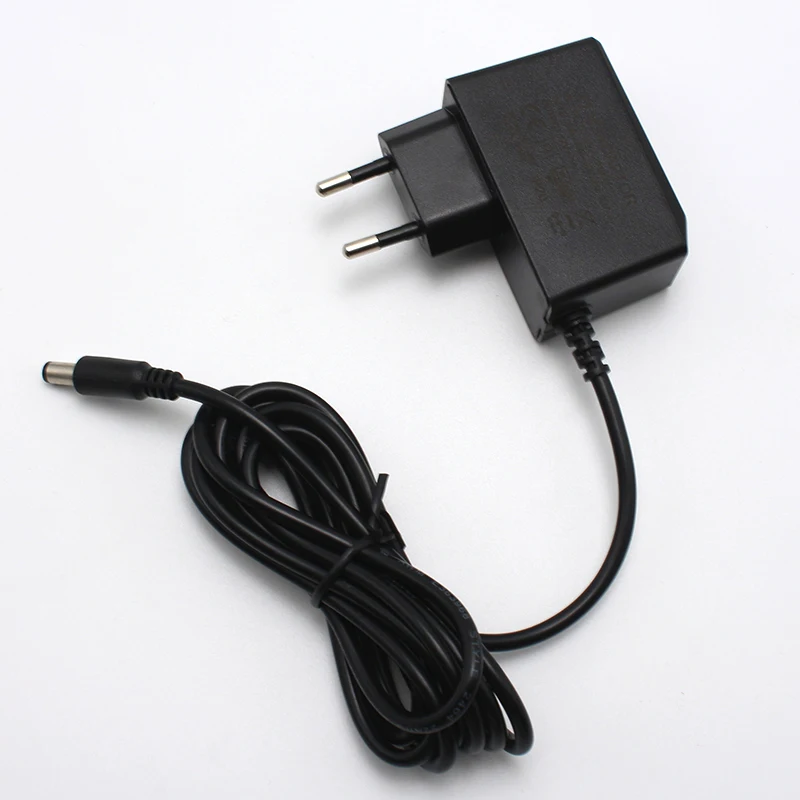

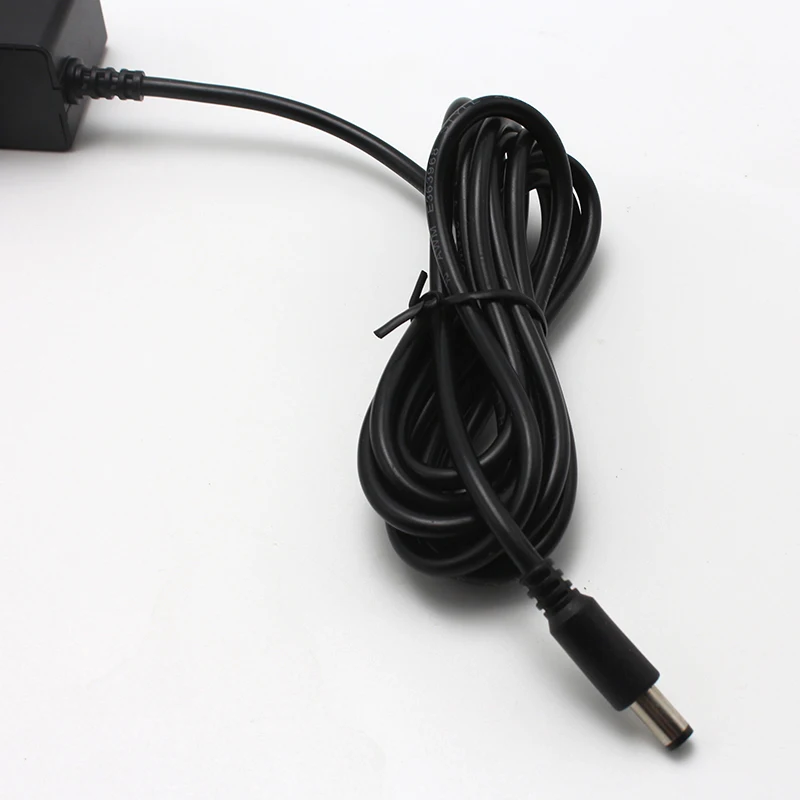

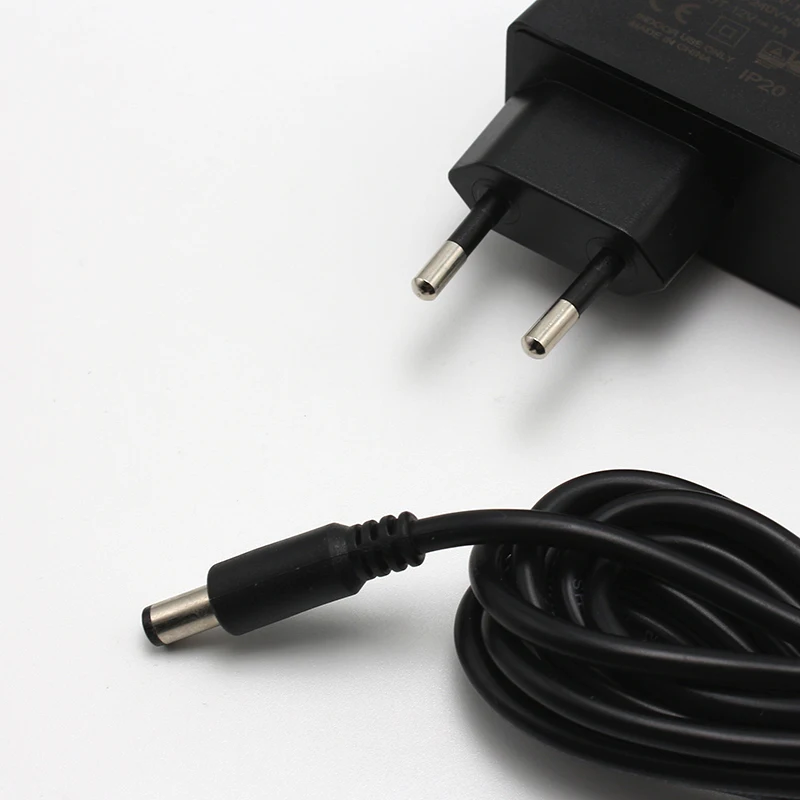

Universal Wall Power Adapters 5V 2A 12V 1A 24V 0.5A AC DC Switching 12 Volt LED Power Supply For CCTV Alarm Router
- Category: >>>
- Supplier: Ninghai Yingjiao Electrical Co. Ltd.
Share on (62337871596):
Product Overview
Description
Universal Wall Power Adapters 5V 2A 12V 1A 24V 0.5A AC DC Switching 12 Volt LED Power Supply For CCTV Alarm Router
Product Description
Input:100-240VAC 50/60Hz
Output Voltage: 5V-36V DC
Rated Power: 12W max
Approvals: GS/CE/CB/RoHS
Features :
1. Univeral AC input/ Full range
2. Energy efficiency level VI
3. Leakage Current: <0.25mA
4. Extremely low leakage current
5. Protection:Over load/Over voltage/Short circuit
6. Withstand voltage : 3KV
7. Life Warranty: 3 years
Applications:
-Blood glucose meter
-Robot sweeper
| Model: | YS12-0501200 | YS12-0602000 | YS12-0751500 | YS12-0901300 | YS12-1201000 | YS12-1500800 | YS12-2400500 | ||||
| Power: | 12W Max | ||||||||||
| Input: | AC100-240V | ||||||||||
| Output Voltage: | 5V DC | 6V DC | 7.5V DC | 9V DC | 12V DC | 15V DC | 24V DC | ||||
| Output Current: | 2A | 2A | 1.5A | 1.3A | 1A | 0.8A | 0.5A | ||||
| Inrush Current: | 15A/115VAC 30A/230VAC | ||||||||||
| Leakage Current: | <0.25mA/240VAC | ||||||||||
| Protections: | Short Circuit /Over Current /Over Voltage/Over temperature protection | ||||||||||
| Withstand voltage: | I/P-O/P 3kVAC | ||||||||||
| Working TEMP.: | -20°C-50°C | ||||||||||
| EMC standards: | EN55011, EN55014, EN55022, ECC PART15, EN6100-3-2 EN6100-4-5, EN55015 | ||||||||||
| Safety standards: | IEC/EN62368, IEC/EN61558, IEC/EN60335, IEC/EN60601, IEC/EN61347 | ||||||||||
| Dimension: | 64*28*78mm | ||||||||||
| Packing: | 1PC/PE BAG+INNER BOX, 50PCS/CTN, CAN BE CUSTOM | ||||||||||
