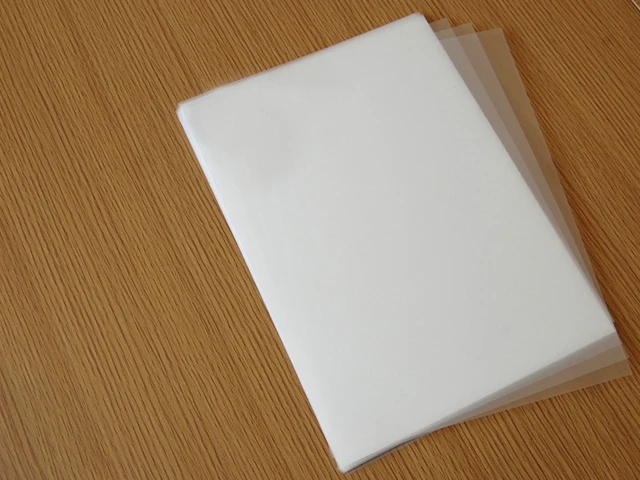

laminated A4 opaque overlay laser polycarbonate film

Share on (62338039403):


Price:$4.50 - $7.00

Quantity:


Product Overview

Description



Product Description

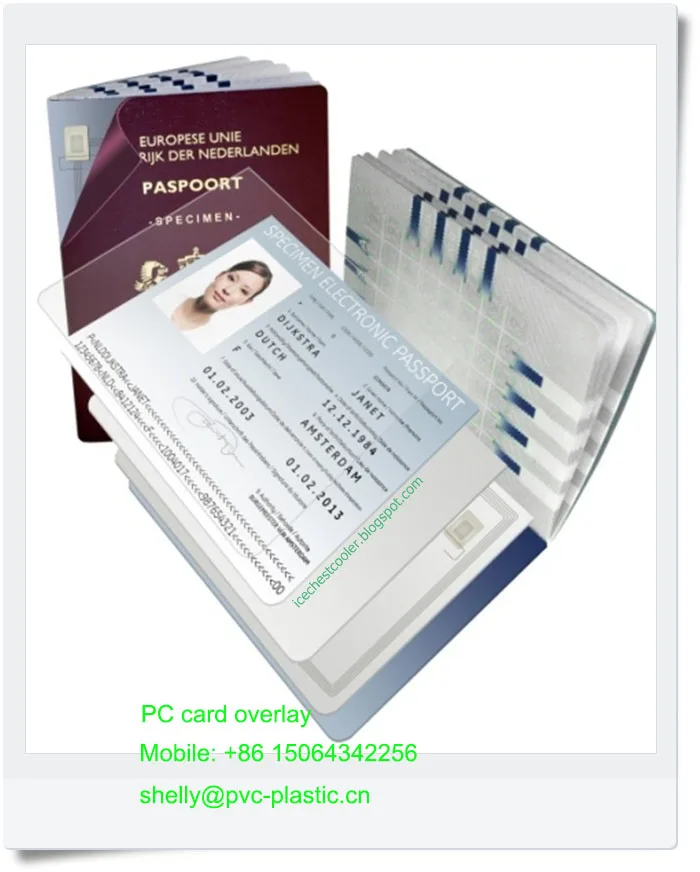

 Product Introduction of  polycarbonate film for laser passport data page:





















































Product



Polycarbonate film for Laser Passport Data Page



Model Number



TH832



Thickness



0.05/0.075/0.125/0.175/0.25/0.375/0.50mm



Width



max 1200mm



Packing



PE film+kraft paper+pallet



Advantage



Excellent strength and abrasion resistance, high and low temperature resistance, perfect image laser etching;


suitable for card body performance and anti-counterfeiting technology requirements, such as id card, driving license, e-passport, etc



Color



semi-transparent and high haze



Delivery time



Within 15 days after deposit



MOQ



 3tons



Payment term



30% deposit,balance within 7 days after BL copy;


100% L/C at sight



Certificate



ISO 9001  ;SGS;TUV






 A laserable polycarbonate film is necessary to be as overlay or middle layer,it can be dark laser engraved for personaized signature or profile in a second and permanent be protected inside.

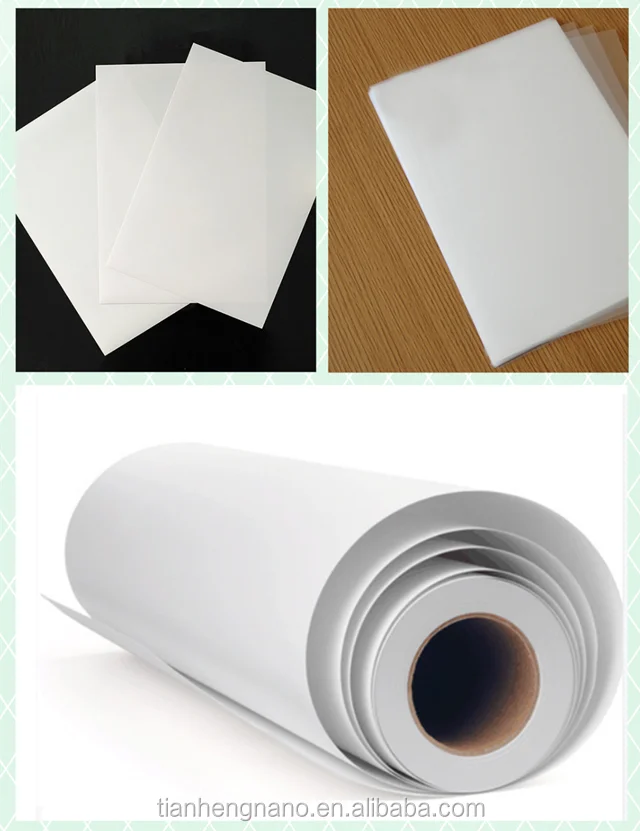

 PC CARD SHEET(2)_.png





Physical Parameters












































































































Item



Property



Value



Unit



Test Method



Physical



Density



1.2



g/cm3



ISO 1183



Haze



>75



%



ASTM D1003



Light Transmission



>85



%



ASTM D1003



Mechanical






Tensile Strength



58



Mpa



ISO 527



Elongation



>100



%



ISO 527



Tensile Modulus



2250



MPa



ISO 527



Electrical






Dielectric Constant



3



-



IEC60250



Resistant Puncture Voltage



30



KV/mm



IEC 60243



Surface Resistivity



1.00E+15



Ω/square



IEC 60093



Volume Resistivity



1.00E+16



Ω-cm



IEC 60093



Thermal



Coefficient of Thermal Expansion



5.8



×10-5/



ISO 11359



Thermal Shrinkage(at 150,30min)



0.5~0.7



%



ASTM D1204



Glass Transition Temperature



152





ISO 11357



Vicat Softening Temperature



156





ISO 306



Flammability



UL94



V-2/VTM-2



         E249605




Tip: This test data is for reference only, not as an absolute application index












Packaging & Shipping


Polycarbonate film for Laser Passport Data Page package:





PE FILM INSIDE + KRAFT OUTSIDE+PALLET


Our company adopts the protection angle of the paper shell imported from Taiwan, which can ensure the integrity of the goods to the maximum extent in the transportation process.

Paper tube Core:76MM
Paper tube thickness: 10mm
Paper tube port: No burrs and shredded paper are allowed. It is not allowed to stick with tape. Both ends of the paper tube are flush with the product.
Weight: 1kg


PC film package(1).jpg

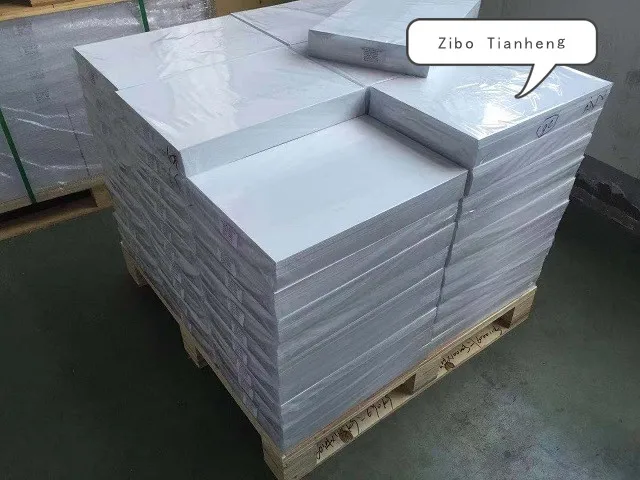

 PC film package(2).jpg











Our Services

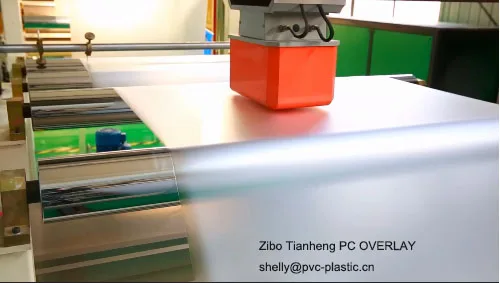

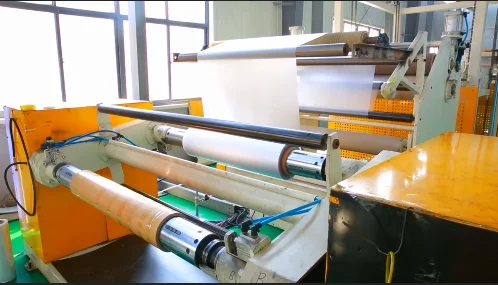

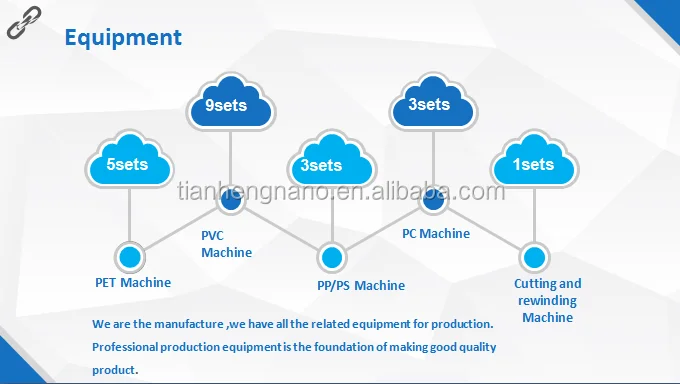

We have focusing on produce and export  Polycarbonate film for Laser Passport Data Page  for 5 years with 5 technicians who have 10-15years experience,  and we also specialized in  PP/PS/PET/PVC plactic films from 1995.  And we now have total 17 sets machines for plastic films, include 3 sets machines for polycarbonate film for id card .








TIM20181129133519







Company Information





1)      Our company established since 1995, we know much for the Plastic Films and markets


2)      Current our factory total have 17 production lines ,include 7 PVC rigid film production lines ,5 A-PET film production lines ,3 HIPS film and PP film production lines ,2 polycarbonate PC film production lines.Our production capacity has exceeded 50,000 tons,company with  technology research and development centers ,QC quality control centers ,after-sales service centers ,more than 300 employee ,including advanced technology R&D more than 20 person ,and employed the technology engineer from Taiwan.


3)      Good quality+factory price+ good service+fast delivery date, choose us, you have good sight!


company history.png

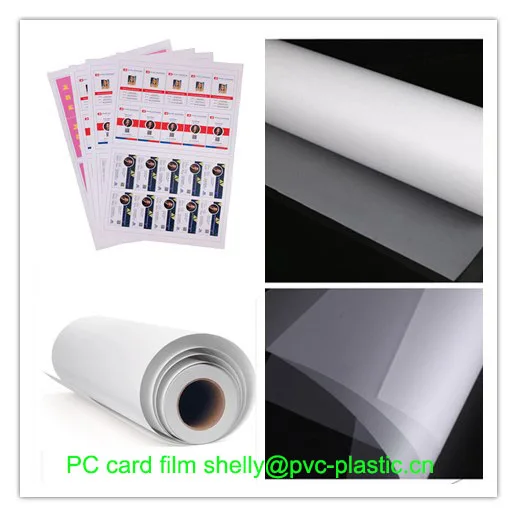

PC card film.jpg


























FAQ


1)  Q: Is your company a factory or trading company?
A: Our company is a professional manufacturer.


2)  Q: Where is your factory located? How can I visit there?
A: Our factory is located in Zibo City, Shandong Province, China, about 40minutes by train from
Jinan. All our clients, from home or abroad, are warmly welcome to visit our company!


3) Q: What’s your delivery time?


A:About 15-25working days .


4)Q: What’s your payment term?


A: We accept T/T, L/C, Western Union, Cash.


5)Q:What certification do you have for your products?


A:We can provide the certification such as SGS, ROHS or your country requires.


6)Q:Can you customize the product as requirements?


 A:Yes ,we can customize the size,color,etc.


7)Q:Quotation requirements?


A:To get an accurate quotation, pls provide the following details:


Size(width ,thickness)/quantity/application/packaging way


8) Q: How can I order samples?
A: We can provide regular FREE samples if you can take care of the expressing freight. You can provide your own expressing account (such as DHL, TNT, UPS etc.) for sample expressing freight collected. Or, we’ll consulted the freight cost, then tell you, you please pay us, then the express staff can be asked to pick up the samples.

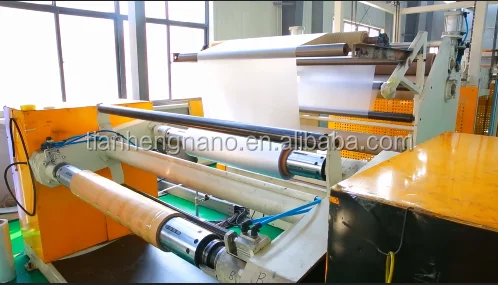

PC PETG PRODUCTION.png











If you are looking for  the factory price  Polycarbonate film for Laser Passport Data Page , you've come to the right site. We are hornor to help you to grow your PC passport and card business.
