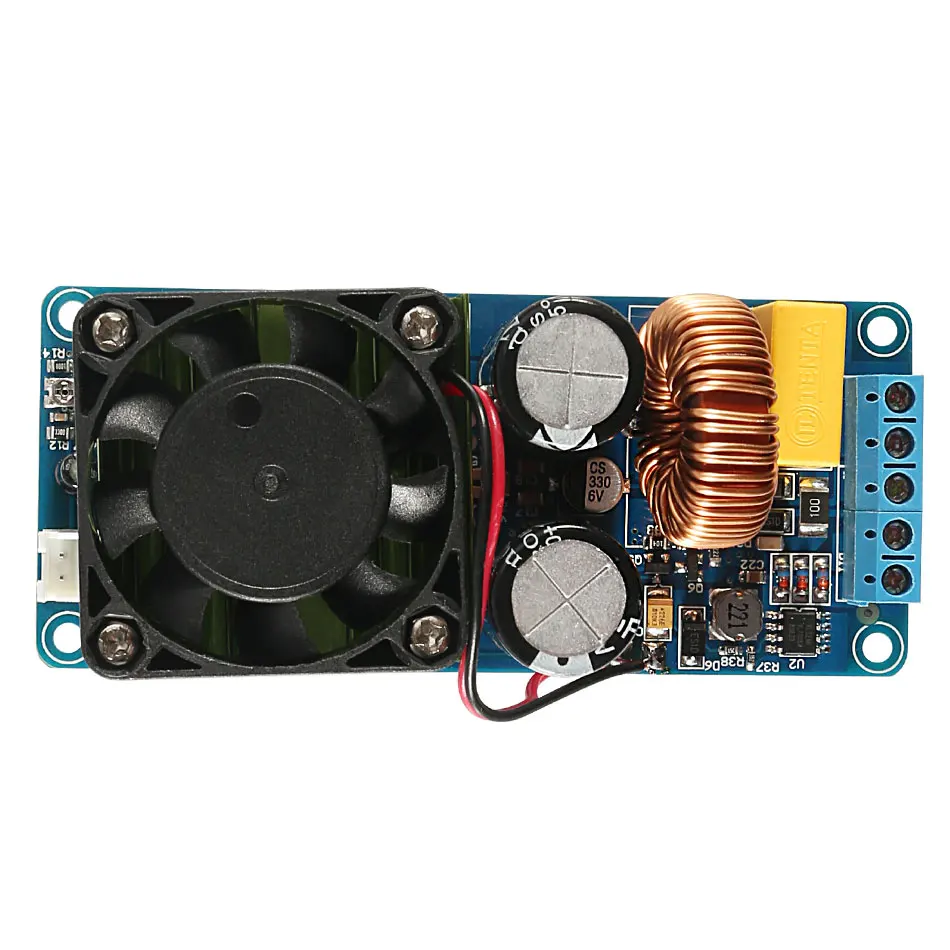

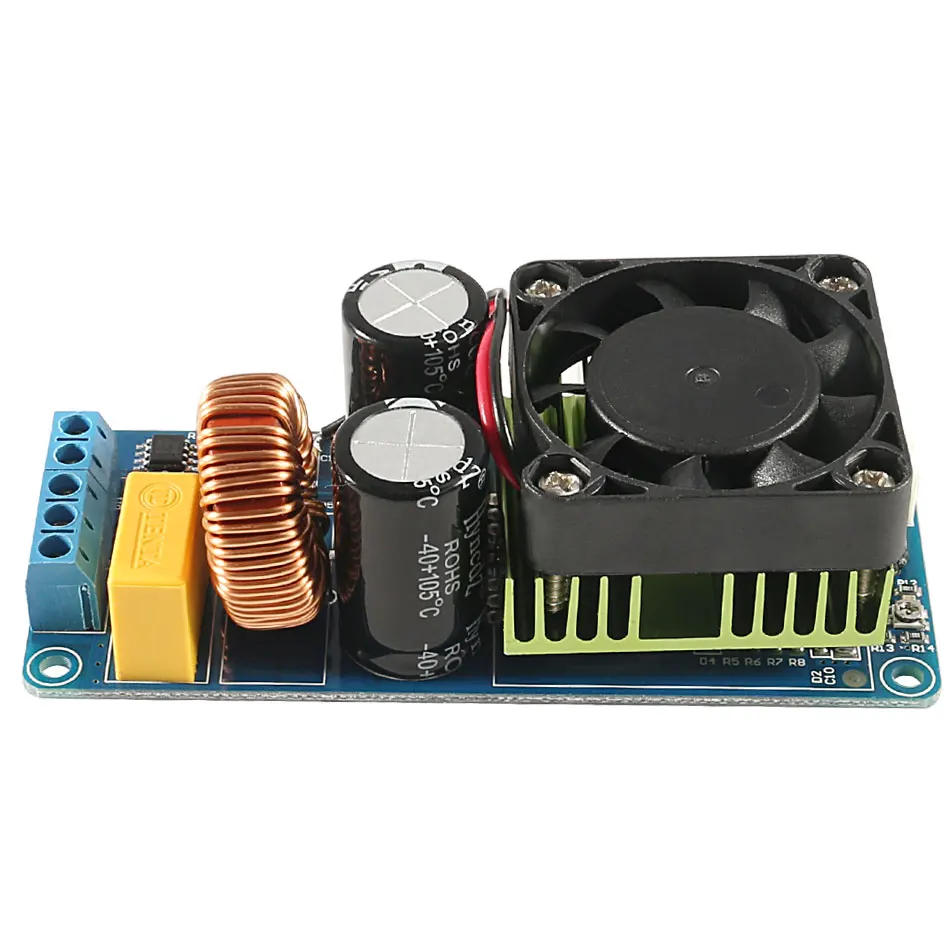

IRS2092S 500W Mono Channel Digital Amplifiers Board Classed D HIFI Power Amp Module with Cooling Fan DIY Kits for Arduino
- Category: >>>
- Supplier: Shenzhen Nonstop Technology Co. Ltd.
Share on (62338042277):
Product Overview
Description
IRS2092S 500W Mono Channel Digital Amplifiers Board Classed D HIFI Power Amp Module with Cooling Fan DIY Kits for Arduino
Product Description
This is pure power amplifier board, the sensitivity of the input signal of 1.5V rms, if your input signal voltage can't reach this value,recommend add preamp.
Mono channel,for 2.0 channel need bid two.
Specifications:

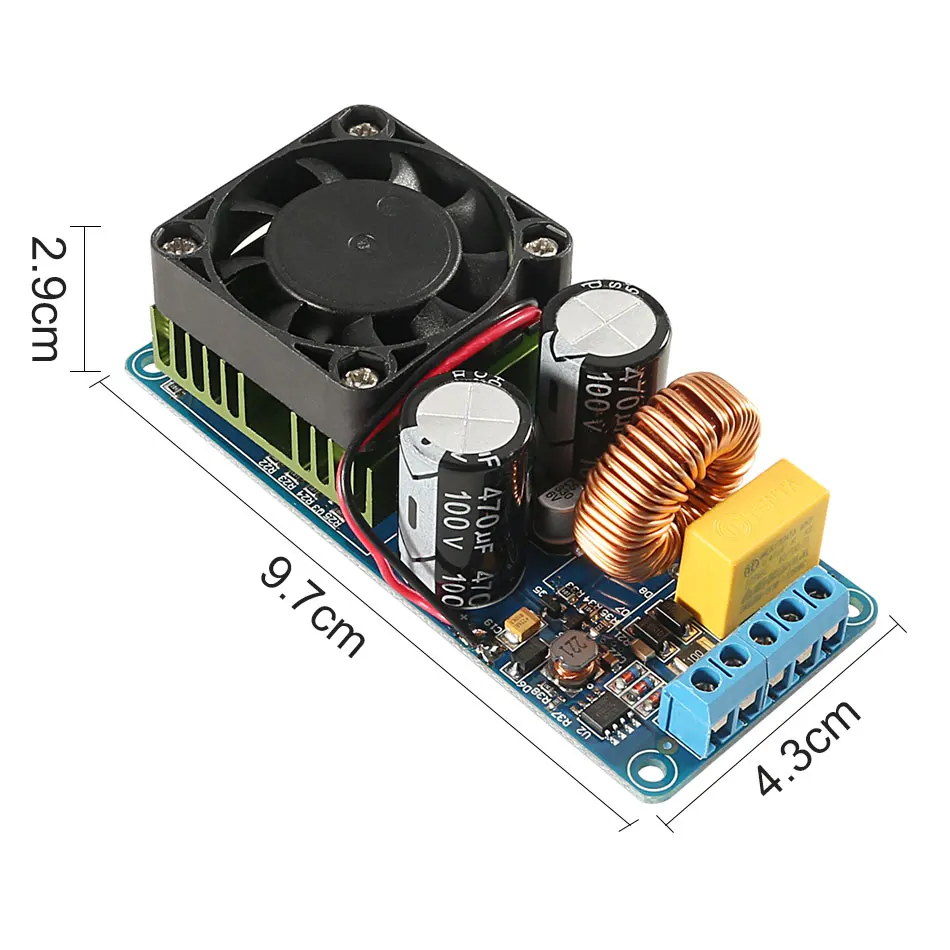

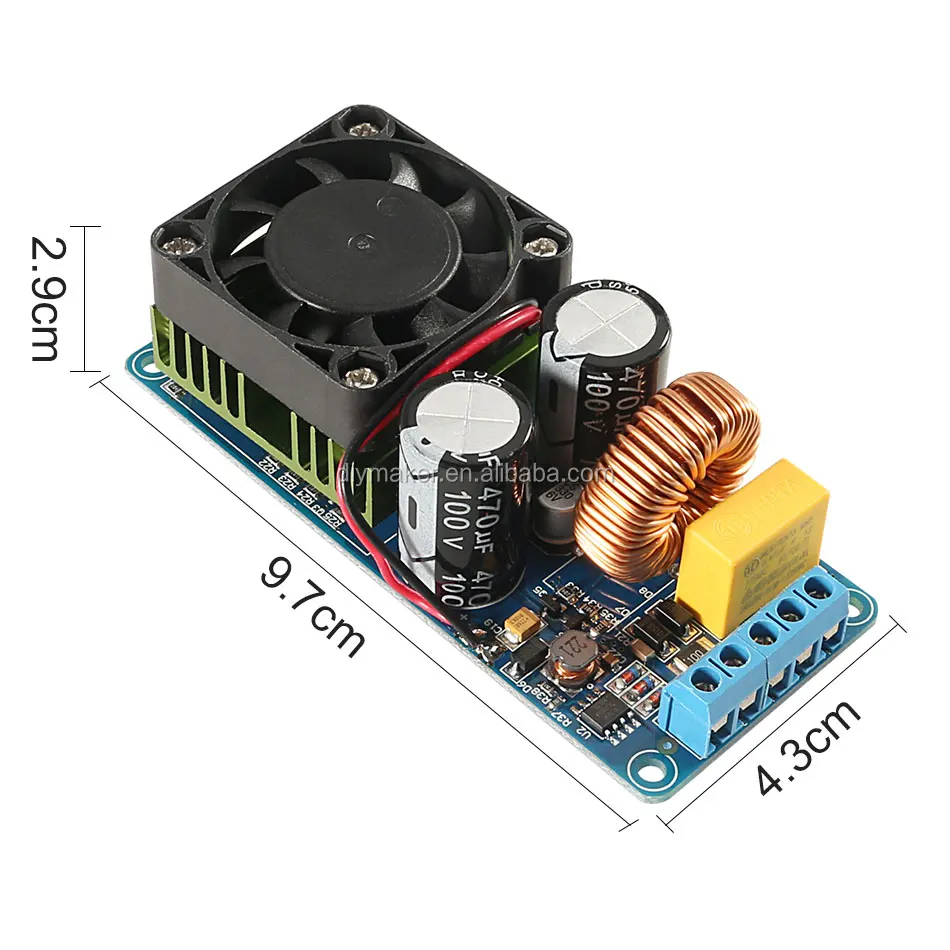

| Power Supply: Dual DC Power Supply ±58-±70V Rated Output Power: 500W(±65V power supply, 4 ohm load, distortion 10%) Efficiency: >= 90% Signal Noise Ratio: 90dB Total Harmonic Distortion: 380W(± 65 power 4 ohm speaker, distortion <0.1%) 280W(± 65 power 8 ohm speaker, distortion <0.1%) Frequency Range: 20Hz-20KHz Speaker: 4-8Ω Voltage Magnification: 36 times Input Sensitivity: 1.5V(RMS) Output Short Circuit Protection: Yes Output DC Bias Protection(Speaker Protection): Yes Over-temperature Protection: Yes When radiator field effect transistor temperature is higher than 100 °C, it will turn off the output! Item Size: 9.3 * 4 * 2.7cm / 3.66 * 1.57 * 1.06in |
Note:
1. This is a pure power amplifier board, the sensitivity of the input signal is 1.5V rms, if your input signal voltage can't reach this value, it is recommend to add preamp.
2. Rated supply voltage is ±65V, range from ±58 to ±70V, do not over 70V! Positive and negative should be correct.
3. Recommended power supply is ±65V.
4. Recommended 4-8Ω / 10-18inch speaker.
5. Carefully check and ensure the wiring is correct before power connection.
1. This is a pure power amplifier board, the sensitivity of the input signal is 1.5V rms, if your input signal voltage can't reach this value, it is recommend to add preamp.
2. Rated supply voltage is ±65V, range from ±58 to ±70V, do not over 70V! Positive and negative should be correct.
3. Recommended power supply is ±65V.
4. Recommended 4-8Ω / 10-18inch speaker.
5. Carefully check and ensure the wiring is correct before power connection.
Package List:
1 * Digital Amplifier Board
1 * Digital Amplifier Board

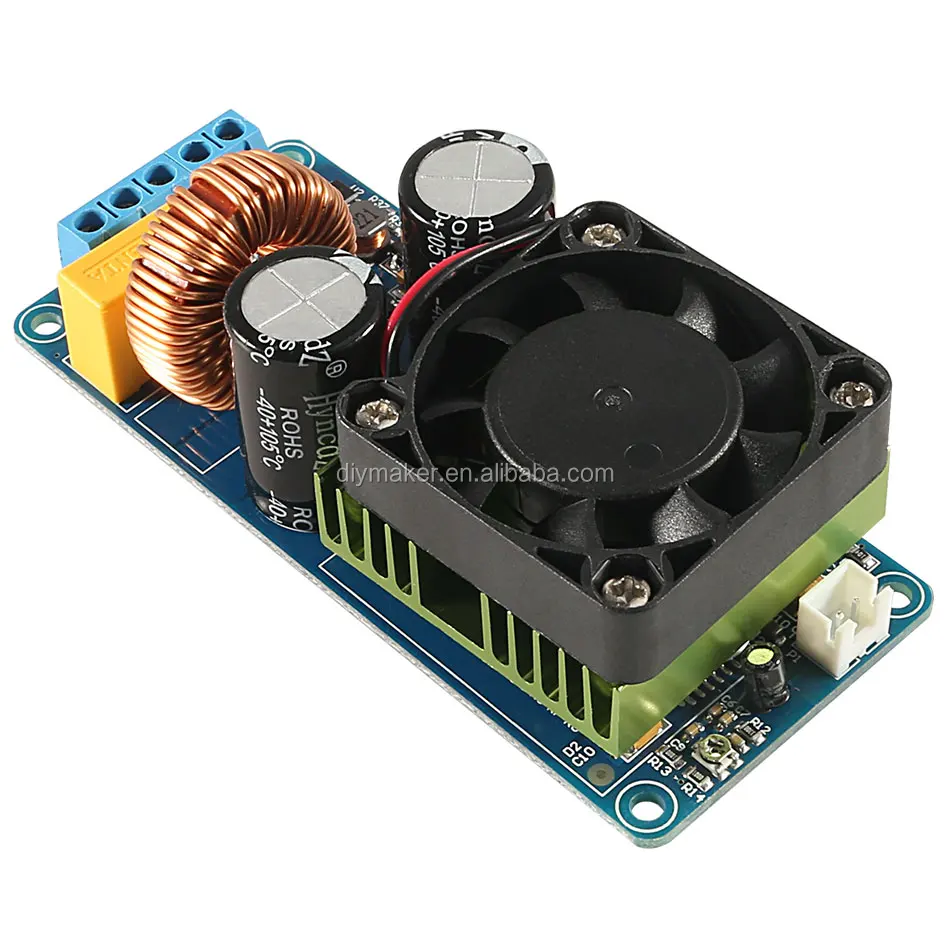

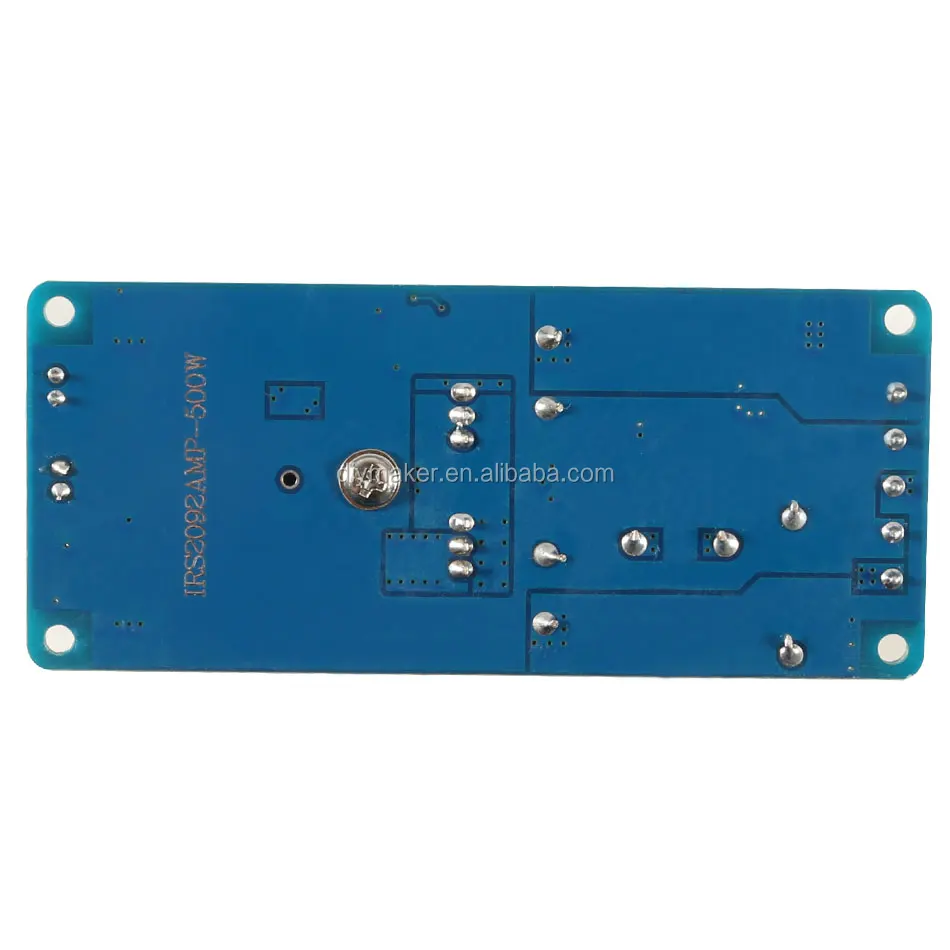

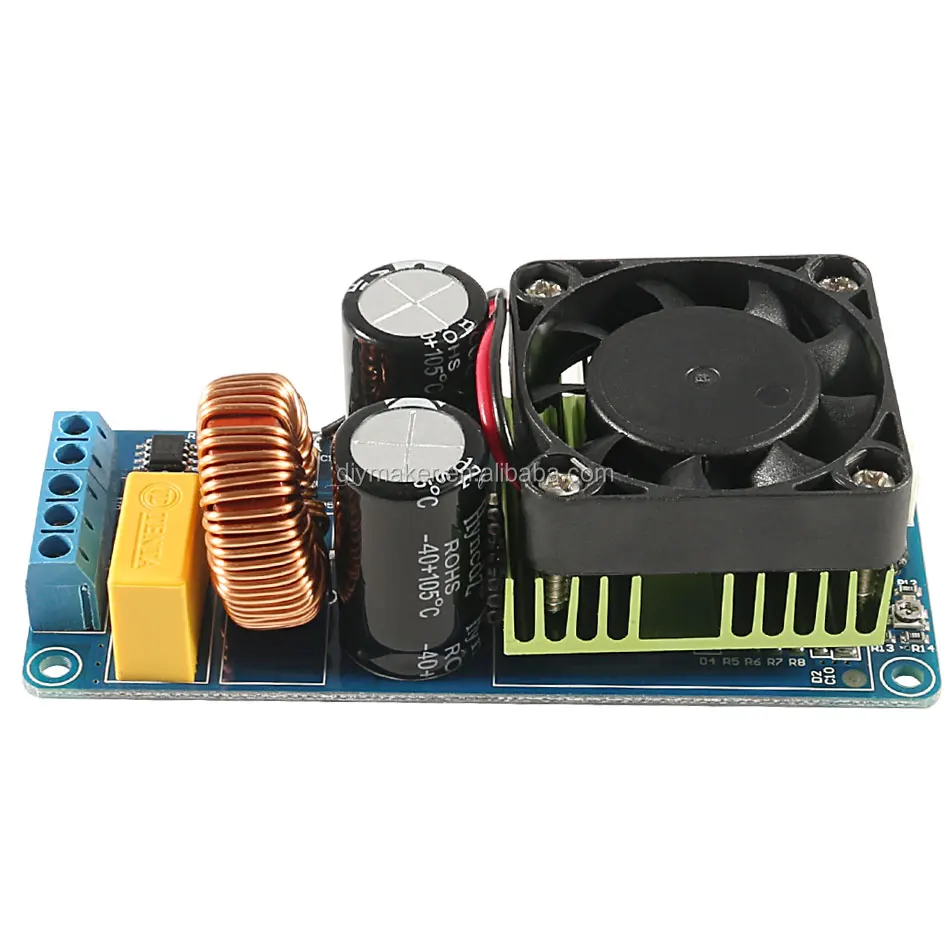

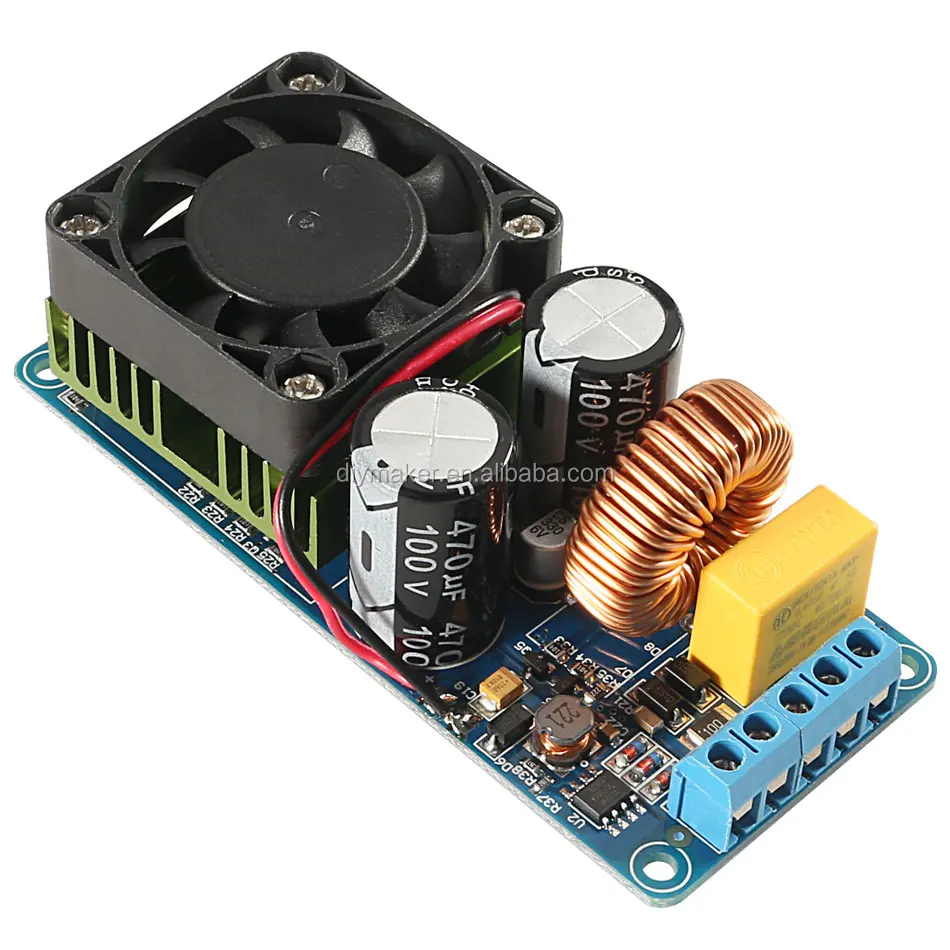

------------------------More Photo-------------------
