LK106MT Automatic Gold Foil Stamp Blocking And Die Cutting Embossing Machine
- Category: >>>
- Supplier: Zhejiang Guangya Machinery Co. Ltd.
Share on (62338123913):
Product Overview
Description
TECHNICAL PARAMETER
Model | LK106MT |
Max. sheet size(mm) | 1060×770mm |
Min. sheet size(mm) | 450×370mm |
Max. die cutting size(mm) | 1050×750mm |
Max. stamping size(mm) | 1050×750mm |
Gripper Margin(mm) | 8-17mm |
Paper range | 90-2000g/㎡(cardboard) 0.1-2mm(cardboard) ≤4mm(corrugated) |
Max. working pressure | 300T |
Max. die cutting speed(s/h) | 7500s/h |
Max. stamping speed(s/h) | 6500s/h |
Foil feeding shaft | 5 (3 in longitudinal, 2 in transversal) |
Zones individually heated | 12 (max to 200°C) |
Max. foil longitudinal diameter(mm) | ￠250mm |
Max. delivery pile height | 1200mm |
Max. feeding pile height | 1350mm |
Main motor power(KW) | 11kw |
Power rating(KW) | 46kw |
Machine weight(kg) | 17000kg |
Overall machine dimensions(mm) | 6050×4200×2260mm |
Air requirements | 0.6Mpa, >0.37m³/min |
MAIN FEATURES

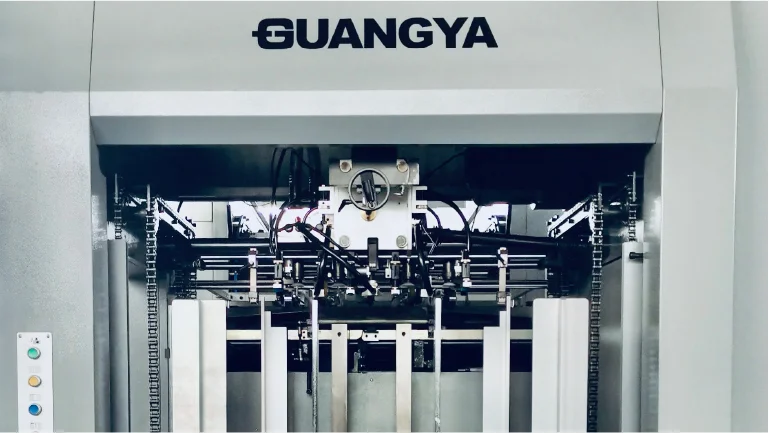

Non-stop Feeder
• Non-stop High-Speed Feeder
• Strong sheet suction feeder
• Feeder anti-collision protection
• Pre-stacking paper function, non-stop paper feeding function

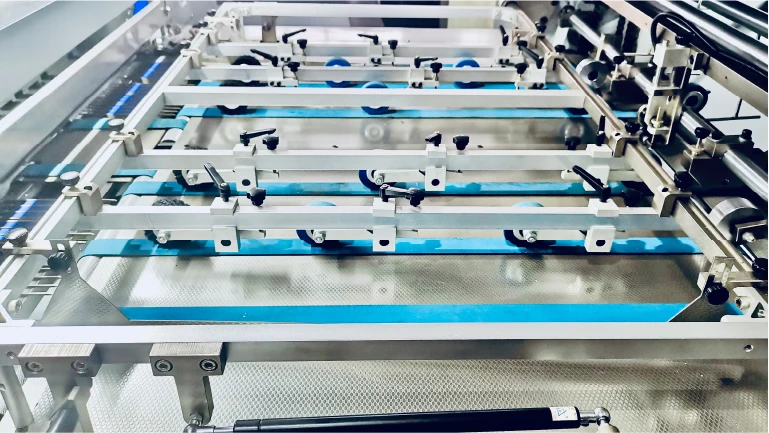

Feed Table
• Driven by chain movement,with stable and reliable operation
• Imported belts
• Electrical front lays
• Double sheet detection
function
function
• Push-pull integrated side guides
• Imported antistatic pattern stainless steel
Host station
• Electrically pressure adjustment function
• The complete set of worm gear and worm from Taiwan to improve the service life of
key transmission parts of the machine
key transmission parts of the machine
• Automatic pressure keeping and pressure reduction function
• Imported intermittent mechanism to ensure running accuracy• One button locking device for chase
Frame and Bottom Plate
• Integrated bottom plate, change job fast
• Steel plate imported from Germany • Quick-lock cutting board frame with center positioning

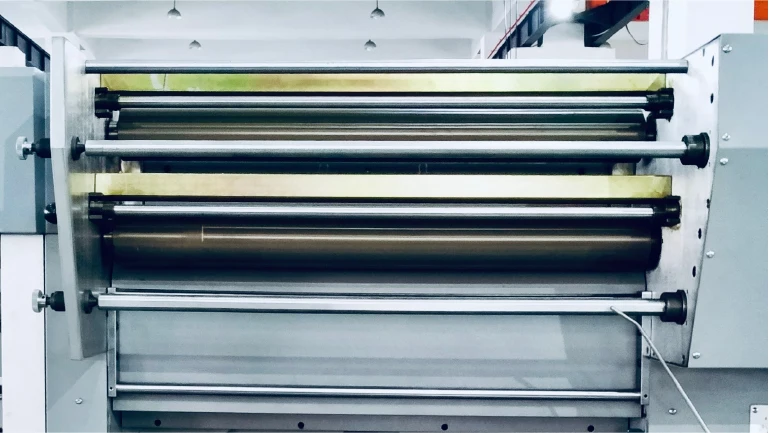

Foil Stamping Station
• With 2 transverse foil shafts
• 12 independent temperature zones to avoid interstitial temperature differences
• Independent temperature control, energy efficient
• Preheating function in temperature zone, save time
• Hot stamping memory function, storing operation recipes, reduce make ready time
Foil Stepping Function
• Independently developed, exclusive system
• Automatic foil stepping calculation function, foil stepping optimisation function
•Up to 6 sets of irregular foil stepping with different spacing can be calculated automatically
Delivery
• Electrical auxiliary delivery function
• Mechanical adjustable braking brush
• Pneumatic non-stop sampling function • Tape inserter (optional)
Control System
Operating System

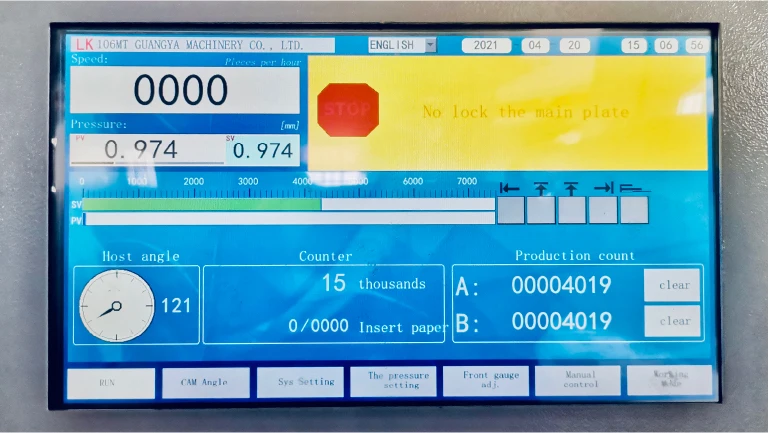

• 10.5-inch industrial control color touch screen
• Easy operation and visualized functions
• Automatic screen off function, environmental protection and energy saving
• Production operation monitoring, data statistics function. Electrical System
• Modular design of electrical system
• Imported electrical appliances, quality assurance
• Remote module, fast and convenient maintenance
*FOR MORE DETAILS, PLEASE ASK YOUR SALES CONSULTANT
SAMPLES

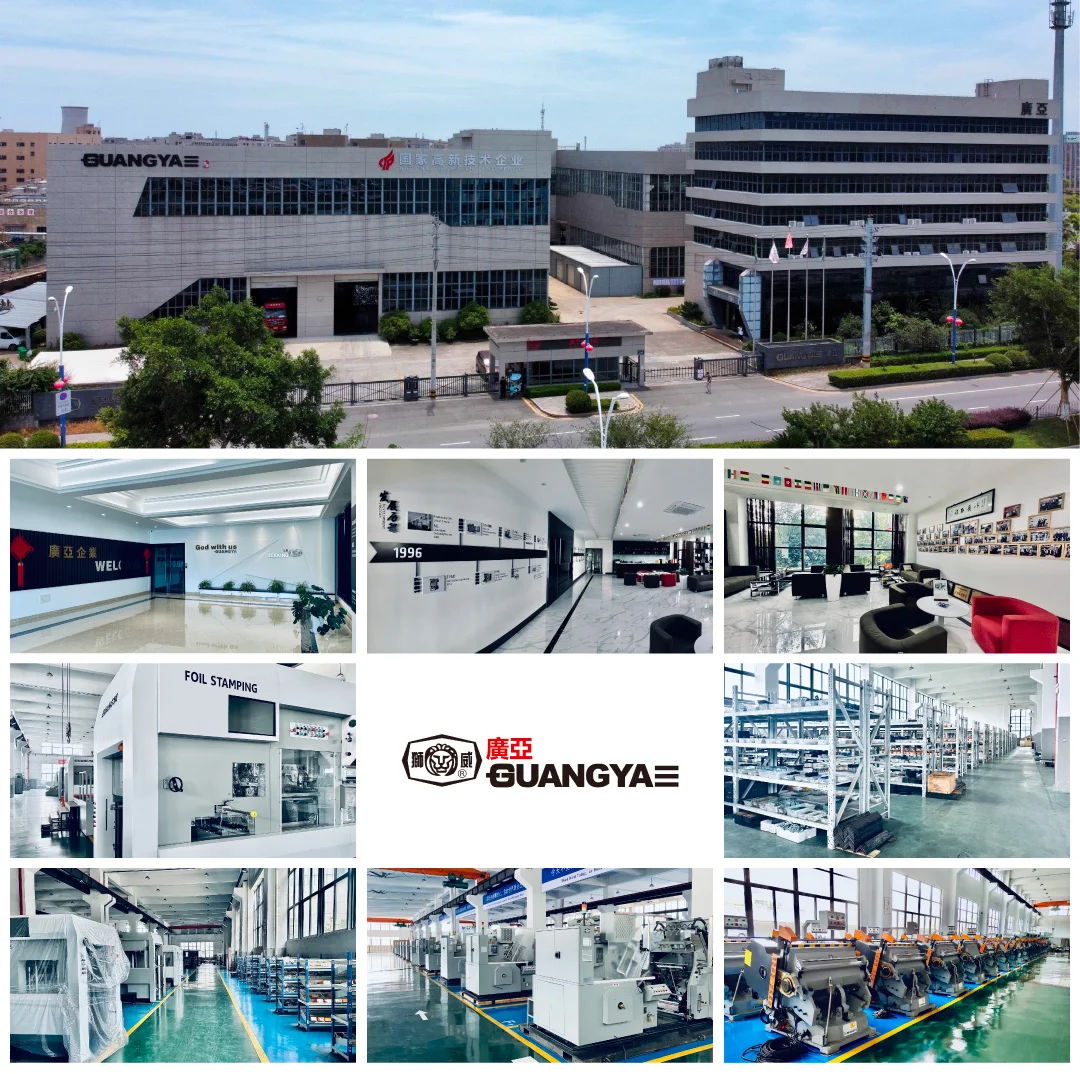

ABOUT US

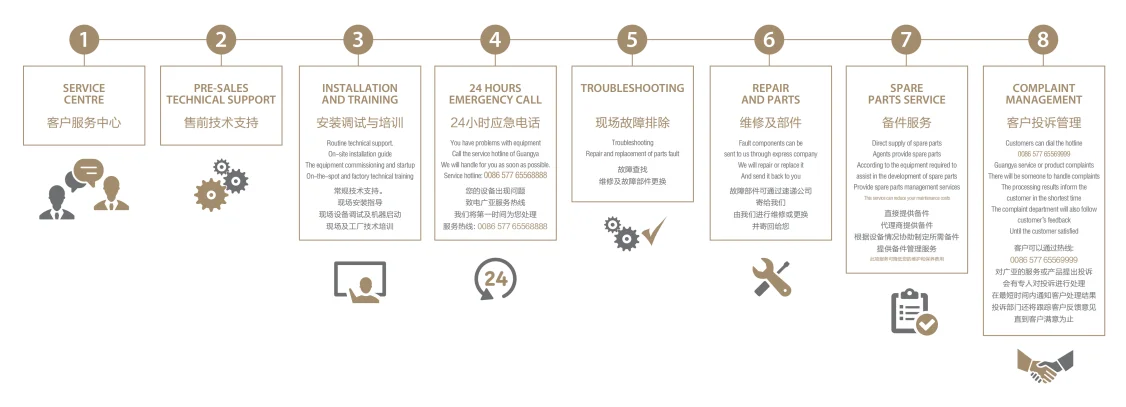

Pre-Sales Service
* Inquiry and consulting the support
* Testing support in our factory
* Inspect machine in our Factory
* Testing support in our factory
* Inspect machine in our Factory
After-Sales Service
* Training how to install the machine, training how to use the machine
* Engineers available to service machinery overseas
* Engineers available to service machinery overseas

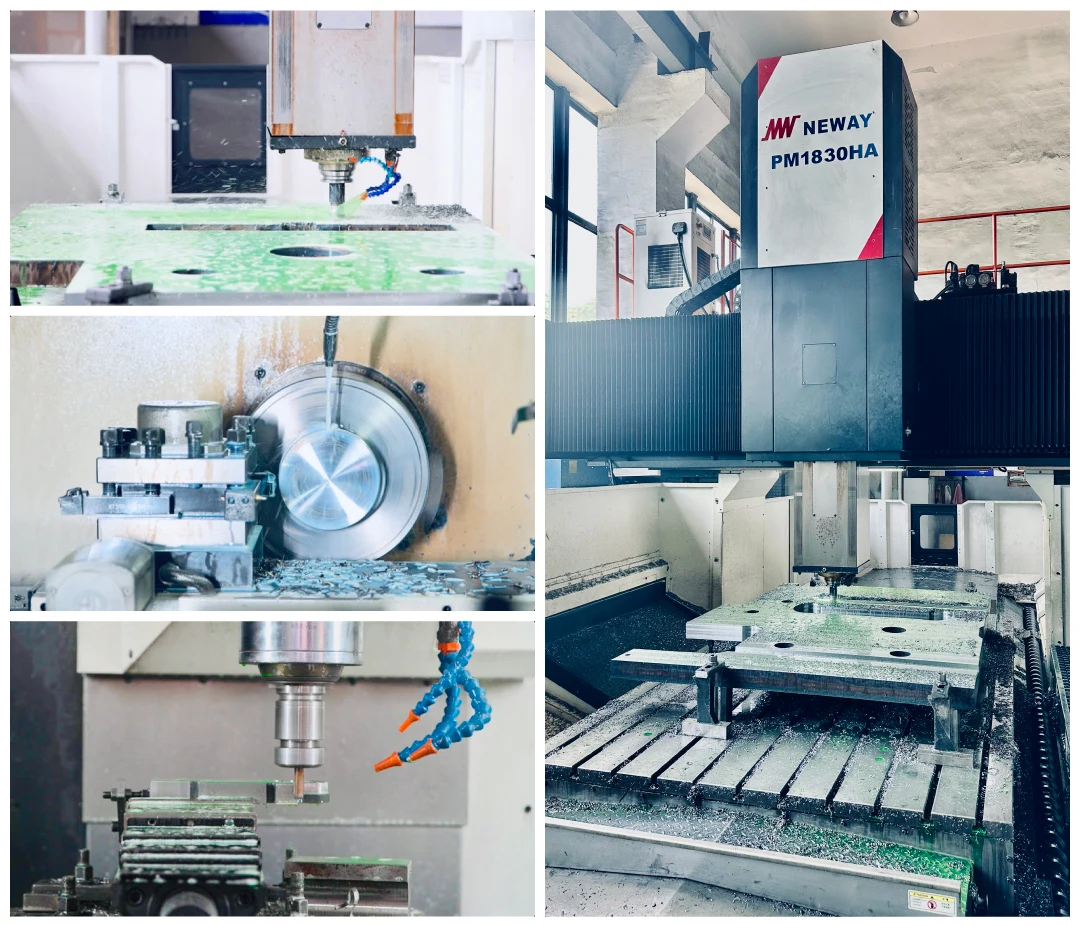

PROCESSING EQUIPMENT

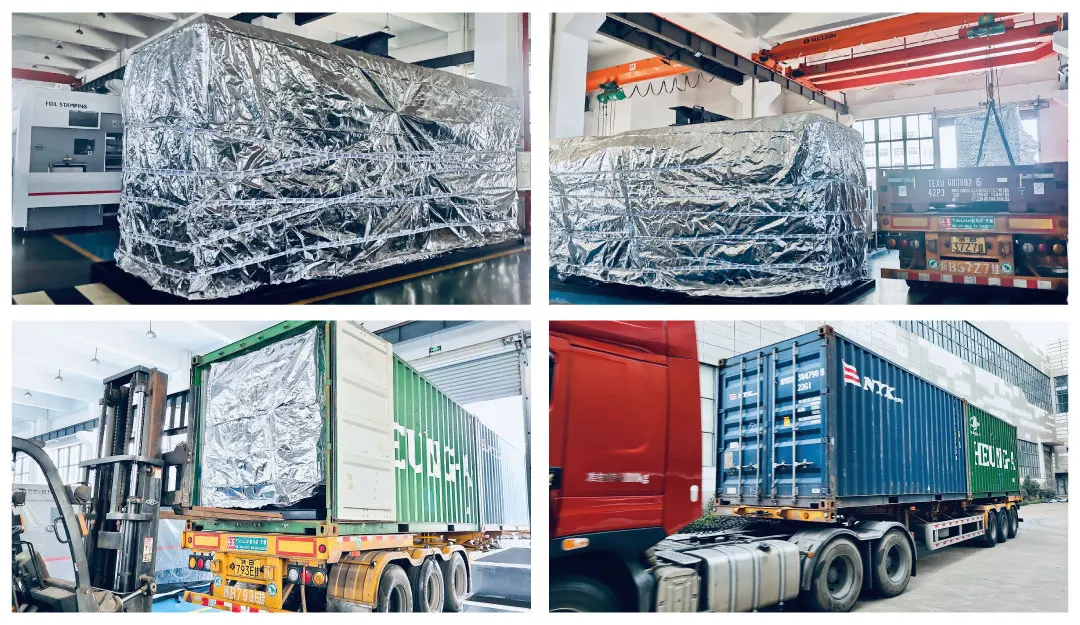

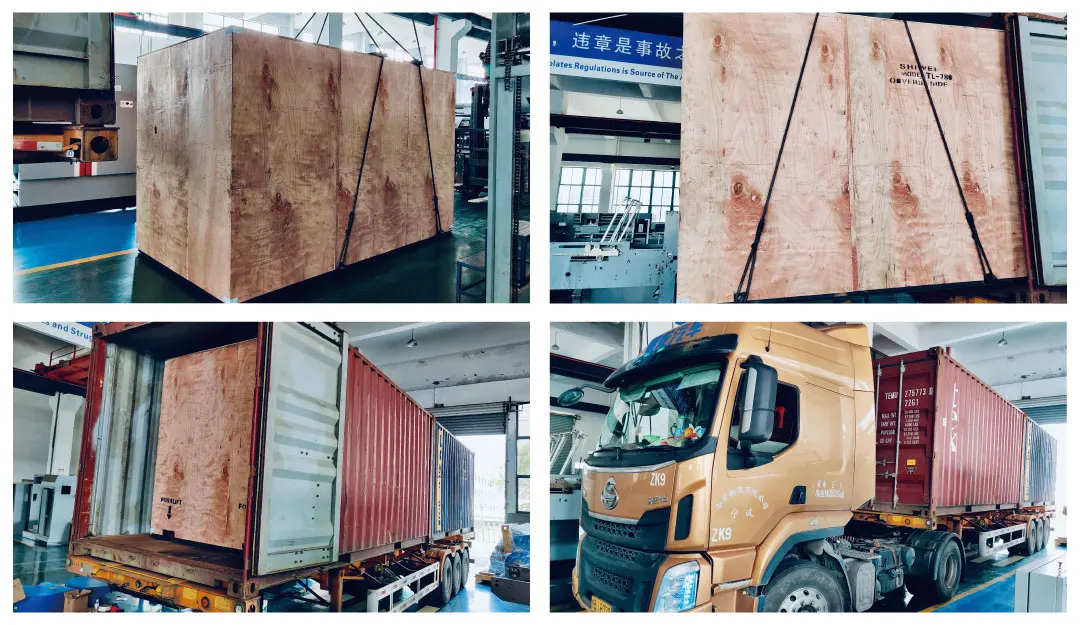

DELIVERY

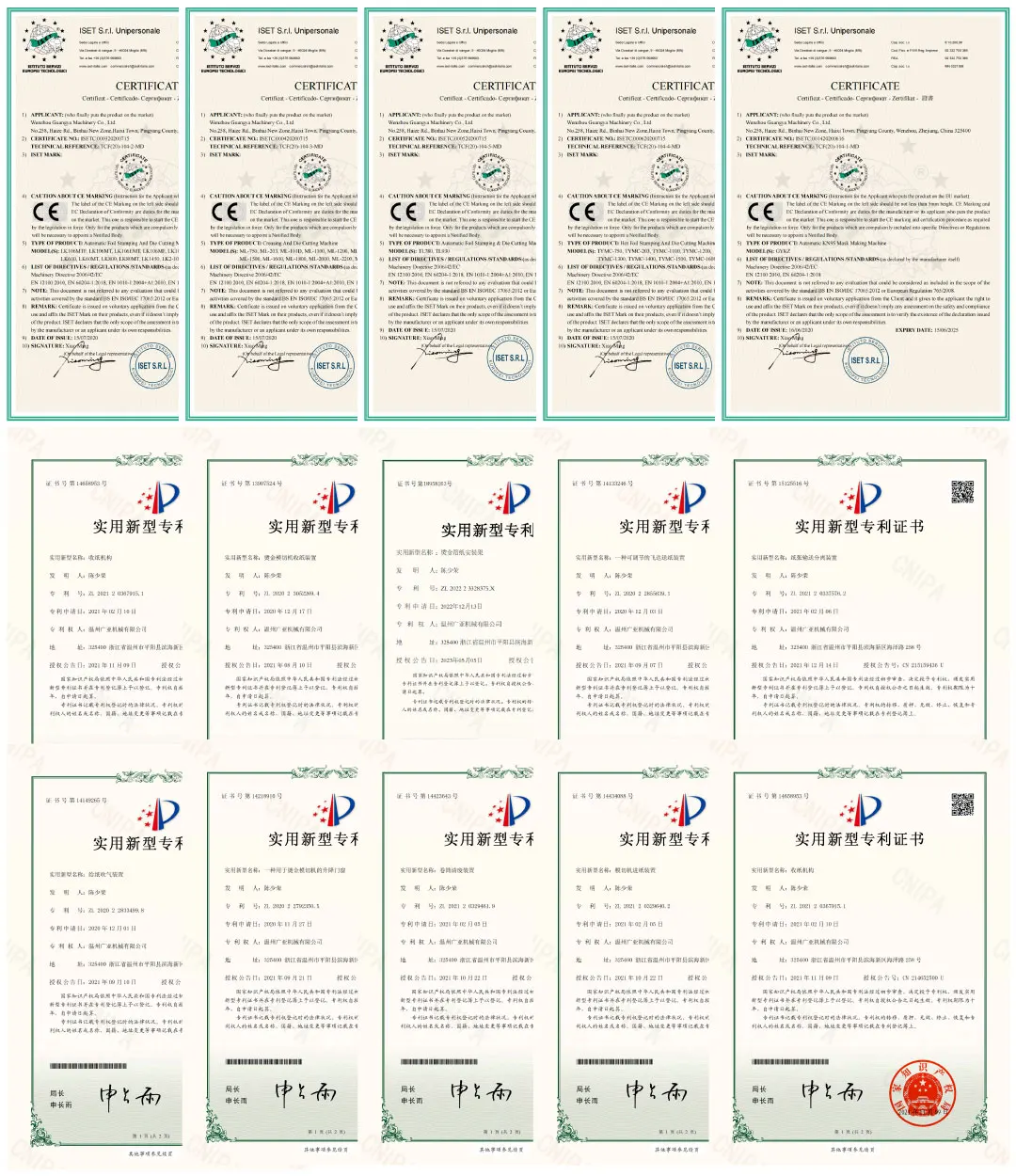

CERTIFICATIONS
THE UNIQUE HUMAN CARE AND PROFESSION
PASSIONATE SALES SERVICE SYSTEM
We focus on customer service, all-year non-stop service, personal training, and so on.
Not only provide customer service. But also a pre-sales system, including solutions to product selection, storage of parts, technical guidance, operating training, exchange management platform, and so on.
Realizing the idea of focusing on customer success, creating value to customers.
