Product Overview
Description

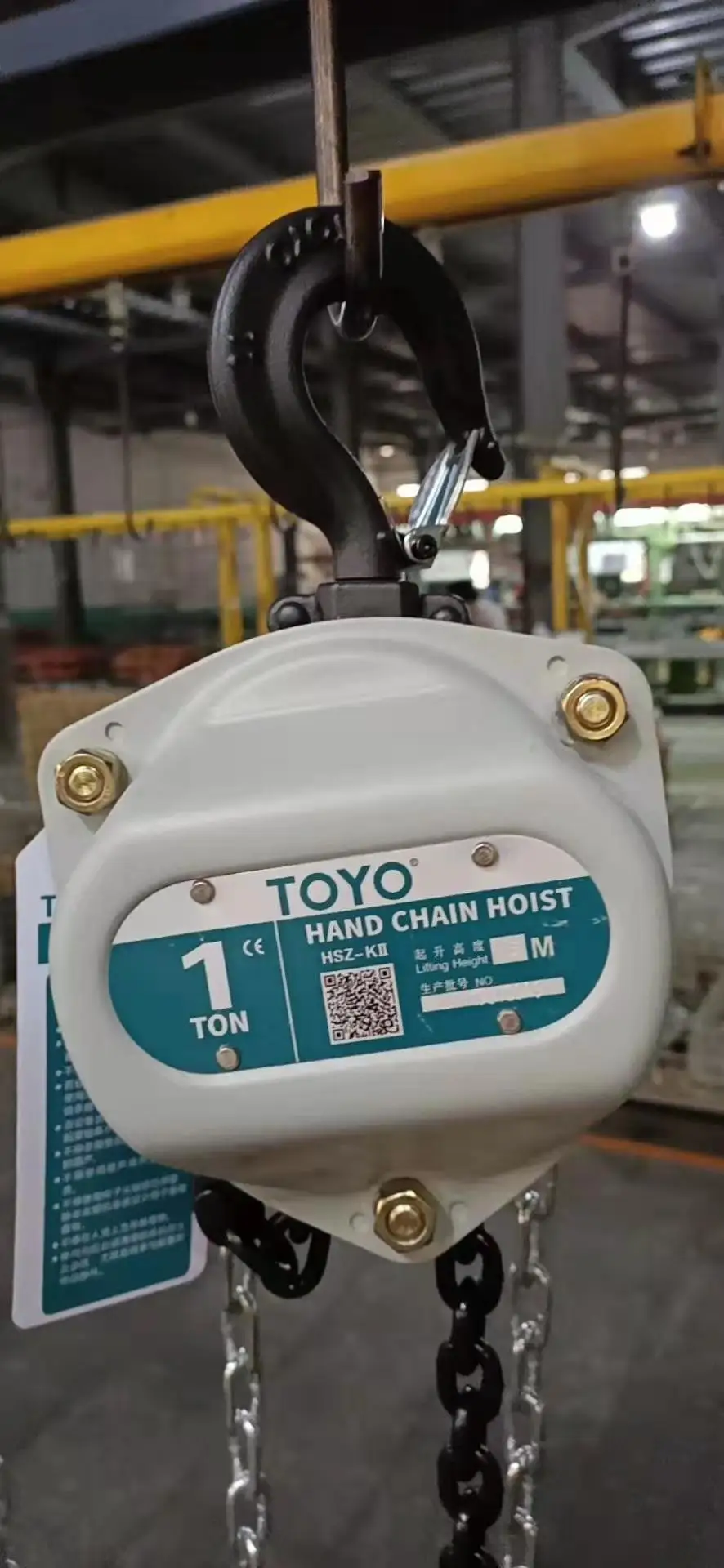

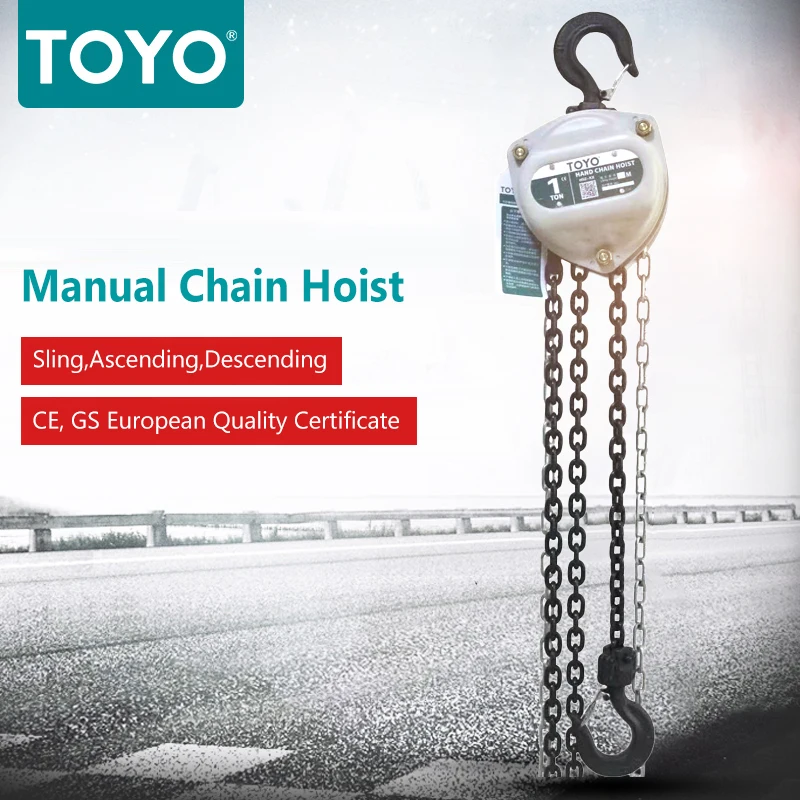

High Quality TOYO 1ton KII Hand Chain Hoist Chain Block Alibaba China
| Model | VD010 | VD015 | VD020 | VD030 | VD030 | VD050 | VD100 | VD200 |
| Capacity(t) | 1 | 1.5 | 2 | 3 | 3 | 5 | 10 | 20 |
| Test load(t) | 1.25 | 1.87 | 2.5 | 3.75 | 3.75 | 6.25 | 12.5 | 25 |
| Standard lift(mm) | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Falls of load chain | 1 | 1 | 1 | 1 | 2 | 2 | 4 | 8 |
| Load chain size(mm) | 6×18 | 7.1×21 | 8×24 | 10×30 | 7.1×21 | 9×27 | 9×27 | 9×27 |
| Force of full load (N) | 284 | 308 | 343 | 372 | 343 | 372 | 382 | 382×2 |
| Net weight (kg) | 11.3 | 16 | 17.7 | 26.6 | 22.5 | 37.25 | 75.5 | 192 |
| Gross Weight (kg) | 11.6 | 16.3 | 18.1 | 22.8 | 27.4 | 38.3 | 78.5 | 215.5 |
Product advantages
(1)Using Japanese technology
(2)Alloy Steel Structural Steel Slate
The sprocket cover and the brake housing provide double protection for the brakes, making it waterproof and mud resistant.
(3)Quality gears
20CrMnTi gears with high frequency carburization and 45-55HRC.
(4)Quenching And Refining G80 Chain
Medium frequency quenching heat treatment, low wear, anti-corrosion, selected lifting chain, test load is durable and safe.
Features
(1)CE, GS European Quality Certificate
(2)Heat treated three gears in high quality steel
(3)High strength load sheave in ductile cast iron
(4)Integral sealed bearing increases mechanical efficiency
(5)Double pawl mechanism enhances brake safety
Company Information
