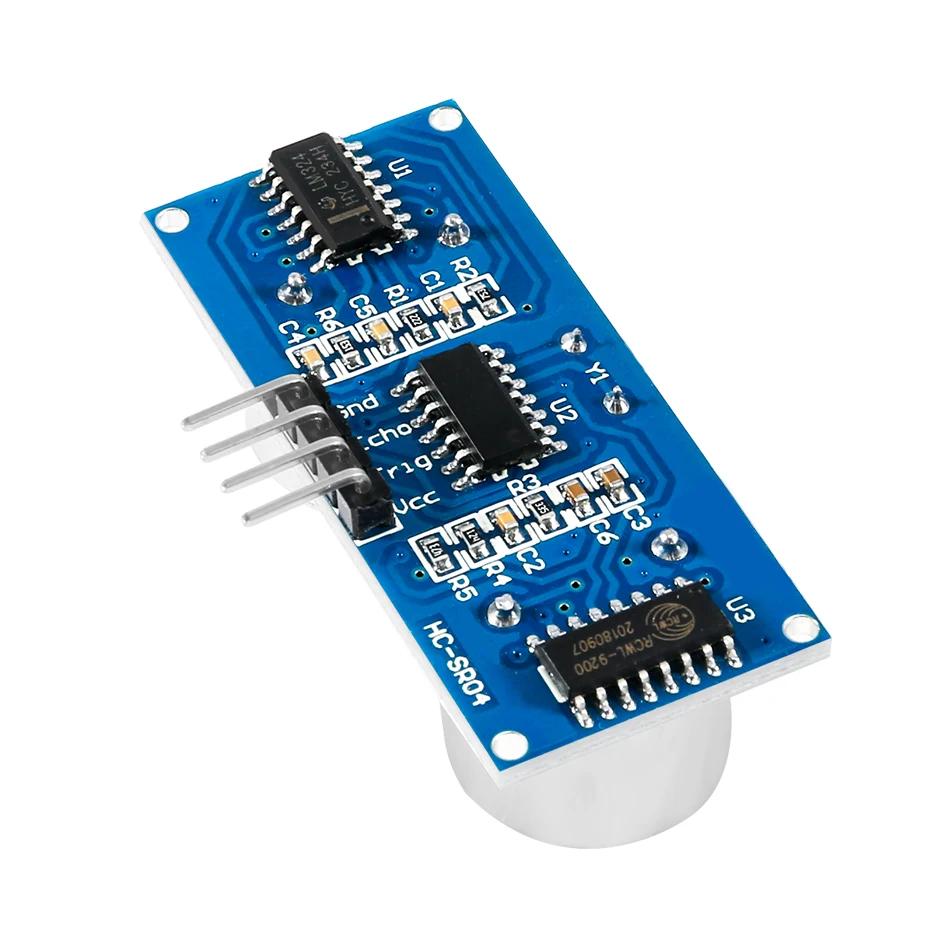

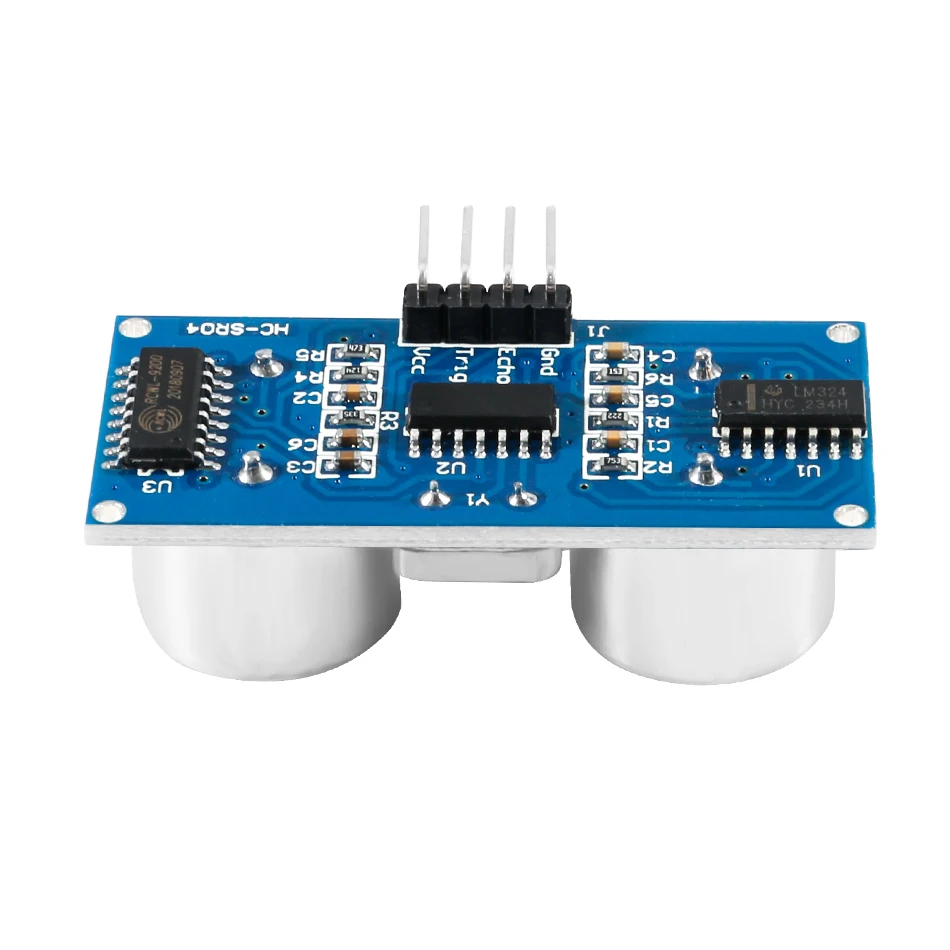

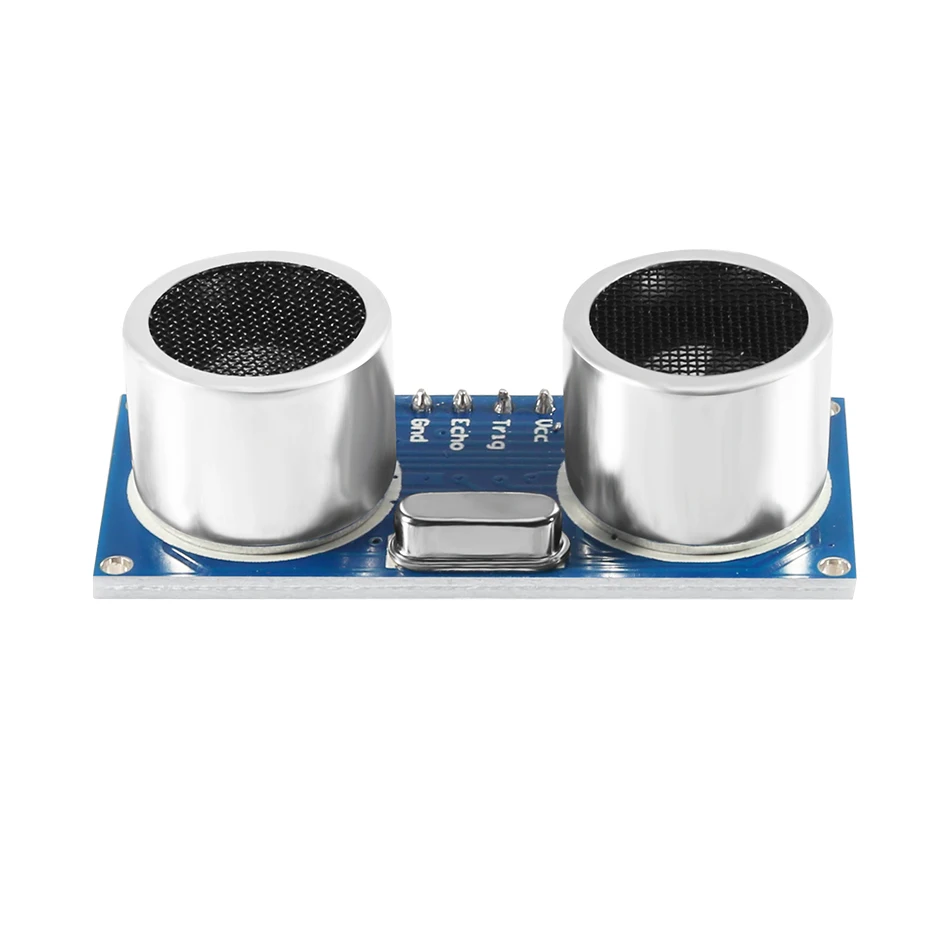

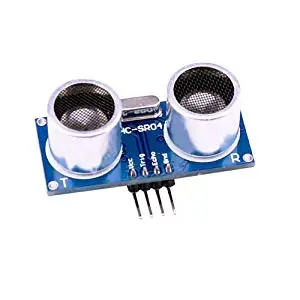

HC-SR04 Ultrasonic Sensor Distance Detector Module Robot Chassis Car HC SR04 HC-SR04 Sensor
Product Description
Ultrasonic Sensor HC-SR04 is great for all kind of projects that need distance measurements, avoiding obstacles as examples. HC-SR04 provides 2cm-400cm non-contact measurement function, the ranging accuracy can reach to 3mm. The modules include ultrasonic transmitters, receiver and control circuit.

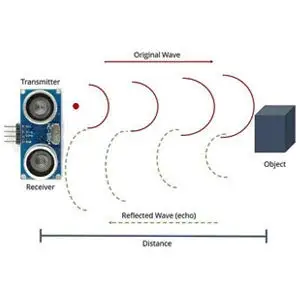

| Operating Principle of Ultrasonic Sensor As the name indicates, ultrasonic sensors measure distance by using ultrasonic waves. The sensor head emits an ultrasonic wave and receives the wave reflected back from the target. Ultrasonic Sensors measure the distance to the target by measuring the time between the emission and reception. The distance can be calculated with the following formula: Distance L = 1/2 × T × C where L is the distance, T is the time between the emission and reception, and C is the sonic speed. (The value is multiplied by 1/2 because T is the time for go-and-return distance.) |

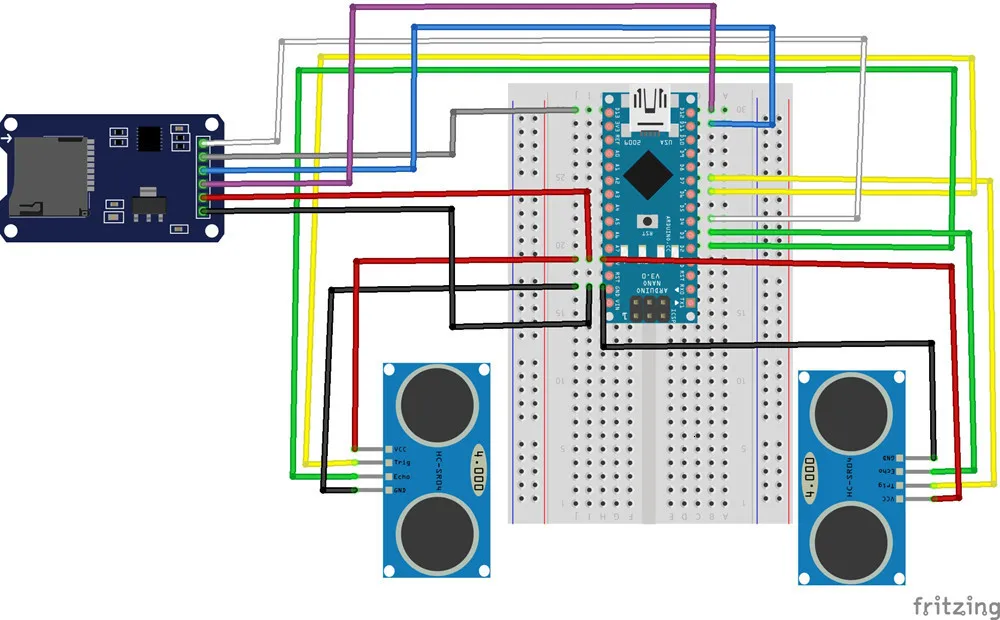

For Arduino Project with Ultrasonic Sensor Elegoo Ultrasonic Sensor HC-SR04 is inexpensive and easy to use since we will be using a Library specifically designed for this sensor, which can be downloaded from elegoo.com. To use it for Arduino projects you would need an ELEGOO UNO R3 controller board. |
|

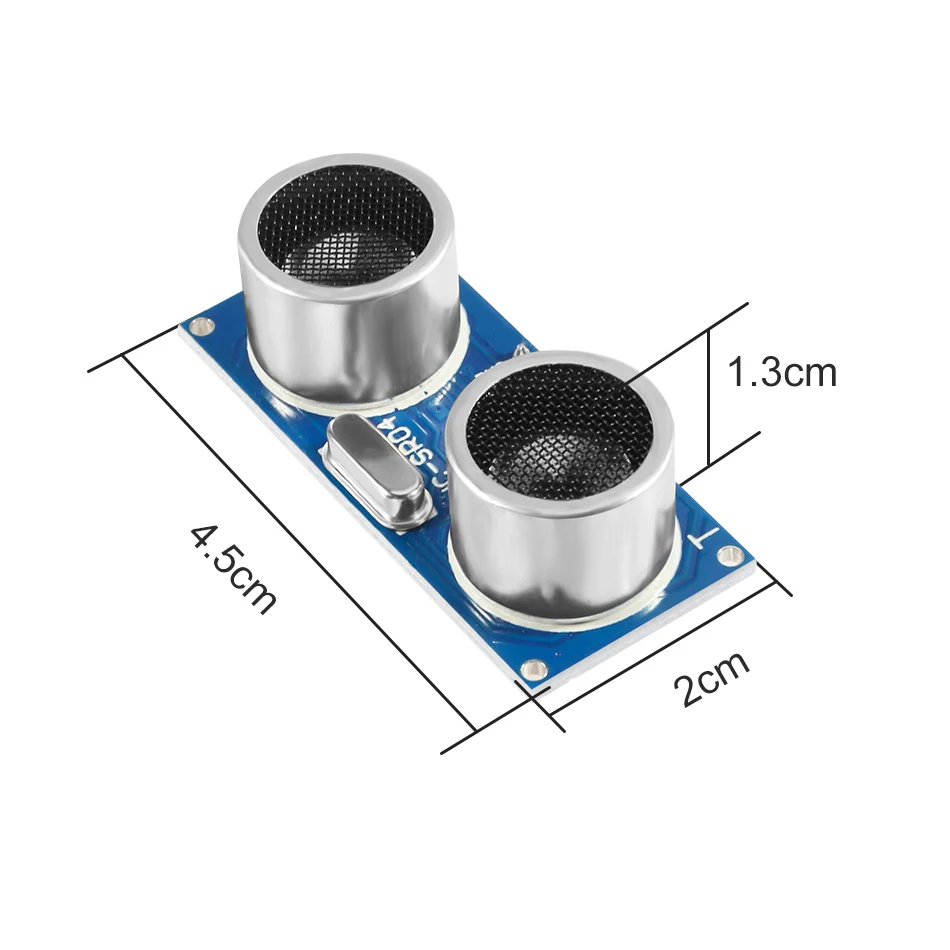

| Technical Specification Power Supply: +5V DC Quiescent Current: 3mA Working Current: < 5mA Effectual Angle: <15° Ranging Distance: 2cm - 300 cm/1″ - 10ft Resolution: 0.3 cm Measuring Angle: 30 degree Trigger Input Pulse width: 10uS Dimension: 45mm x 20mm x 15mm
|

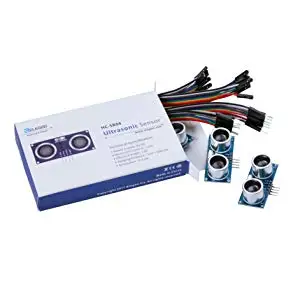

Product Package 1pcs HC-SR04 Ultrasonic Sensors |
|
