Pressureless sintering ceramic mechanical oil small ssic silicon carbide seal ring
Pressureless sintering ceramic mechanical oil small ssic silicon carbide seal ring
Pressureless sintering ceramic mechanical oil small ssic silicon carbide seal ring
Pressureless sintering ceramic mechanical oil small ssic silicon carbide seal ring
Pressureless sintering ceramic mechanical oil small ssic silicon carbide seal ring
Pressureless sintering ceramic mechanical oil small ssic silicon carbide seal ring
Pressureless sintering ceramic mechanical oil small ssic silicon carbide seal ring

Pressureless sintering ceramic mechanical oil small ssic silicon carbide seal ring

Share on (62338308653):


Price:$5.00

Quantity:


Product Overview

Description



Product Description


Pressureless sintering ceramic mechanical oil small ssic silicon carbide seal ring


Types of silicon carbide seal ring
1.  Recrystallized silicon carbide (RSIC)
     --- max temperature 1650℃
10~150mm
2.  Reaction sintered silicon carbide (SiSiC / RBSiC)
     --- max temperature 1380℃
2500mm
3. Pressureless sintered silicon carbide (SSiC)
     --- max temperature 1600℃


  • Application and use

Typical application of silicon carbide seal ring
1. Mechanical Seal
2. Heat Exchanger
3. Armor Plate
4. Ball Valve Parts
5. Pump Components
6. Semiconductor
7. Metallurgical Engineering
8. Fixed and Moving Turbine Components

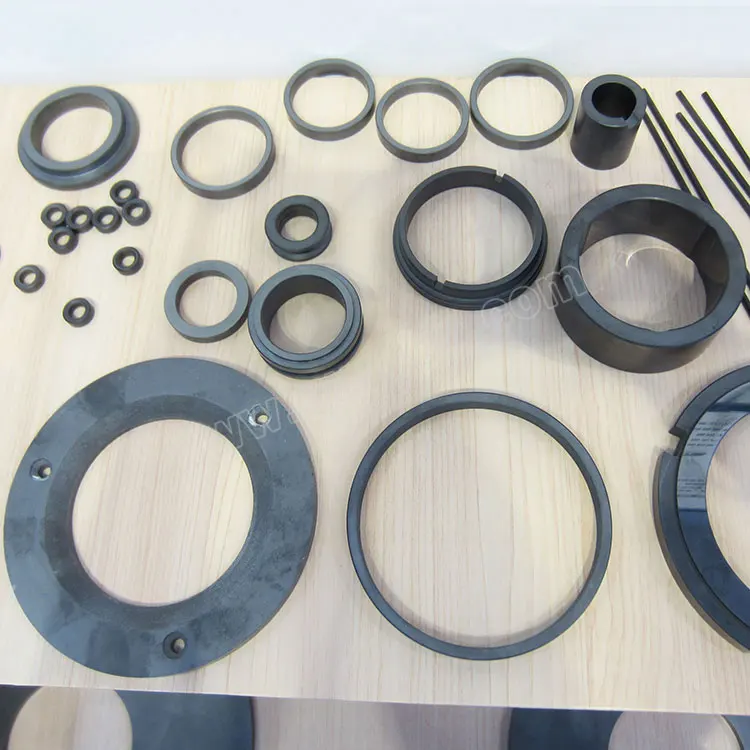

Detailed Images


Silicon carbide products contain tube, beam, thermocouple protection sheath, riser pipe, roller, bushing, shield, burner nozzle, loading plate (shelf board), ignitor, crucible, seal ring, wafer, rod, beads, ball and other irregular shapes.




Size Information


Silicon carbide seal ring
 Item
Unit
SiSiC
SSiC
Bulk density
(g/cm3)
≥3.03
3.10--3.15
Hardness
HRA
91--93
92--94
Compressive strength
Mpa
≥2000
≥2200
Bending strength
Mpa
≥350
≥400
Modulus of elasticity
GPa
350
400
Thermal conductivity
W/m.k (20 ℃)
50~110
120--150
Thermal expansion
10 -6.1/℃
4
4
Maximum service temperature
℃
1300
1600


Related Products




Packing&Shipping

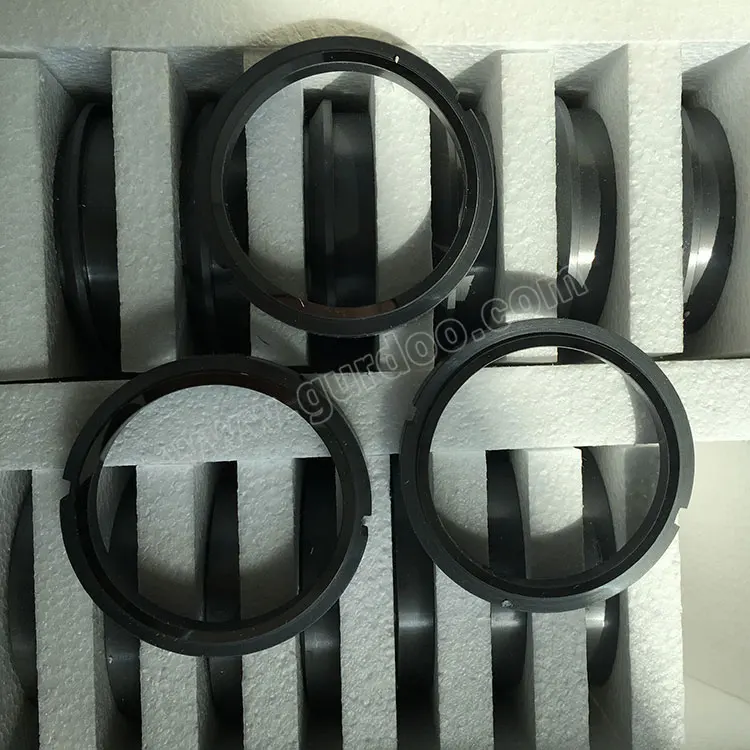

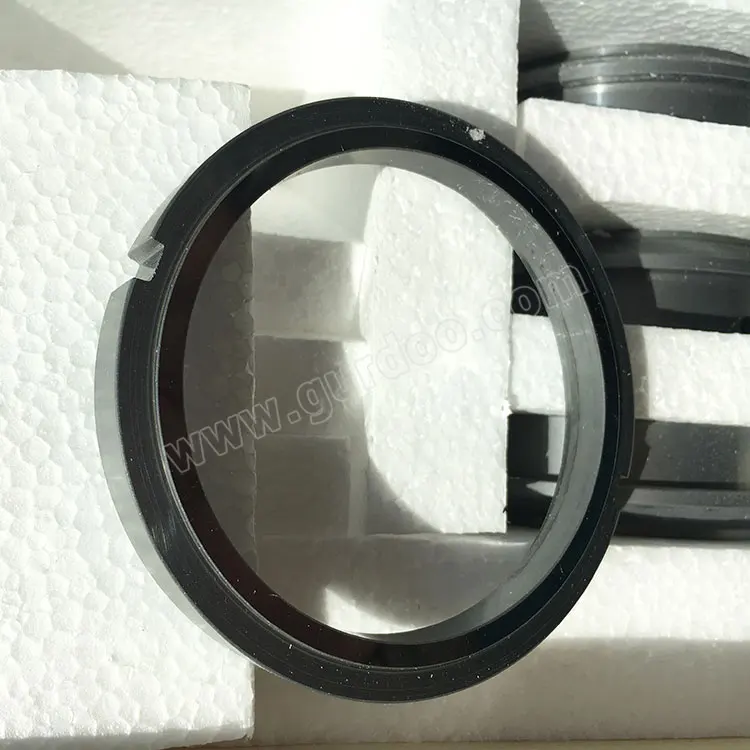

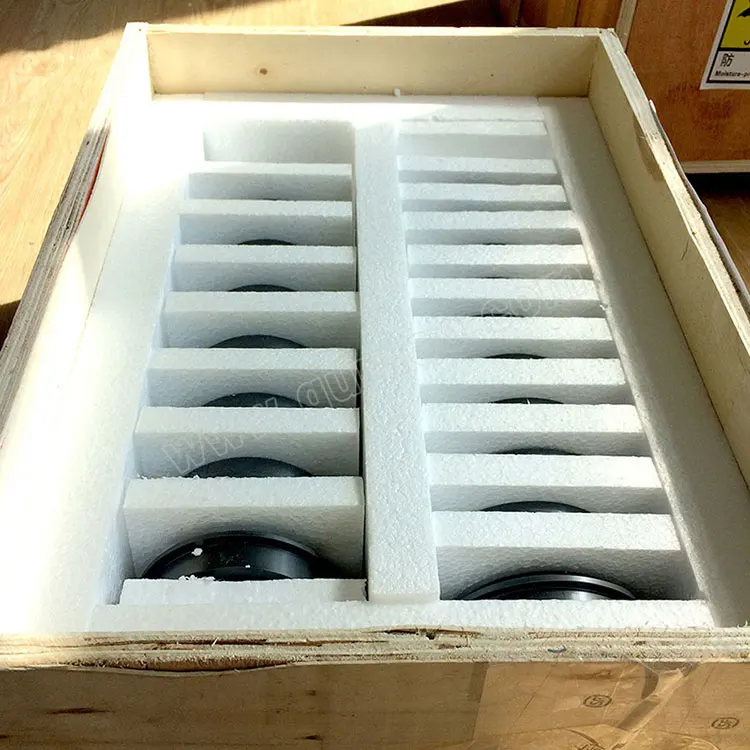

Silicon carbide seal ring is packed in export standard plywood case outside, lined with sponge and foam inside.
The goods will be shipped by air, by sea, by railway or by express delivery/courier like DHL, FedEx, TNT, UPS, EMS and so on.


Company Introduction


Henan Gurdoo Industry Co.,Ltd. is founded by engineers who have more than 20 years’ experience in research and production.

Focusing on professional high temperature working field with 100% quality check and durable testing before shipment.

We have a well team-conscious. Assist you to gain competitive advantages are our major focus.




After Sales Service


Our advantages
1. Any inquiries will be replied professionally within 24hours.
2. Technical staff available for the technical assistance anytime.
3. Professional customization of furnace and project is offered.
4. Small MOQ, Fast delivery and competitive freight.
5. Also can help to purchase other products if you needed.


FAQ


Q1. What information should we supply to get a quote?
Please offer the specification of small silicon carbide seal ring, such as dimension or drawing, quantity, application etc.

Q2. How long our order can be finished?
A mass of semi-finished products and standard sizes are available in stock, and 10-30days for bulk production or customized products.

Q3. What do you do on quality control?
For every batch, each step and finished products will be inspected when producing by QC department.

Q4. Can you accept OEM/ODM?
Yes, your goods will be produced exactly according to your drawings.
