——D15N UFO Beacon——

bluetooth tag tracker smart hospital Nurse tracking ibeacon ble

Product Description

Beacon Description



The UFO beacon D15N is a new generation beacon that loaded Bluetooth 5.0 hardware platform, hiddenpush button and MiniBeacon Plus intelligence software.
D15N UFO beacon advertises standard iBeacon and Eddystone (UID,URL,TLM) simultaneously. The user can configure D15N UFO beacon via configuration app BeaconSET+ as well.
Moreover, the push button can be defined to advertise different data to meet different application by click, double-click and triple-click. For example, the single click can be used to the panic / emergency / SOS button. For more functions, please refer to the configuration instruction.

features

Beacon feature
- Advertise iBeacon & Eddystone simultaneously
- Unique MAC address (ITU)
- Bluetooth 5.0 chipset nRF52 series
- The max. 50 meters advertising distance
- Weatherproof housing with key-chain hole
- Push button for emergency using

Click D15ND15N_size

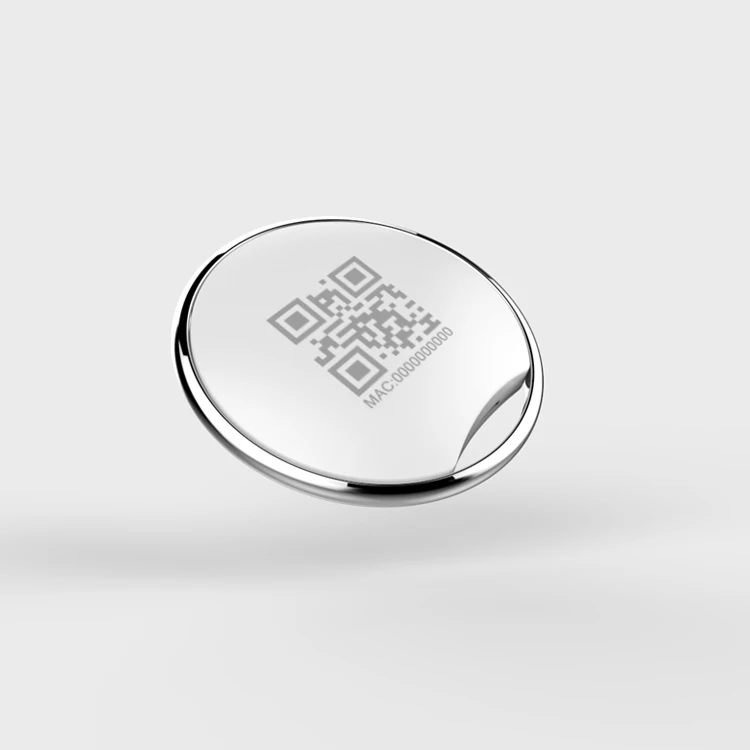

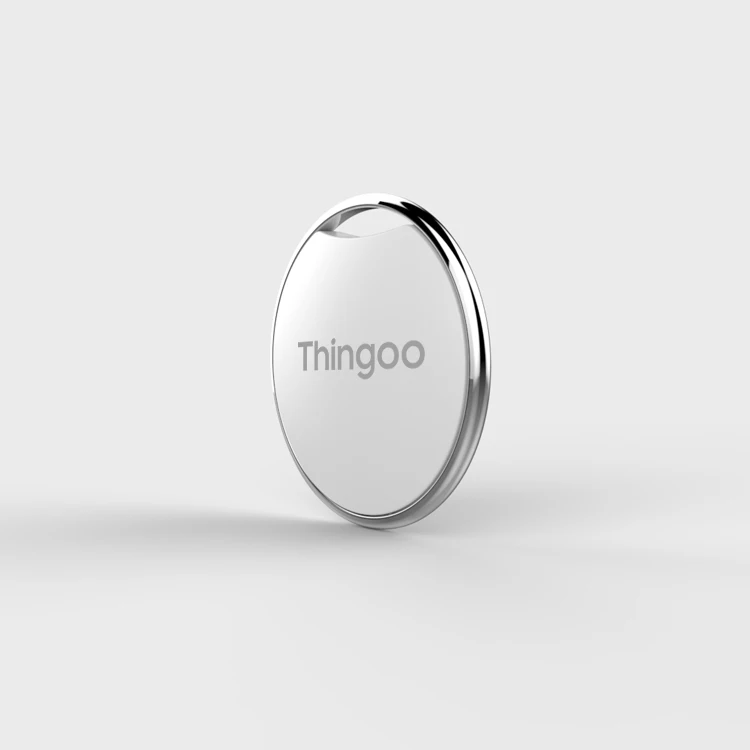

D15N.11.11D15N.12.12

Beacon Specification



Item
Value
Remarks
Firmware
BLE 5.0 Stack

Battery Model
1 x CR2025
1 coin cell
Operation Voltage
1.8-3.6V
DC
Transmission Circuit
10.5mA (Max.)
Tested at 0dBm transmission power
Transmission Range
50meters
Maximum
Antenna
50ohm
On board / PCB Antenna
Accessories
Adhesive
1pc, high-strength, 3M brand
Output Power
0 dBm
Default setting, programmable
Application

Application



- Asset tracking and location   - Personnel tracking   - Activity monitoring   - Inventory tracking

Application Scenario

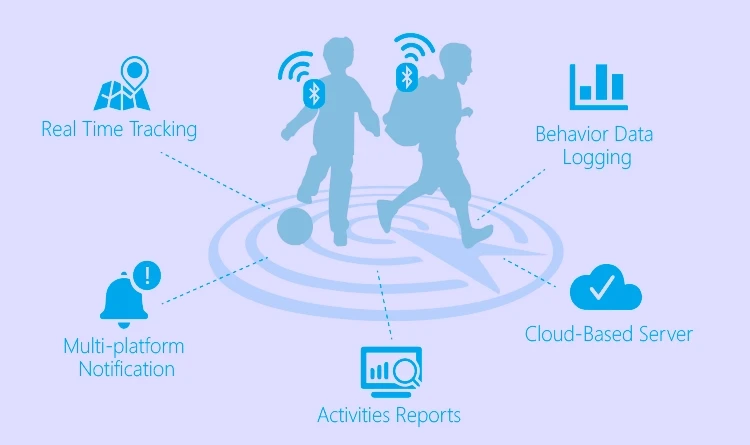

 Use case



Bluetooth low-energy beacon is used for Schools and Parents to ensure the safety & security of Kids by geeting real time information of their attendance, location , and time of arriving and leaving school

With a few clicks, teachers and parents NOW benefit from:

  • A peace of mind as they know their kid's attendance and location in real time
  • Built-in alerts and warnings on the time of students' arrival and leave, which are notified via Emails or SMS and accessed by both desktop and mobile phone
  • Students' behavior log data which is fed to cloud-based servers for further analysis and school improvement
  • Daily or weekly reports on student's overall activities at school

beacon used in school

Company Information

Company Information



Thingoo,a trademark of Minew, is focused on the BLE technoloy for low-cost location tracking into an existing application. Founded in 2007, Minew was specialized in IoT field for more than a decade and keeping up with customer demands all the time,By providing smart devices and IoT solutions, we serve to optimize people's lives, works and businesses to make life easier. We have already served clients from more than 100 countries and regions with 12 million sales volume sold so far. Today, we have collaborated with a lot of top-class corporations including ARM, Ericsson, Google, Huawei, ect.

Company profile


Certifications

Certifications

certificate

Packaging & Shipping

Packaging&Delivery

packaging

Shipping way

FAQ

FAQ

_15475431461980



1. Do you provide the technical support to the developers?

Re: SURE. The following technical data and documents will be provided to developers.                                                       1. SDK  2. API   3. Configuration APP  4. Instructions



2. Can I change the password?

Re: Yes,you can change what you want to set.



3. Do you have SDK or API?

Re: Yes,we will provide you after sample was arrived.



4. Does Thingoo provide service after sale?
Re: Yes, our sales team will provide technical support within 24h on working day.
