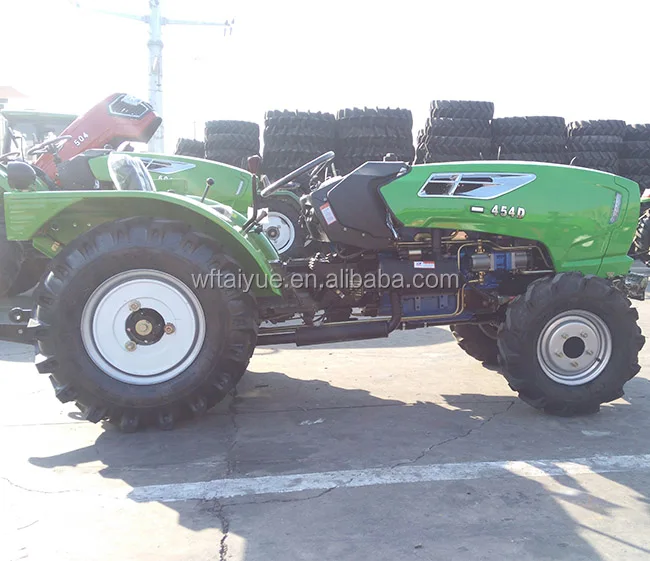

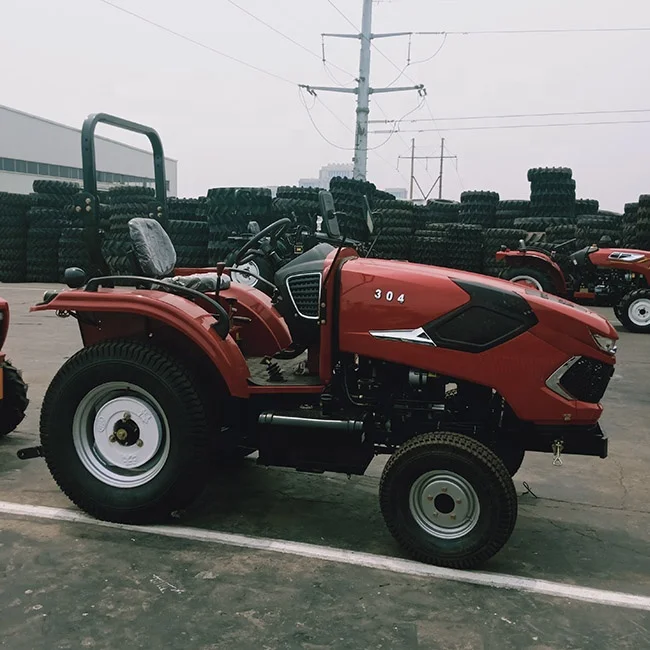

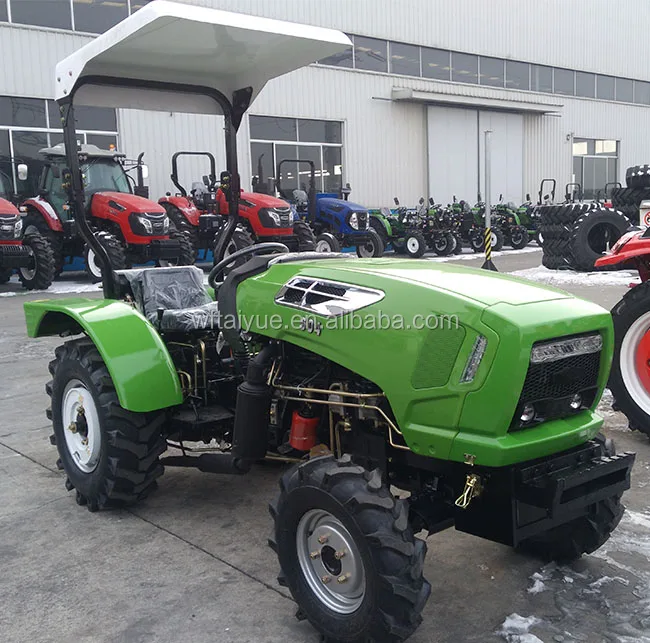

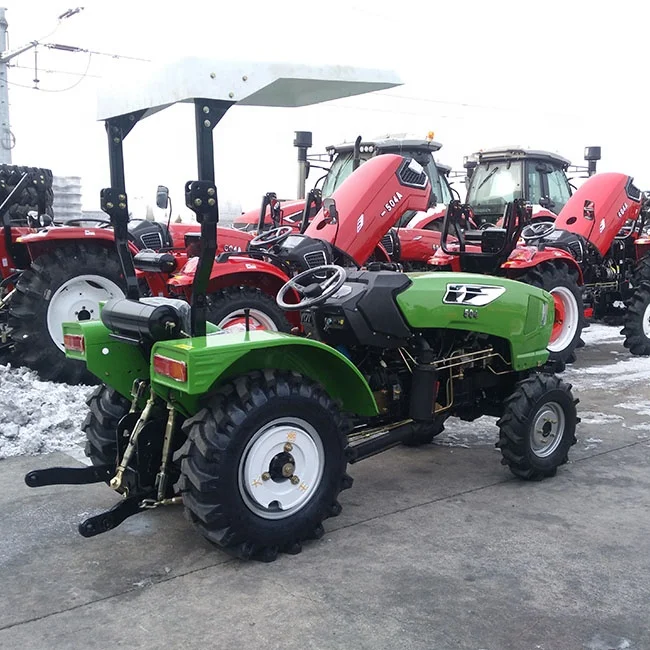

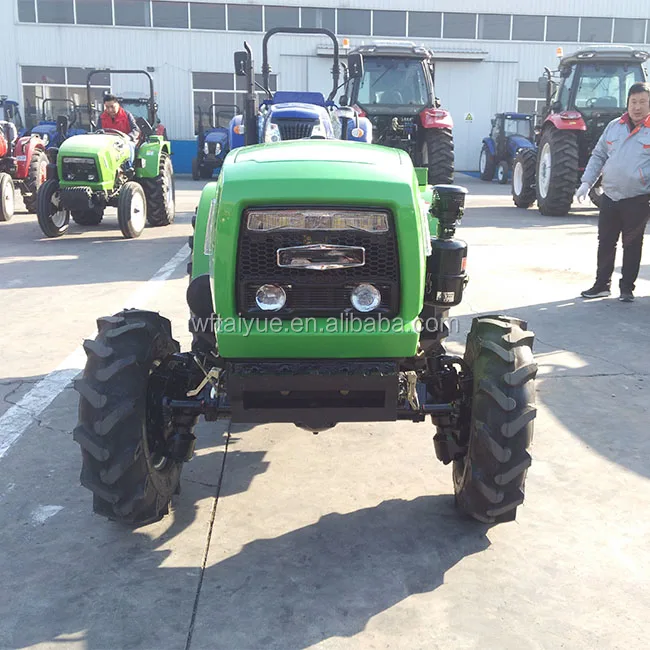

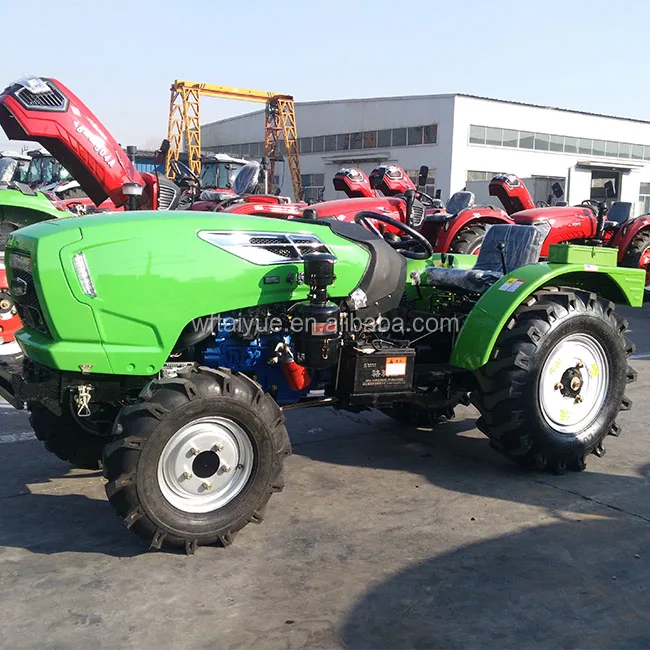

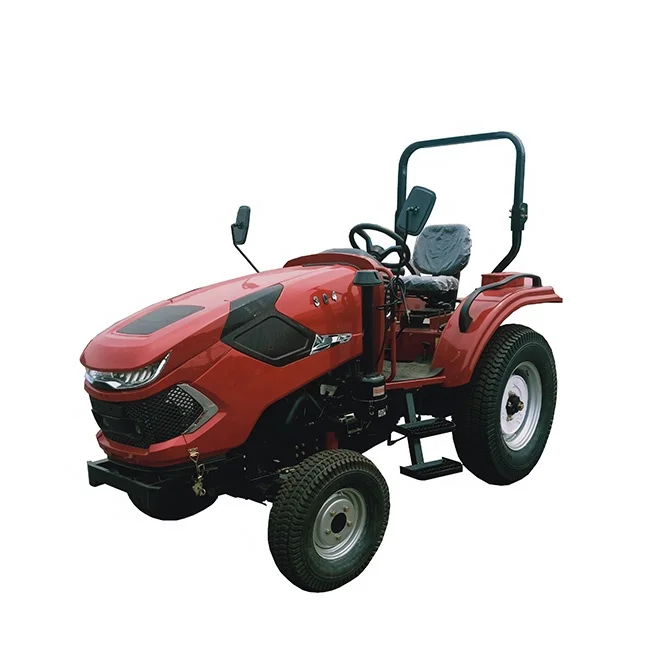

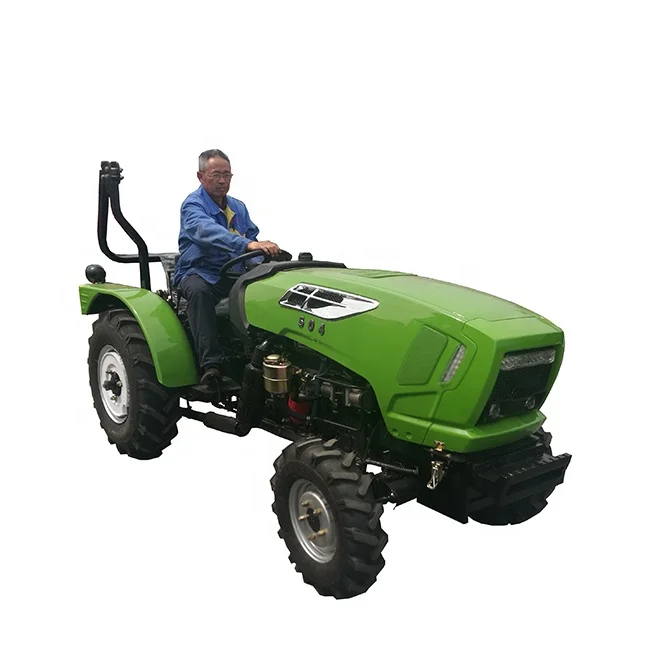

China manufacturer multy function vineyard tractor

vineyard tractor SPECIFICATION

Model

304

404

504

Drive type

4*4

4*4

4*4

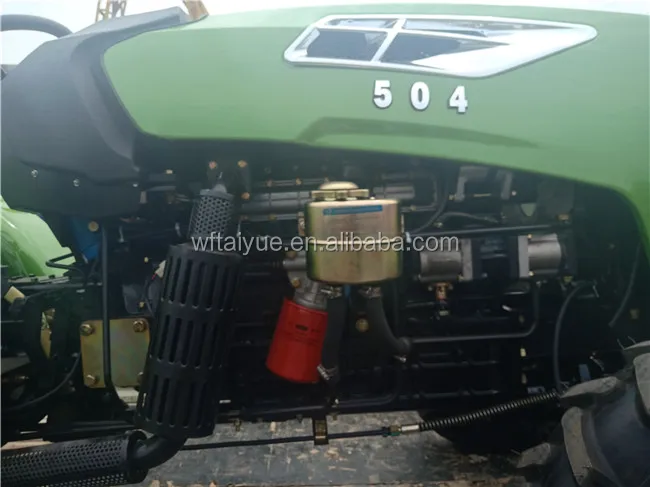

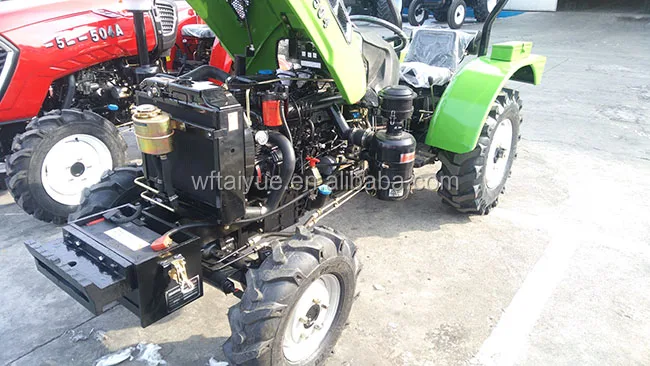

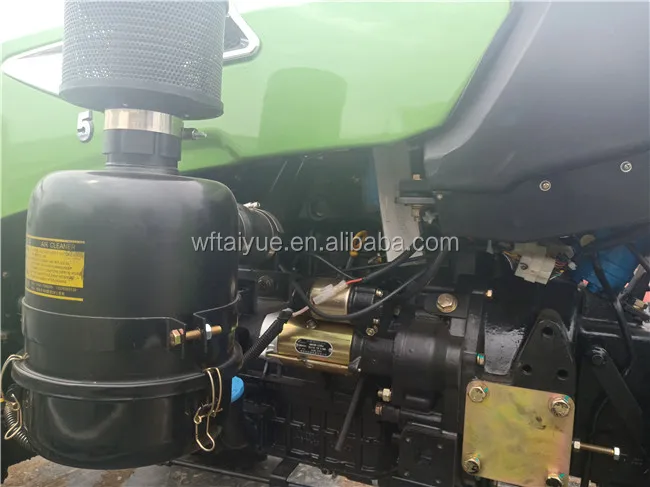

Engine

Engine brand

LD

LD

LD

Model

KM390BT

4L23BT

4L100

Type

3 cylinder,water-cooling, In-line, direct injection

4 cylinder,water-cooling, In-line, direct injection

4 cylinder,water-cooling, In-line, direct injection

Rated speed (r/min)

2300

2300

2300

Engine power (hp)

30hp/22.1kw

40hp/29.4kw

50hp/36.8kw

Transmission

Clutch

Dry, single or double clutch

Dry, single or double clutch

Dry, single or double clutch

PTO size

6 teeth φ35

6 teeth φ35

6 teeth φ35

PTO Speed(rpm)

540/720

540/720

540/720

Gear shift

(4+1)*2

(4+1)*2

(4+1)*2

Hydraulic system

Hydraulic output valve

2-Way opitonal

2-Way opitonal

2-Way opitonal

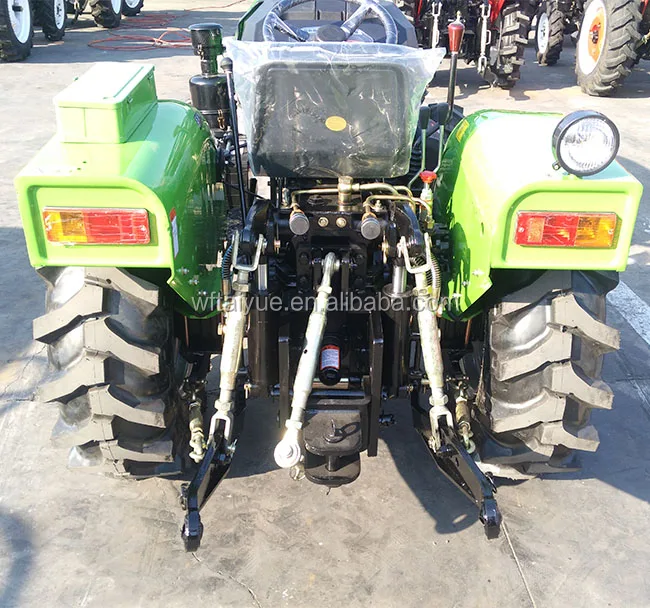

Three point linkage

Category of 3-point link

Category I

Category I

Category I

Lifting capacity(at point
of 610mm)KN

>6.4

>7.4

>8.4

Technical parameter

Dimension(L*W*H) mm

2800*1200*1900

2800*1200*1900

2800*1200*1900

Min.Net weight

1300kg

1350kg

Wheel base(mm)

1700

1700

1700

Front wheel tread(mm)

1000

1000

1000

Rear wheel tread(mm)

1000

1000

1000

The Min. clearance(mm)

320

320

320

Front tyre

6.0-12/7.5-12

6.0-12/7.5-12

6.0-12/7.5-12

Rear tyre

9.5-16/13.6-16

9.5-16/13.6-16

9.5-16/13.6-16

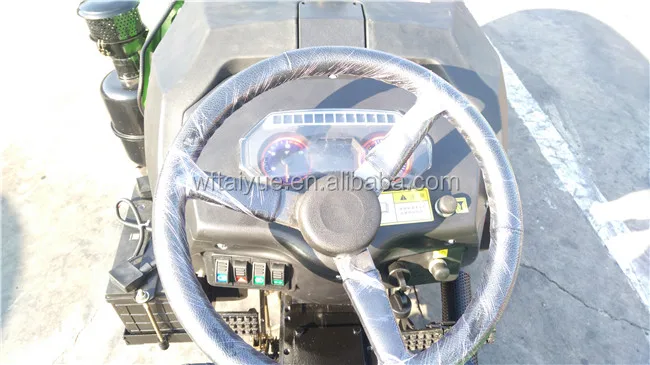

Steering type

Hydraulic Steering

Hydraulic Steering

Hydraulic Steering
