factory direct sale steel reinforcement automatic cage welding machine
- Category: >>>
- Supplier: Shandong Zhongji Luyuan Machinery Co. Ltd.
Share on (62338370983):
Product Overview
Description
Product Description
factory direct sale steel reinforcement automatic cage welding machine
Features:
1. control system: PLC, touch screen, inverter.
2. automatic wire feeding mechanism, the spacing can be adjusted online, the error is small, high molding quality.
3. frequency control drag cage institutions, high running accuracy.
4. with more automatic hydraulic feed rollers, to prevent steel cage deformation due to its own weight.
5. equipped with automatic feeding device, easy to operate and improve efficiency.
6. template using the template ring plus catheter combination, can be quickly replaced and transform the quantity of main steel cage wire .
7. straightening systems are made of high strength alloy material, high strength, anti-wear and improve the life of wearing parts
Model | BPM-1250 | BPM-1600 | BPM-2200 | BPM-2500 | |||||
Diameter of pole(mm) | 400 ~ 1250 | 500 ~ 1600 | 600 ~ 2200 | 800 ~ 2500 | |||||
Diameter of cage(m) | 12 ~ 27 | 12 ~ 27 | 12 ~ 27 | 12 ~ 27 | |||||
Max. Cage weight(kg) | 3000 | 4500 | 6000 | 8000 | |||||
Diameter of longitudinal bars | Ф12 ~ Ф50 | ||||||||
Distance between spiral bars | 50 ~ 500 | ||||||||
Diameter of spiral bars | Ф5 ~ Ф16 | ||||||||
Hydraulic pressure | 10 Mpa | ||||||||
Rated power | 13 | 15 | 23 | 27 | |||||
Length (M) | 27 ~ 57 | 27 ~ 57 | 27 ~ 57 | 27 ~ 57 | |||||
Width(M) | 5 | 5.5 | 8 | 8.5 | |||||
Height(M) | 2.2 | 2.5 | 3.3 | 3.5 | |||||

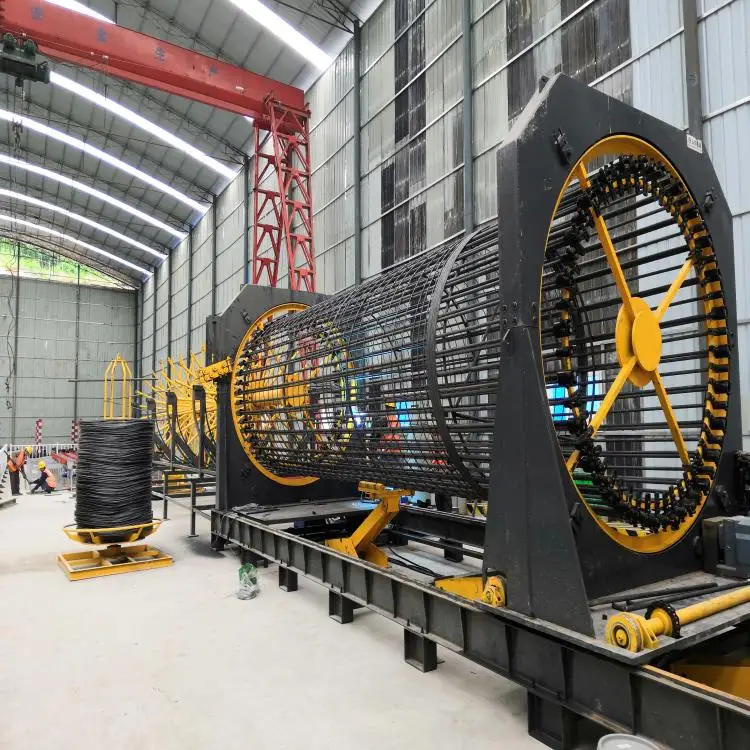

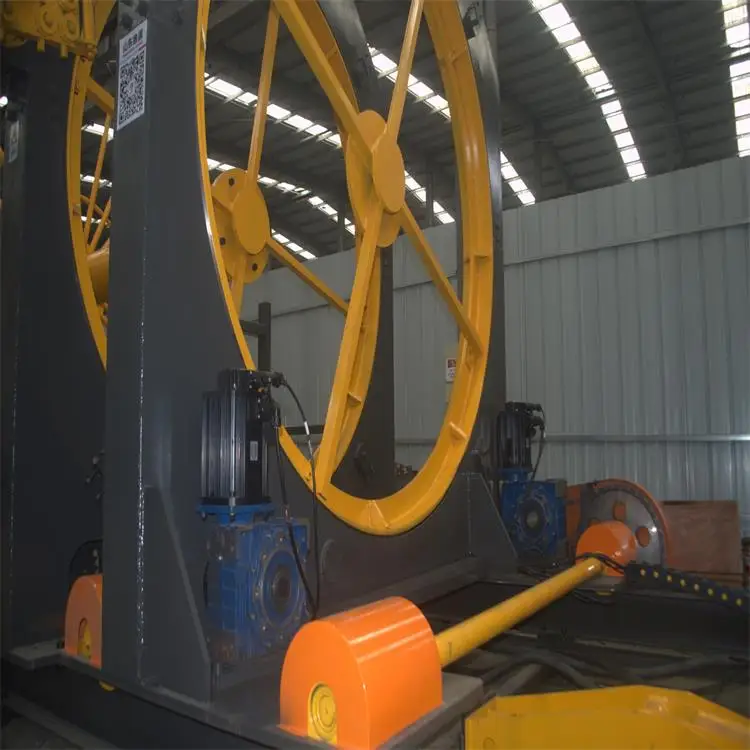

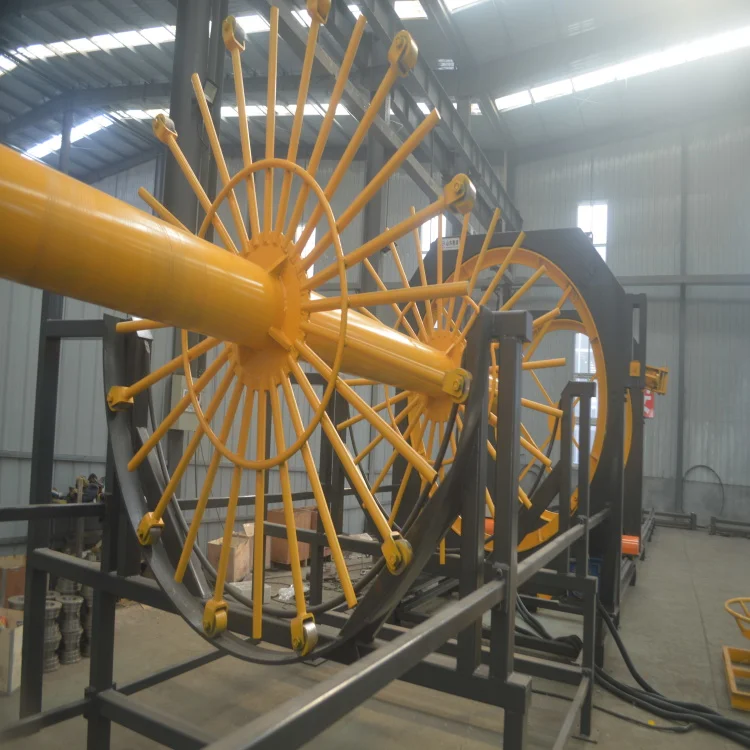

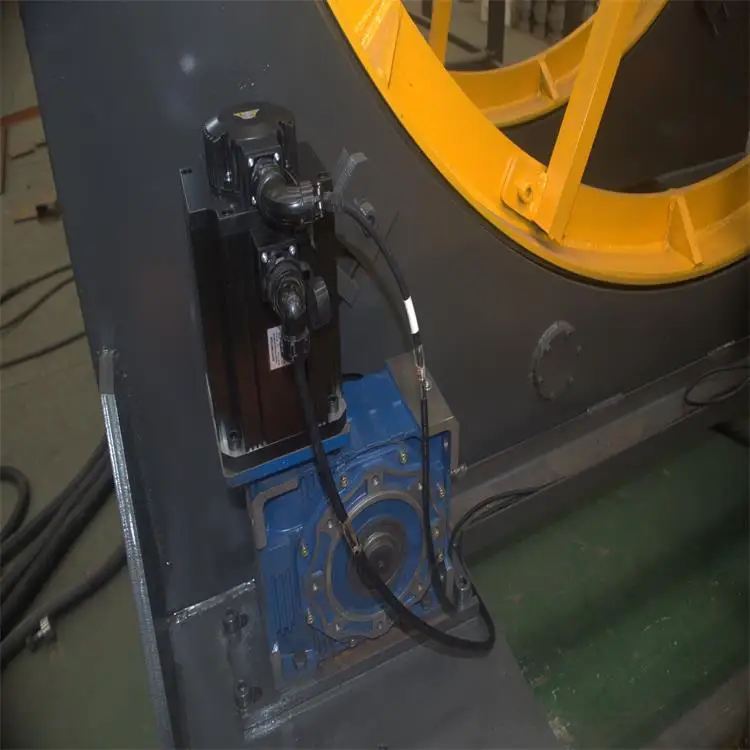

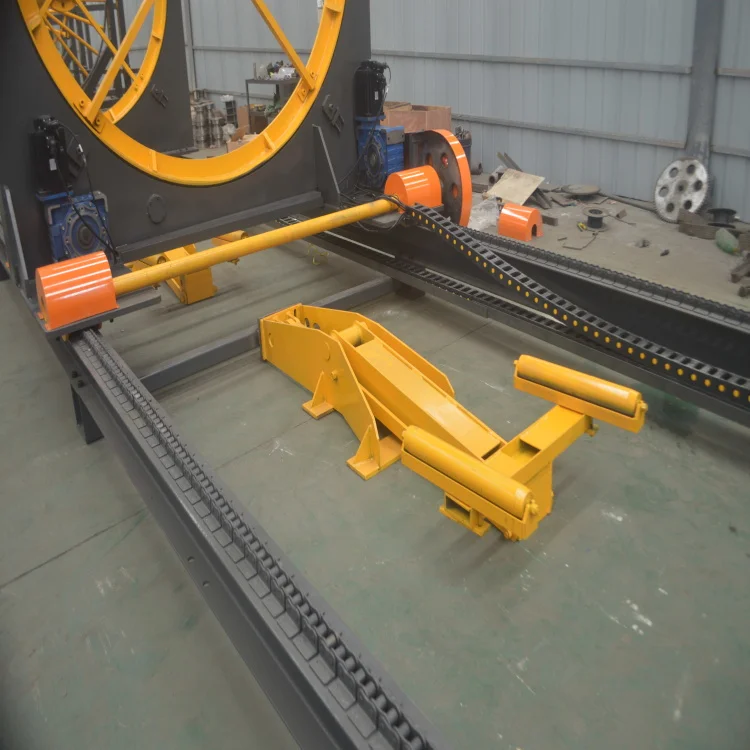

Products Show
Our Service
1, warranty period 1 year from B/L date.
2, within warranty period you could get spare parts for free.
3, You could get free training in our factory.
4, 24 hours technical support by Email, calling or door-to-door service.
Our Company
we are manufacturer of pile cage welding machine , CNC automatic steel bar bending machine,bending machine ,cutting machine, steel bar straightening machine etc.we also can supply setting up a new factory full line service . We have already exported various kinds of concrete pile ,pole and pipe concern making machines to overseas countries and regions such as Indonesia, Parkistan, Vietnam, Myanmar ,Korea,Malaysia ,South african,Mideast Southeastern Asia, etc..
Team
Our Team
Team
Our Team
Related Products
Our Certifications
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
Q:Where is your factory located? How can I visit there?
A:Our factory is located in Jining City, Shandong Province, China, about 2 hours from Beijing, 3 hours from Shanghai. All our clients, from home or abroad, are warmly welcome to visit us!
