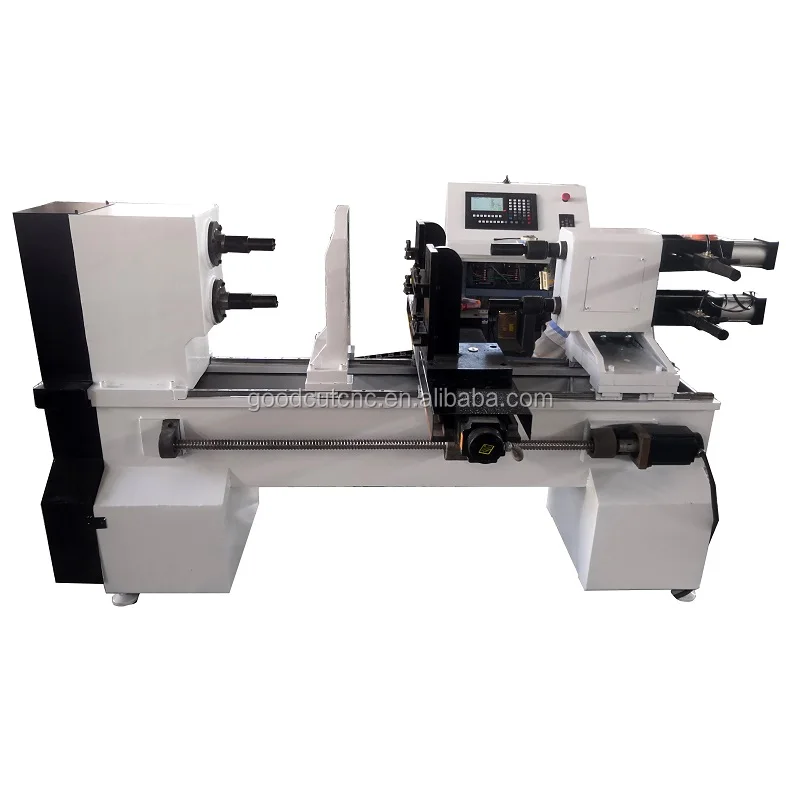

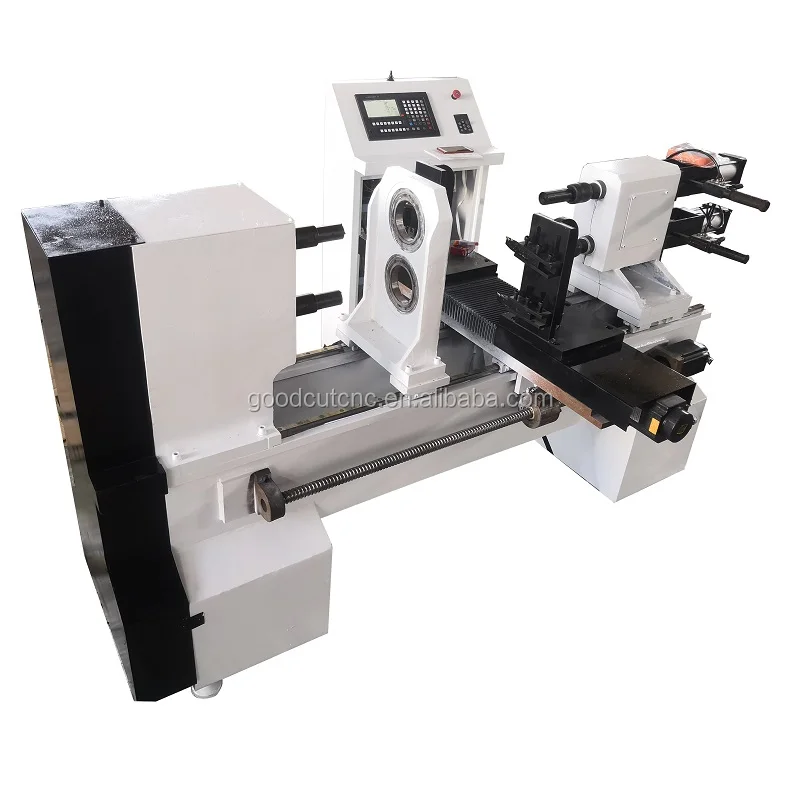

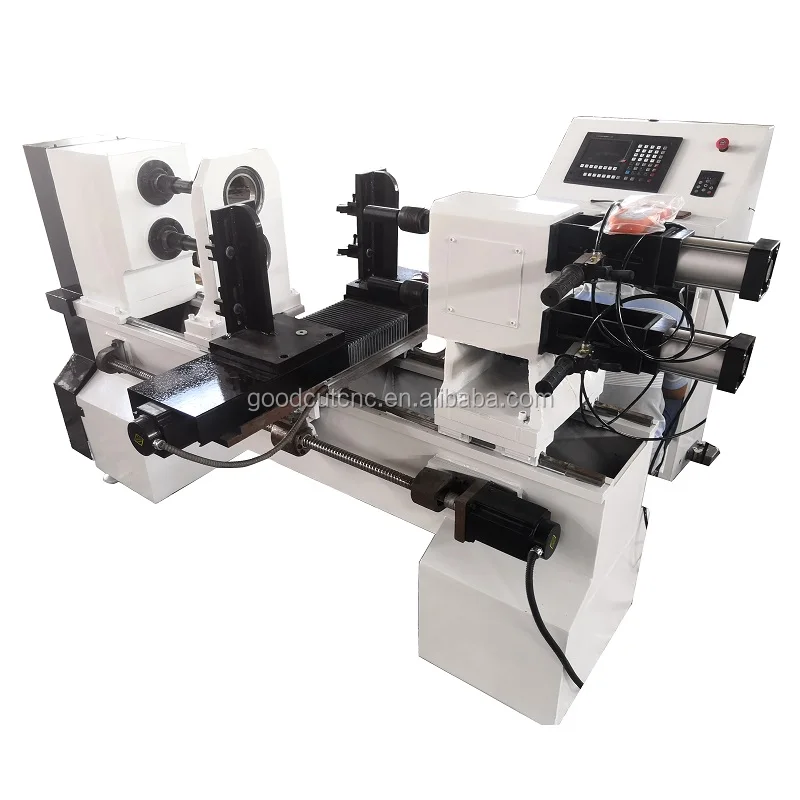

Double 2 axis wood turning attachment duplicator mini lathe machine

Share on (62338481425):


Price:RUB 368,041.44

Quantity:


Product Overview

Description

Double 2 axis wood turning copy attachment duplicator mini lathe machine



Our machine advantage:

1. it is CNC controller system controled

2. double axis, high working efficiency

3. Ma. working length 1000mm, diameter 150mm if use 2 axis together, if only lathe by 1 axis, can lathe 450mm diameter materials

4. best hard alloy wood lathe cutter in China market, can match with you soft wood cutter and hard wood cutter

5. can designed by your requirement

6. imported square orbit and ballscrew transmission

7. long lifespan, high precision

8. processing precision: 0.01mm

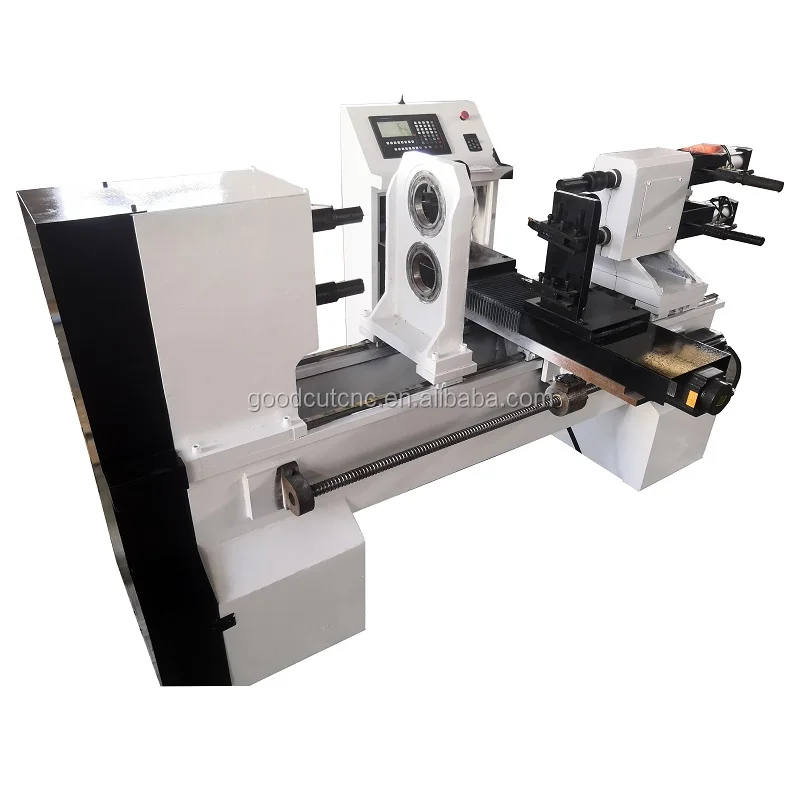

wood lathe machine (4)wood lathe machine (6)wood lathe machine (5)



Machine frame

6mm industry welded square tube

Double axis together lathe max diameter

150mm

Single axis lathe maximum max diameter

450mm

Max length

1000mm

Spindle inverter

Yes

Axis

Double axis

Knife

4 pieces tools

Spindle rotating speed

0-2800r/min

Motor

4kw 16N*8N stepper motor

Guide rail

25mm square linear raits

Sliding block

Sliding block*4, length sliding block

Ball screw

3210, 2510 imported ball screw

Limited switch

Yes

Support image format

dxf

Software compatibility

AutoCAD/Type3/Artcam/Artcut/Ucancam/JDpaint etc.

Computer interface

Ethernet

Working voltage

110/220V, 60HZ

Accuracy

0.001mm

Environment temperature

0-45 centigrade

Relative humidity

30%-75%

Weight

1200kw

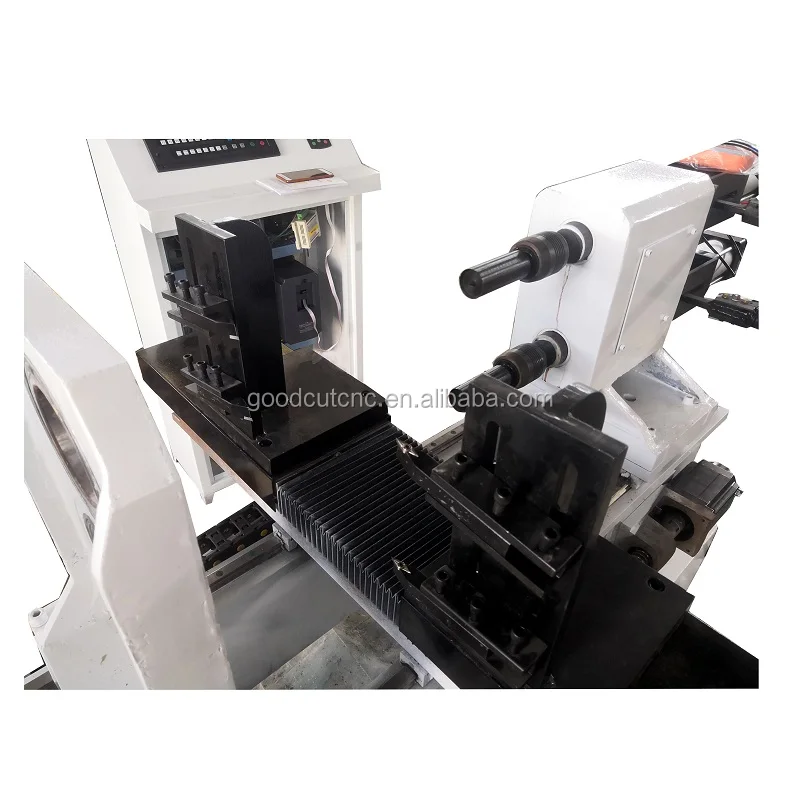

wood lathe machine (1)



Application for double axis mini wood lathe machine:

Staircases, stairway balusters, stairway newel posts; dining table legs; end table Legs; sofa table legs;

bar stool legs; chair legs; chair arm posts; chair stretchers; bed rails, lamp posts,baseball bats etc.

lathe sample 3lathe samplelathe sample 2





Wood Turning lathe is special for Staircases, Stairway Balusters, Stairway Newel Posts, Dining Table Legs, End Table Legs, Sofa Table Legs, Bar Stool Legs, Chair.



Various cylindrical workpiece, bowl sharp, tubular sharp and vehicle wood crafts, such as various staircase column, Roman column, general column, tables or chairs legs, washstand, wooden vase, wooden table, baseball bat, car wooden furniture, children' s bed column, etc.





Jinan GoodCut CNC

Jinan GoodCut CNC Machinery Co.,Ltd.



GoodCut has Purchasing department, The design department, The production department, Quality inspection department, packaging and transportation department, The sales department, After sales service department.

We can offer highest quality machine, and competitive price.



GoodCut factory



We have over 20 engineers. And our engineer has more than 20 years experience.

Their built machine precision is very high.

And they are strict on machines.

engineer



Jinan GoodCut CNC Machinery Co.,Ltd. professional machine design

machine design (2)
