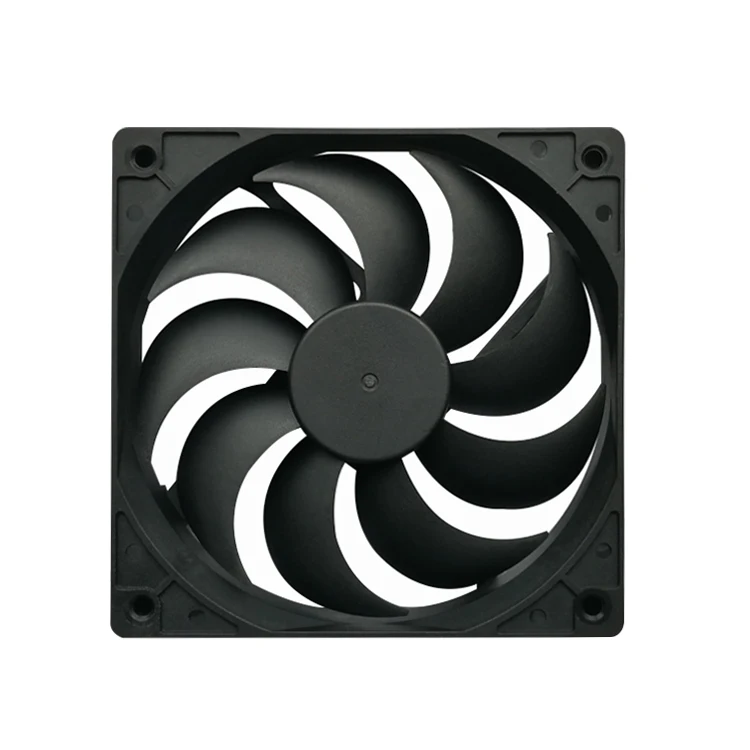

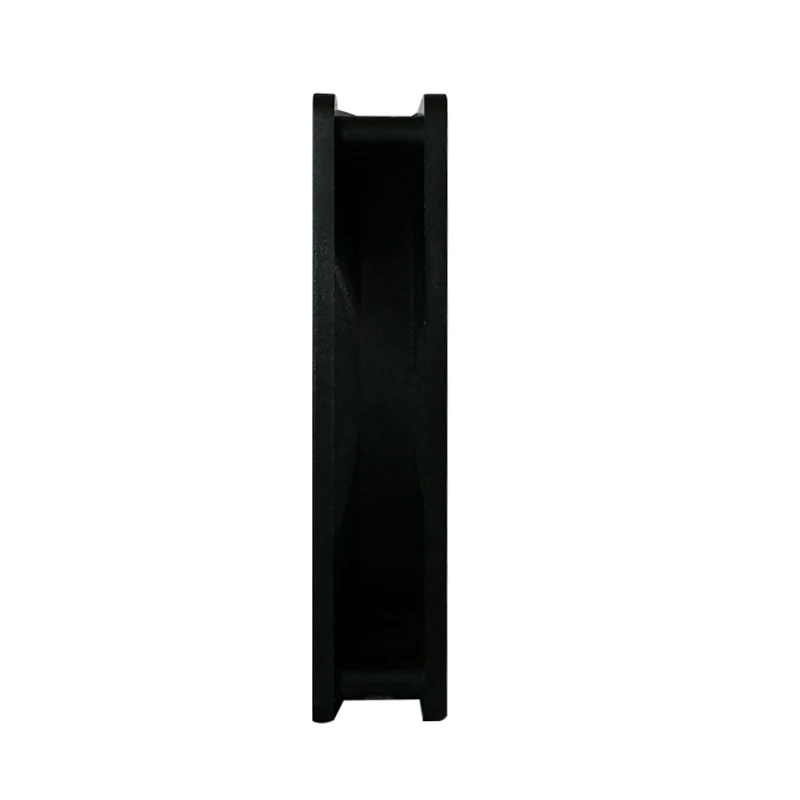

120x120x25mm 12V DC Brushless 4 inch Cooling Fan
- Category: >>>
- Supplier: Shenzhen Cooling Technology Co. Ltd.
Share on (62338488403):
Product Overview
Description
120mm Fan 120x120x25mm 24 Volt DC Cooling Fan
| Product Name | DC Brushless Fan |
| Dimension | 120x120x25mm |
| Voltage Rated | 12V |
| Air Flow | 92.4CFM |
| Static Pressure | 3.98mmH2O |
| Bearing Type | Sleeve |
| Noise | 42.1 dB(A) |
| Power (Watts) | 3.72W |
| Speed | 2500RPM |
| Termination | 2 Wire Leads |
| Current Rating (Amps) | 0.31A |
| Approval | CE |
Specification
| Model | Voltage | Current | Power | Speed | Air Flow | Air Pressure | Noise |
| Part No. | VDC | Amp | Watt | RPM | CFM | mmH2O | dB-A |
| CLD12025L12 | 12V | 0.18 | 2.16 | 1500 | 64.2 | 1.76 | 30.5 |
| CLD12025M12 | 12V | 0.25 | 3.0 | 2000 | 76.6 | 2.43 | 36.5 |
| CLD12025H12 | 12V | 0.31 | 3.72 | 2500 | 92.4 | 3.98 | 42.1 |
| CLD12025HH12 | 12V | 0.45 | 5.4 | 3000 | 107 | 5.04 | 47.4 |
| CLD12025L24 | 24V | 0.09 | 2.16 | 1500 | 64.2 | 1.76 | 30.5 |
| CLD12025M24 | 24V | 0.125 | 3.0 | 2000 | 76.6 | 2.43 | 36.5 |
| CLD12025H24 | 24V | 0.155 | 3.72 | 2500 | 92.4 | 3.98 | 42.1 |
| CLD12025HH24 | 24V | 0.225 | 5.4 | 3000 | 107 | 5.04 | 47.4 |
| CLD12025L48 | 48V | 0.045 | 2.16 | 1500 | 64.2 | 1.76 | 30.5 |
| CLD12025M48 | 48V | 0.063 | 3.0 | 2000 | 76.6 | 2.43 | 36.5 |
| CLD12025H48 | 48V | 0.078 | 3.72 | 2500 | 92.4 | 3.98 | 42.1 |
| CLD12025HH48 | 48V | 0.112 | 5.4 | 3000 | 107 | 5.04 | 47.4 |
