Meenjet Automatic Batch Code Printing Machine Continuous Inkjet Printer Online CIJ Expiry Date Inkjet Date Coder
- Category: >>>
- Supplier: Wuhan Xiantong Technology Co. Ltd.
Share on (62338505121):
Product Overview
Description
Meenjet Automatic Batch Code Printing Machine Continuous Inkjet Printer Online CIJ Expiry Date Inkjet Date Coder

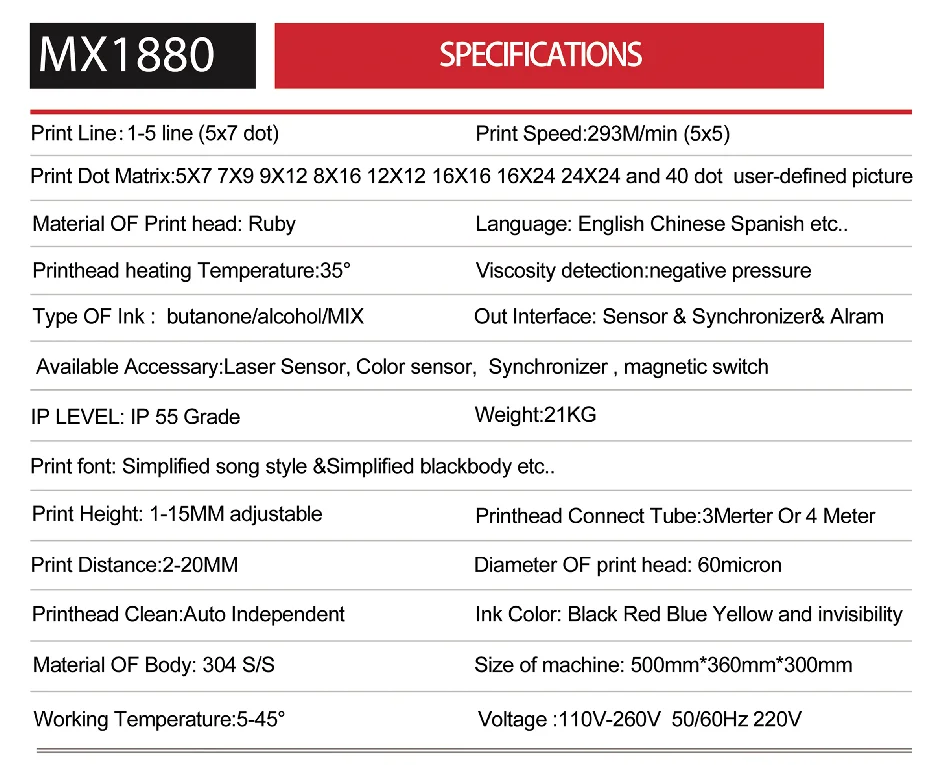

| Meenjet CIJ Batch Coding Machine | Model: MX1880 |
| IP Level | IP55 Grade |
| Net Weight | 21 KG |
| Print Height | 1-15mm adjustable |
| Printhead Connect Tube | 3 or 4 meter |
| Size of machine | 500 mm x 360mm x 300mm |
| Available Accesary: laser sensor, color sensor, Synchronizer, magnetic switch | |
| Printing lines | 1-4 lines (5x5 lattice) |
| Printing font | 5X5 |
| Spray Printing Matrix | Number and Letter 5X4 5x7 x9 8X12 x16 16x16 24x24 |
| Chinese font | 12x12 14x14 16x16 24x24 32x32 40x40 simple song, simple black, and custom graphics within 40 dot matrix |
| Spray printing speed | 2000 characters per second (5x5) |
| Printing height | 1-20mm adjustable |
| Text input | full spelling input |
| Nozzle Conduit | 3m, 4m |
| Nozzle Material | Ruby |
| Nozzle aperture | 60um |
| Spray Printing Distance | 2-20mm from Product Surface |
| Viscosity Testing | Negative Pressure Viscosity Testing |
| Nozzle Cleaning | Independent Automatic Cleaning |
| Ink Types | Butanone/Alcohol/Mixture |
| Ink color | black, red, blue, yellow invisibility |
| External interface | USB RS232 photoelectric synchronizer alarm lamp |
| Optional accessories | three-color alarm lamp synchronous encoder color label sensor optical fiber sensor time relay |
| Box Material | Stainless Steel 304 |
| Protection Level | IP55 Protection Level |
| Cabinet size | 500 mm X360 mm X325 |
| Operating temperature | range 5-45 |
| Environmental humidity | range 10-90% (non-condensation) |
| Operating Voltage | 50/60 Hz 220V |
