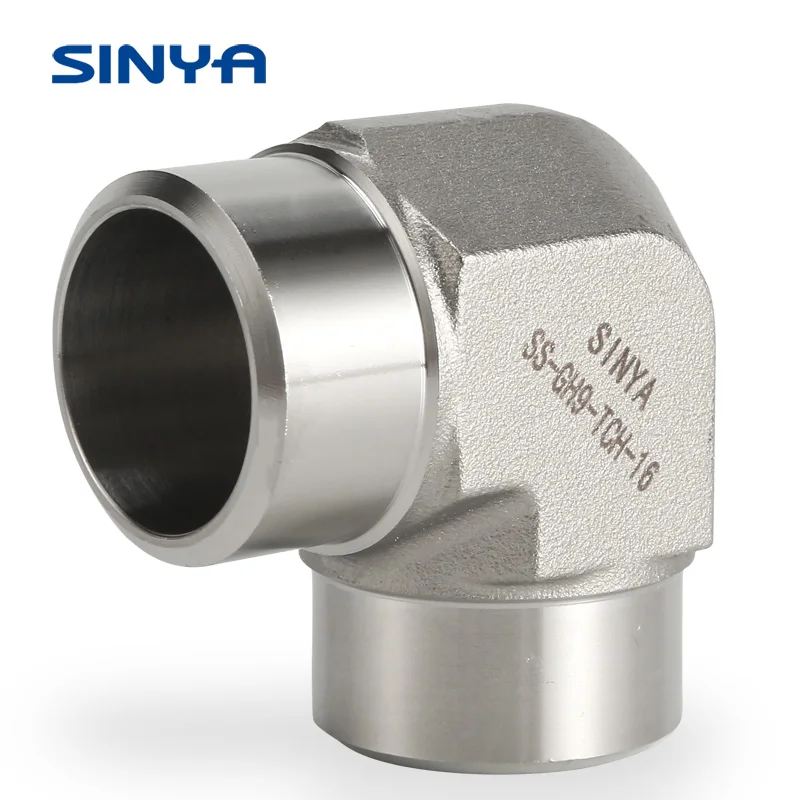

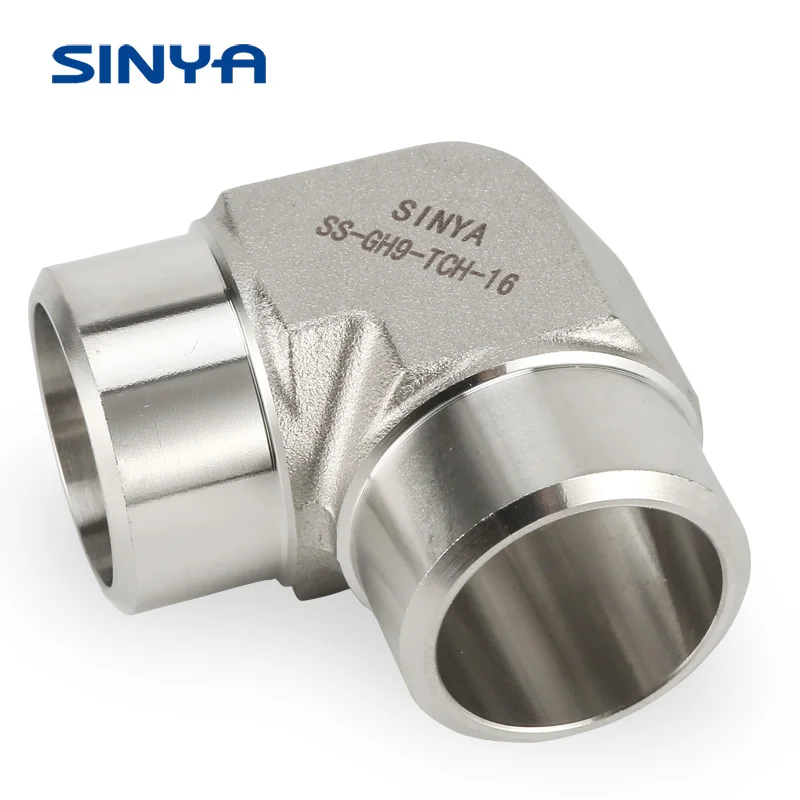

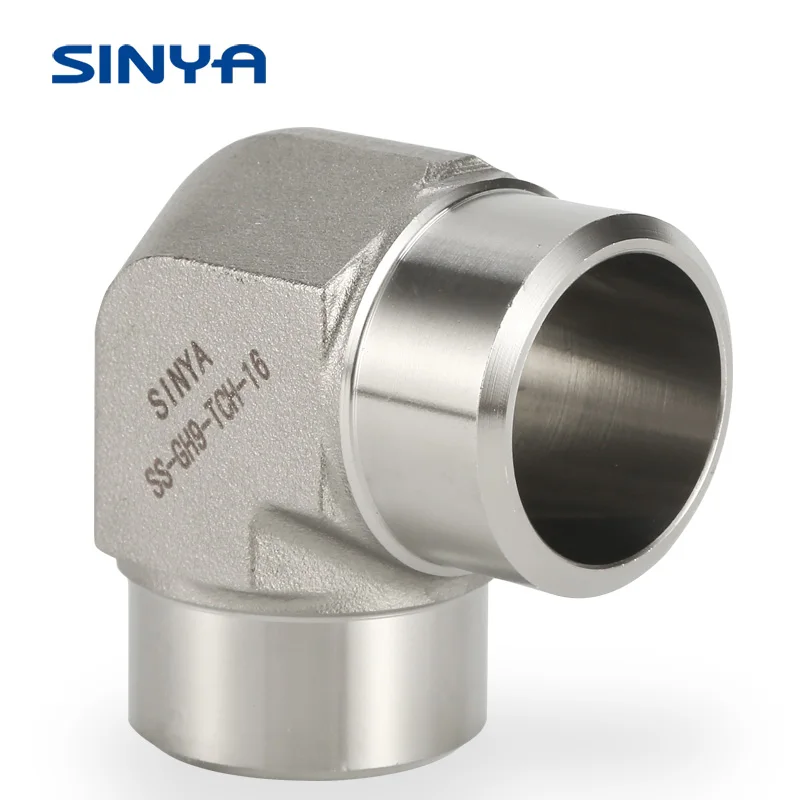

Hydraulic Pipes & Fittings Manufacturer of ASME B 16.11 Socket Welding 90 Elbow 316 Stainless Steel Forged Elbow Weld Fittings
- Category: >>>
- Supplier: Yangzhong Xinya Automatic Control Engineering Co. Ltd.
Share on (62338582094):
Product Overview
Description
Product Description
1.Each fitting is stamped with specification,size and trade mark. | ||||||
2.Each fitting is finished by deburring and oil-removing. | ||||||
3.The union is made with barstocks of high-quality and others are made with forgings and die forgings. | ||||||
4.Desiging,manufacturing and inspection are in accordance with ANSI B16.11. | ||||||

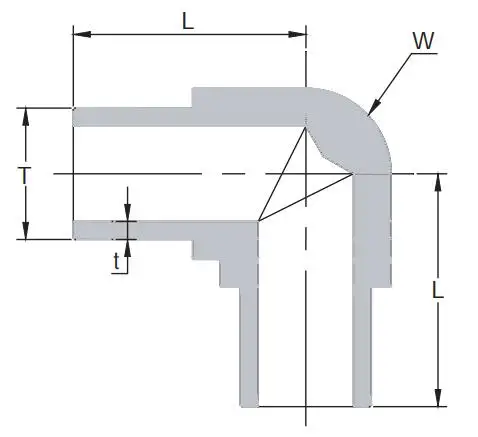

-GH9-TCH BW Elbow | ||||||||||||||||
Order information | T | t | L | W | PSI | |||||||||||
in/mm | (in) | (mm) | (in) | (mm) | (in) | (mm) | ||||||||||
-GH9-TCH-2 | 1/8 | 0.028 | 0.7 | 0.51 | 13 | 0.31 | 7.9 | 7.9 | ||||||||
-GH9-TCH-4 | 1/4 | 0.035 | 0.9 | 0.63 | 16 | 0.37 | 9.5 | 9.5 | ||||||||
-GH9-TCH-6 | 3/8 | 0.035 | 0.9 | 0.75 | 19 | 0.5 | 12.7 | 12.7 | ||||||||
-GH9-TCH-8 | 1/2 | 0.049 | 1.2 | 0.83 | 21 | 0.56 | 14.2 | 14.2 | ||||||||
-GH9-TCH-12 | 3/4 | 0.049 | 1.2 | 0.98 | 25 | 0.82 | 20.8 | 20.8 | ||||||||
-GH9-TCH-16 | 1 | 0.065 | 1.7 | 1.1 | 28 | 1.06 | 27 | 27 | ||||||||
-GH9-TCH-6mm | 6 | 0.039 | 1 | 0.51 | 13 | 0.31 | 7.9 | 7.9 | ||||||||
-GH9-TCH-8mm | 8 | 0.039 | 1 | 0.63 | 16 | 0.37 | 9.5 | 9.5 | ||||||||
-GH9-TCH-10mm | 10 | 0.039 | 1 | 0.75 | 19 | 0.5 | 12.7 | 12.7 | ||||||||
-GH9-TCH-12mm | 12 | 0.039 | 1 | 0.83 | 21 | 0.56 | 14.2 | 14.2 | ||||||||
-GH9-TCH-14mm | 14 | 0.059 | 1.5 | 0.91 | 23 | 0.69 | 17.4 | 17.4 | ||||||||
-GH9-TCH-16mm | 16 | 0.059 | 1.5 | 0.94 | 24 | 0.69 | 17.4 | 17.4 | ||||||||
-GH9-TCH-18mm | 18 | 0.059 | 1.5 | 0.98 | 25 | 0.75 | 19 | 19 | ||||||||
Our Services
Sinya tries to get the satisfaction of all users by providing Premium Quality products and services in the field of Instrumentation tube fitting & valves ,and also providing an appropriate combination of price, quality, satisfying services and fast delivery. Its products are provided based on three fundamental factors: 1) Quality 2) Variety 3) Reliability | ||||||
1.Custom design, CAD drawing | ||||||
2.P&ID | ||||||
3.Component selection | ||||||
4.Bill of material | ||||||
5.Professional services such as bending and welding | ||||||
6.Testing to guarantee the system | ||||||
7.Professional packaging and delivery | ||||||

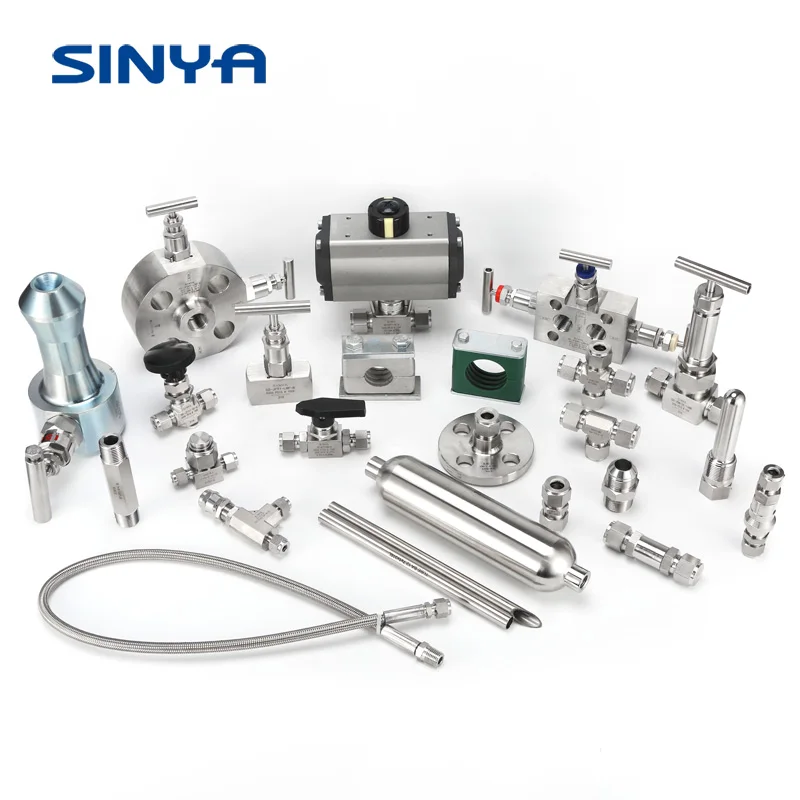

Products Display
Contact us to get more information : | ||||||||
Tube Fittings | Check Valves | Manifolds Valves | In-line Filters | Thermowells | ||||
Pipe Fittings | Relief Valves | Distribution Manifolds | Instrumentation Tubing | Syphons | ||||
Needle Valves | Air Headers | Bleed & Purge valves | Sample Cylinders | Tube Clamps | ||||
Ball valves | Gauge Valves | T-type Filters | Pots and Vessels | |||||
Packing & Delivery
Mode of packing: Export standard package or as your detail request. | ||||||
Delivery time: 2 weeks after receipt of payment | ||||||
Mode of shipment: By Express like DHL,Fedex,TNT Ups. | ||||||
Our Company
1.Established in 1995. | ||||||
2.We are professional manufacturer of Instrumentation Tube Fittings, Pipe Fittings, Needle valves, Ball Valves, Check Valves, Manifold Valves, DIN 2353 Fittings, Sampling systems, Water Heater Accessories. | ||||||
3.Products are available in the variety of different materials, such as Stainless steel 316/316L, Duplex, Super Duplex, Hastelloy, Monel, Inconel, Incoloy, Titanium, Zirconium. | ||||||
4.We located in Zhenjiang City, near shanghai port with convenient transportation access worldwide. | ||||||
5.Our products are widely used in industries of Chemical, Petrochemical, Power Generation, Oil, Gas, Shipbuilding. | ||||||
6.Always available to discuss your requirements and ensure full customer satisfaction. | ||||||
7.We have Japanese Mazak CNC machine, 3D measure equipment, Raw Material chemical composition inspection equipment, High pressure test equipment, etc. | ||||||
8.We have obtained ISO9001 certificate, CE Certificate | ||||||
9 Our products are exported to Middle east, North America, South America, South East Asia, Europe and other countries.. | ||||||
10.We also welcome OEM and ODM orders. Please feel free to contact and visit us. | ||||||
