Product Overview
Description
Product Description

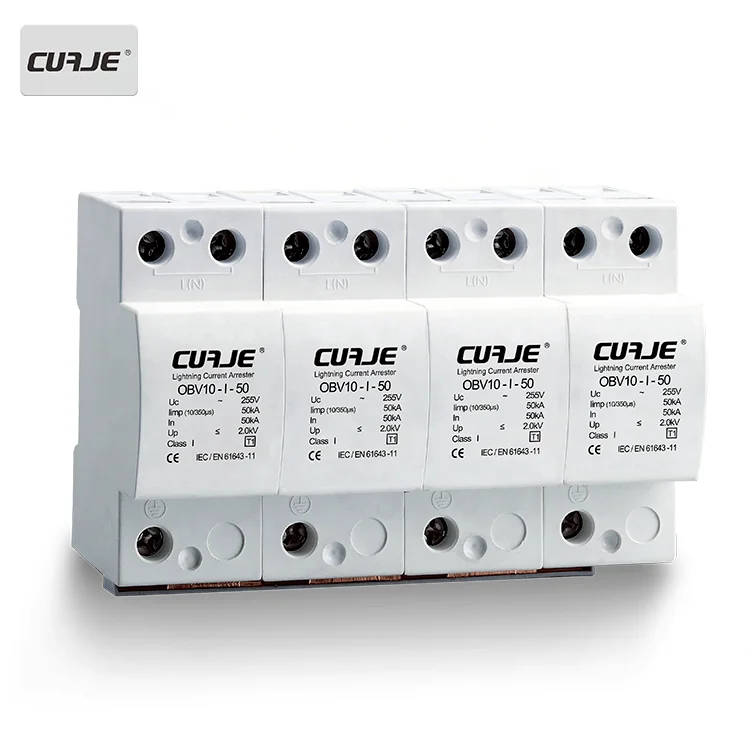

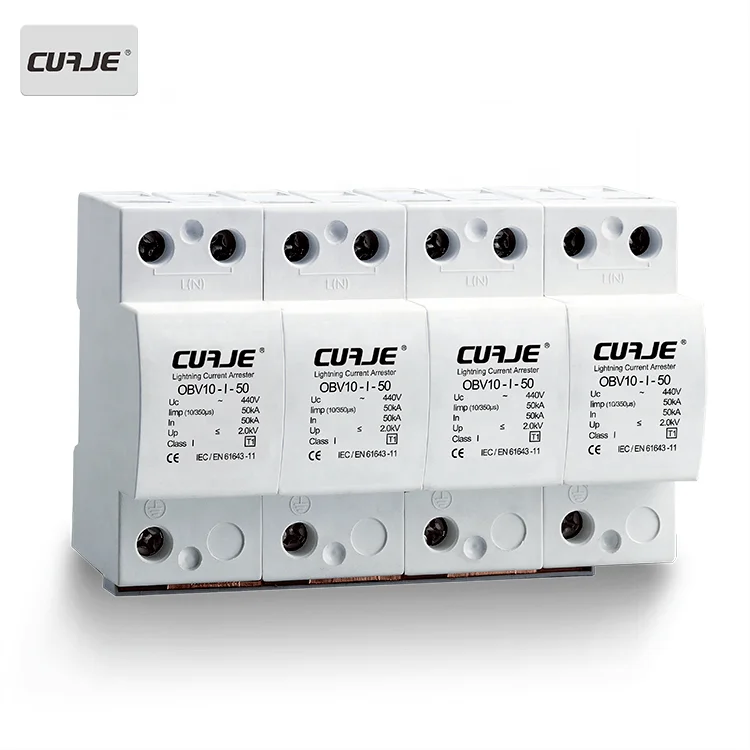

level 1 lightning arrester OBV10-I-50 meet the type 1 requirement class according to IEC 61643-11. These devices protect low-voltage consumer systems from overvoltages of all types and are available in single-pole to four-pole versions.The voltage-limiting,high-performance spark gaps provide several benefits.A short response time, a low protection level and high current leakage capability with long service life.
+ Connectable lightning current and surge arrestors
+ High arresting capacity up to 50 kA (10/350μs) per pole
+ Combination arrestors for buildings with lightning protection system
+ Simple standard hat rail mounting
+ Labelled connections
+ Usable in systems with lightning protection class 1-4
Model: OBV10-I-50-Pluggable | |||
Maximum continuous operating voltage | Uc | V | 255/275/320/385 |
SPD to EN 61643-11 |
|
| Type 1 |
SPD to IEC 61643-1 |
|
| class I |
LPZ |
|
| 0→2 |
Lightning impulse current (10/350μs) | Iimp | kA | 50 |
Lightning impulse current (10/350μs) [total] |
| kA | 200 |
Nominal discharge surge current (8/20μs) | In | kA | 50 |
Arrester surge current (8/20μs) [total] |
| kA | 200 |
Voltage protection level | Up | kV | 1,3 |
Response time | tA | ns | <100 |
Follow current quenching capacity Ipeak | Ifi peak | kA | 25 |
Maximum back-up fuse |
| A | 500 |
Temperature range | ϑ | °C | -40℃~+85℃ |
Protection rating |
|
| IP 20 |
Connection cross-section, rigid |
| mm² | 10-50 |
Connection cross-section, multi-wire |
| mm² | 10-35
|
Connection cross-section, flexible |
| mm² | 10-25 |

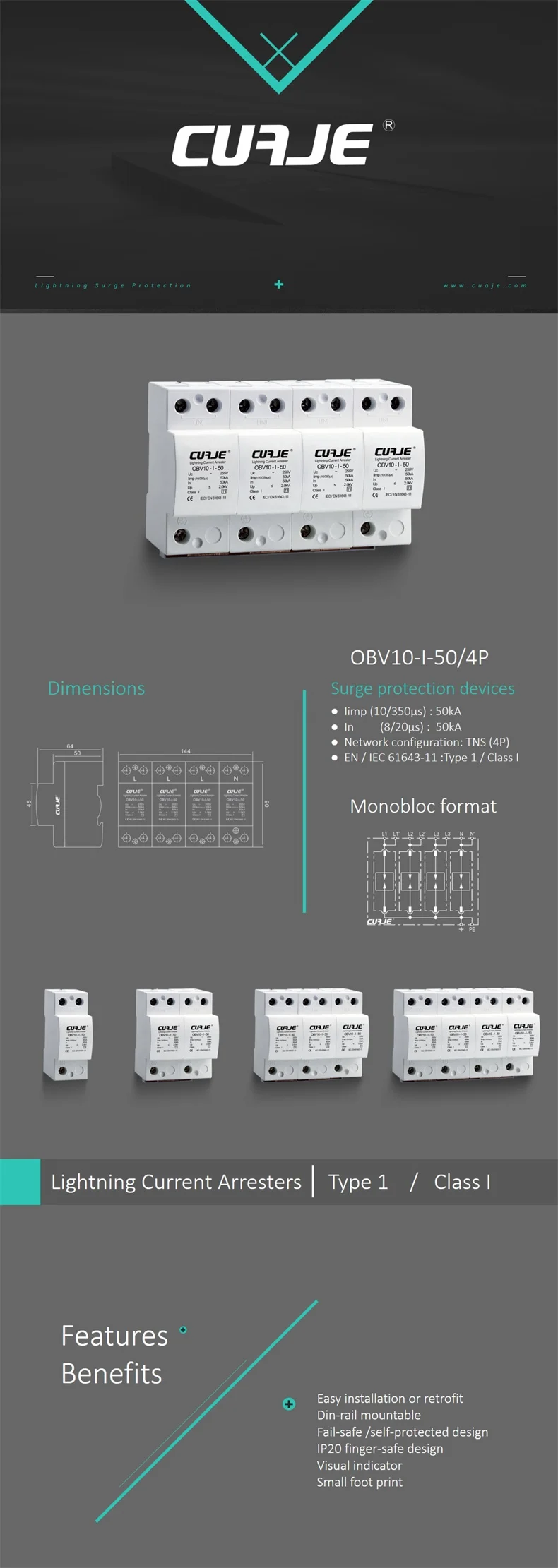

Dimension
application
Our Services
Certifications
Company Information
contact information
FAQ
Q: Can I get some samples?
A: Yes, Sample orders welcomed.
Q: Can I use my own Logo or design on goods?
A: Yes, Customized logo and design on mass production are available.
Q:What is the delivery time?
A: 3 days for samples, 7-15 days for mass production.
Q: What is the payment term?
A: T/T, L/C at sight, West union , Paypal, etc
Q: Can I trust you?
A: Absolutely YES, We are “Alibaba” verified supplier for many years.
Q: May I visit your factory?
A:Sure, welcome any time. We can also pick you up at airport or station.
