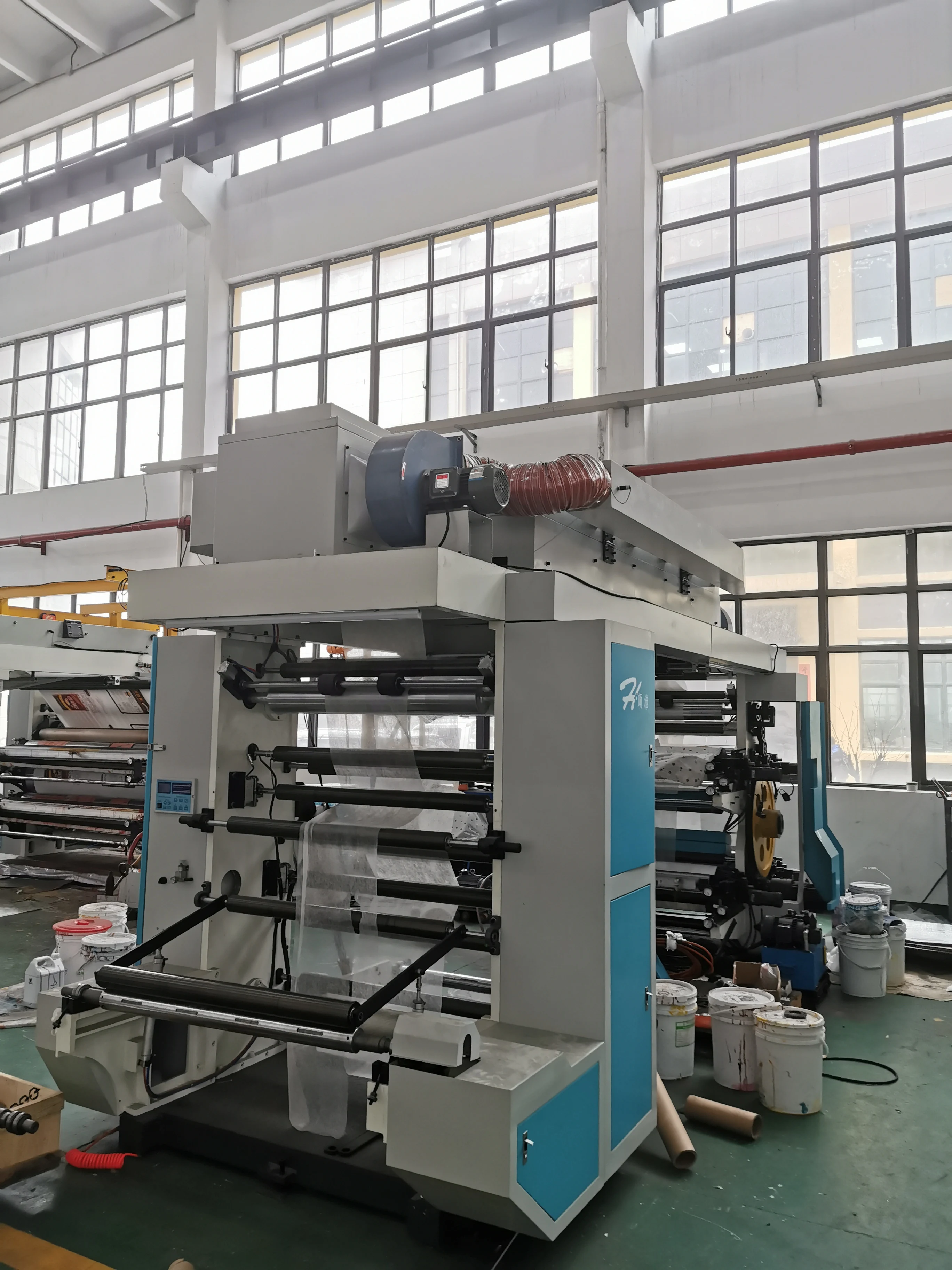

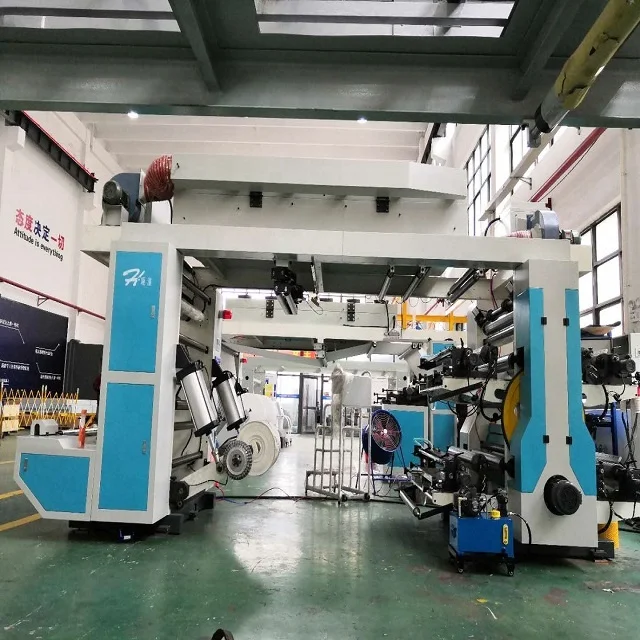

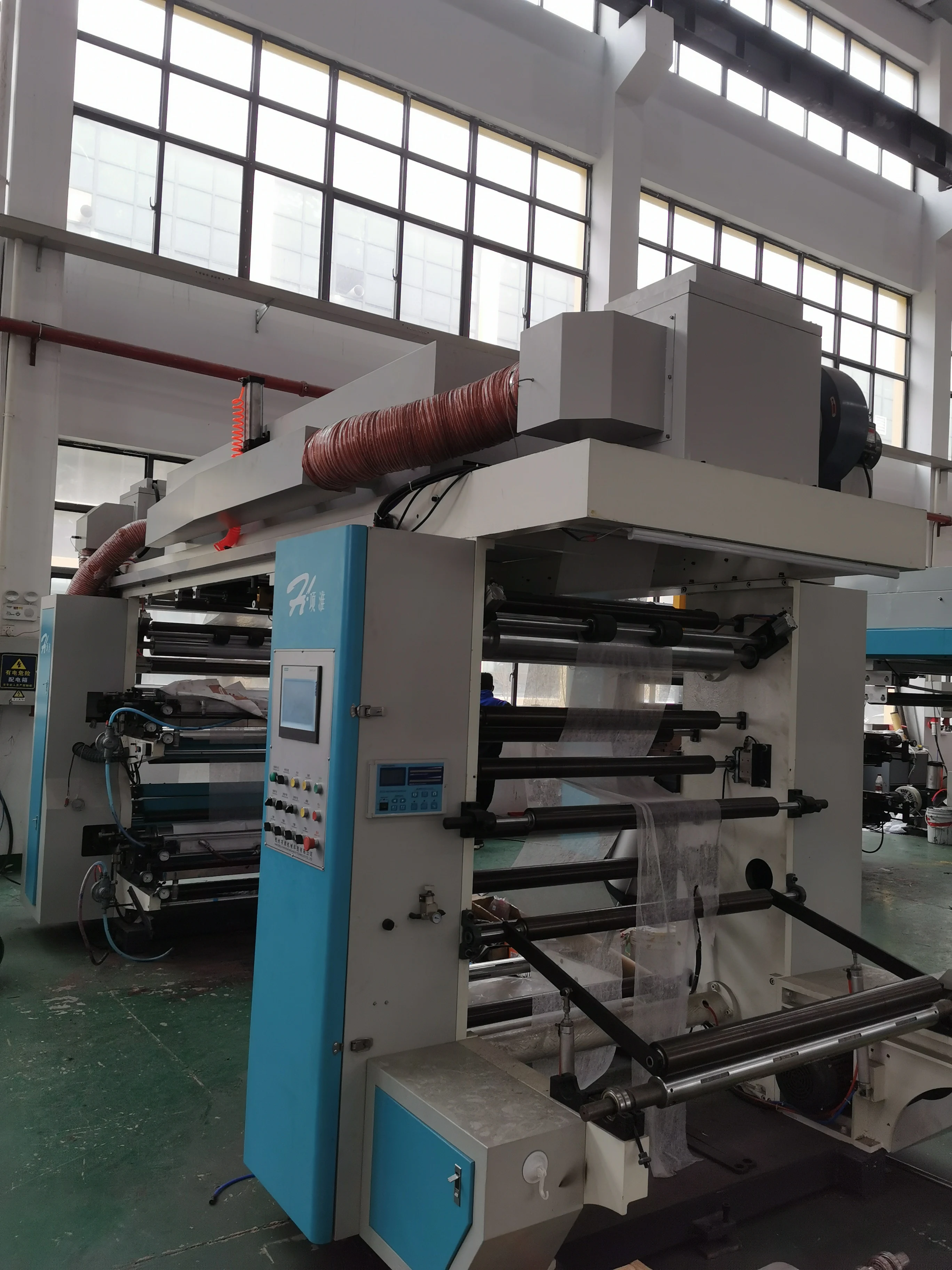

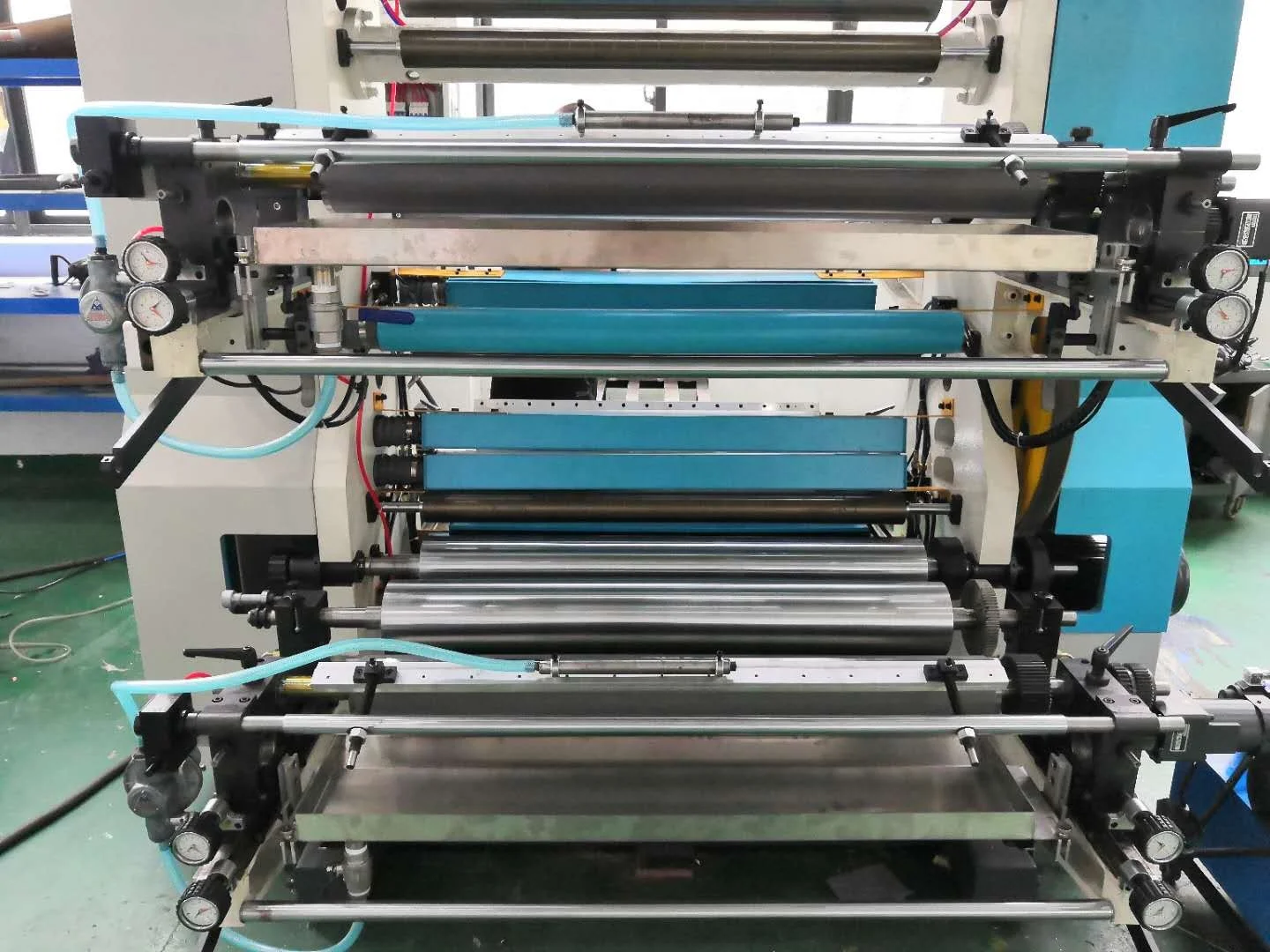

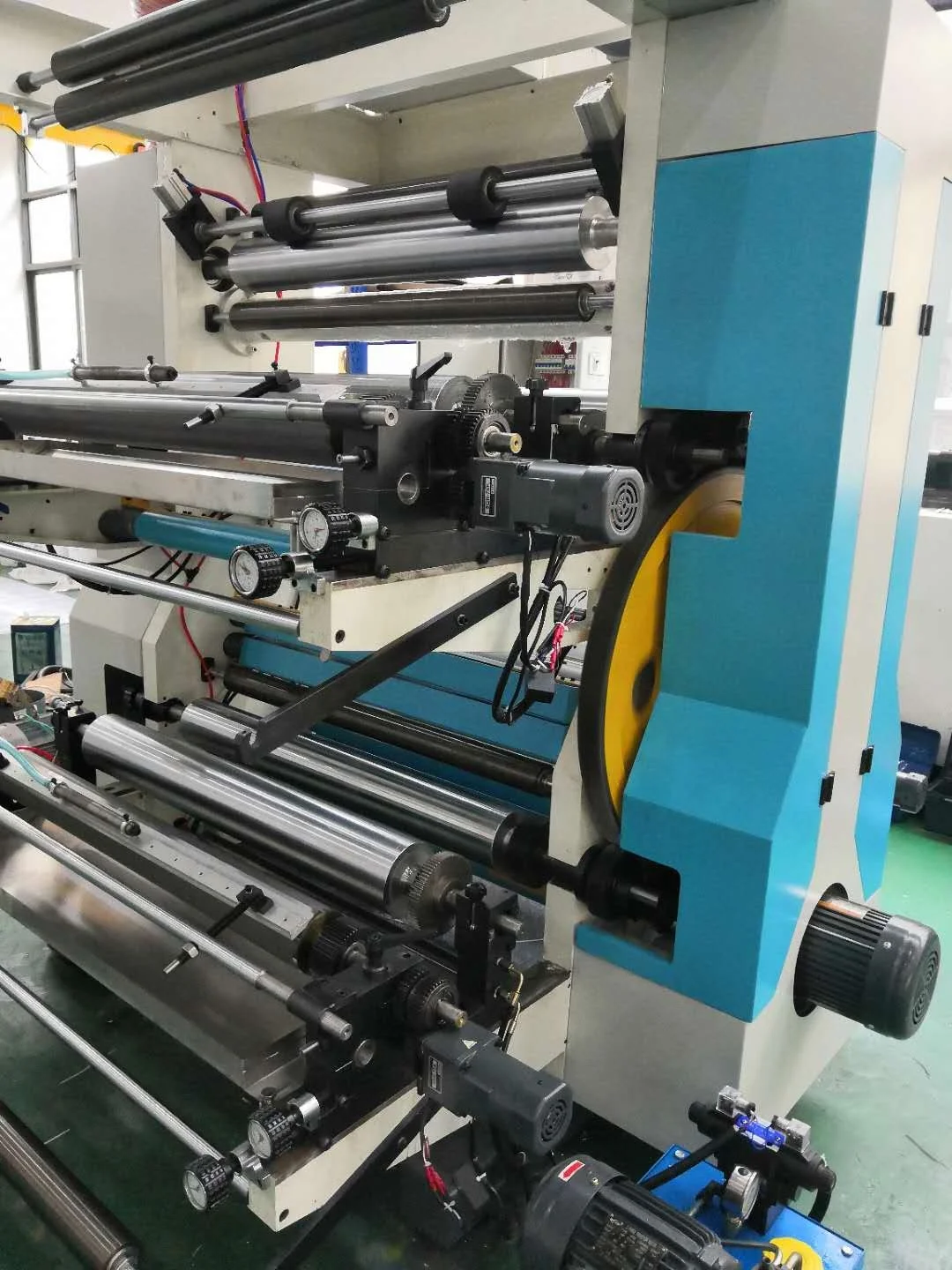

4 Color Flexo Printing Machine
4 color flexo printing machine Parameter :
Model of Machine | XHYT-E-4600 | XHYT-E-4800 | XHYT-E-41000 |
Max.Width of Printing Material | 600mm | 800mm | 1000mm |
Max.Printing With | 560mm | 760mm | 960mm |
Repeat Printing Length | 260-1050mm | 260-1050mm | 260-1050mm |
Max.Diameter of Roll Material | φ1000mm | φ1000mm | φ1000mm |
Printing Speed | 5~100m/min | 5~100m/min | 5~100m/min |
Thickness of plate(Including Two-sides Glue Paper) | 2.28mm | 2.28mm | 2.28mm |
Total Power | 10.87kw | 12.5kw | 14.37kw |
Weight of Machine | 3000kg | 3500kg | 4000kg |
Overall Dimensions | 4200×1800×2500mm | 4200×2000×2500mm | 4200×2300×2500mm |

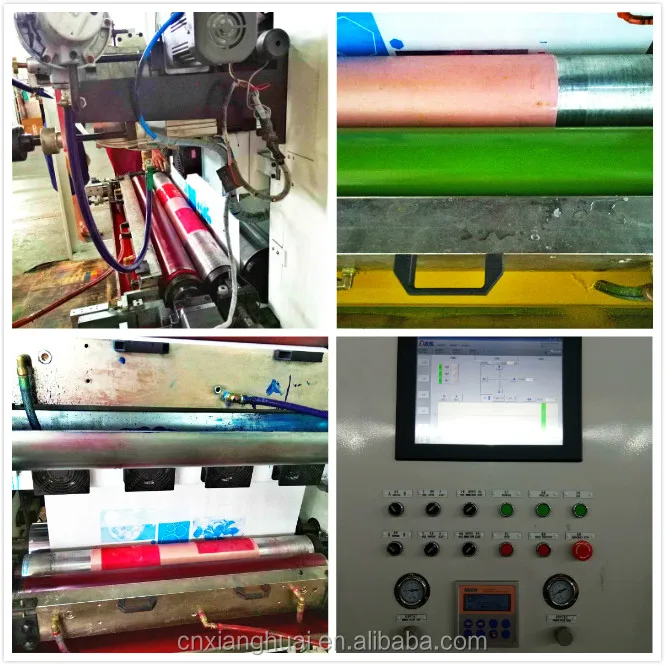

Features of 4 colors flexo printing machine

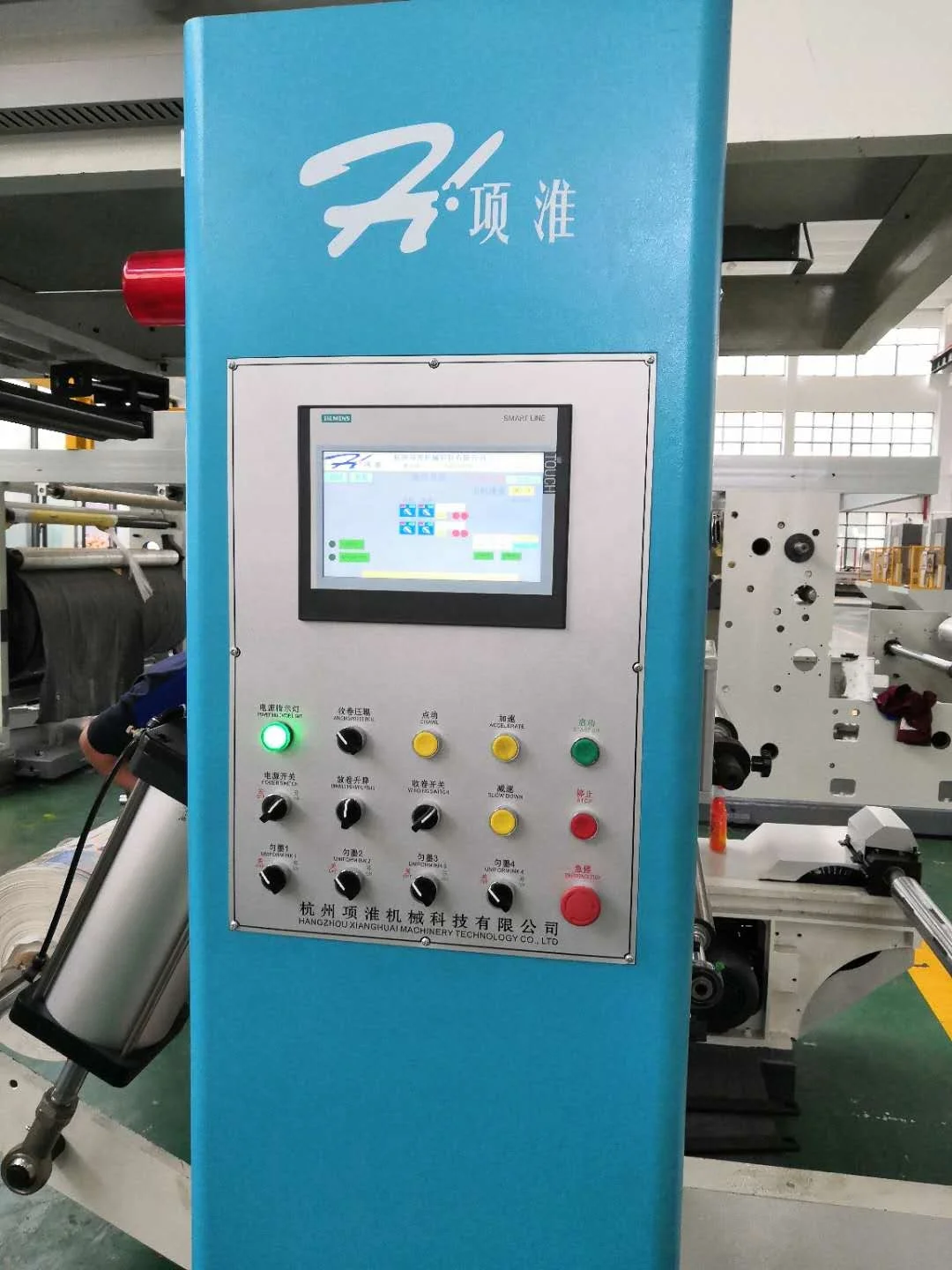

1). Easy operation, flexible starting, accurate color register, high quality flexo printing machine.
2).Frame: thick wall (75mm), longer bridges, the base, so the flexo pringting machine more stable
Suitable Material of the flexo printing machine
1) Paper:
Kraft paper: 40 ~ 350g/m2, single-sided coated paper: 30 ~ 350g/m2, copy paper: 15 ~ 350g/m2, firecrackers and paper: 40 ~ 350g/m2
paper money and incense: 25 ~ 350g/ m2, silicone paper : 50 ~ 350g/m2, coated paper: 30 ~ 350g/m2, dust-free paper: 25 ~ 350g/m2
release paper: 40 ~ 350g/m2composite paper, 30 ~ 350g/ m2
2) Woven:
woven :15-120 grams,non woven fabric :15-350 grams
3) Film:
PVC: 15 ~ 120μm, OPP: 15 ~ 100μm, BOPP: 15 ~ 100μm, PE: 15 ~ 150μm, NY: 15 ~ 120μm, PET: 10 ~ 100μm, CPP: 15 ~ 100μm
Printing sample
Our service
Payment | |
Mini order | 1 Set |
Delivery time
| 30-40 days after receive the deposit (different machine has different produce time). |
Packing and Marking
| By standard export packing. If have Mark, please tell us before shipment. |
Installation
| If need our engineer go to your country to install, please repare the material and bulid machine firstly. Also buyer should take charge the tickets go and back, live, food and salary of our engineer. |
Guarantee
| One year, machine trouble is caused by nature not by human force from delivery time . Easily wear parts also is one year. after sale service for all life. |
- Understand your needs
- Individual machine is designed upon user's need
- In-time service
- On-line / overseas technical support
- Fast delivery
- Always here for your service
Company Information
Hangzhou XiangHuai Machinery Technology Co., LTD. was founded in 2008, is a science and technology enterprise specialized in the production of flexible packaging equipment and related equipment, R & D, manufacturing flexographic printing machinery and equipment. Our company’s main products are: roll paper printing machine, four-color printing machine, paper printing machine, woven bag printing machine, printing machine, garment printing machine, heat transfer machine, garment printer, and related equipment etc. At present, our products have been widely used in printing, packaging, pharmaceutical and other related industries, the products are sold throughout the country and exported to the United States, Canada, Russia, Argentina, India, Brazil, Egypt, South Africa, Southeast Asia, dozens of countries and regions.
The company since its inception, and constantly improve the process equipment, technical team has continued to grow, with independent research and development, the printing industry related equipment independent design, manufacturing and installation debugging capabilities, access to the domestic and foreign customers praise. Customer service customer service based on the needs of the company established a perfect customer service platform technology consulting service system, welcome to cooperation with us!
ain
Exihibition Show
FAQ
Q:Can your products be customized?
A:Almost all of our machines can be customized,including the size, color,logo, package and so on.
Q: I need a quotation/How much is your price?
A: Please tell us your materials, width of your material, how many colors do you need.
Then we will know which machine is suitable for your and suggest the right machine for you.
Q: What's your delivery time?
A: Usually finish the production within 30 workdays(for normal stack type machine) and 90~120 workdays(for CI type machine) after your 30% advanced payment.
Actually need to check according our stock & production plan.
Q: How to get machine's price?
A: Please provide follows informations:
(1) How many colors you need to print?
(2)Material width and effective print width.
(3)What material to print?
(4)The photos of printing sample quality.
Q: How long is your machine's warranty period?
A: All our machine have one year guarantee, starting from finished installation.
Q: How could we do if the parts broken within warranty?
A: We would express the free replacement parts during the warranty date.
