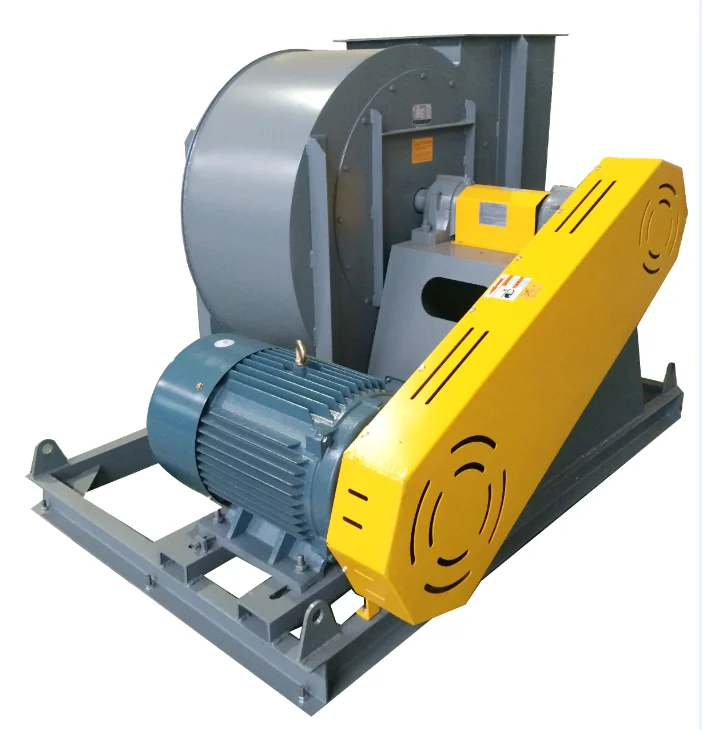

CE FREE Standing V belt Driven Long Lifetime Centrifugal Blower Fan
- Category: >>>
- Supplier: Wuxi Luoshe Jiangnan Fan Factory
Share on (62338819837):
Product Overview
Description
Details Images
Model | Power (kW) | Rotation Speed (r/min) | Volume Flow (m³/h) | Total Pressure (Pa) |
3.5A | 1.5 | 2800 | 552-847 | 2745-2744 |
4A | 2.2 | 2800 | 824-1264 | 3584-3597 |
3 | 2900 | 1410-1704 | 3507-3253 | |
4.5A | 4 | 2900 | 1174-2062 | 4603-4447 |
5.5 | 2900 | 2281-2504 | 4297-4112 | |
5A | 7.5 | 2900 | 1610-2844 | 5697-5517 |
11 | 2930 | 3166-3488 | 5323-5080 | |
5.6A | 11 | 2930 | 2262-3619 | 7182-7109 |
18.5 | 2930 | 3996-4901 | 6954-6400 | |
6.3A | 18.5 | 2930 | 3220-5153 | 9149-9055 |
30 | 2950 | 5690-6978 | 8857-8148 | |
7.1D | 37 | 2950 | 4610-7376 | 11717-11596 |
55 | 2970 | 8144-9986 | 11340-10426 | |
8D | 75 | 2970 | 6594-11649 | 15034-14546 |
110 | 2980 | 12968-14287 | 14021-13362 | |
8D | 7.5 | 1450 | 3297-4616 | 3620-3647 |
15 | 1450 | 5275-7144 | 3584-3231 | |
9D | 15 | 1450 | 4695-7511 | 4597-4551 |
22 | 1450 | 8294-10171 | 4453-4101 | |
10D | 30 | 1470 | 6440-12450 | 5840-5495 |
37 | 1480 | 13952-15455 | 5244-4958 | |
11.2D | 45 | 1480 | 9047-15380 | 7384-7236 |
75 | 1480 | 17491-21713 | 6927-6246 | |
11.2D | 15 | 970 | 5990-11580 | 3182-2996 |
22 | 970 | 12978-14375 | 2860-2705 | |
12.5D | 75 | 1480 | 12577-18447 | 9229-9310 |
110 | 1480 | 21381-30186 | 9068-7822 | |
14D | 220 | 1490 | 30040-42409 | 11464-9878 |
75 | 990 | 19888-28078 | 4917-4249 | |
16D | 400 | 1490 | 26377-63305 | 15425-13035 |
110 | 990 | 29687-41912 | 6456-5575 | |
17D | 500 | 1490 | 61200-75900 | 16356-14715 |
160 | 990 | 40500-50300 | 7169-6450 | |
18D | 630 | 1490 | 72600-90100 | 18336-16497 |
200 | 990 | 48100-59700 | 8037-7231 |

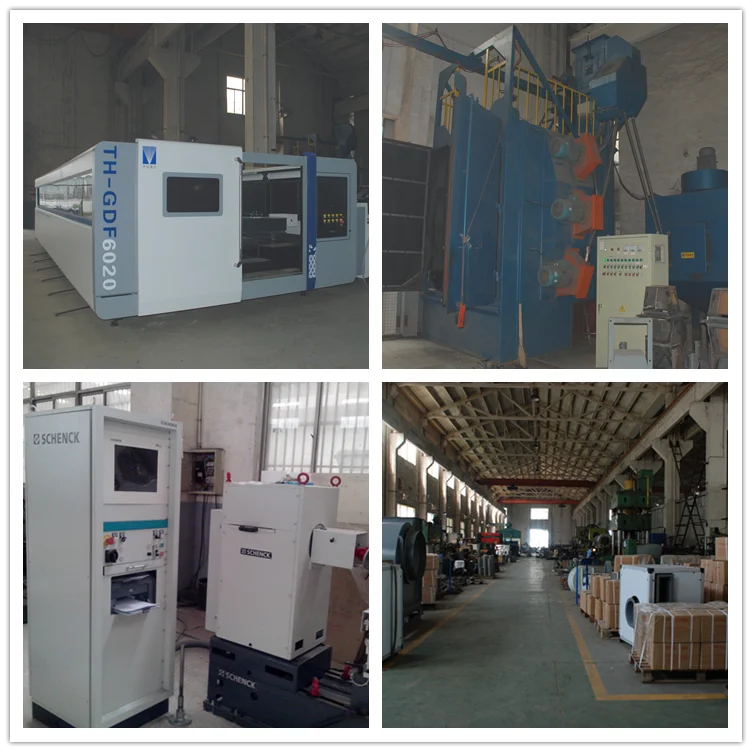

Manufacturing Technique
Our Services
1.Provide the technical design and solutions
2.Designing and manufacturing of non-standard equipment
2.Designing and manufacturing of non-standard equipment
3.Supply accessories at any time
4.Tele-technical consulting and services
5.Other special technical service according to client’s requirements
6.Close follow-up of all orders and keep customers informed timely
7.Product quality and delivery time is strictly controlled
4.Tele-technical consulting and services
5.Other special technical service according to client’s requirements
6.Close follow-up of all orders and keep customers informed timely
7.Product quality and delivery time is strictly controlled
Certifications
FAQ
Q1:What information do you need to select the suitable fan model?
A:air flow, total pressure or static pressure,voltage,working condition.
Q2:How long is the warranty time?
A:air flow, total pressure or static pressure,voltage,working condition.
Q2:How long is the warranty time?
A:one year in the condition of normal use.
Q3:Can you produce the OEM orders?
A:Yes,we have R&D dept which can provide professional solutions for you.
Q4:What kind of certificates can you provide?
A:Our factory have ISO9001 and CE certificates.
Q5:How do you control the product's quality?
A:All the products have quality testing and dynamic balance before delivery.
Q3:Can you produce the OEM orders?
A:Yes,we have R&D dept which can provide professional solutions for you.
Q4:What kind of certificates can you provide?
A:Our factory have ISO9001 and CE certificates.
Q5:How do you control the product's quality?
A:All the products have quality testing and dynamic balance before delivery.
